A Full-Range Wooden Speaker Within the R Series
The Montarbo R112 belongs to the R series, a range of wooden cabinet speakers from 8 to 15 inches, designed to combine output level and intelligibility. The goal of this series is clear: to provide precise reproduction, particularly in the vocal range, while maintaining a sober and professional aesthetic. The black finish and flush aluminum handles reinforce the "touring gear" look and facilitate everyday handling.
Intended Uses and Users
With its 12-inch driver and 2-way bass-reflex design, the R112 is a relevant choice for bands, DJs, service providers, and venues (concert bars, multipurpose halls, conferences) seeking an active speaker capable of serving as a main PA (front of house) or a stage monitor. Its EQ presets and directivity allow quick switching from a vocal/instrument configuration to a monitoring-oriented use without wasting time on complex adjustments.
DSP Processing, Presets, and Connectivity: A True Production Speaker
28/56-bit DSP and FIR Filters: Clarity and Control
The onboard digital processing relies on a 28/56-bit DSP and FIR filters. Practically, this aims for a smoother response and a more intelligible listening experience, especially when pushing the system. For vocals, keyboards, or acoustic sources, this approach helps maintain cleaner and better-defined reproduction in the mix.
4 Equalizer Presets: Quick Adaptation to the Situation
The 4 preset equalizers are selectable directly on the speaker. This is an advantage for adapting the R112 to different applications (PA, close range, monitor) and various environments without multiplying upstream adjustments. This flexibility is particularly appreciated during gigs when conditions change from one date to another.

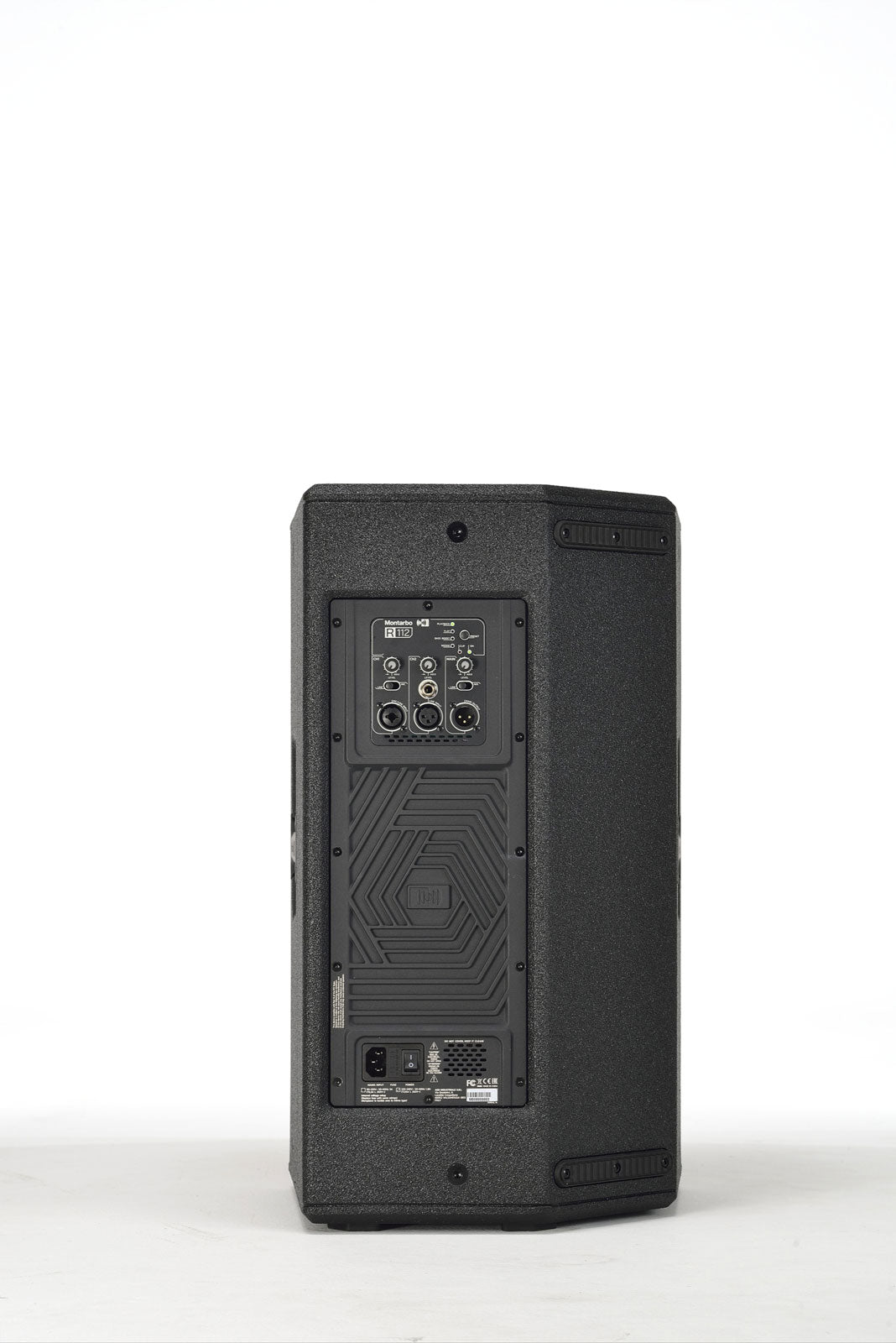

Two Input Channels and LINK/MIX Output
The R112 offers 2 input channels with independent level controls, including one combo mic/line input and an additional combo line input. On the output side, a selector allows choosing between a link (LINK) output or a mix (MIX) of the two channels. Convenient for daisy-chaining a second speaker or sending a coherent signal to another point in the system, depending on the setup.
Technical specifications
| System type | 2-way bass-reflex speaker | Cooling | Passive radiator |
| Maximum sound pressure level (@1m) | 131 dB | DSP | 28/56 bit |
| Frequency response (-10 dB) | 51 Hz - 20 kHz | Advanced functions | FIR filters |
| Dispersion (HxV) | 90deg x 40deg | I/O connectors | CH1: Combo, CH2: XLR-F + 6.35mm Jack, LINE OUT: XLR-M |
| Crossover frequency | 1500 Hz | Controls | Channel level, MAIN level, PRESET, channel 1 sensitivity, LINK/MIX output |
| HF | 1.75" driver | Enclosure | Multilayer wood with polyurea finish |
| LF | 12" - 3" voice coil | Dimensions (W x H x D) | 359 x 610 x 350 mm (14.2" x 24" x 13.8") |
| Peak power | 1200 W | Weight | 21 Kg (46.3 lbs) |
Questions frequently asked
Is the Montarbo R112 suitable as a stage monitor?
The 90° x 40° dispersion and EQ presets allow the speaker to be adapted for use as a stage monitor. The 12-inch driver operates in a 2-way bass-reflex design.
What sound power does this 12-inch speaker achieve?
The maximum sound pressure level announced reaches 131 dB at 1 meter.
What connections are available on the R112?
Two input channels are provided, with a combo mic/line input on channel 1 and a line input on a female XLR/6.35 mm jack combo on channel 2. The male XLR output can be set to LINK or MIX mode. Channel levels can be controlled independently.
Does the R112's DSP provide settings for vocals?
A 28/56-bit DSP combined with FIR filters ensures digital processing. Four EQ presets can be selected directly on the speaker to adjust playback or monitoring.
What is the weight and construction of the speaker?
The multilayer wooden enclosure features a polyurethane finish and weighs 21 kg. Its dimensions are 359 x 610 x 350 mm, with flush aluminum handles for handling.
