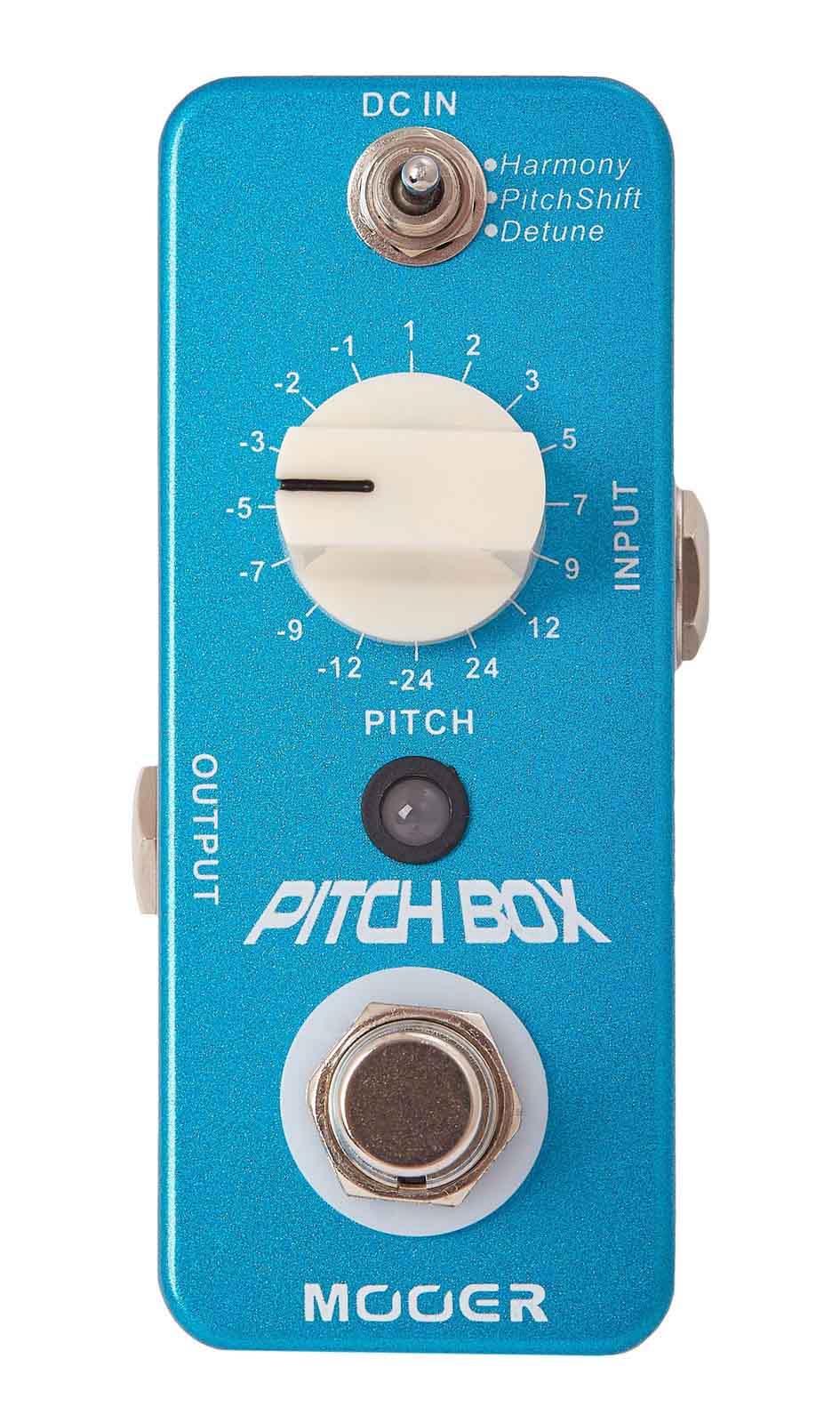

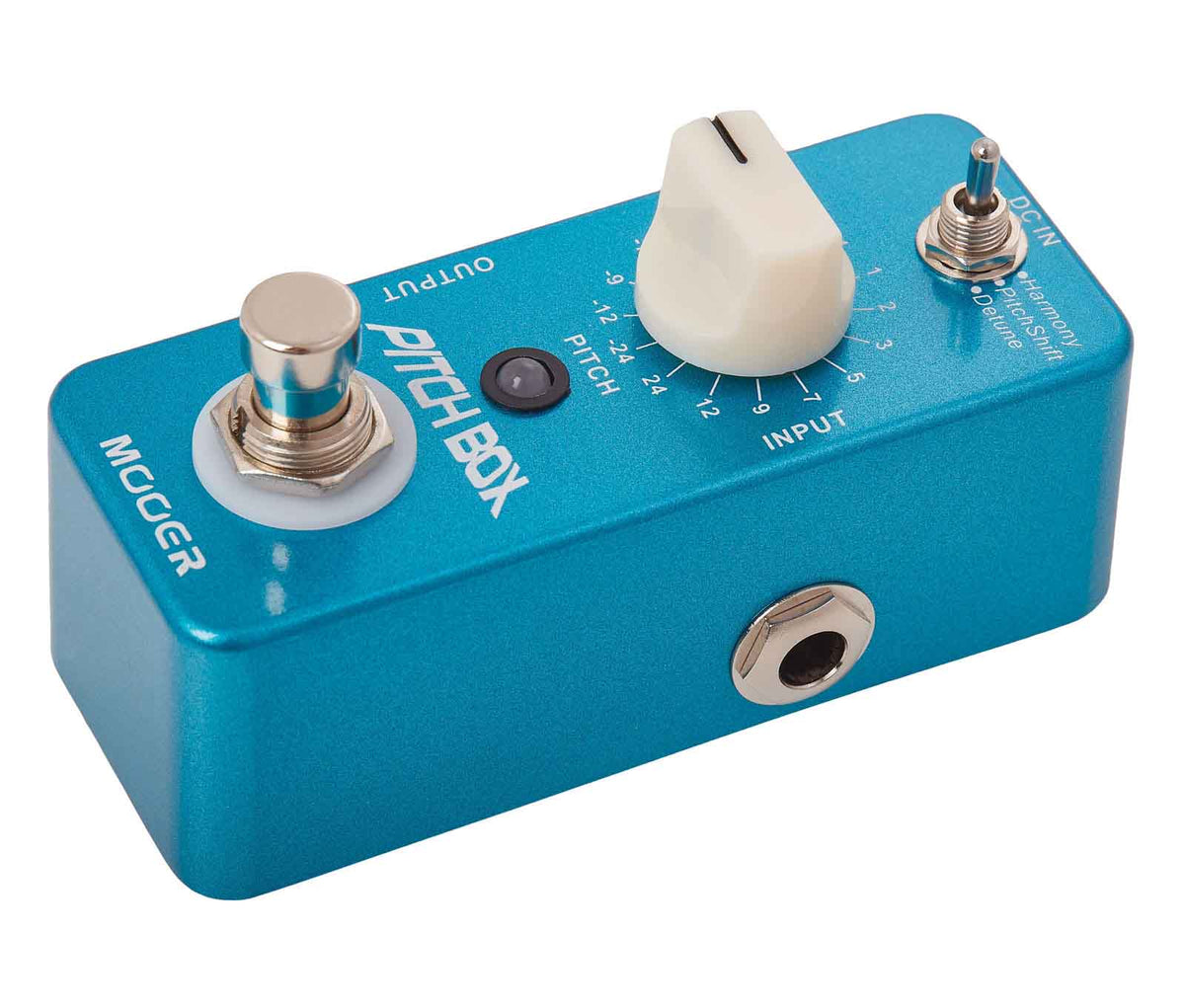

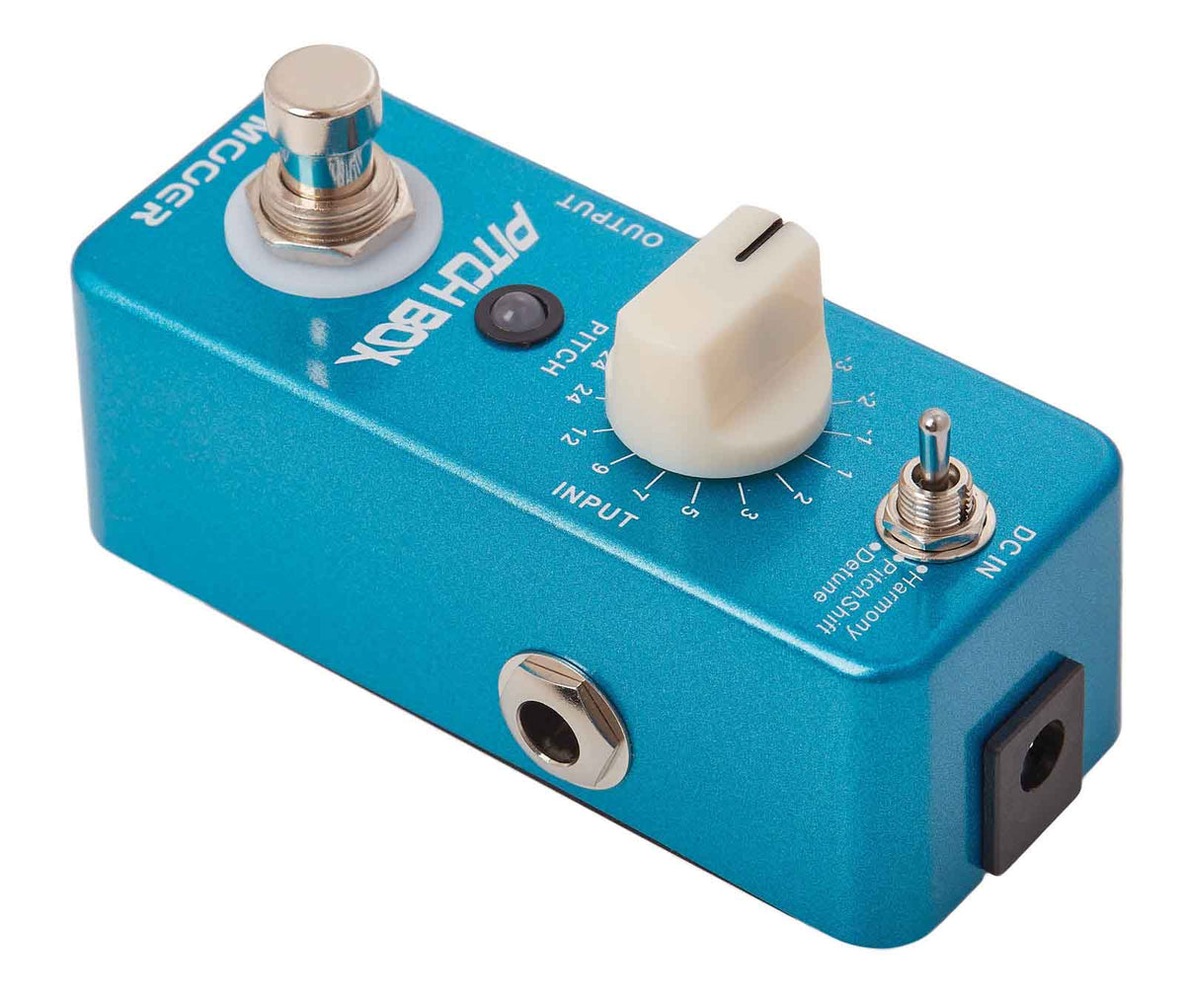

Mooer Pitch Box

An Essential "Pitch" Effect: From Harmonization to Modern Transposition

Pitch effects are among the most inspiring tools to expand a guitar's palette: creating a second voice above (or below), simulating doubling, thickening a lead sound, or inventing almost synthetic textures. The Pitch Box follows this tradition by offering three complementary approaches: harmonization (Harmony), straightforward transposition (Pitch Shift), and subtle detuning (Detune). The result: a single pedal covering both the "intelligent" needs of a harmonizer and the more experimental pitch shifting effects.

Who Is the Pitch Box For, and Which Styles Does It Excel In?

The Pitch Box is aimed at guitarists and bassists who want to enrich their playing without multiplying pedals. In rock and metal, it allows you to thicken a solo with immediate harmonization, create massive octaves, or achieve singing intervals on a riff. In pop and indie, the Detune mode provides a very musical width, close to a subtle chorus but with a more airy character. In ambient and post-rock, combining light detune with delay and reverb opens up wide soundscapes, perfect for filling space both in the studio and live.

Its very compact size is a real asset if you're building a minimalist pedalboard, a backup rig, or a "fly" setup. And thanks to true bypass, it integrates easily into an existing chain, whether you play through a clean amp, a crunch channel, or a pedal platform.

Modes, Settings, and Handling: A Pedal Designed for Exploration

The Pitch Box offers 3 complementary modes. The Harmony mode shifts the pitch and blends it with the dry signal to create a rich harmonized voice, immediately usable for lead playing. The Pitch Shift mode delivers a precise polyphonic transposed voice, useful for octaves, clear intervals, or "virtual" retuning effects within certain limits. Finally, Detune applies a very slight pitch shift mixed with the original signal: the result is a width and movement effect close to a chorus, with a "spacy" character perfect for giving a sound room to breathe.

The pitch range goes up to plus or minus 2 octaves, and the presence of 16 optional parameters provides room to finely adjust the playing feel and sound (depending on the chosen mode, the mix level, intensity, or tone can become real sound sculpting tools). In terms of integration, the pedal remains simple: one input, one output, and a mini format that doesn't take up much space on the board.

Sound

The Pitch Box stands out with a modern and clean approach to pitch: the transposed voice is designed to remain clear, with a solid sense of tuning, especially appreciated when stacking distortion, delay, or reverb afterward. In Harmony, the effect adds harmonic thickness reminiscent of a double-tracked guitar, ideal for highlighting a melodic line without raising the volume. In Pitch Shift, you get clear transpositions for octave riffs, controlled "fake doubling" effects, or more radical colors. And in Detune, width is the priority: subtle movement, a more diffuse brightness, and a sense of space that adds depth to both cleans and crunch tones.

True bypass helps preserve dynamics when the effect is off, which appeals to guitarists sensitive to touch and playing responsiveness (pick attack, right-hand nuances, guitar volume).

Technical specifications

Effects	Octaver / Harmony, Chorus	Type	sector
Technology	Digital	Use	electric guitar
Format	Pedal	Color	Blue

Effect pedal	Pitch	Output	6.35mm mono jack (impedance: 100 ohms)
Modes	Harmony, Pitch Shift, Detune	Enclosure	metal
Transposition range	plus or minus 2 octaves	Dimensions	93.5 mm (depth) x 42 mm (width) x 52 mm (height)
Parameters	16 optional parameters	Weight	170 g
Bypass	true bypass	Required power supply	9V DC adapter (center negative)
Input	6.35mm mono jack (impedance: 470k ohms)	Consumption	128 mA
