A Modernized 828: The MOTU Spirit, Current Studio Version
The 828 series is among MOTU's most appreciated interfaces for its versatility in a 1U rack and its ability to serve as the studio hub. This 2024 revision retains the all-in-one DNA (extensive I/O, routing, monitoring control) while delivering a more modern experience with a new color display, improved adjustment precision, and network integration via CueMix 5 to manage your mixes and control room more smoothly.
Who It's For and What It's For: Recording, Monitoring, Streaming, and Hybrid Sets
The MOTU 828 (2024 revision) targets demanding home studios, project studios, and live setups that want a rack interface capable of handling everything: mic inputs with high gain, analog banks for synths and outboard gear, ADAT for expansion, and flexible monitoring (A/B, talkback, multiple headphones). It's also highly relevant for content creators: the loopback function allows mixing system audio with your live inputs for streaming, podcasting, or online classes without complex routing.
Another major asset for electronic musicians: the DC-coupled TRS outputs can control modular synthesizers from your DAW via control voltage (CV), enabling integration of a modular system into a coherent audio/MIDI workflow.
DSP, Latency, and Connectivity: A True Audio Powerhouse
Two "Ready-for-Anything" Preamps with Dedicated Inserts
The 2 mic/line/guitar inputs on XLR/TRS "combo" connectors are designed to cover vocals, instruments, and direct inputs. Each mic input features individual gain (up to +74 dB), 48 V phantom power, a -20 dB pad, phase inversion, remote control, and dedicated inserts. Insert returns can also serve as additional line inputs when mic inputs are unused, ideal for adding an external preamp, console channel, or effects chain.
Hardware DSP Mixing and Effects for Comfortable Monitoring
At the core of the interface, the 24-input DSP digital mixer offers 8 stereo buses and DSP effects (reverb, 4-band EQ, gate, and compressor). You build headphone mixes and submixes without loading the session, with stable tracking behavior. Hardware (direct) monitoring is available for each pair of analog outputs and both headphone outputs via 8 mix buses.
CueMix 5 Control, Wi-Fi, and Network Functions

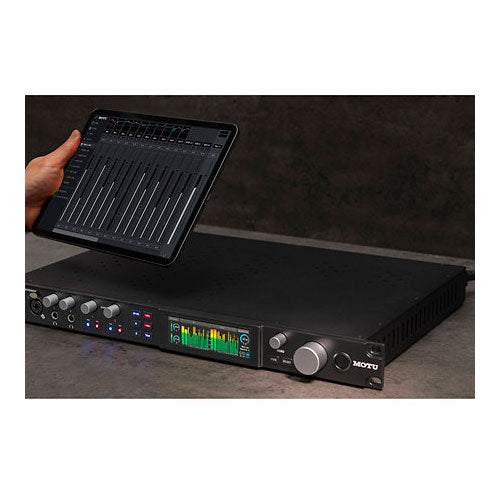

The 828 is controlled via the CueMix 5 app on Mac, PC, or iOS. Wi-Fi control is possible from multiple mobile devices (through a computer connected via USB on the same network). Network management features include device discovery on the network and password protection for each interface. For studio monitoring, you benefit from control room functions including talkback and A/B monitor selection accessible from the software or front panel controls.
Universal USB3, Plug-and-Play on macOS and iOS
USB3 connectivity at 5 Gbps (USB2 compatible) ensures easy integration with most workstations. In USB Class Compliant mode, the interface works plug-and-play on macOS and iOS (no driver required), convenient for mobile setups or quick configurations.
Modern Tools: Loopback and Re-Amping
For online content, the loopback function mixes the host software output with live inputs. For guitar production, re-amping is provided with near-zero latency loop to simultaneously record dry guitar signal and a miked amp, then cleanly re-route the DI to an amp or simulator later.
Technical specifications
| Compatibility | PC, Mac |
| Sampling frequency | 192 kHz |
| Max resolution | 24-bits |
| Headphone outputs | Yes |
| Sampling rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| THD+N | -114 dB |
| Dynamic range | 118 dB |
| EIN | -129 dBu on mic inputs |
| Mic preamp gain | +74 dB |
| Per mic input | individual gain, 48 V phantom power, -20 dB pad, phase inversion, remote control, dedicated inserts |
| Control room functions | talkback and A/B monitor selection (via CueMix 5 or front panel controls) |
| DSP effects | reverb, 4-band EQ, gate, compressor |
| USB Class Compliant | plug-and-play operation on macOS and iOS (no driver required) |
Questions frequently asked
Does the MOTU 828 (2024) work driverless on Mac and iPad?
The USB Class Compliant mode enables plug-and-play operation on macOS and iOS without requiring a driver. The USB3 5 Gbps connection remains backward compatible with USB2.
What gain do the 828's mic preamps provide?
The two XLR/TRS combo inputs offer up to +74 dB of mic gain, with an EIN rated at -129 dBu. Each channel features 48 V phantom power, a -20 dB pad, and phase reversal. Dedicated inserts are included, and their returns can serve as additional line inputs.
Is zero-latency headphone monitoring possible with this interface?
The DSP mixer includes 24 inputs, 8 stereo buses, and direct hardware monitoring available on each pair of analog outputs as well as on the two headphone outputs.
Does the 828 support CV control for modular synthesizers?
DC-coupled TRS outputs allow sending control voltages from a DAW to a modular system.
How do loopback and CueMix 5 network control operate?
CueMix 5 enables mixing host software audio with direct inputs via the loopback function. Wi-Fi control is accessible from multiple mobile devices when a USB-connected computer is on the same network. Network management includes discovering multiple interfaces and password protection per device.
