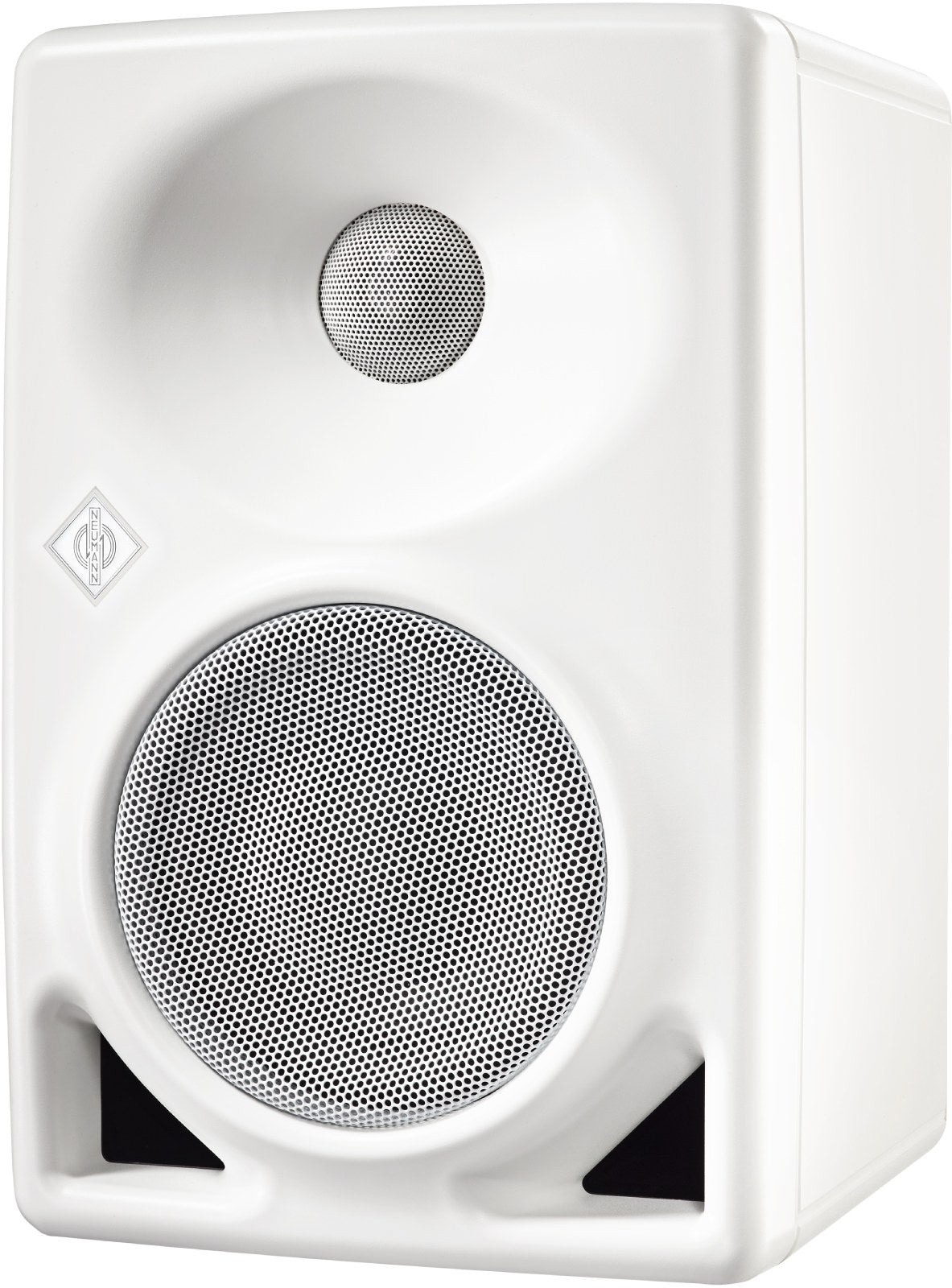

Neumann KH 80 W

A Reference Compact Model in the KH Range

At the heart of the KH series, the Neumann KH 80 DSP embodies the compact and modern approach to precision monitoring. Inheriting the brand's acoustic expertise, it concentrates the latest simulation and measurement technologies in a reduced format to deliver a reliable stereo image and consistent mixing/mastering translation, even at close distances.

For Which Uses and Studios?

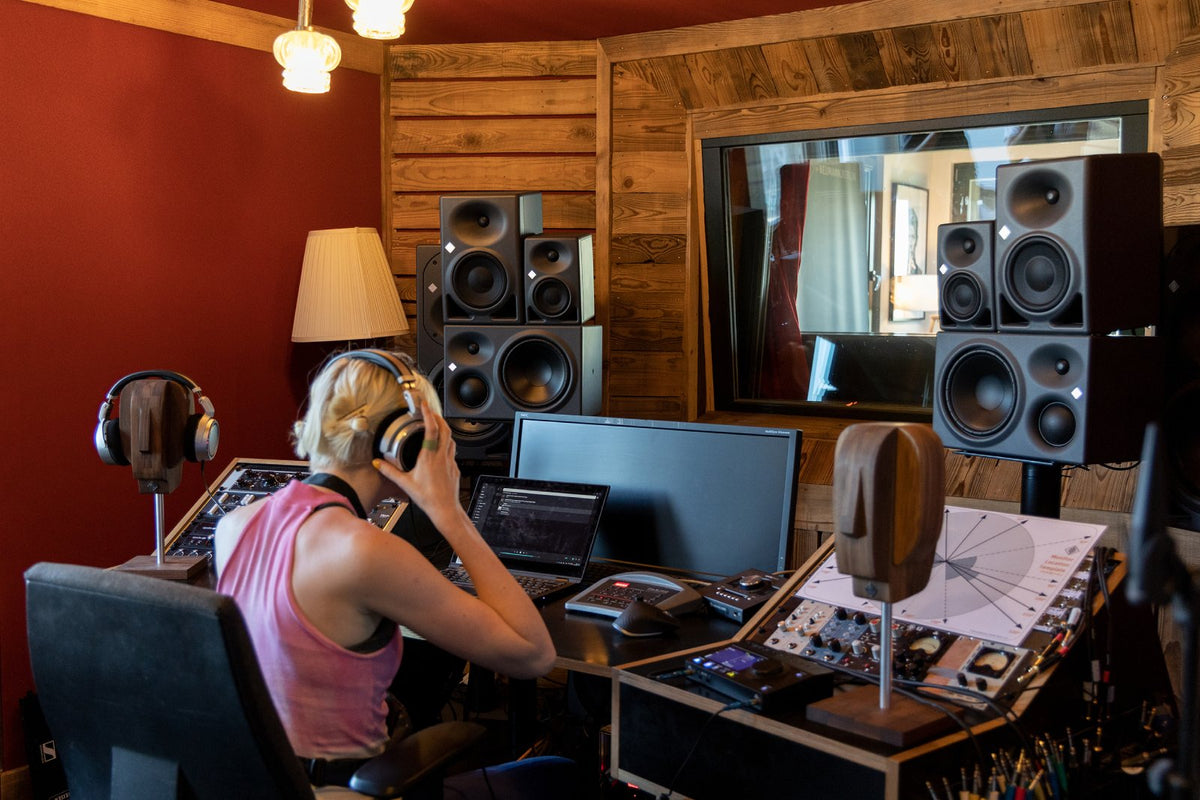

Ideal for nearfield listening, the KH 80 DSP fits perfectly in demanding home studios as well as broadcast control rooms, OB vans, and postproduction suites. It can serve as a front speaker in a small multichannel system, a rear speaker in a compact setup, or the main monitor for recording, mixing, and mastering in spaces with varied acoustics.

DSP, Controlled Directivity, and Built-in Safety

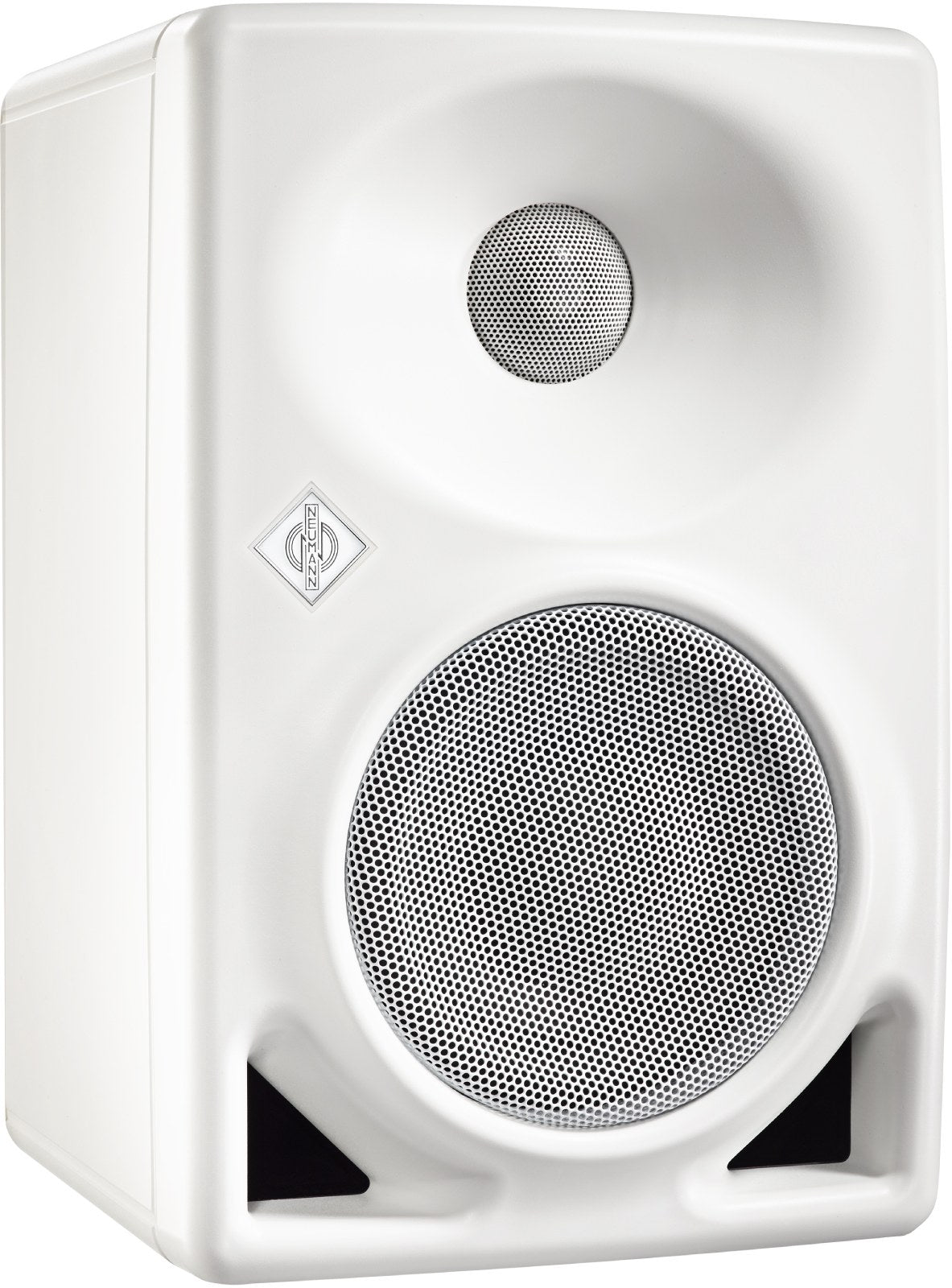

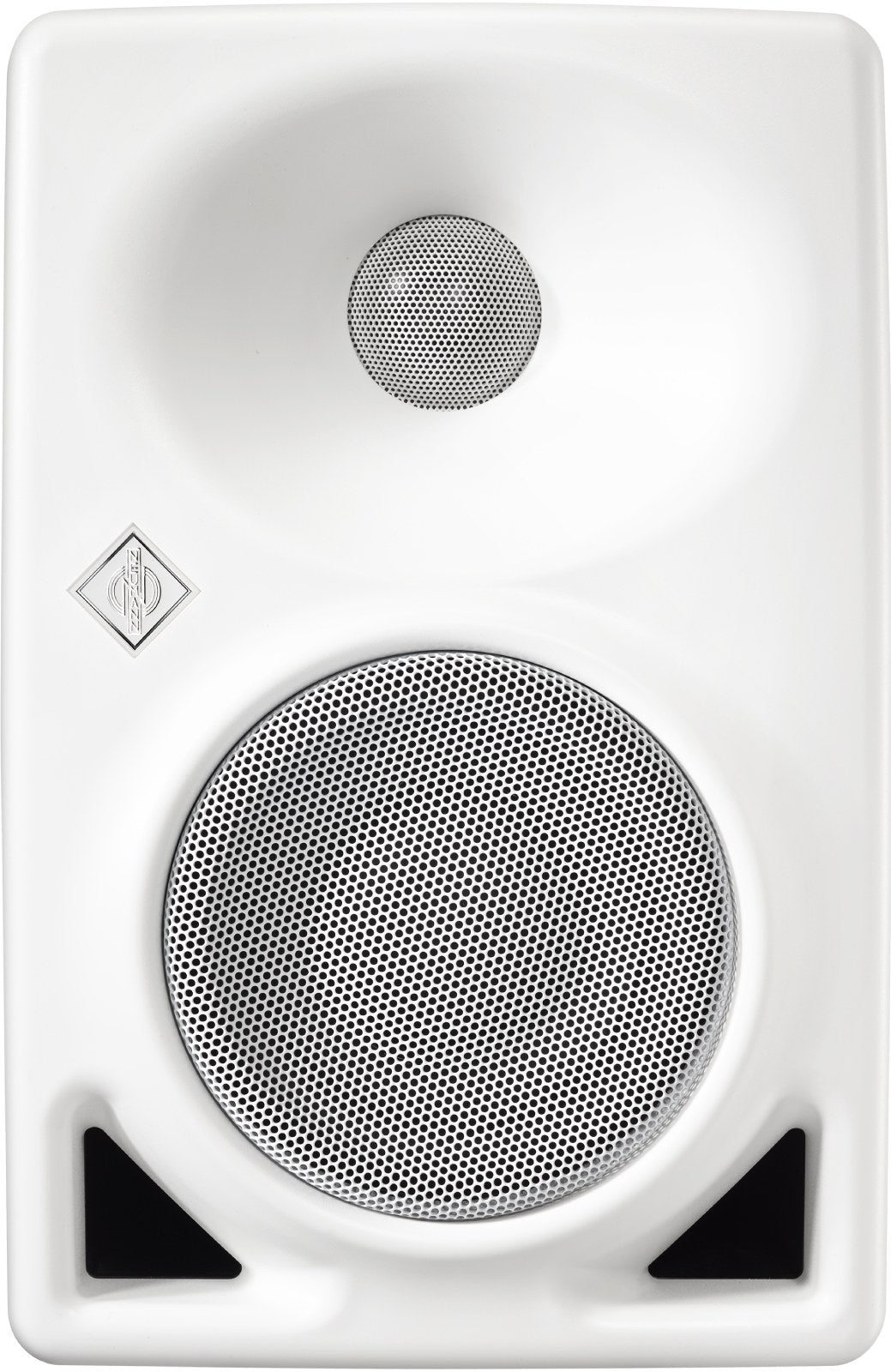

Its 24-bit/48 kHz DSP engine drives an 8th-order linear phase crossover filter, ensuring a clean junction between the 4" woofer and 1" tweeter. The "Mathematically Modeled Dispersion" waveguide controls dispersion to reduce reflections, stabilize the soundstage, and maintain off-axis accuracy.

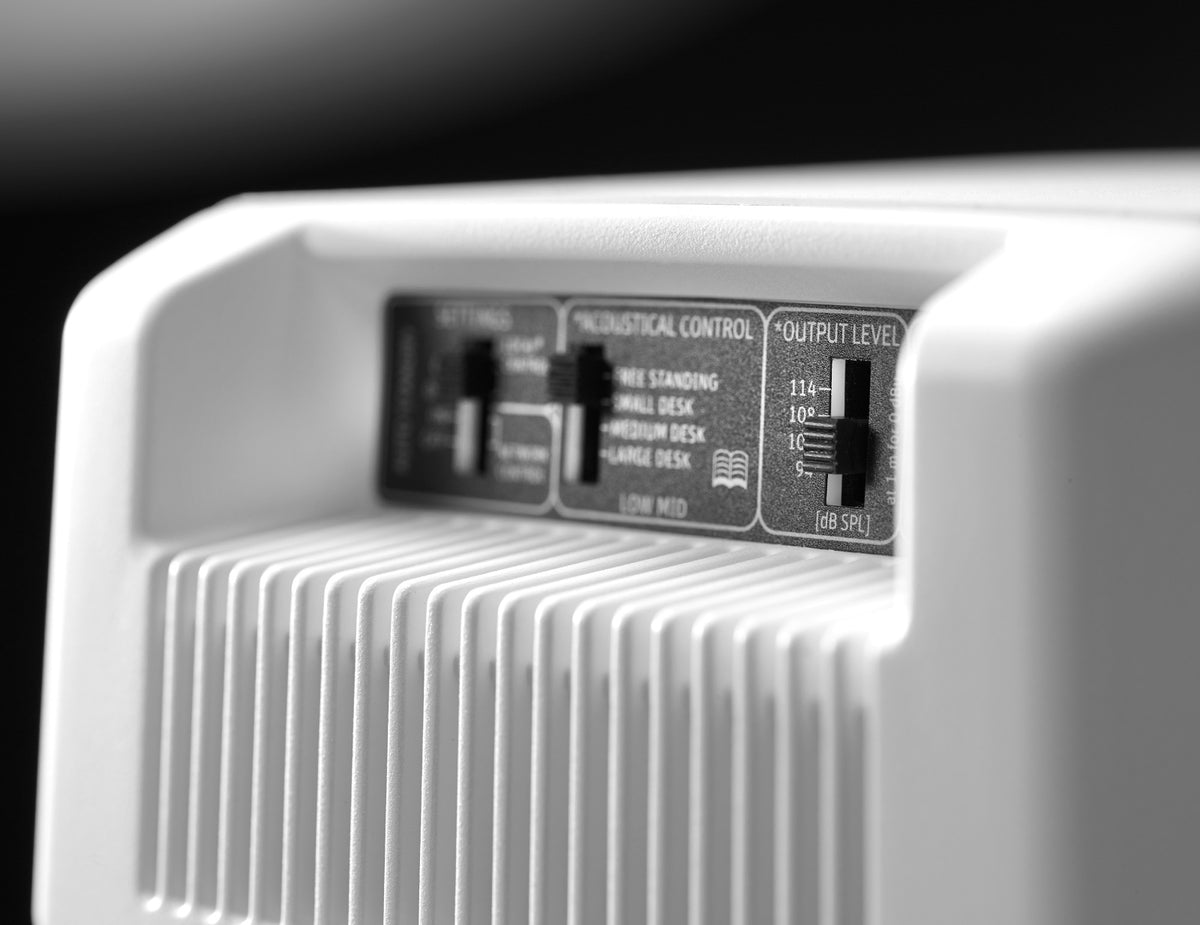

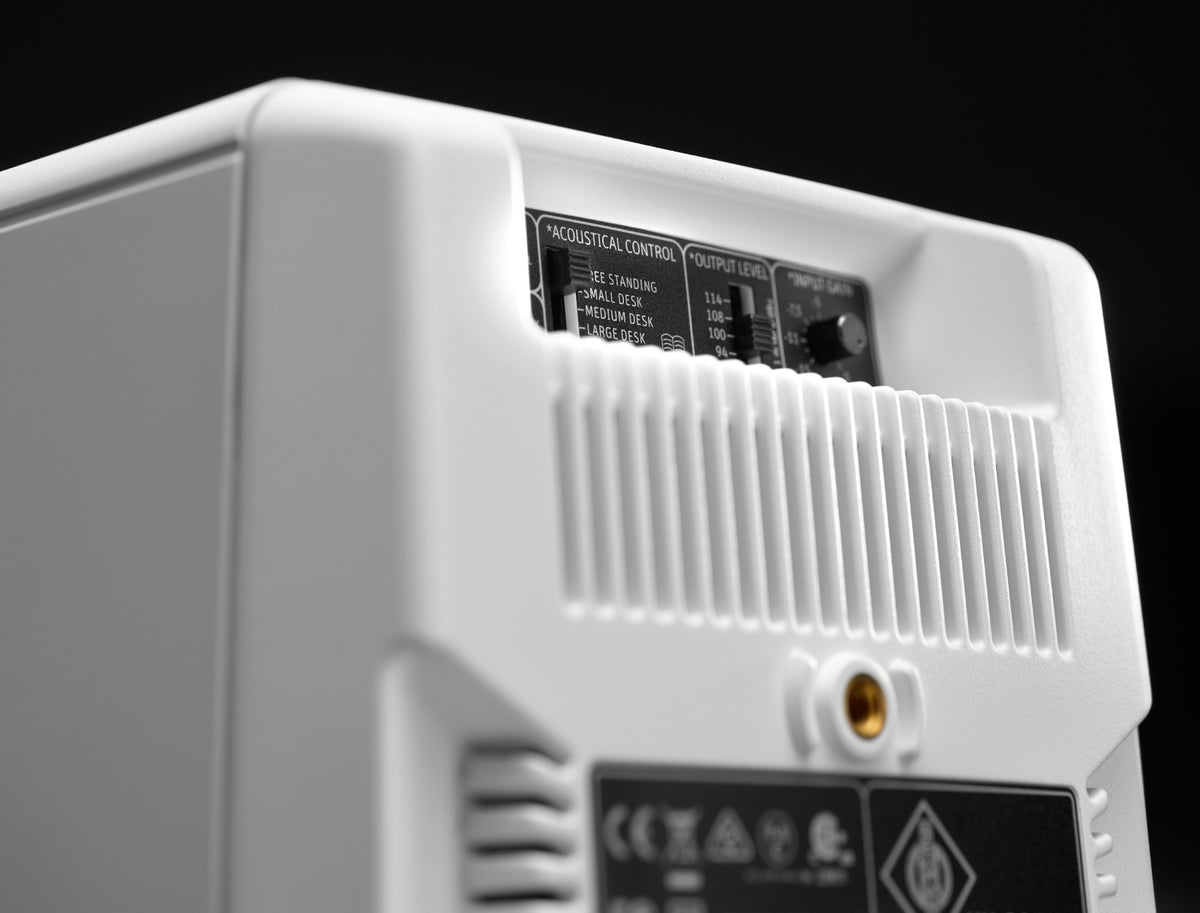

To adapt to the room, the KH 80 DSP features comprehensive acoustic controls: 4 positions for low-midrange, 8 IIR PEQ/first-order filters, and bass/treble shelf filters. A delay up to 70 ms with "Lipsync" parameters facilitates audio/video temporal alignment. Separate peak limiters per channel and thermal protection ensure reliability and endurance at high levels, with extremely low self-noise.

Technical specifications

Battery	No	EQ	Yes
Number of channels	2 channels	Inputs	XLR, RJ45
Bluetooth	No	Color	White

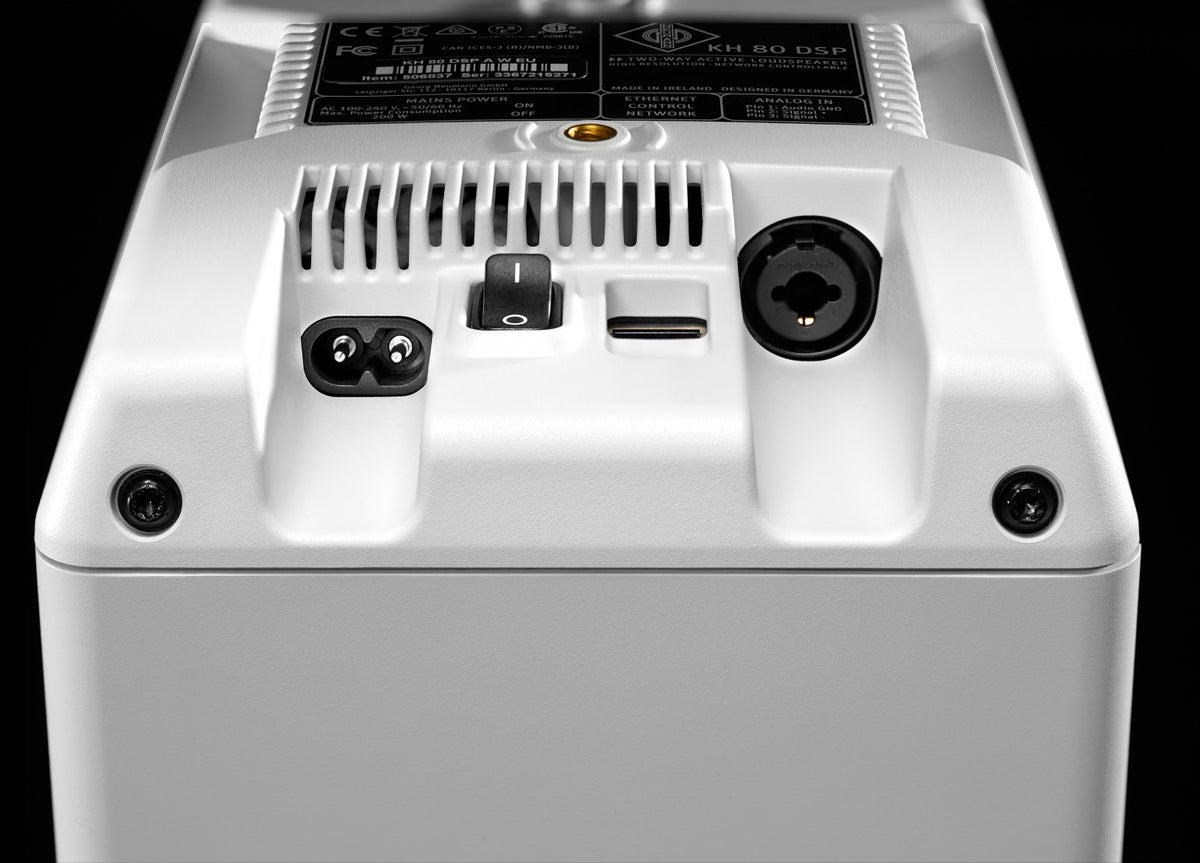

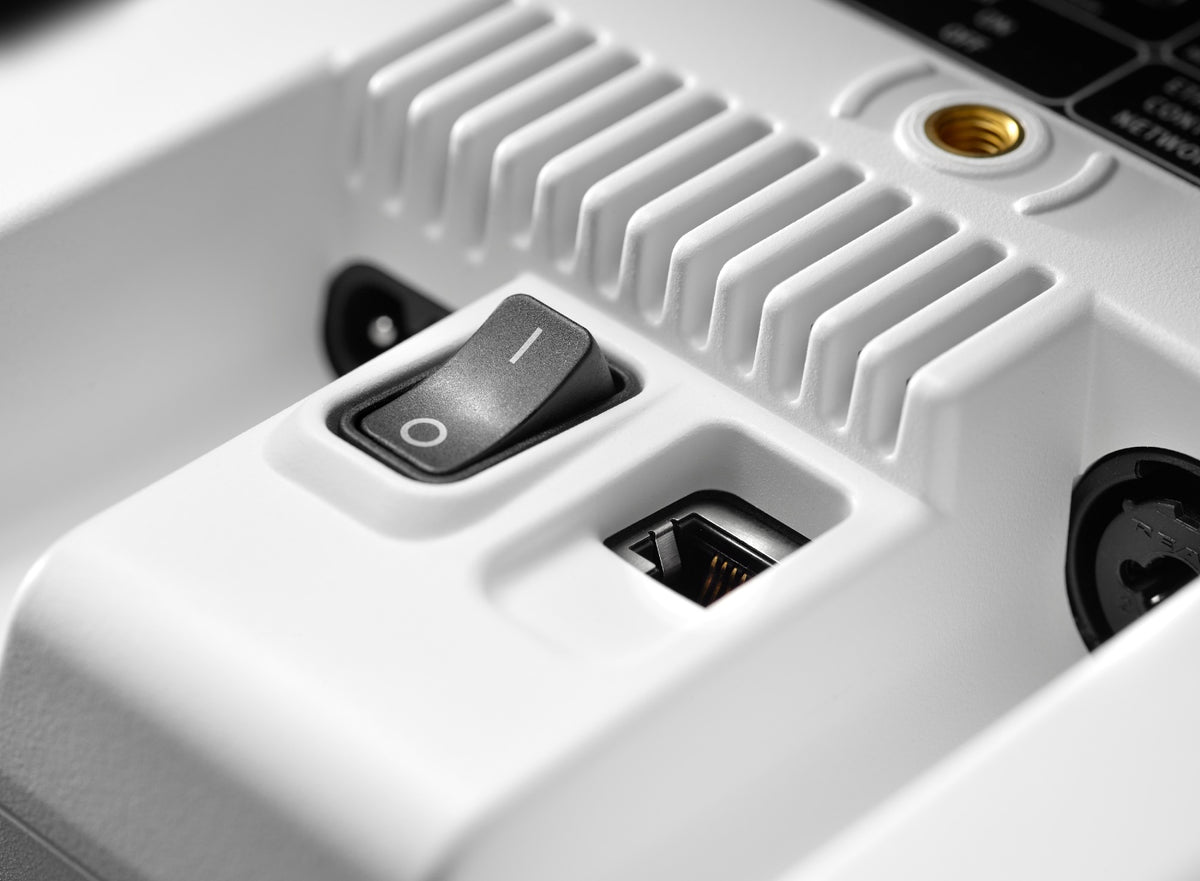

Connection	Combo, RJ45, XLR	Power output	140 W
Speaker diameter	1", 4"	Quantity	1
Number of speakers	2

Total power	140 W (90 W LF + 50 W HF)	Self-noise	< 20 dB(A) at 10 cm
Max SPL	108.8 dB	Analog input	symmetrical XLR

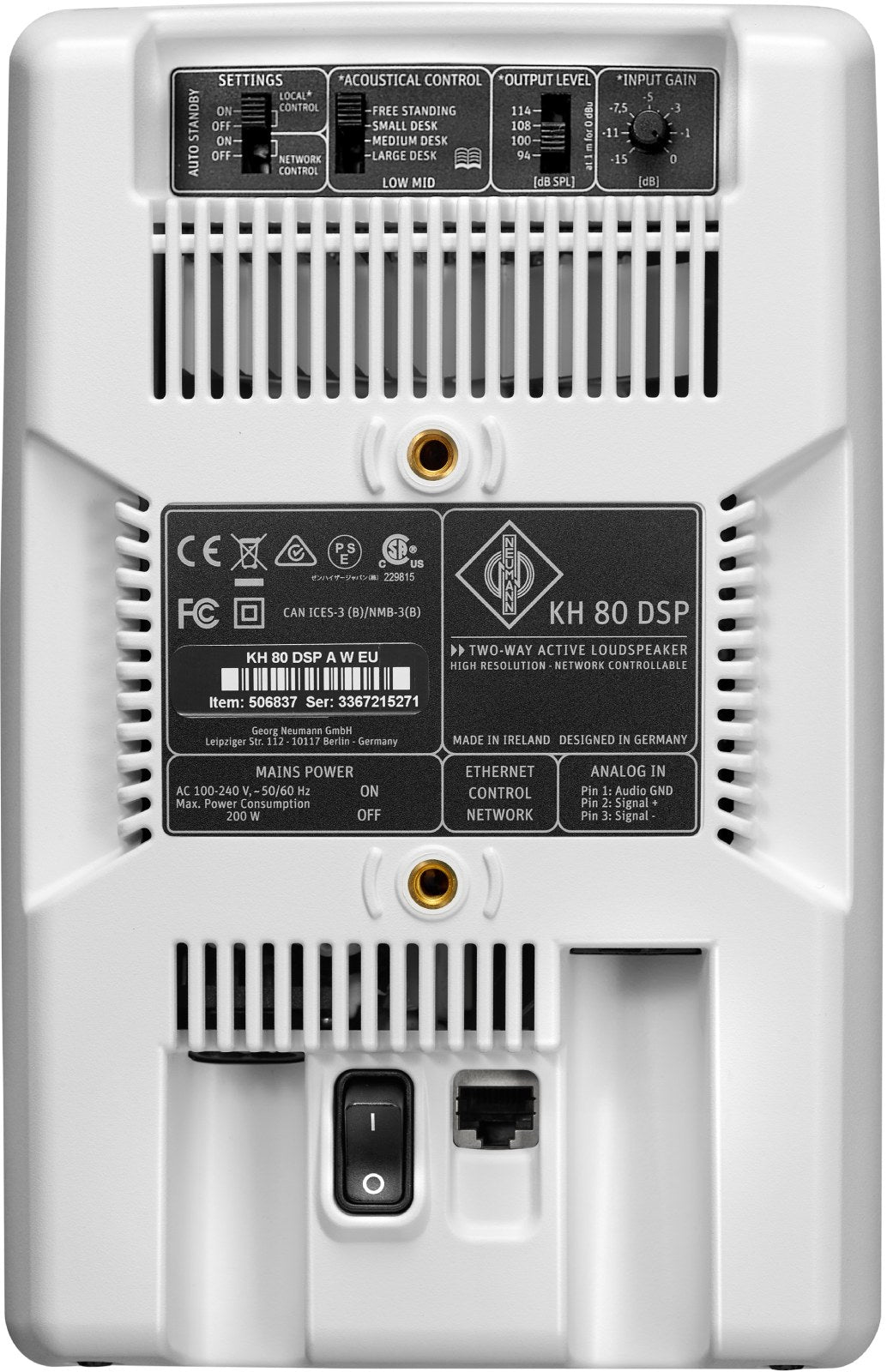

Internal resolution	24 bits / 48 kHz	Control panel	standby and acoustic settings
Room acoustic controls	4 positions for low-midrange	Dimensions (H x W x D)	233 x 154 x 194 mm
Frequency response	57 Hz - 21 kHz (+/- 3 dB)	Weight	3.5 kg
