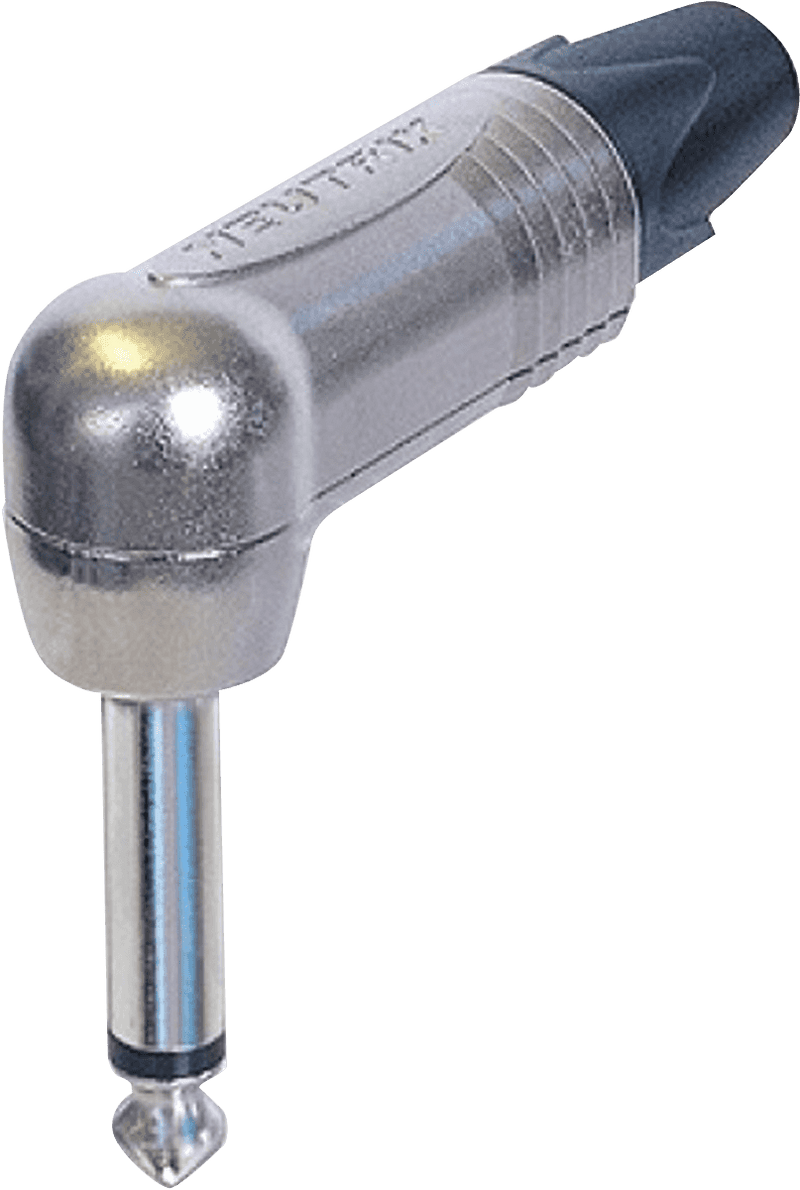

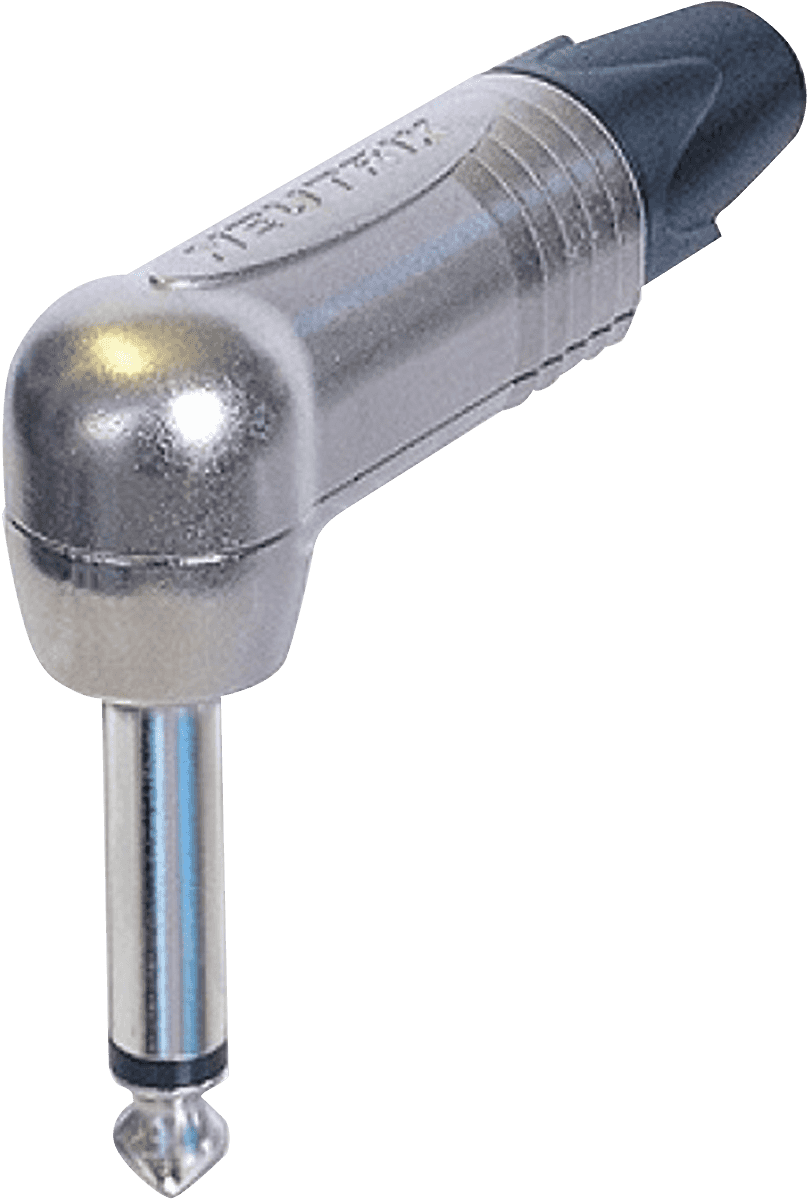

The Essentials to Know About the Neutrik NP2RX
- 6.35 mm angled jack 2-pole connector, designed for tight spaces and crowded pedalboards
- All-metal body with nickel-plated shell for excellent durability and better protection against interference
- One-piece machined contacts, rivet-free, for smooth plugging and a more reliable tip
- Neutrik chuck-type strain relief: secure cable hold and increased pull resistance
Technical specifications
| Connectors | Male mono jack | Format | angled |
| Ground | No | Molded connectors | No |
| Towards connectivity | 6.35mm mono male angled jack | Connector brand | Neutrik |
| To solder | Yes | Color | Grey |
| Category | Connector | ||
Questions frequently asked
Is the Neutrik NP2RX compatible with a mono jack cable?
This connector uses a 6.35 mm 2-pole male jack, designed for mono wiring. The cable end must be soldered to bare conductor.
Is a 6.35 mm right-angle jack suitable for a tight pedalboard?
The right-angle format and extra slim housing make it easier to access closely spaced jacks on a pedalboard or jackfield.
How is the cable secured in this jack connector?
The Neutrik chuck-type cable clamp provides progressive gripping around the cable. This design improves resistance to repeated pulls. Assembly requires soldering the conductors.
Is this Neutrik jack connector shielded against interference?
The all-metal body with nickel-plated housing helps reduce interference and protects the connector from shocks.
Is the tip of the connector riveted?
The contacts are machined from a single piece, without rivets, to ensure smooth insertion and consistent connection.
