A Versatile Reference in the New Concorde Range
Ortofon has reimagined its famous Concorde series to meet the demands of modern DJs. The simplified range includes five models - "MIX," "DJ," "SCRATCH," "DIGITAL," and "CLUB" - making it easier to choose according to usage. Positioned as the most versatile, the Concorde MIX emphasizes reliability and durability, featuring a reinforced body and optimized ergonomics for quick handling.
Intended Uses and Target DJs
The Concorde MIX is aimed at beginner to advanced DJs seeking a single cartridge to seamlessly switch between generalist sets, open-format, or hip-hop, while practicing back-cueing and scratching. It excels in clubs, bars, mobile gigs, residencies, and event contexts where robustness and ease of use are essential.
Features and Innovations

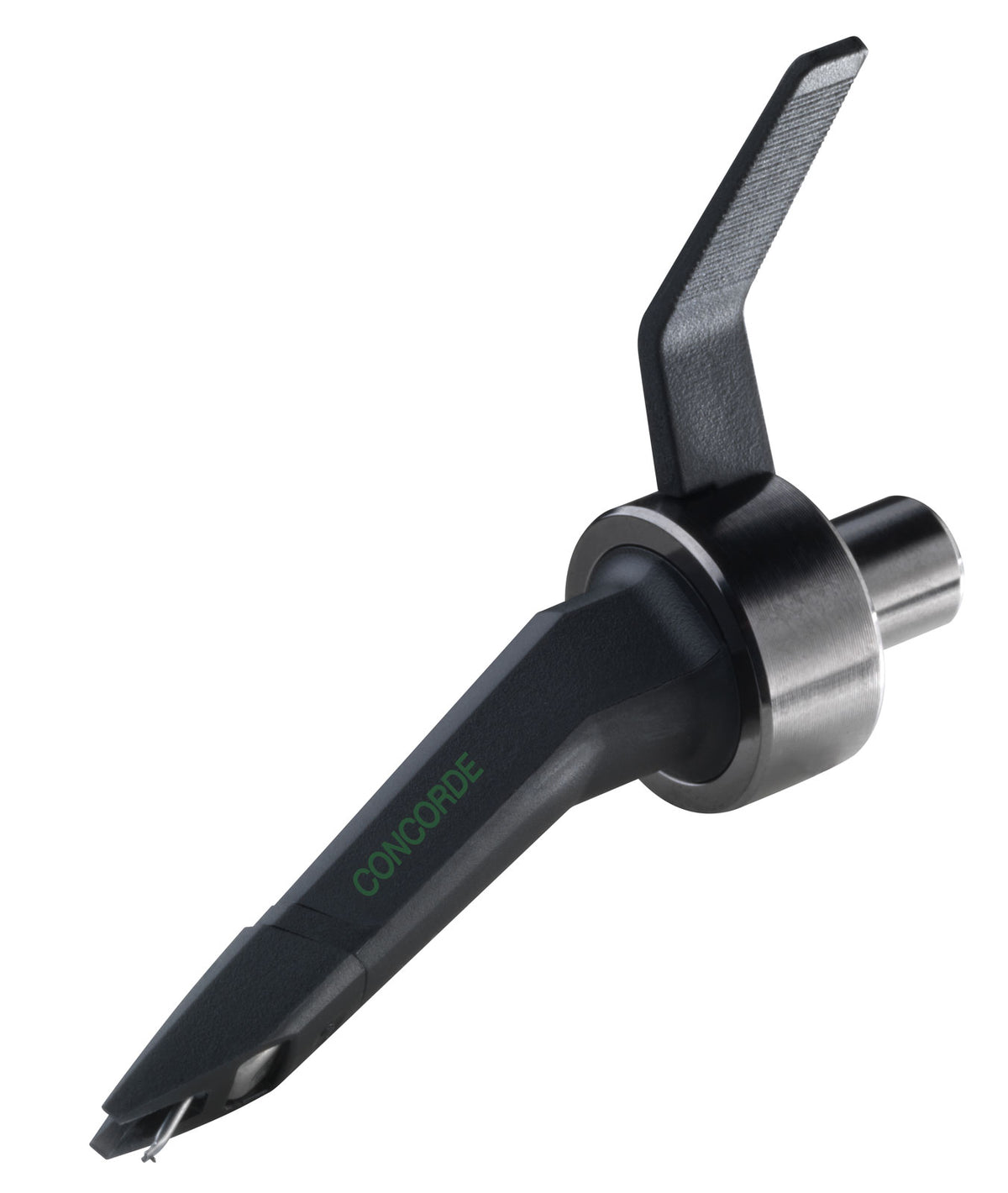

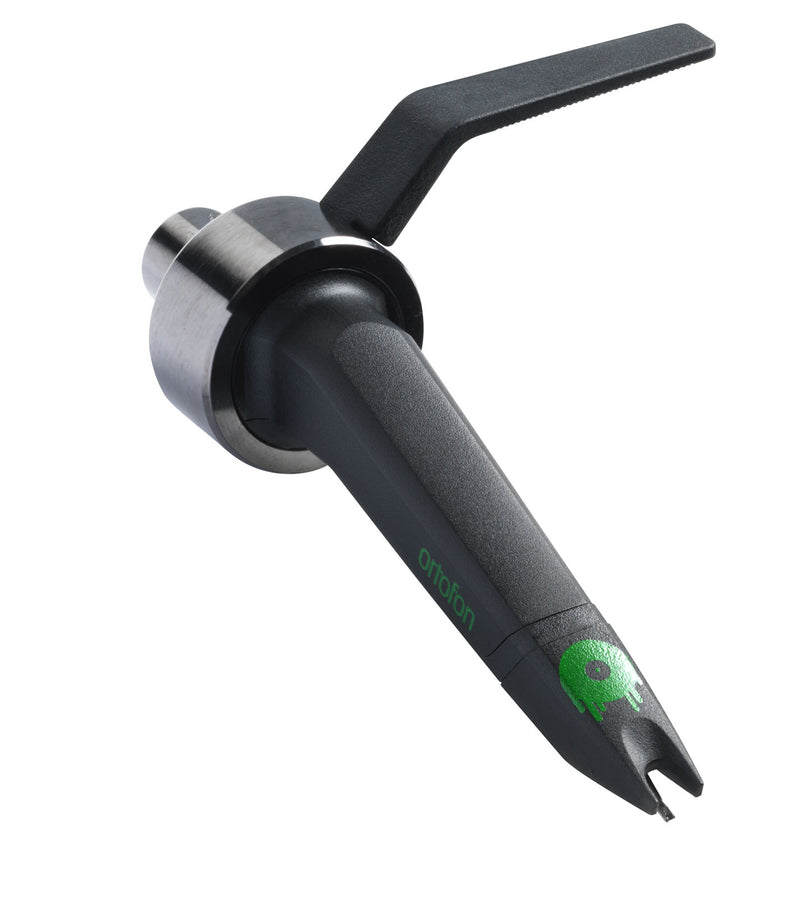

The new Concorde body, wider and sturdier, offers a better grip and a clear view of the stylus tip for precise cueing. The spherical stylus tip provides tolerance and protects records during aggressive techniques, while the solid cantilever ensures increased longevity. With a 6 mV output level, the MIX efficiently drives the phono inputs of mixers for clear and present sound. The recommended tracking force of 3 g guarantees excellent groove grip and playback stability. Within the Concorde family, the stylus is replaceable, offering customization options and simplified maintenance.
Technical specifications
| Frequency response | 20 Hz - 22 kHz | Destination | DJ |
| DJing type | Monitoring, Mix, Scratch | Diamond tip | spherical |
| Category | cell | Color | Black |
| Type | cell | Quantity | 1 |
| Output Level | 6 mV | Application | Versatile mixing, scratching, and back-cueing |
| Recommended Tracking Force | 3 g | Format | Concorde body for direct mounting on compatible tonearms |
| Stylus Type | Spherical | Maintenance | Replaceable stylus within the Concorde range |
Questions frequently asked
Is the Concorde MKII Mix suitable for scratching and back-cueing?
This model is designed for mixing, scratching, and back-cueing. Its spherical diamond and recommended tracking force of 3 g promote stable playback during vigorous handling.
What output level does this DJ cartridge deliver?
With an output level of 6 mV, the cartridge feeds the phono inputs of mixers.
What type of stylus tip is fitted on this cartridge?
The spherical diamond tip offers tolerance suited for scratching and back-cueing techniques. The cantilever is engineered to enhance longevity during regular DJ use. The specified frequency response ranges from 20 Hz to 22 kHz.
Can the Concorde MIX stylus be replaced?
It is possible to replace the stylus within the Concorde range, which simplifies maintenance of the cartridge.
Can this cartridge be mounted directly onto a turntable tonearm?
The Concorde format is intended for direct mounting on compatible tonearms. The reinforced and wider body facilitates handling, with clear visibility of the diamond for alignment.
