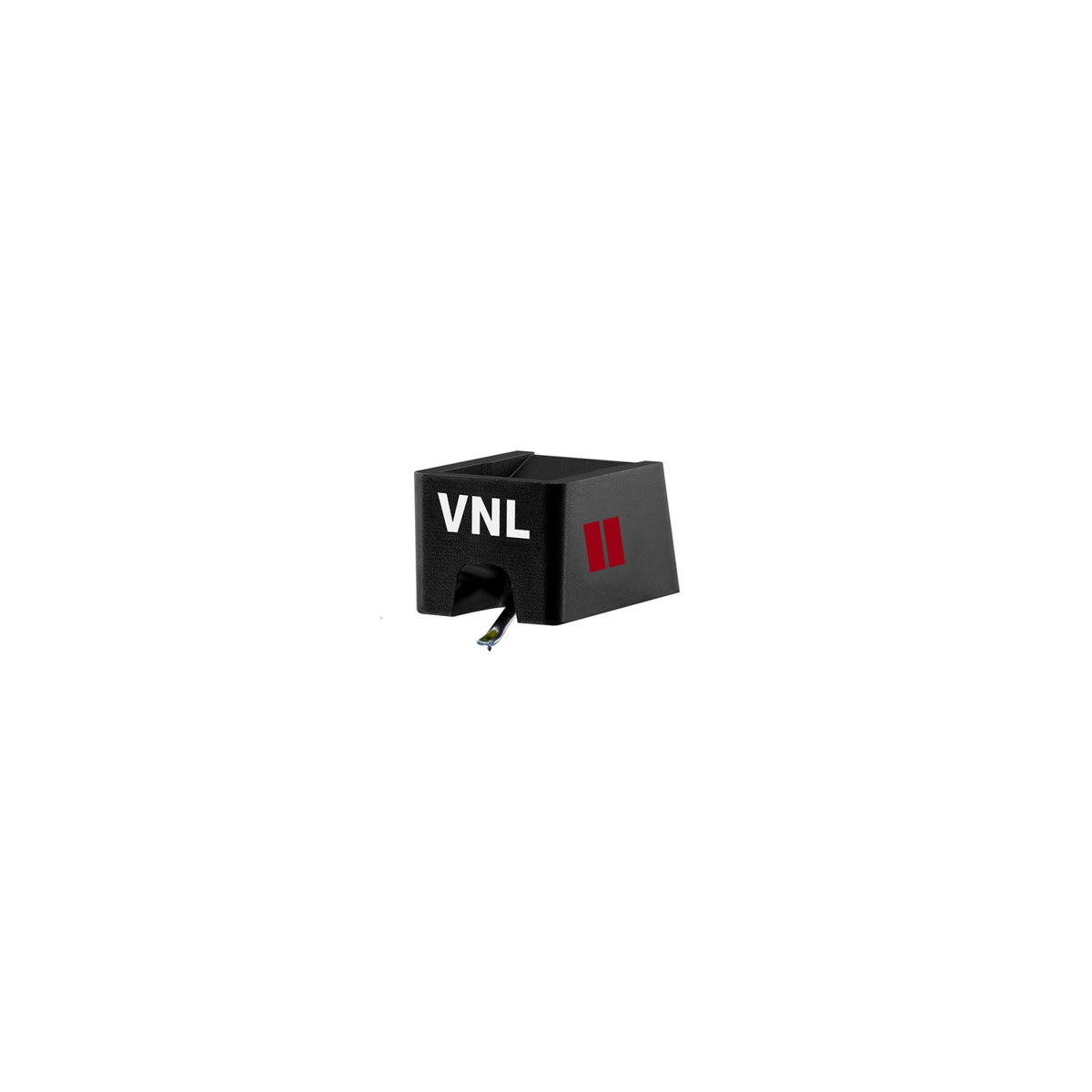

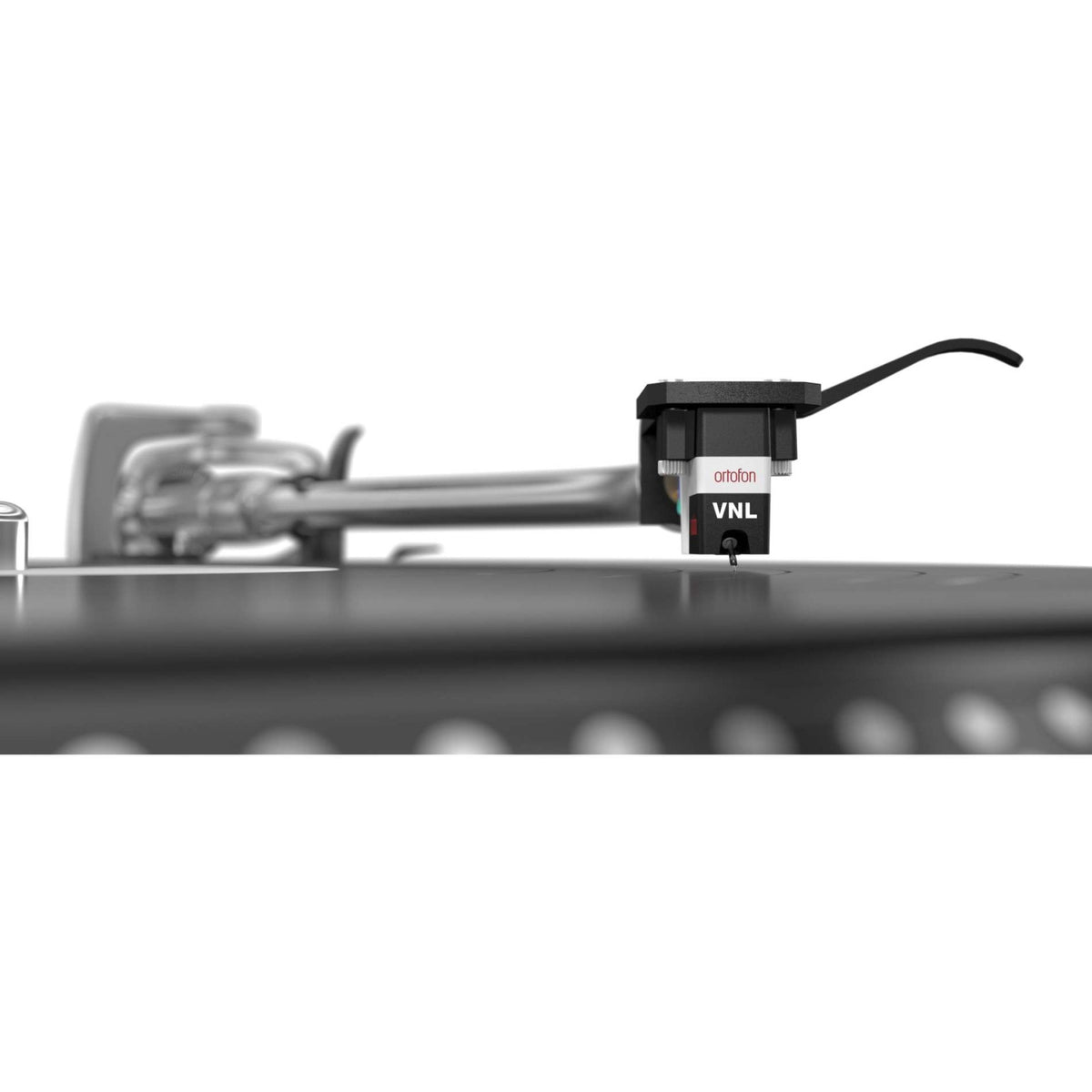

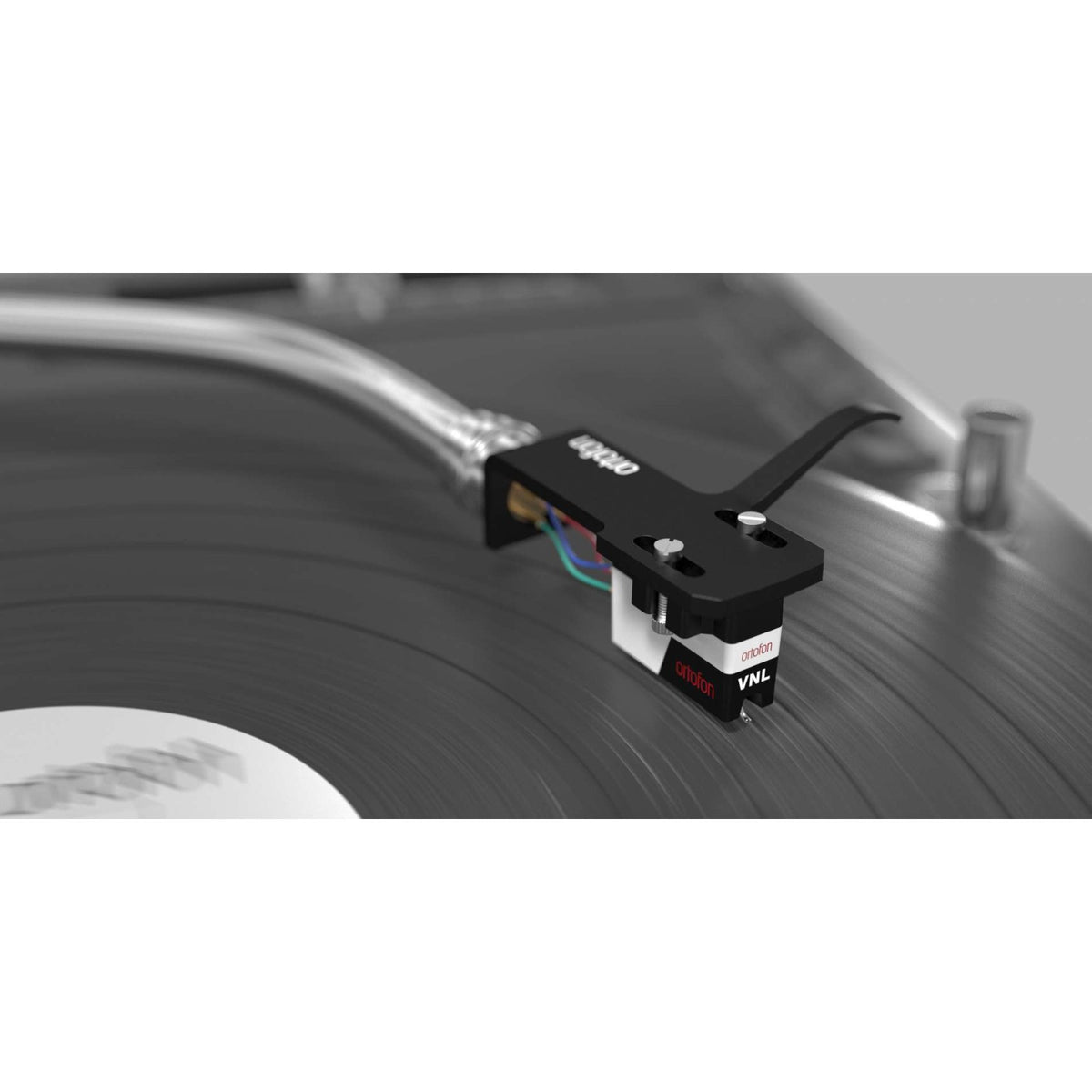

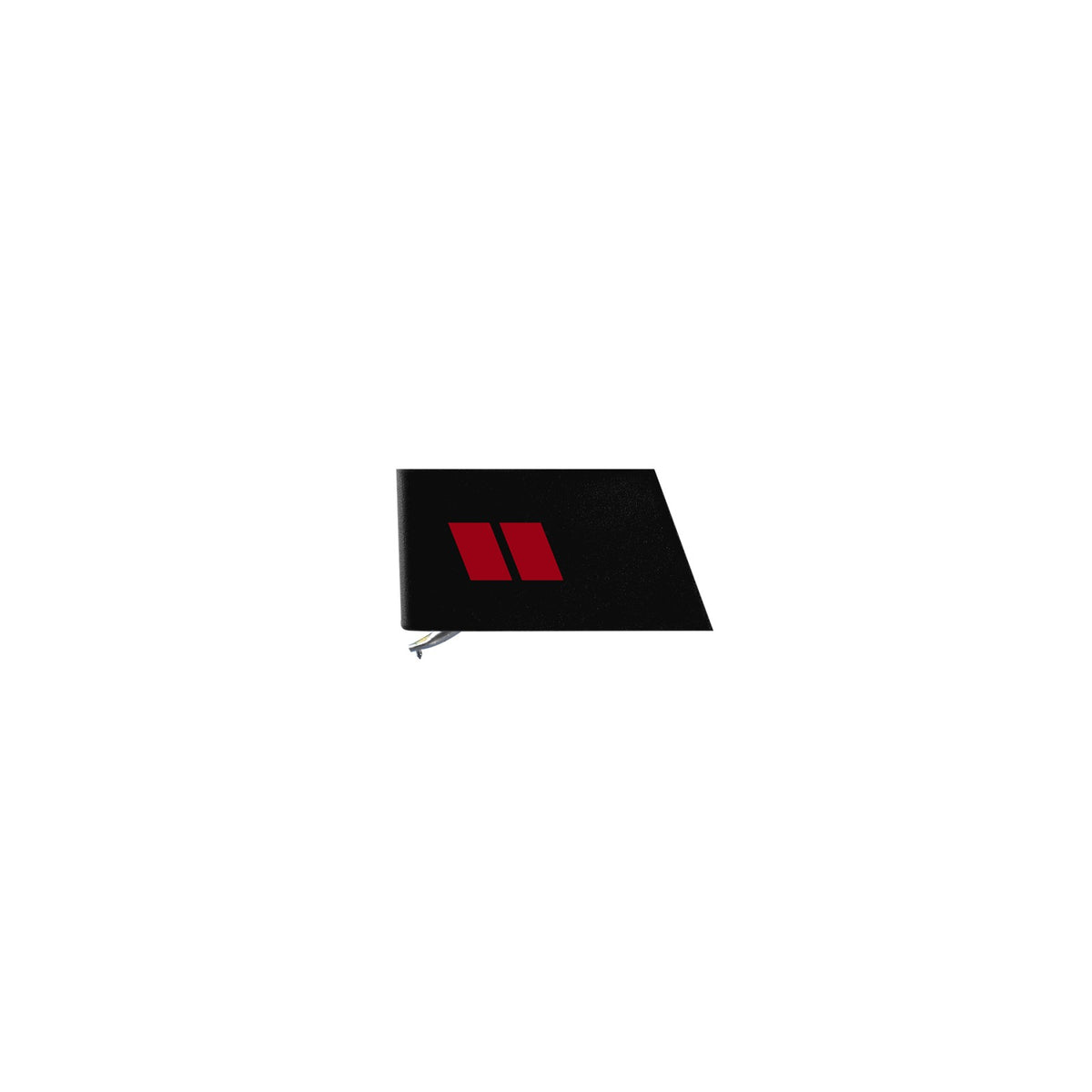

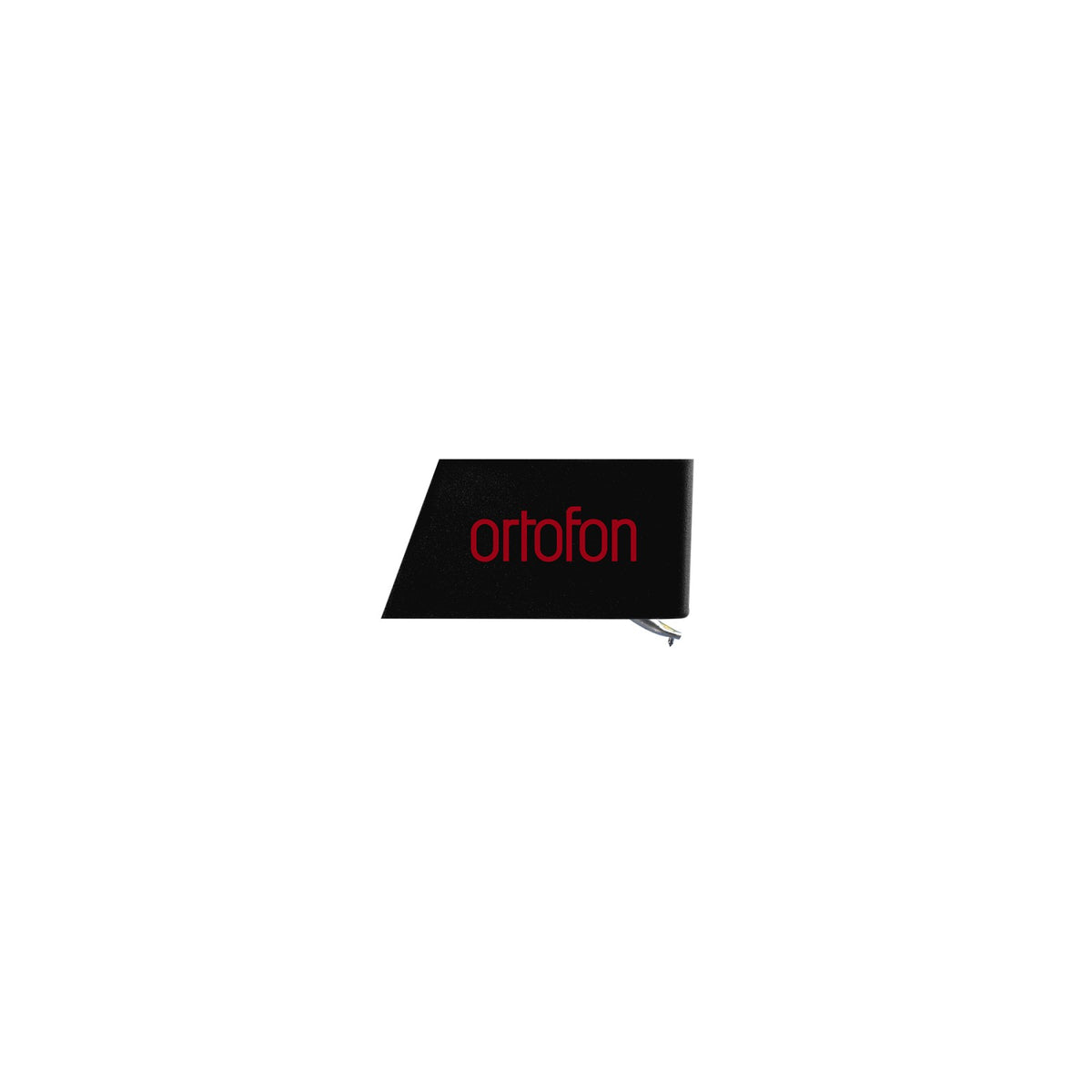

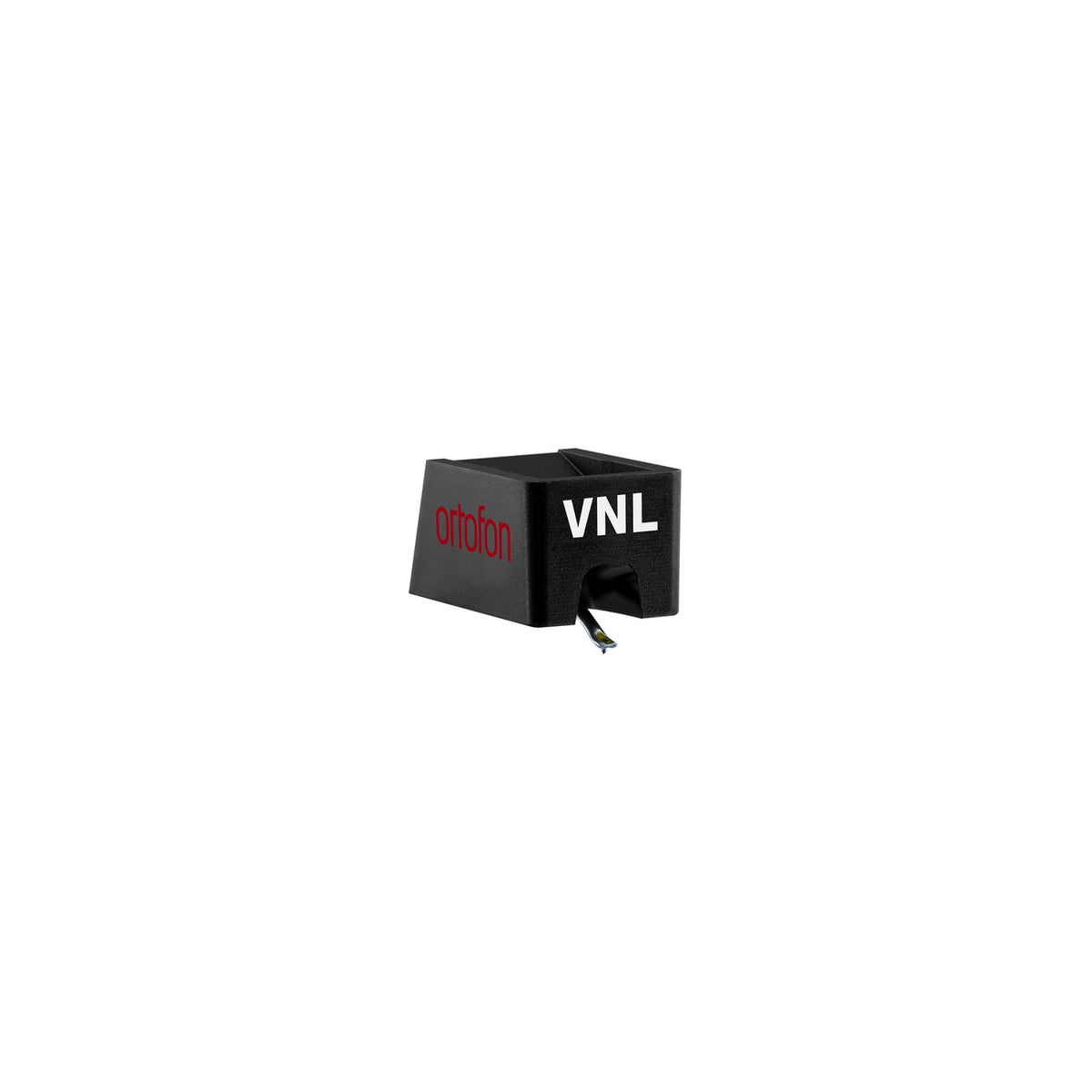

ORTOFON DJ STYLUS VNL 2 - DIAMOND CELL VNL 2
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ortofon
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A VNL Evolution Designed to Push Performance Limits
Developed as a continuation of Ortofon's DJ-focused approach, the VNL addresses user feedback from the field: more control, better durability under demanding conditions, and quick identification of the stylus suited to your style.
Who Is This VNL 2 Diamond For?
This replacement diamond is intended for DJs playing vinyl turntables in clubs, events, or home studios, seeking stable performance for mixing, scratching, and repeated manipulations (cueing, backspins, routines).
Features and Innovations
The Stylus II spherical profile prioritizes tolerance and consistent playback while helping to limit groove wear. The robust design, true to Ortofon's DNA, aims for reliable groove tracking even under heavy cartridge use. Supplied with a diamond.
Technical specifications
| DJing type | Mix, Scratch |
| Category | diamond |
| Type | diamond |
| Destination | DJ |
| Diamond tip | spherical |
| Color | Black |
| Quantity | 1 |
| Output voltage at 1,000 Hz, 5 cm/sec | 6 mV |
| Channel separation at 1 kHz | 20 dB |
| Frequency response | 20 Hz - 20 kHz -2/+4 dB |
| Tracking ability at 315 Hz, with recommended tracking force | 100 µm |
| Lateral dynamic compliance | 16 µm/mN |
| Stylus type | Spherical R 18 µm |
| Tracking force | 3 - 5 g |
| Recommended tracking force | 4 g |
| Internal impedance, DC resistance | 700 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200 - 600 pF |
| Cartridge weight with stylus | 6.5 g |
Questions frequently asked
Is the Ortofon DJ Stylus VNL 2 suitable for scratching?
The spherical profile R 18 µm is designed for mixing and scratching. The stated tracking ability reaches 100 µm at 315 Hz with the recommended tracking force.
What tracking force should be used with this VNL 2 stylus?
The recommended tracking force range is between 3 and 5 g. A value of 4 g is recommended.
What is the tip shape of the VNL 2 Stylus?
The tip features a spherical profile. This geometry favors tracking tolerance and helps limit groove wear during repeated handling.
Is this stylus sold individually?
The packaging includes one stylus, with the quantity indicated as 1.
What are the electrical specifications stated for the VNL 2?
The output voltage is 6 mV at 1,000 Hz and 5 cm/s, with channel separation of 20 dB at 1 kHz. The recommended load resistance is 47 kΩ. The recommended load capacitance is between 200 and 600 pF.
