ORTOFON DJ STYLUS-dj-s A

Name: STYLUS-dj-s A
Brand: ORTOFON DJ
SKU: 156236
Price: 48.00 EUR
Availability: InStock
Rating: 5.0 (7 reviews)

48,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

In stock in store

Estimated Shipping Widget will be displayed here!

ID : 156236

EAN : 5705796140057

ORTOFON DJ

Information

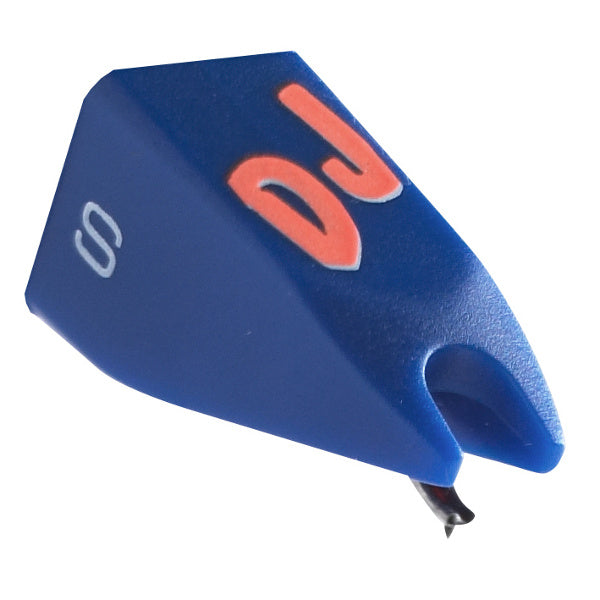

Essential Information About the Ortofon CONCORDE DJ S Replacement Stylus
• Fine spherical stylus designed for versatile DJ use: good tracking, precise and forgiving sound.
• Designed for the Ortofon DJ series, renowned as an "all-round cartridge" for many musical styles.
• Well-balanced assembly thanks to a specially developed headshell that enhances rigidity and stability.
• Ideal replacement solution to restore the original performance of your vinyl setup.

STYLUS-dj-s A

48,00 €VAT incl.

0,00 € Ecotax included

Reference price

A classic from the Ortofon DJ range, focused on reliability and versatility

Part of Ortofon's DJ series, the CONCORDE DJ S has established itself as a reliable choice for DJs seeking stable playback and faithful sound reproduction. Its robust design and overall balance make it a favored standard for seamless sets with a sense of control, while maintaining musicality suited to a wide range of styles.

For which DJs and situations?

This replacement stylus is aimed at DJs playing vinyl turntables in clubs, home studios, or mobile gigs, who want to maintain effective tracking and precise sound reproduction. It suits both beginner DJs looking for a forgiving stylus tip and experienced users who prioritize a versatile cartridge for daily mixing.

Features and innovations

The CONCORDE DJ S relies on a spherical stylus and a design focused on mechanical stability. With a output voltage of 6 mV, it provides a comfortable level to feed a DJ mixer while maintaining good channel separation. Recommended tracking force and load values allow optimizing tracking, groove holding, and tonal balance according to your tonearm and settings.

Technical specifications

Frequency response	20 Hz - 18 kHz	Destination	DJ
DJing type	Mix	Diamond tip	spherical
Category	diamond	Color	Blue
Type	diamond	Quantity	1

Output voltage at 1000 Hz, 5 cm/sec	6 mV	Tracking angle	20 degrees
Channel balance at 1 kHz	2 dB	Stylus type	spherical
Channel separation at 1 kHz	23 dB	Stylus tip radius	R 18 µm
Channel separation at 15 kHz	15 dB	Internal impedance, DC resistance	750 Ohm
Frequency range at -3 dB	20 to 20,000 Hz	Internal inductance	450 mH
Tracking ability at 315 Hz with recommended tracking force	80 µm	Recommended load resistance	47 kOhm
Compliance, lateral dynamic	9 µm / mN	Recommended load capacitance	200-600 pF
Tracking force range	2.0-4.0 g (20-40 mN)	Cartridge weight	18.5 g
Recommended tracking force	3.0 g (30 mN)

Questions frequently asked

Is the ORTOFON DJ STYLUS-dj-s A cartridge suitable for mixing?

This cartridge is designed for DJ mixing and features a spherical stylus tip intended to promote playback stability.

What tracking force should be set for this Ortofon DJ S cartridge?

The recommended tracking force is 3.0 g (30 mN). The acceptable adjustment range is from 2.0 to 4.0 g (20 to 40 mN).

What is the output voltage of the cartridge?

With 6 mV at 1 kHz for 5 cm/s, the output voltage provides a level suitable for the phono input of a DJ mixer.

What frequency response does this spherical stylus offer?

The specified frequency response covers 20 Hz to 18 kHz. The frequency range at -3 dB is given as 20 Hz to 20 kHz.

Is this cartridge suitable for mobile DJ gigs and club use?

Its design is intended for DJ use on turntables, particularly in clubs, home studios, or mobile performances. The tracking ability specified is 80 µm at 315 Hz with the recommended tracking force. Channel separation reaches 23 dB at 1 kHz.
