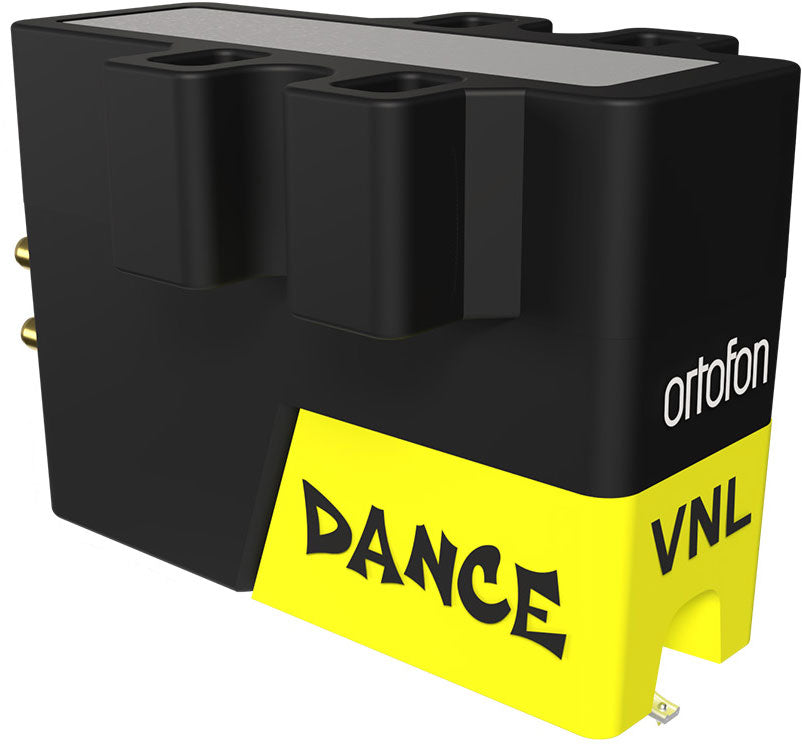

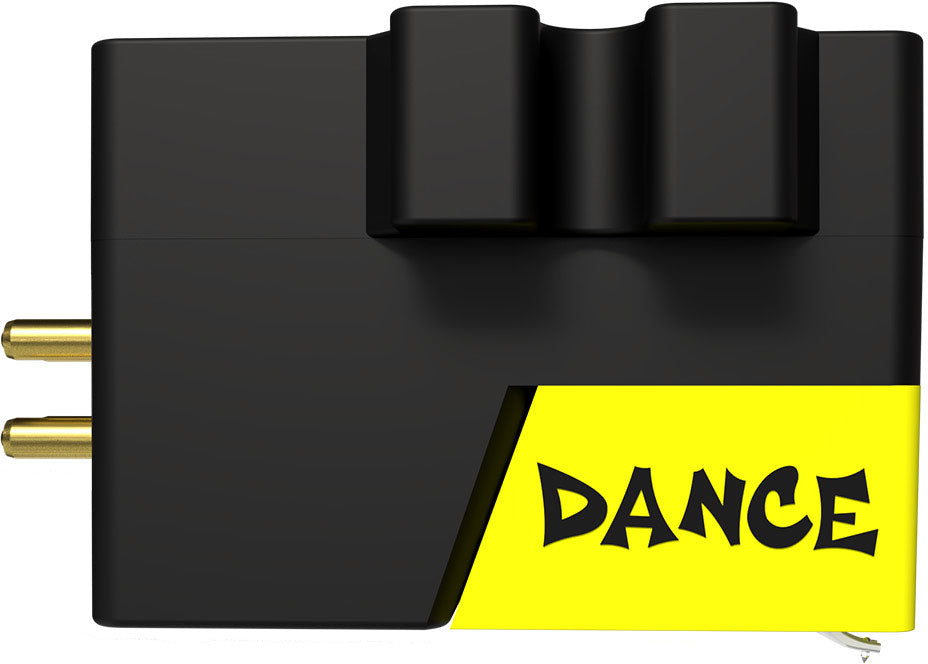

A VNL Designed for Mixing: Precision Serving the Dancefloor
The VNL DANCE is part of Ortofon's VNL series with a clear goal: to offer a more nuanced and "cleaner" playback than spherical diamond versions, while retaining the DJ DNA of the range. Thanks to its elliptical profile, it tracks the groove with greater finesse, resulting in better-defined transients, clearer mids, and a tighter low end. The outcome is a more musical sound on vinyl turntables, especially appreciated during long sessions, without sacrificing the robustness expected in club environments.

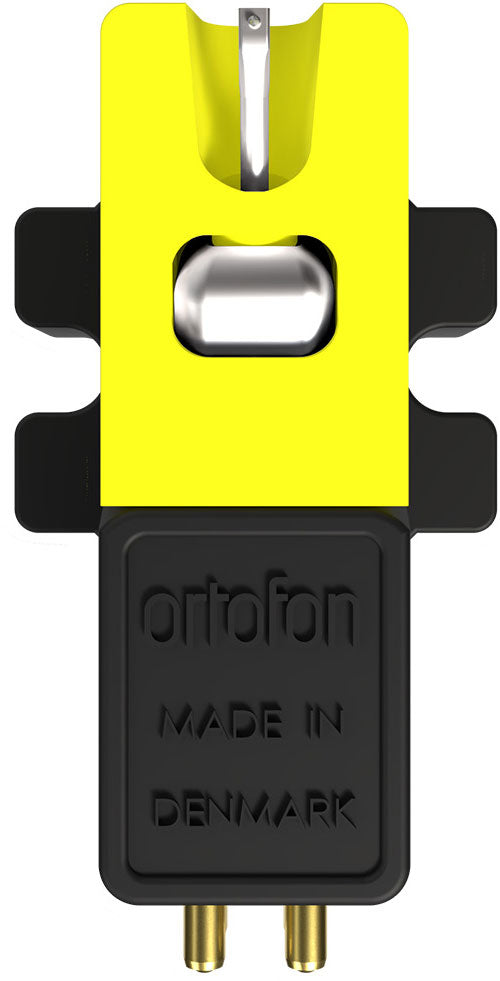

Its visual identity also supports its positioning: the neon yellow fluorescent stylus remains easy to spot, even under UV lighting-a real advantage for quick transitions in stage conditions. And as part of the VNL family, it fits into a modular logic: the cartridge can evolve according to needs by simply changing the compatible stylus from the series.
For Which DJs and Contexts Is the VNL DANCE Ideal?
The Ortofon VNL DANCE cartridge is primarily aimed at DJs focused on mixing and versatile performance: house, techno, disco, open-format, or any set where playback clarity and definition matter as much as energy. Its high output facilitates obtaining a strong signal to the mixer while maintaining comfortable headroom to adjust gain without excessive noise.
It is particularly relevant in club and mobile gig settings, where reliable groove holding and stable tracking are expected when the booth vibrates, monitoring is loud, or quick manipulations occur. In the studio, it suits DJs who want more detailed listening during mix recording or digitization, while staying within a cartridge with a distinctly DJ temperament.
Elliptical Tracking, Quad Coils, and Neon Spotting: Key Advantages in the Booth
The heart of the VNL DANCE is the balance between precision and durability. Its elliptical diamond aims for better definition of nuances and attacks, with channel separation rated at 22 dB at 1 kHz for clearly readable stereo. The internal design relies on a quad coils system and an OFC coil wire, engineered for clean signal transmission and detailed reproduction, useful for keeping elements like snare, hi-hats, or bass lines distinct in the mix.
Mechanical stability is equally central: the aluminum cantilever and Ortofon's exclusive rubber suspension promote reliable behavior when the cartridge is stressed in real-world situations. With a recommended tracking force of 4.0 g, the VNL DANCE favors solid holding, and its 100 µm tracking ability helps maintain groove on tight transitions. Finally, the fluorescent neon yellow stylus enhances instant tracking point visibility, a concrete advantage for quick cueing even on dark stages.
Another strong point of the series: the interchangeable VNL styli compatibility. This allows adapting the cartridge to the context (training, club, more detail-demanding set) by changing the stylus without starting over, while maintaining a coherent workflow from booth to booth.
Technical specifications
| DJing type | Monitoring, Mix |
| Category | cell |
| Type | Moving magnet |
| Destination | DJ |
| Diamond tip | elliptical |
| Color | Black |
| Quantity | 1 |
| Cartridge weight | 7 g |
| Diamond | elliptical |
| Tip radius | r/R 8/18 µm |
| Cantilever | aluminum |
| Suspension | Ortofon exclusive rubber |
| Coil system | quad coils |
| Coil wire | OFC |
| Output voltage (1 kHz, 5 cm/s) | 10 mV |
| Channel separation (1 kHz) | 22 dB |
| Frequency response (20 Hz - 20 kHz) | +/- 3 dB |
| Dynamic lateral compliance | 12 µm/mN |
| Tracking ability (315 Hz) | 100 µm |
| Recommended tracking force | 4.0 g |
| Recommended load | 47 kOhm |
Questions frequently asked
Is the Ortofon DJ VNL DANCE cartridge suitable for club mixing?
This cartridge is designed for mixing and listening, especially in house, techno, disco, and open-format. Its recommended tracking force of 4.0 g and tracking ability of 100 µm promote stable playback in the booth.
What type of stylus diamond does this DJ cartridge use?
An elliptical diamond with a radius r/R of 8/18 µm is mounted on an aluminum cantilever. This profile provides finer transient and midrange reading than a spherical tip.
What is the output voltage of the VNL DANCE?
The output voltage is 10 mV at 1 kHz for a velocity of 5 cm/s. This level delivers a strong signal to a mixer, with a recommended load of 47 kOhm.
Are the styli from the VNL series compatible with this cartridge?
The stylus can be replaced with compatible tips from the VNL series. This modularity allows adapting the cartridge to reading or scratching needs without changing the entire cartridge.
Is the stylus visible in a dark booth?
The neon yellow fluorescent stylus remains visible under UV light, making it easy to locate the contact point during handling.
