ORTOFON DJ VNL Single

Name: VNL Single
Brand: ORTOFON DJ
SKU: 366643
Price: 85.00 EUR
Availability: InStock

85,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 366643

EAN : 5705796013931

ORTOFON DJ

Information

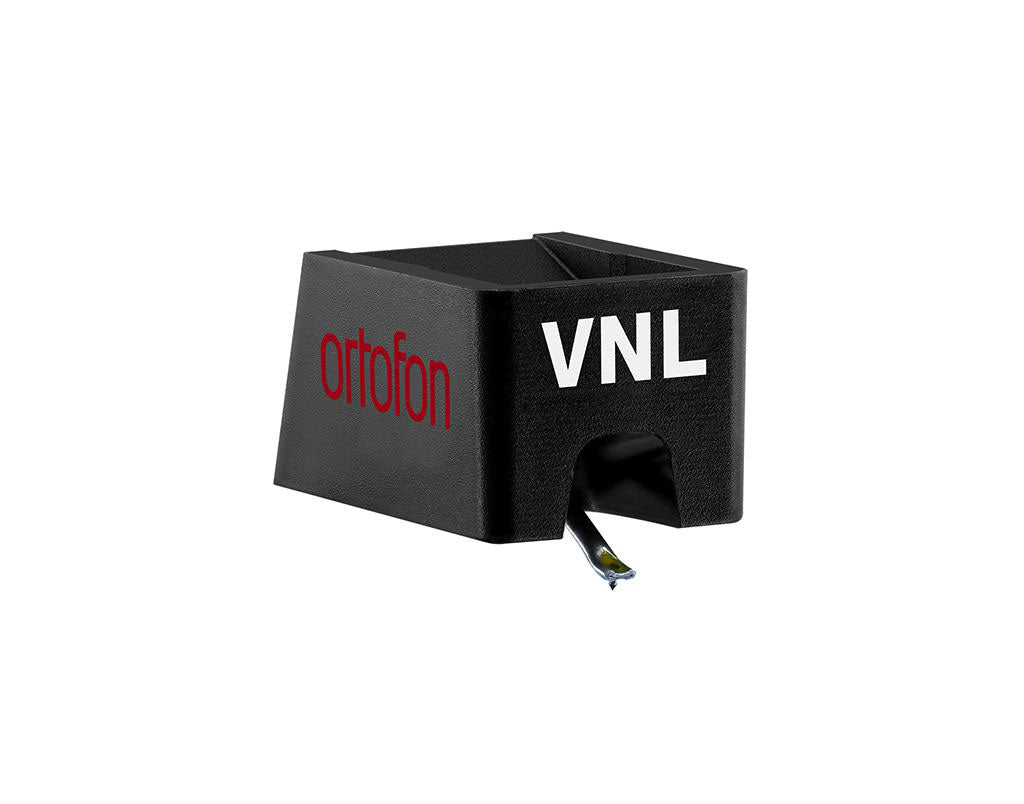

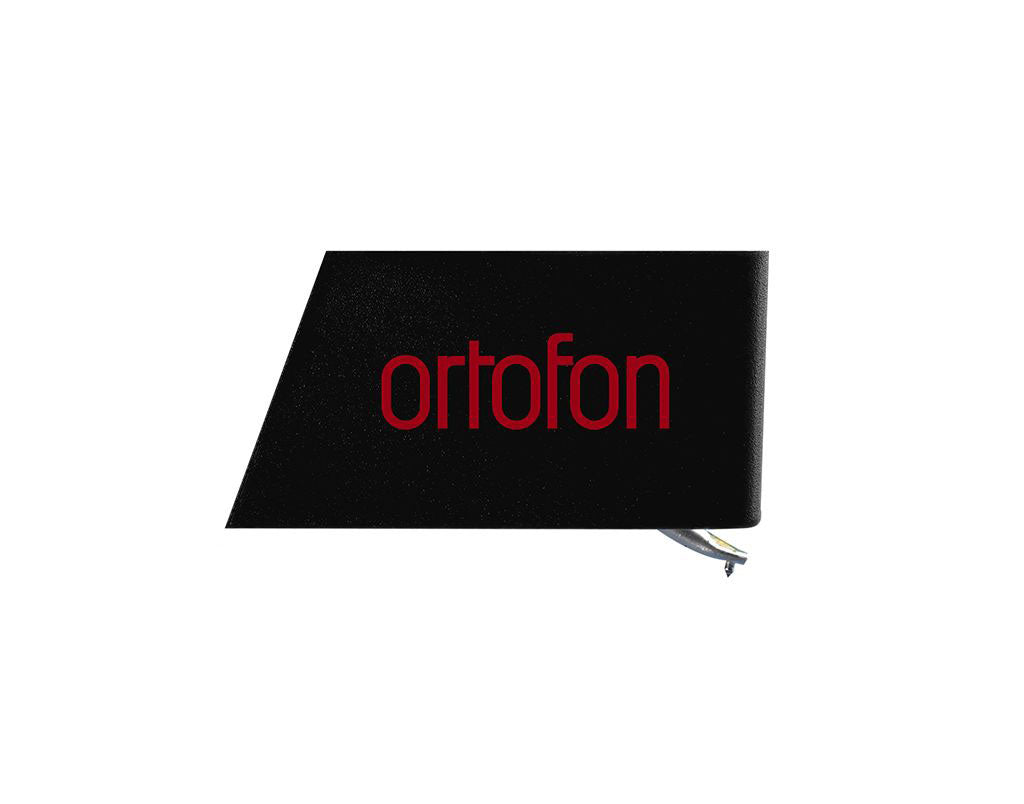

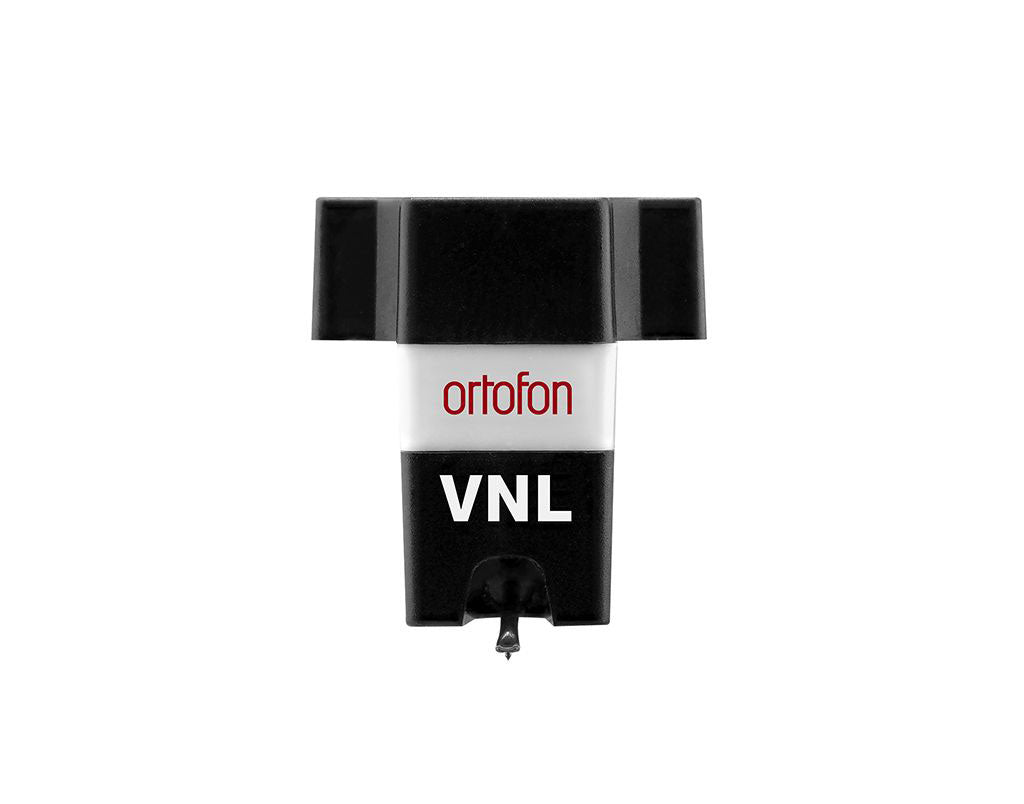

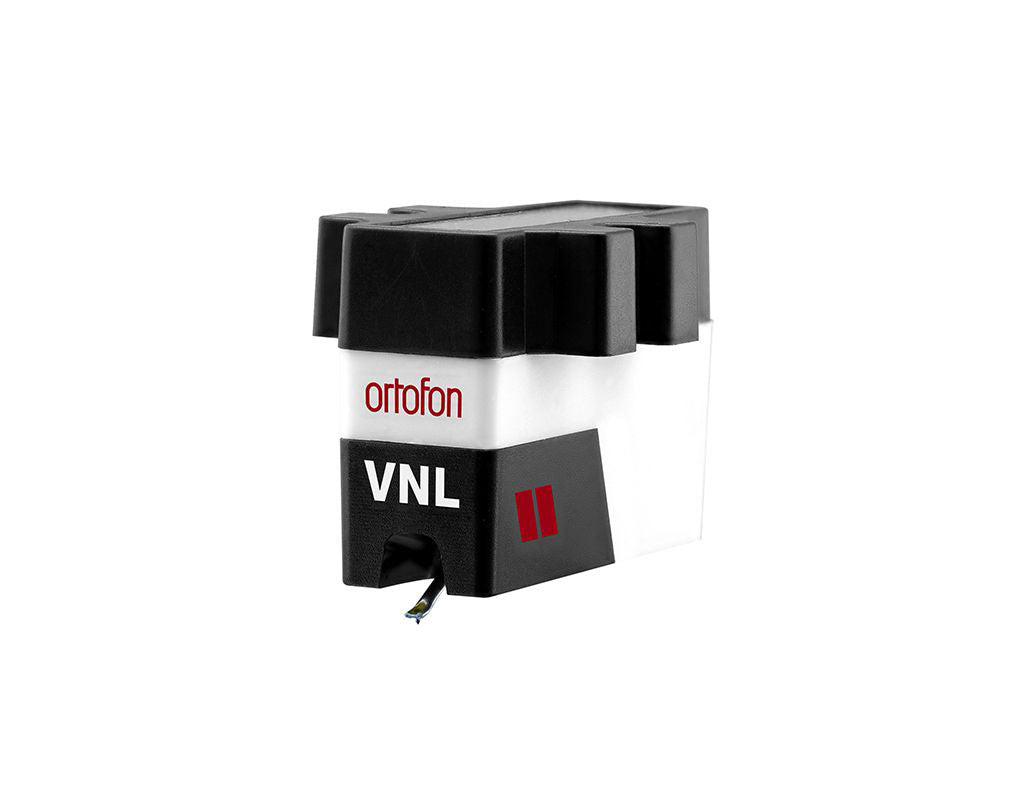

The essentials to know about the Ortofon VNL cartridge with VNL II diamond
• Designed for DJ performance : reliable tracking for scratching, back-cueing, and heavy handling
• Spherical diamond : more tolerant contact to limit record wear during tricks
• Robust and practical body : easy mounting and alignment on many headshells, with stable tracking even under demanding conditions

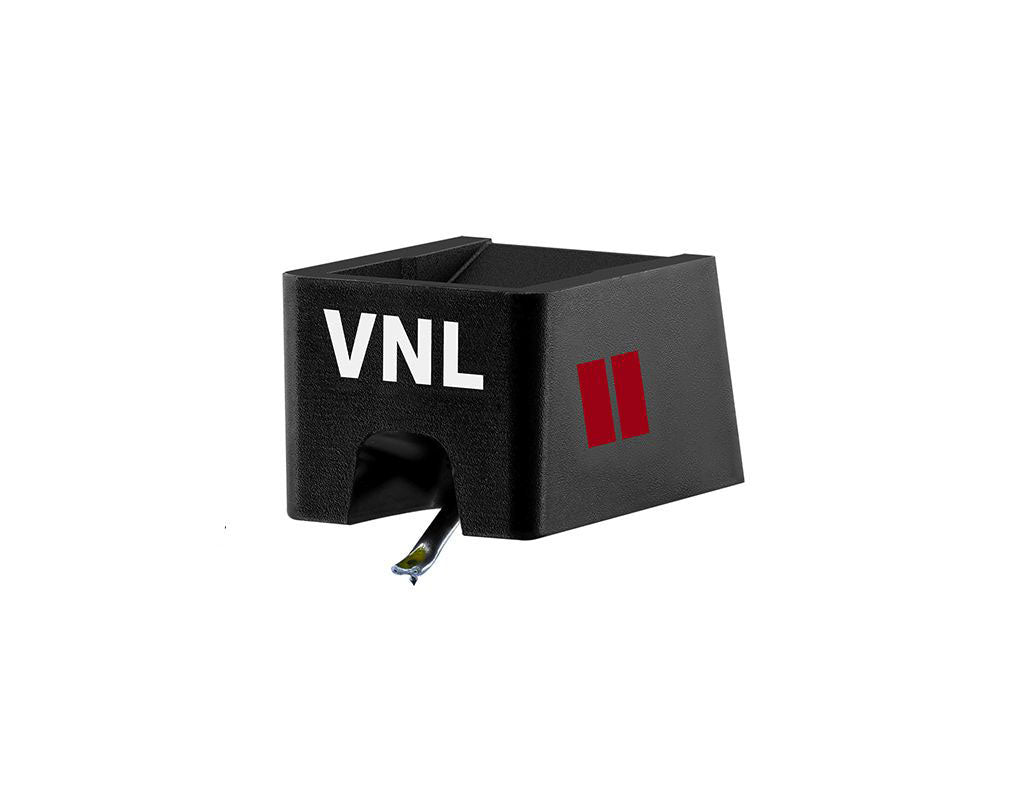

• Stage-oriented pack : delivered without headshell, with VNL II diamond and two replacement diamonds

VNL Single

85,00 €VAT incl.

0,00 € Ecotax included

Reference price

An Ortofon cartridge designed for the new generation of DJs

The VNL was born from field feedback: Ortofon observed the needs of performing DJs who demand both durability, reassuring groove reading, and a consistent feel in routine use. Its design embraces DJ aesthetics while emphasizing durability and ease of installation.

For whom and in what uses?

This cartridge is aimed at experienced and professional DJs who play in clubs, battles, events, or studios, and who seek an efficient cartridge for scratching, back-cueing, and quick beatmatching. It is also suitable for mobile setups or turntables exposed to vibrations, thanks to its tracking-oriented design.

Features and innovations

Equipped with a spherical stylus, the VNL targets a relevant compromise between grip, tolerance, and vinyl preservation. The body has been crafted to facilitate mounting and alignment, in order to achieve clean groove tracking. Ortofon has also developed several stylus feels within the VNL family to help each DJ identify the stiffness and sensation that match their style.

Technical specifications

DJing type	Scratch	Diamond tip	spherical
Category	cell	Color	Black
Type	cell	Quantity	1
Destination	DJ

Output voltage at 1,000 Hz, 5 cm/sec	6 mV	Recommended tracking force	4 g
Channel separation at 1 kHz	20 dB	Internal impedance, DC resistance	700 ohms
Frequency response	20 Hz - 20 kHz -2/+4 dB	Internal inductance	450 mH
Tracking ability at 315 Hz, with recommended tracking force	90 µm	Recommended load resistance	47 kOhm
Lateral dynamic compliance	15 µm/mN	Recommended load capacitance	200 - 600 pF
Stylus type	Spherical R 18 µm	Cartridge weight with stylus	6.5 g
Tracking force	3 - 5 g

Questions frequently asked

Is the ORTOFON DJ VNL Single cartridge suitable for scratching?

This cartridge is designed for scratching and back-cueing, with a tracking ability of 90 µm at 315 Hz at the recommended tracking force.

What tracking force should be set on a VNL cartridge?

The recommended tracking force is 4 g. The acceptable adjustment range is from 3 to 5 g.

What type of stylus tip does this DJ cartridge have?

The Spherical R 18 µm stylus features a spherical diamond tip. This profile is designed to provide grip and tolerance during DJ maneuvers.

What is the output voltage of the VNL?

The output voltage reaches 6 mV at 1,000 Hz for a speed of 5 cm/s, with channel separation of 20 dB at 1 kHz.

Does this cartridge maintain playback stability on a turntable exposed to vibrations?

Its design is focused on maintaining playback stability on mobile setups or turntables exposed to vibrations. The lateral dynamic compliance is 15 µm/mN. The recommended load is 47 kΩ and 200 to 600 pF.
