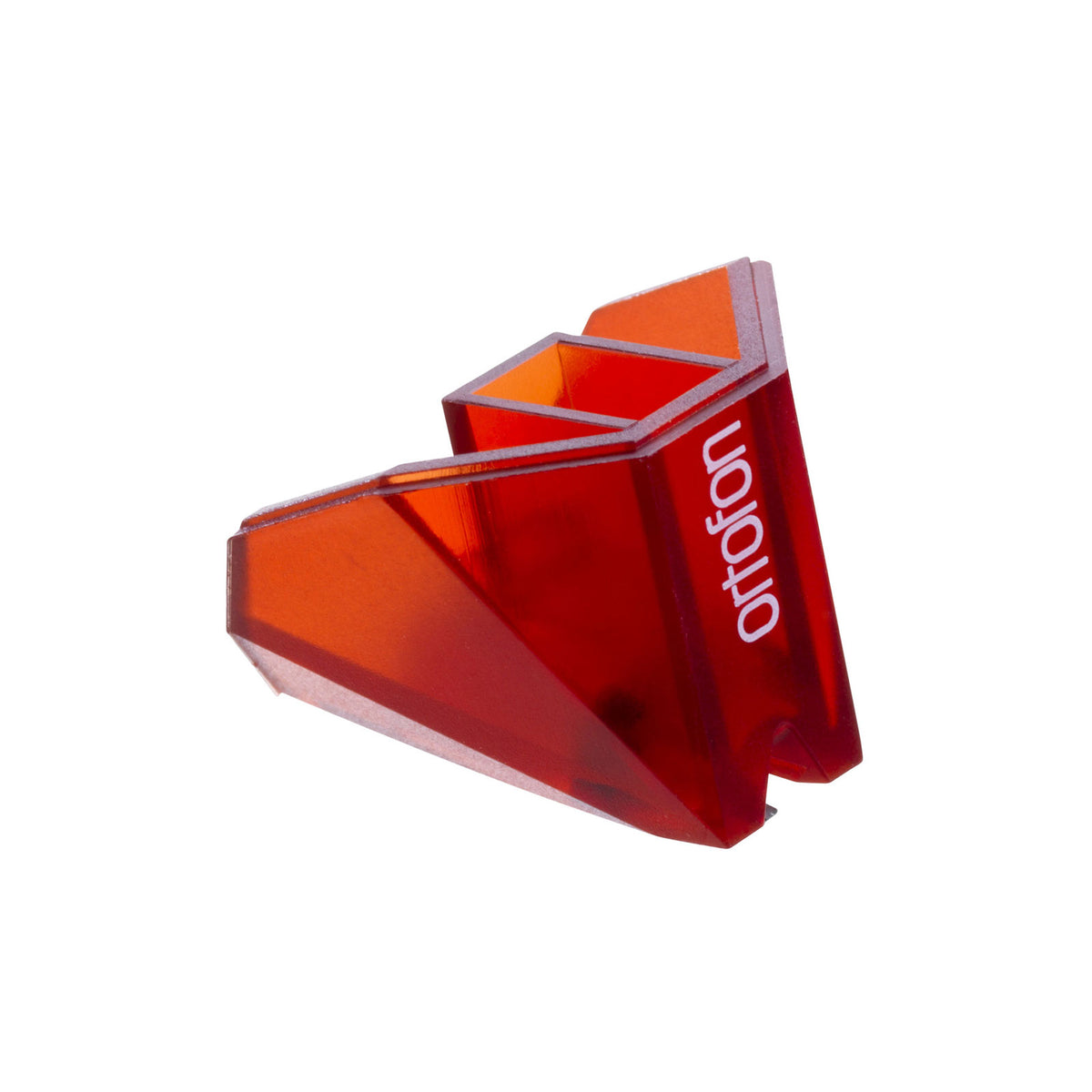

Ortofon Hifi STYLUS 2M RED

Name: STYLUS 2M RED
Brand: Ortofon Hifi
SKU: 387972
Price: 59.00 EUR
Availability: InStock

59,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387972

EAN : 5705796180015

Information

Essential Information About the Red Elliptical Replacement Stylus
• Elliptical diamond for precise playback, more detail, and better instrument separation.
• Frequency response 20 to 20,000 Hz (+3 / -1 dB) for a balanced sound, suitable for hi-fi listening as well as mixing.
• Recommended tracking force 1.8 g : a good compromise between groove holding and record preservation.
• Red Stylus : immediate identification on the cartridge and easy mounting depending on the compatible model.

STYLUS 2M RED

59,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Stylus Designed to Bring Your Phono Cartridge Back to Life

This elliptical stylus is intended for users who want to restore the original performance of their turntable without changing the entire cartridge. Its elliptical profile aims for finer groove reading than a conical tip, with more nuanced reproduction of transients, vocals, and cymbals.

Who Is It For and What Are Its Uses?

Ideal for vinyl enthusiasts, DJs, and hi-fi lovers who want a reliable replacement for home listening, home studio use, or regular DJ setup use. It is particularly suitable if you seek clean playback, good groove holding, and controlled wear, provided the recommended tracking force is respected.

Features and Innovations

The lateral dynamic compliance of 20 µm/mN promotes good groove tracking, while the tracking ability of 70 µm (at 315 Hz with the recommended tracking force) helps limit distortion during demanding passages. The stylus tip radius r/R 8/18 µm and the effective mass of 0.5 mg contribute to agile and detailed playback. For optimal integration, adhere to the tracking force range of 1.6 to 2.0 g and the tracking angle of 20 degrees.

Technical specifications

Frequency response	20 Hz - 22 kHz
DJing type	Monitoring, Mix
Category	diamond
Type	diamond

Destination	hifi
Diamond tip	elliptical
Color	Red
Quantity	1

Diamond type	Elliptical
Stylus tip radius	r/R 8/18 µm
Effective mass of stylus tip	0.5 mg
Stylus color	Red

Tracking ability (315 Hz with recommended tracking force)	70 µm
Lateral dynamic compliance	20 µm/mN

Tracking force range	1.6 to 2.0 g (16 to 20 mN)
Recommended tracking force	1.8 g (18 mN)
Tracking angle	20 degrees

Questions frequently asked

What tracking force should be set for the Ortofon Hifi Stylus 2M Red?

The recommended tracking force is 1.8 g (18 mN). The allowable adjustment range extends from 1.6 to 2.0 g (16 to 20 mN).

Does the elliptical tip provide precise vinyl playback?

The elliptical profile with radius r/R 8/18 µm aims for finer groove reading than a conical tip. It favors nuanced reproduction of transients, vocals, and cymbals.

Is this diamond suitable for DJ mixing?

This model is intended for hi-fi listening and mixing. Its tracking capability reaches 70 µm at 315 Hz with the recommended tracking force, which helps maintain groove hold during regular use.
