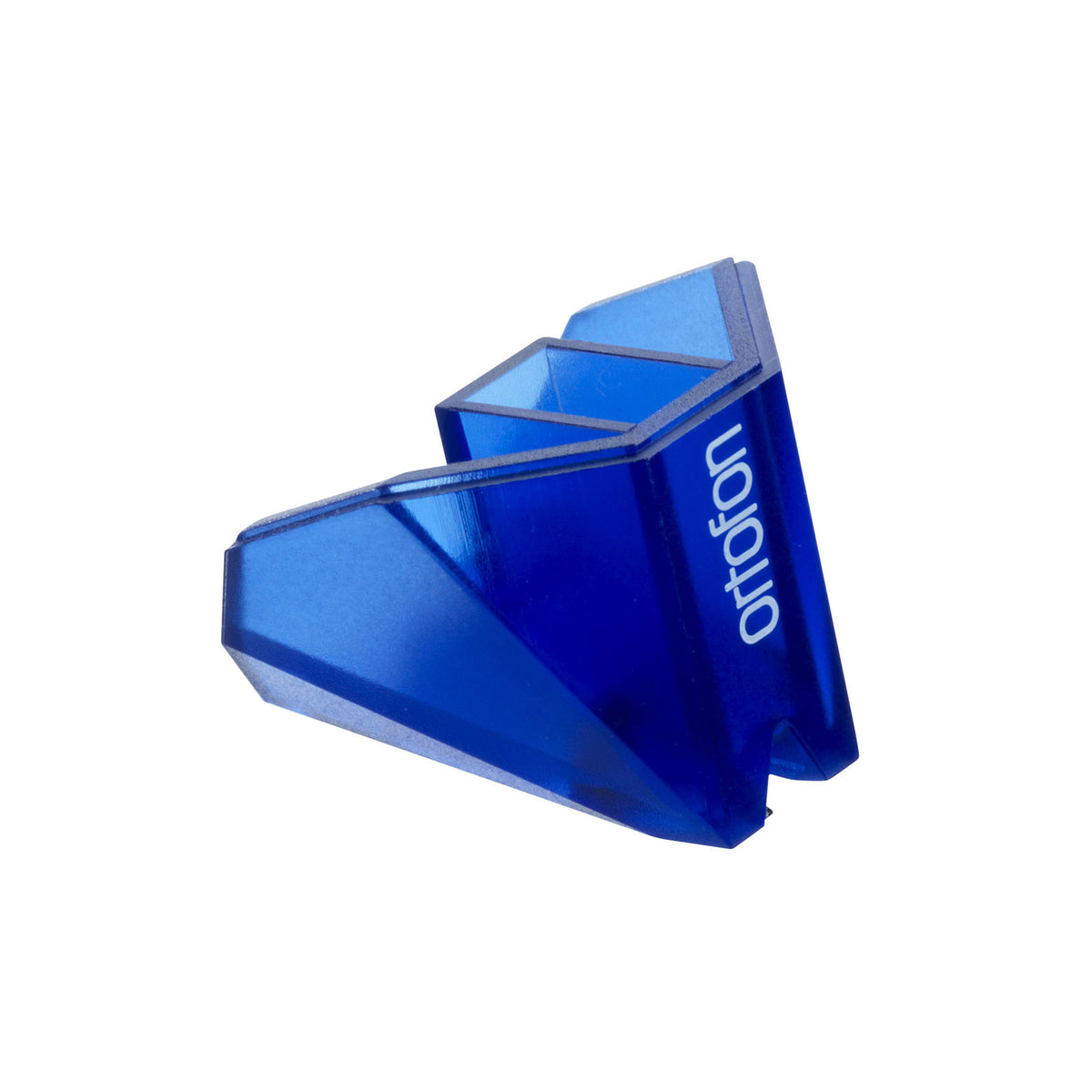

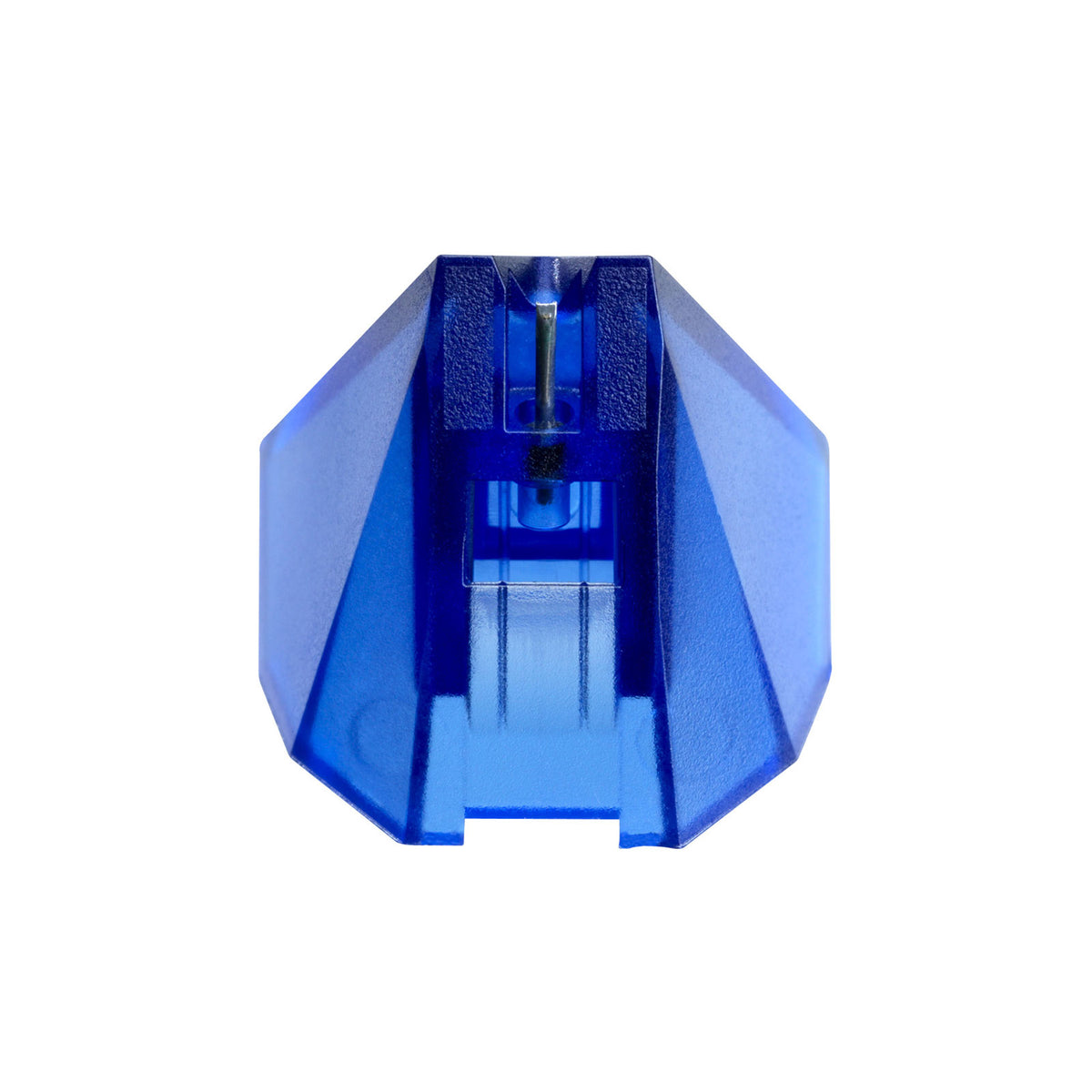

Ortofon Hifi STYLUS 2M BLUE
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ortofon Hifi
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A stylus focused on listening quality to get the best from your records
This diamond was designed to offer fine and musical playback, thanks to an elliptical geometry and an equivalent tip mass of only 0.5 mg. Result: better ability to follow groove modulations, with more nuances, a cleaner soundstage, and more comfortable listening during long sessions.
For whom and in which usage contexts?
Ideal for vinyl enthusiasts and Hi-Fi setups (living room, listening studio, home studio), this stylus is perfectly suited for demanding listening and record collections. For intensive DJ use (scratching, heavy backcueing), more robust profiles specifically designed for performance are generally preferred.
Playback, tracking, and precision: key points
With a tracking capability of 80 µm (at 315 Hz, with the recommended tracking force) and a lateral dynamic compliance of 20 µm/mN, this stylus aims for stable tracking and fine playback detail. Adhere to the recommended tracking force and the 20deg tracking angle to optimize groove holding, limit wear, and maintain consistent sound.
Technical specifications
| Frequency response | 20 Hz - 22 kHz |
| DJing type | Monitoring |
| Category | diamond |
| Type | diamond |
| Destination | hifi, DJ |
| Diamond tip | elliptical |
| Color | Blue |
| Quantity | 1 |
| Diamond type | nude tip / elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent tip mass | 0.5 mg |
| Stylus color | blue |
| Tracking capability (315 Hz with recommended tracking force) | 80 µm |
| Lateral dynamic compliance | 20 µm/mN |
| Tracking force range | 1.6 to 2.0 g (16 to 20 mN) |
| Recommended tracking force | 1.8 g (18 mN) |
| Tracking angle | 20deg |
Questions frequently asked
Is the Stylus 2M Blue suitable for hi-fi listening?
This model is suitable for home turntables aimed at attentive listening, with a stated frequency response of 20 Hz to 22 kHz. Its nude elliptical diamond promotes nuanced and precise playback.
What tracking force should be set for this stylus?
The recommended tracking force is 1.8 g, or 18 mN. The acceptable adjustment range extends from 1.6 to 2.0 g.
Can this stylus be used for mixing?
Its use is intended for listening and clean mixing, with a hi-fi and DJ purpose. It is more aimed at musicality than intensive scratching practices.
What is the shape of the 2M Blue's tip?
The tip features a nude elliptical diamond, with an r/R radius of 8/18 µm. The tracking angle is 20 degrees and the equivalent tip mass is 0.5 mg.
What dynamic compliance does this Ortofon diamond offer?
The lateral dynamic compliance is 20 µm/mN. The tracking ability at 315 Hz, with the recommended tracking force, is given as 80 µm.
