Palmer Orbit 11

Name: Orbit 11
Brand: Palmer
SKU: 432137
Price: 785.00 EUR
Availability: InStock

785,00 €VAT incl.

3,10 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 432137

EAN : 4069724009948

This item is covered for 3 years

Information

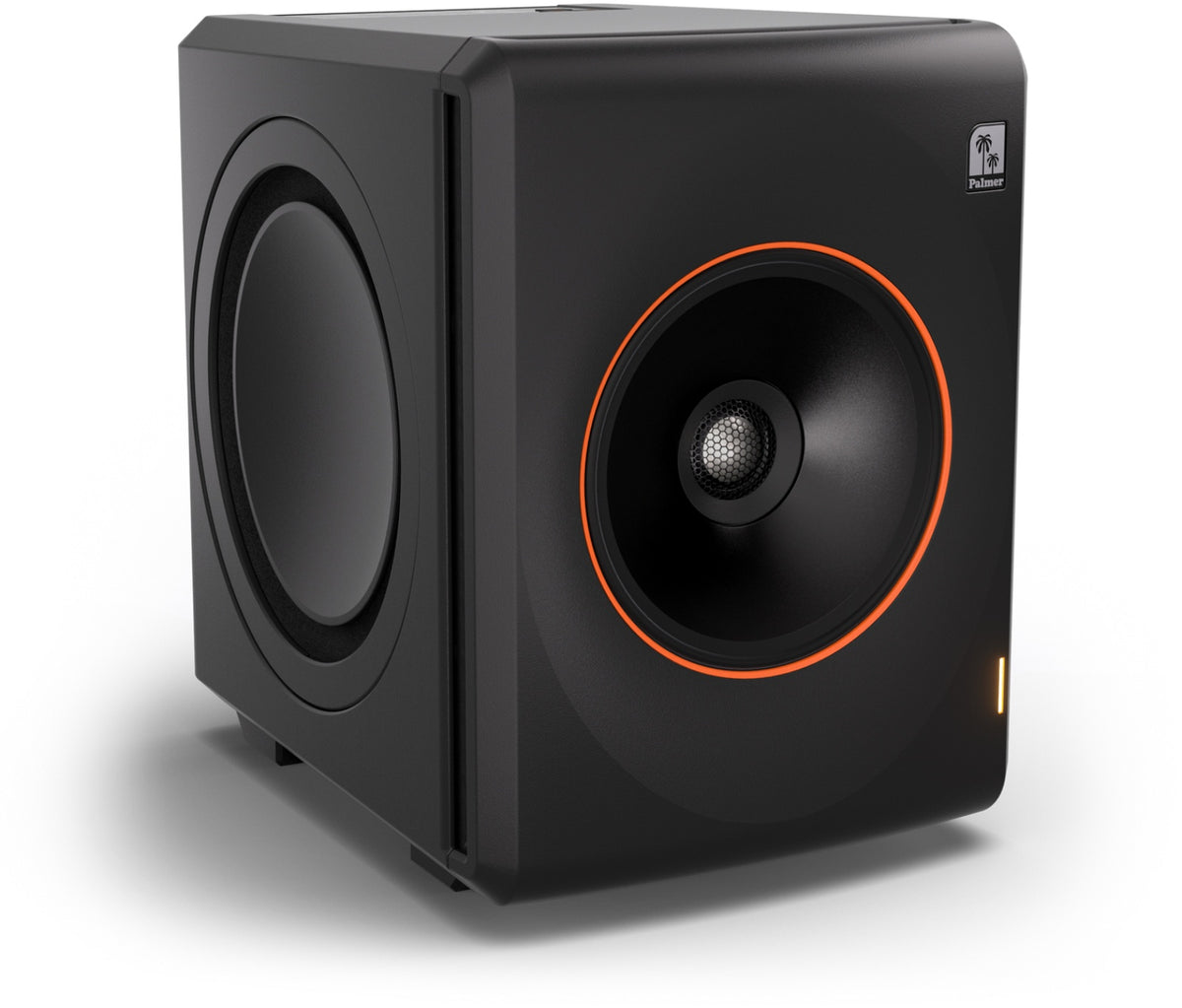

Essential Information About the ORBIT 11 Studio Monitor
• True 3-way coaxial: 6.5-inch midrange + 1-inch tweeter on the same axis for a stable stereo image and reliable listening.
• Ultra-controlled bass: two 8-inch impulse-compensated woofers for precise, fast, and low-resonance bass down to 28 Hz at -3 dB.
• Controlled directivity: cardioid design and constant 120deg x 120deg dispersion to limit room influence and widen the listening area.
• High-resolution DSP: 96 kHz / 24-bit linear phase FIR filters with minimal latency and extended dynamics thanks to Class D amplification.

Orbit 11

785,00 €VAT incl.

3,10 € Ecotax included

Reference price

ORBIT 11: A Modern Approach to "Point Source" Monitoring in the Range

The ORBIT 11 is designed as an active control monitor tailored to current demands: placement accuracy, temporal coherence, and mix translation. Its "True Point Source" philosophy aims to bring the listening experience closer to a single emission point, reducing phase shift effects between drivers and maintaining a clear soundstage even when moving around the room. This white version easily integrates into modern control rooms and studios while maintaining a performance-oriented, low-resonance construction.

Who Is It For and What Are Its Uses?

This monitor is intended for sound engineers, producers, and creators working on critical decisions: mixing, mastering, post-production, sound design, broadcast, and content creation. The homogeneous 120deg x 120deg dispersion facilitates listening by multiple people or within an expanded "sweet spot" area, while the cardioid directivity helps keep the low end more intelligible in imperfectly treated rooms. The result: consistent listening, useful for delivering mixes that translate more easily from one system to another.

Technical specifications

Battery	No
Number of channels	3 channels
Bluetooth	No
Connection	AES3, XLR
Speaker diameter	1", 8", 6,5"
Number of speakers	4

EQ	No
Inputs	XLR, AES/EBU
Color	Black
Power output	400 W
Quantity	1

Questions frequently asked

Is the Palmer Orbit 11 suitable for mixing and mastering?

Designed for critical decisions, this 3-way active monitor is used for mixing, mastering, post-production, sound design, and broadcast. Its stated frequency response of 28 Hz to 28 kHz (-3 dB) covers a wide spectrum.

What connectivity options are available on this monitor?

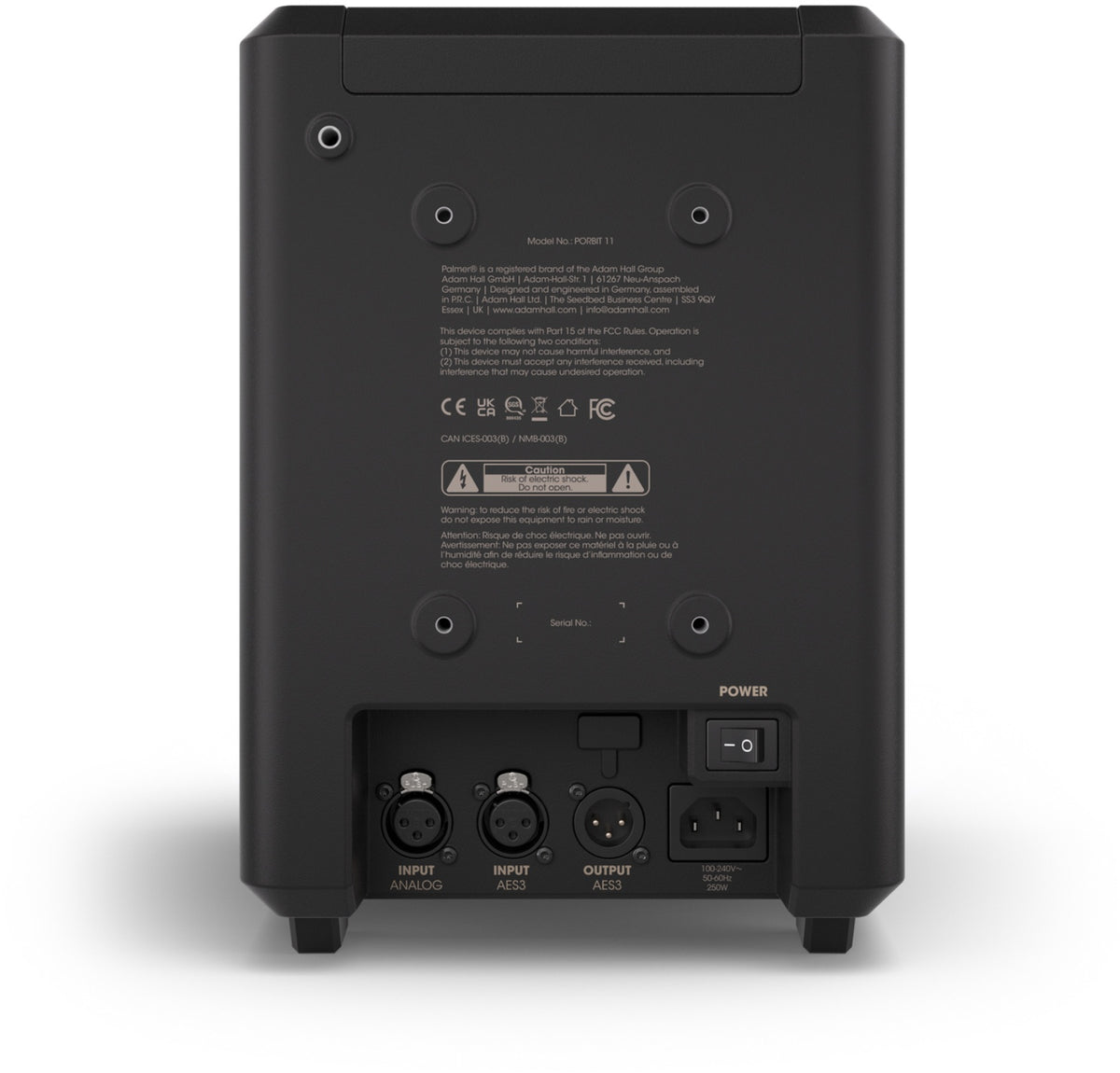

Inputs include a balanced line XLR and a digital AES3 input on a 3-pin female XLR. A digital AES3 output on a 3-pin male XLR allows for digital daisy-chaining.

Can the Orbit 11 be used with a subwoofer?

A high-pass filter at 80 Hz is provided to facilitate integration with a subwoofer and to relieve the low-frequency range.

What power and sound pressure level does this monitor deliver?

The Class D amplification section delivers 400 W RMS and up to 1000 W peak power. The peak sound pressure level is specified at 116 dB. Limiters, including a multiband limiter, and overheating protection are integrated.

How does the Palmer Orbit 11's cardioid dispersion work?

The cardioid architecture limits energy radiated to the rear to reduce interactions with walls. The 120° dispersion horizontally and vertically maintains a wide listening area.
