Pioneer Dj DJM-S5
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Pioneer Dj
https://www.alphatheta.com
------------------------
Safety manager:
AlphaTheta EMEA Limited Belgiu
Email: service@alphatheta.com
Address:
A Battle Mixer Inspired by Pro References
The DJM-S5 adopts the ergonomics of Pioneer DJ's high-end battle mixers in an accessible 2-channel format. Its compact chassis, glossy red finish, and the "window" on the MAGVEL FADER PRO mechanism create an instrument look designed for both stage and streaming.
For Beginner to Advanced Scratch DJs
Whether you are starting in turntablism or refining your routines, the DJM-S5 offers intuitive handling. It adapts to mobile sets, club showcases, portablism sessions, and DJ school classes. USB power and standalone mixer mode make practicing anywhere easy.
Features and Innovations
The two large effect levers-matching the DJM-S11 format-allow momentary or locked activations to sculpt your transitions. Four pads per channel provide access to 13 modes, including "Hot Cue," "Sampler," and "Scratch Bank" to trigger samples and full tracks with a single gesture.
The "Scratch Cutter" automatically applies 6 synchronized cutting patterns, ideal for working on timing before moving to the fader. With "Crossfader Hot Cue," each crossfader opening replays the last Hot Cue in sync with your movements, generating scratch-style phrases without touching the vinyl. Via USB Type-C, the mixer is powered from the computer and serves as a plug-and-play audio interface for Serato DJ Pro and Serato DVS. On the audio side, the Master XLR output, combo mic input, and dual headphone jacks ensure professional use.
Technical specifications
| Type | Digital |
| USB stereo recording / playback | Yes |
| Number of faders | 2 |
| Rackable | No |
| Frequency response | 20 Hz - 20 kHz |
| Signal-to-noise ratio | 108 dB (USB); 94 dB (LINE); 82 dB (PHONO); 75 dB (MIC); 94 dB (AUX) |
| Total harmonic distortion | 0.003% (USB); 0.007% (LINE) |
| Inputs | 2 x LINE/PHONO (RCA), 1 x MIC (combo XLR/6.35 mm jack), 1 x AUX (RCA) |
| Outputs | 1 x MASTER (XLR), 1 x BOOTH/MASTER (RCA) |
| Headphones | 2 outputs (6.35 mm jack and 3.5 mm mini-jack) |
| USB port | PC/Mac connection and USB Type-C power x 1 |
| Software | Serato DJ Pro |
| Support | Serato DVS, 13 pad modes including "Hot Cue," "Sampler," "Scratch Bank" |
| Power | via USB Type-C bus |
| Power only | USB Type-C x 1 |
| Consumption | 5 V / 500 mA |
| Dimensions (W x D x H) | 245 x 363.5 x 107.9 mm (9.65" x 14.31" x 4.25") |
| Weight | 3.4 kg (7.5 lb) |
Questions frequently asked
Is the Pioneer DJ DJM-S5 compatible with Serato DJ Pro and Serato DVS?
The USB Type-C connection allows plug-and-play use with Serato DJ Pro. Support for Serato DVS is also indicated, featuring 13 pad modes including Hot Cue, Sampler, and Scratch Bank.
What scratch tools does the DJM-S5 offer?

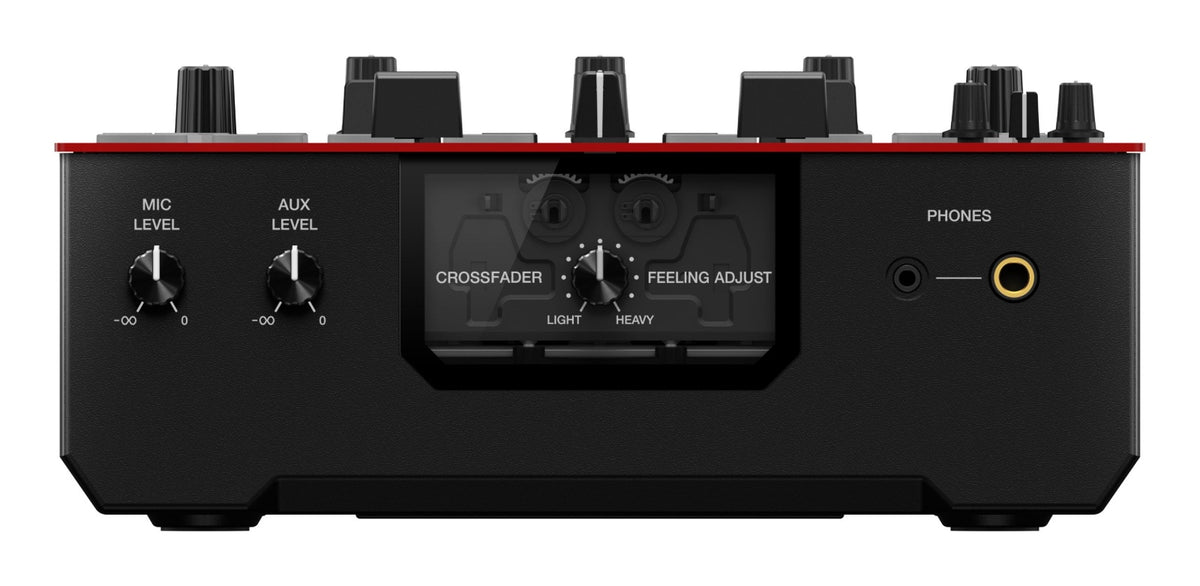

The Scratch Cutter functions provide 6 synchronized cut patterns to work on timing. The Crossfader Hot Cue plays back the last Hot Cue point each time the crossfader is opened. The MAGVEL FADER PRO is visible through a window integrated into the chassis.
Can the DJM-S5 operate without mains power?
Power is supplied via the USB Type-C port, with a consumption of 5 V / 500 mA.
What audio and headphone outputs are available?
The connections include a Master output on XLR and a Booth/Master output on RCA. Two headphone outputs are available, a 6.35 mm jack and a 3.5 mm mini-jack.
What are the dimensions and weight of this mixer?
The unit measures 245 x 363.5 x 107.9 mm and weighs 3.4 kg. Inputs include two pairs of LINE/PHONO on RCA, a combo microphone input (XLR/6.35 mm jack), and an AUX RCA input.
