OMNITRONIC DJ TRM-222

A Rotary Mixer Inspired by the Classics, Refined by the Community

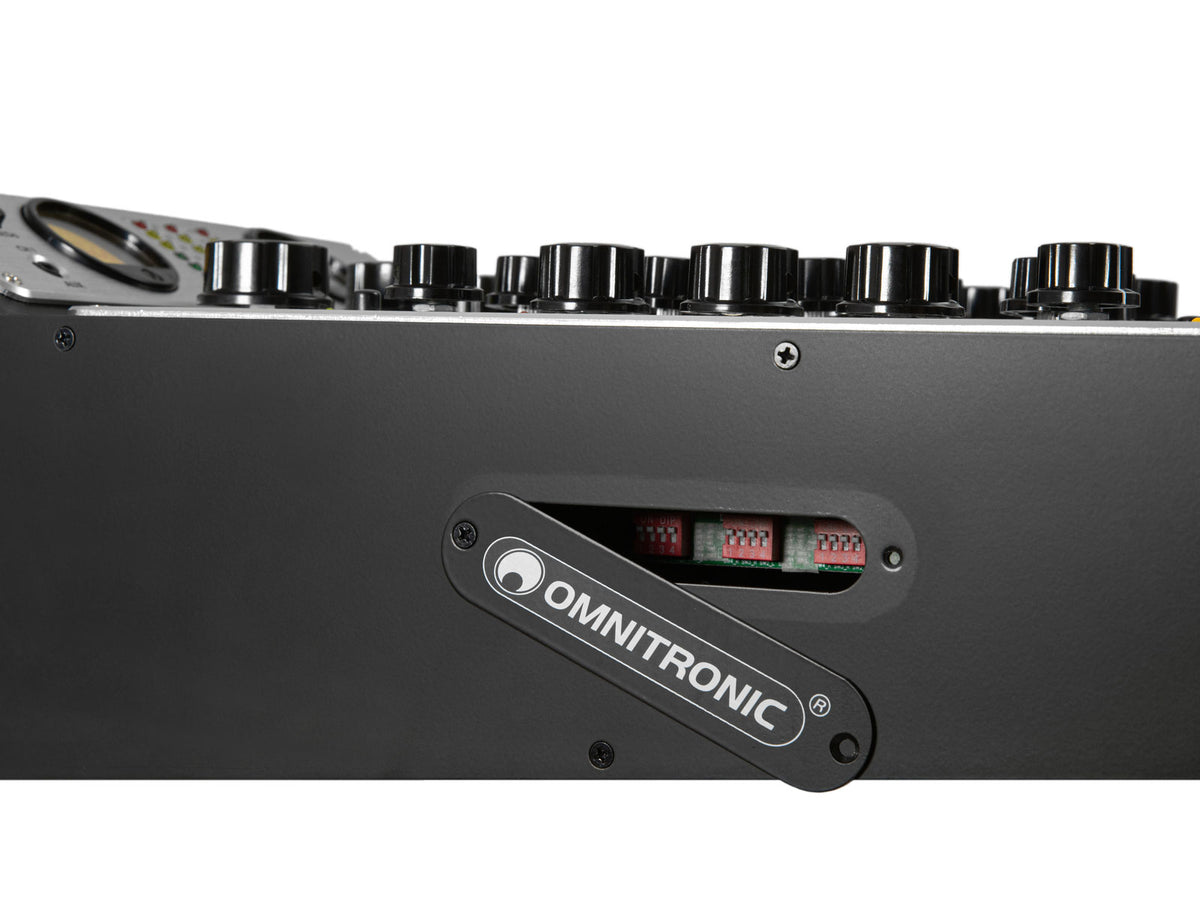

The TRM-222 carries the DNA of great rotary mixers while integrating key user requests: per-channel VU meters, dipswitches to shape the EQ curve, and independent booth management. The result is an audiophile, robust, and intuitive mixer designed for longevity and musicality.

For Which DJs and Settings?

Ideal for house, disco, techno DJs seeking a "hands-on" mix with warm character, the TRM-222 thrives in clubs, vinyl bars, mobile parties, and fixed installations. Its microphone input and Booth output make it a reliable choice for sound engineers, while its full routing suits studios and home recording.

Features and Innovations

The 3-band isolator at the heart of the TRM-222 offers immense creative range, supported by a filter section with variable resonance HPF/BPF/LPF to precisely shape the spectrum. Both stereo channels feature phono/line selectors, gain, 3-band EQ, clip LEDs, and per-channel VU meters. The adjustable curve VCA crossfader is ready for hybrid mixing, while the dedicated FX loop (Send/Return and FX In/Out) facilitates external effects integration. For monitoring, the Booth XLR/RCA output includes a 2-band EQ and dedicated volume. The microphone input offers gain, 2-band EQ, and an "On Air" switch. Finally, the direct timecode outputs, master L+R display, and cue mix/split ensure total control in any situation.

Technical specifications

Type	Analog	Number of faders	2
USB stereo recording / playback	No	Rackable	No

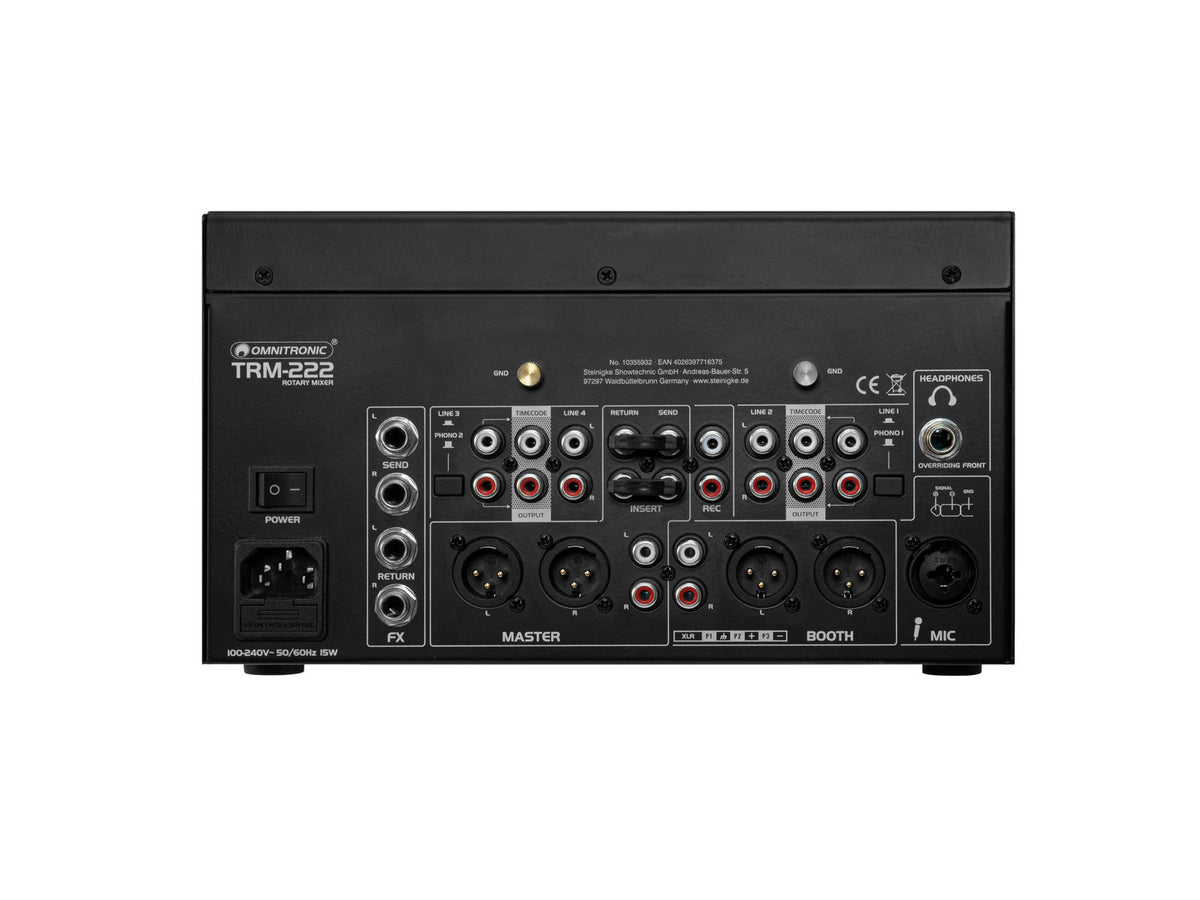

Power supply	100-240 V AC, 50/60 Hz	Inputs	Line via 2 x stereo RCA; Line/Phono via 2 x stereo RCA
Power consumption	15 W	Microphone input	1 x recessed combo XLR/6.35 mm (F)
Protection class	SK I	AUX Returns	2 x balanced 6.3 mm jack
Power connection	power cable with protective contact plug, recessed "cold device (M)" input (cable included)	AUX Sends	2 x balanced 6.3 mm jack
Cable length	1.5 m, detachable	Direct timecode outputs	2 x stereo RCA
Frequency range	20 - 20,000 Hz	Headphones	2 x recessed stereo 6.3 mm jack; 1 x recessed stereo 3.5 mm jack
Signal-to-noise ratio	> 100 dB	Rec output	1 x stereo RCA
Harmonic distortion	< 0.05% at 1 kHz	Booth output	2 x 3-pin XLR; 1 x stereo RCA (left/right)
Gains	Line -12 dB to +12 dB; Phono -40 dB to +5 dB; FX +20 dB; Microphone +55 dB	Master output	2 x 3-pin XLR; 1 x stereo RCA (left/right)
Master isolator	Master gain from total cut to +9 dB; Low/Mid 300 Hz, 18 dB/oct, Butterworth; Mid/High 4000 Hz, 18 dB/oct, Butterworth	Master Insert Send/Return	RCA (left/right)
DJ filter	routable - LPF, HPF	FX In/Out	stereo jack
Max output level	+21 dBu	Materials	metal, aluminum
Input channels	2 x stereo with Line-Line/Phono selector via RCA, rotary potentiometer controls, 3-band EQ, source switch, gain control, CUE switch, FX routing	Chassis colors	black, silver
Microphone channel	1 x mono via combo XLR/jack connector, rotary potentiometer controls, 2-band EQ, ON AIR switch	Design	tabletop chassis

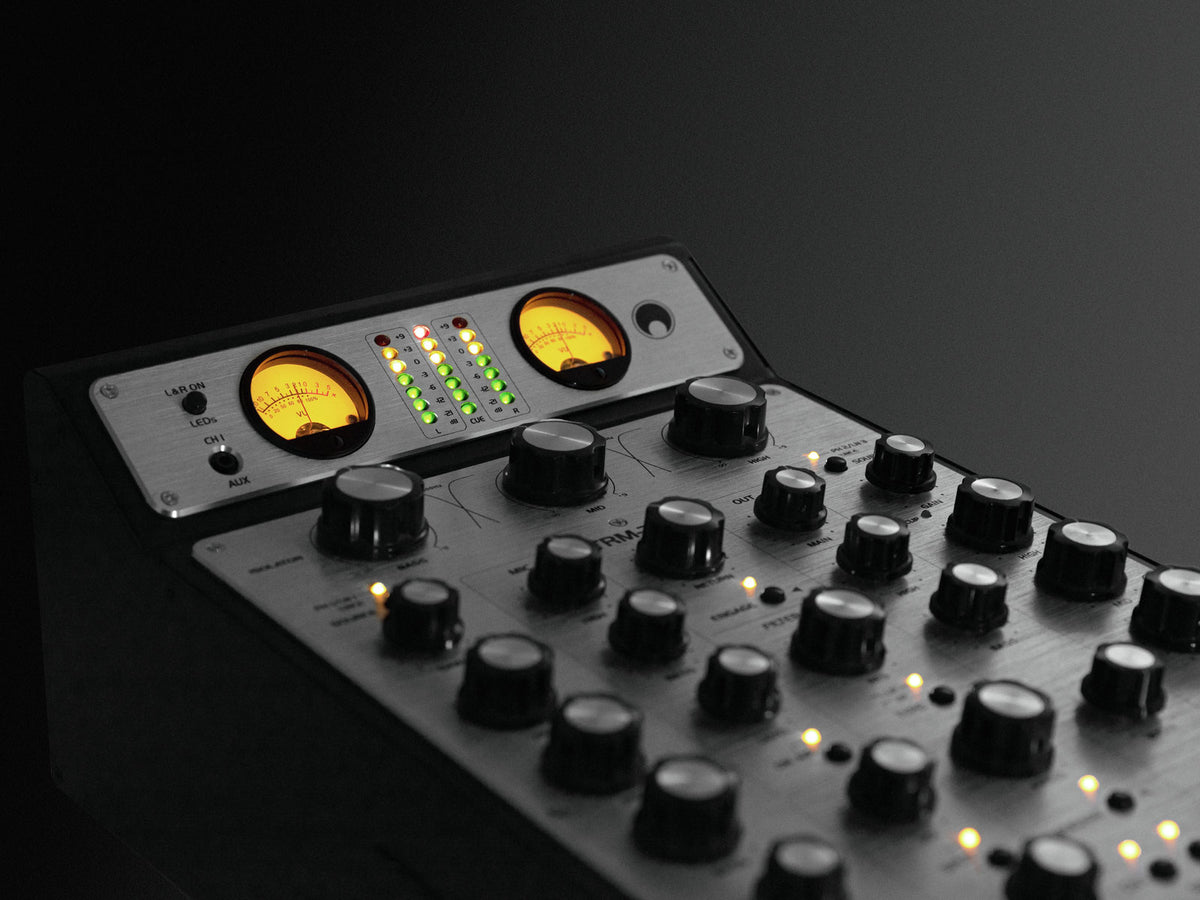

Dual analog VU meter; LED indicators	Power, master level, Clip, CUE	Dimensions	width 45 cm; depth 26 cm; height 16 cm
Functions	VCA technology crossfader, crossfader mode selector, crossfade curve switch, Cue-Mix-Split function, tone adjustment	Weight	5.80 kg
