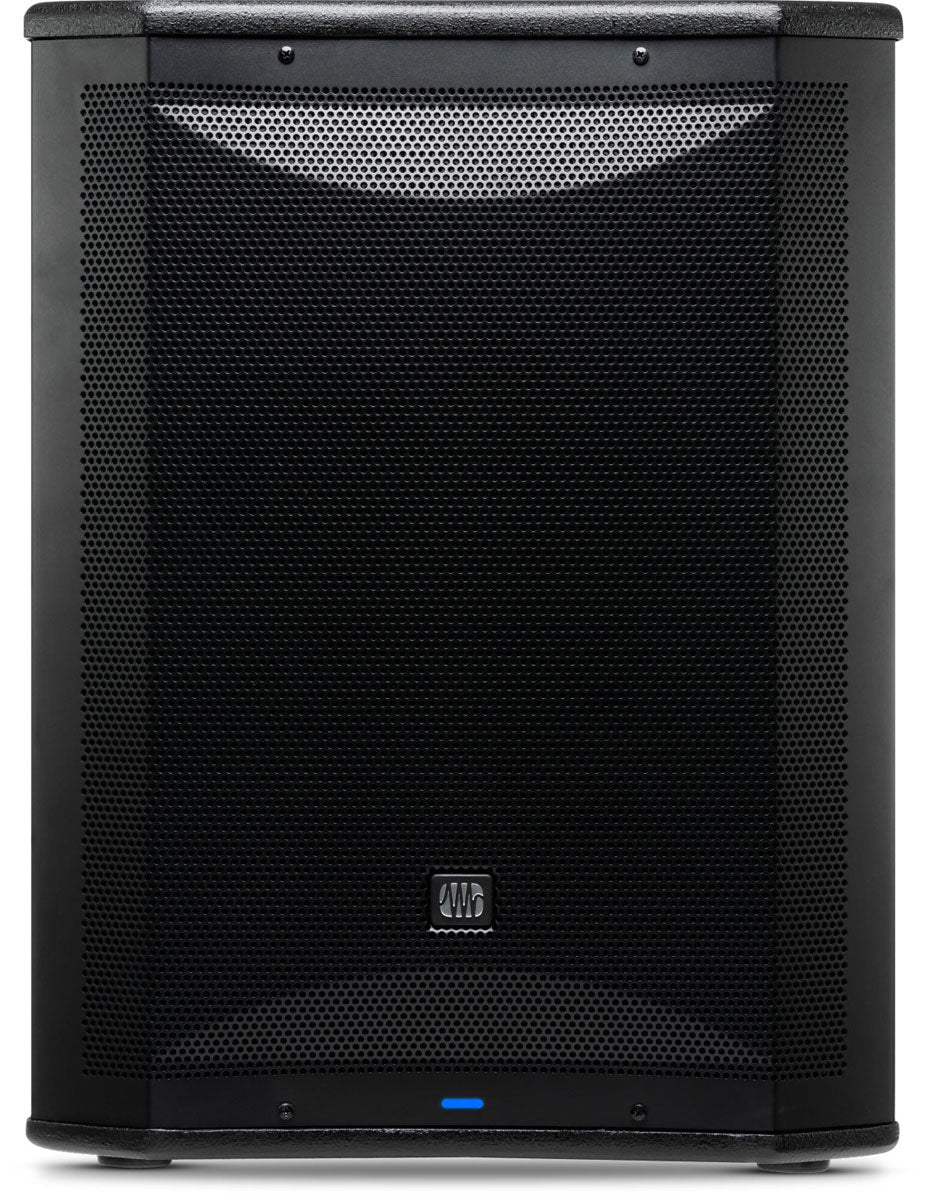

Presonus AIR XD Sub 15

An AIR XD Subwoofer Designed to Complement a Professional Sound Chain

The PreSonus AIR XD Sub 15 is designed as part of a system: it is naturally intended to pair with full-range speakers from the AIR XD series and to reinforce the low end in demanding contexts. Its approach emphasizes useful power, bass control, and simple integration to achieve a coherent sound both at front of house (FOH) and in monitor or permanent installation configurations.

Who the PreSonus AIR XD Sub 15 Is For and Its Applications

This active subwoofer targets service providers, bands, DJs, venues, and technicians seeking present, clean, and controlled bass without complicating setup. It is particularly suited for configurations aiming to enhance the impact of kicks and bass, improve the sense of depth, and maintain good mix clarity at high levels in concerts, events, clubs, multipurpose rooms, or fixed installations.

Settings, DSP, and Integration: Controlled Bass Regardless of Configuration

15-Inch Speaker and Power Reserve

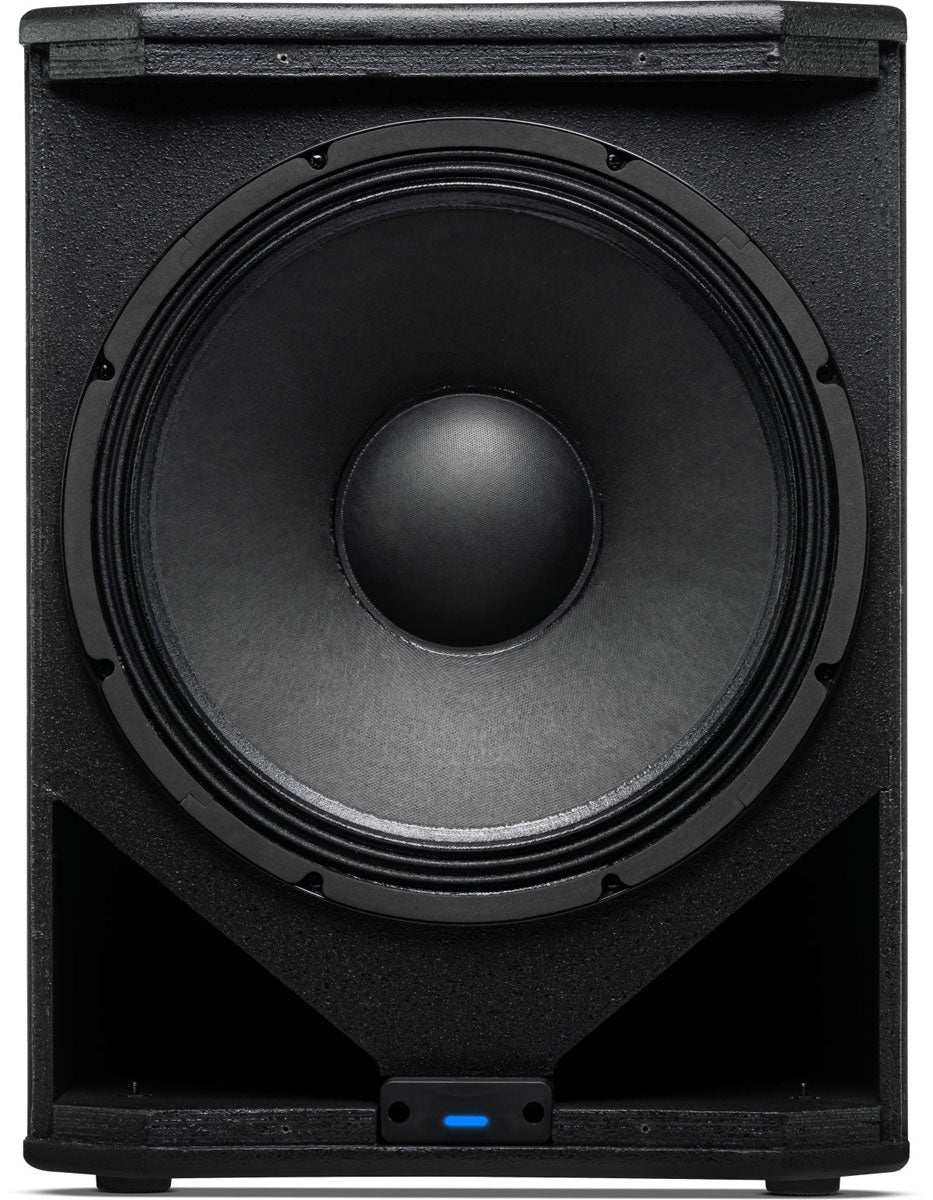

The custom 15-inch low-frequency driver paired with a 3-inch voice coil enables efficient power handling, delivering firm bass with low distortion. The 2000 W Class D amplification provides a clear and energetic sound while maintaining a useful headroom for the most dynamic passages.

Filtering, Delay, and Array Presets to Optimize the Low End

The AIR XD Sub 15 includes field-oriented adjustment options: a variable low-pass filter to match the crossover frequency to the speakers used, alignment delay to time-align the subwoofer with the main system, and cardioid and end-fire presets to better control bass projection in multi-subwoofer setups. These tools allow tailoring bass behavior according to the room, stage, and placement without wasting time.

Color LCD Screen and Quick Access to Profiles

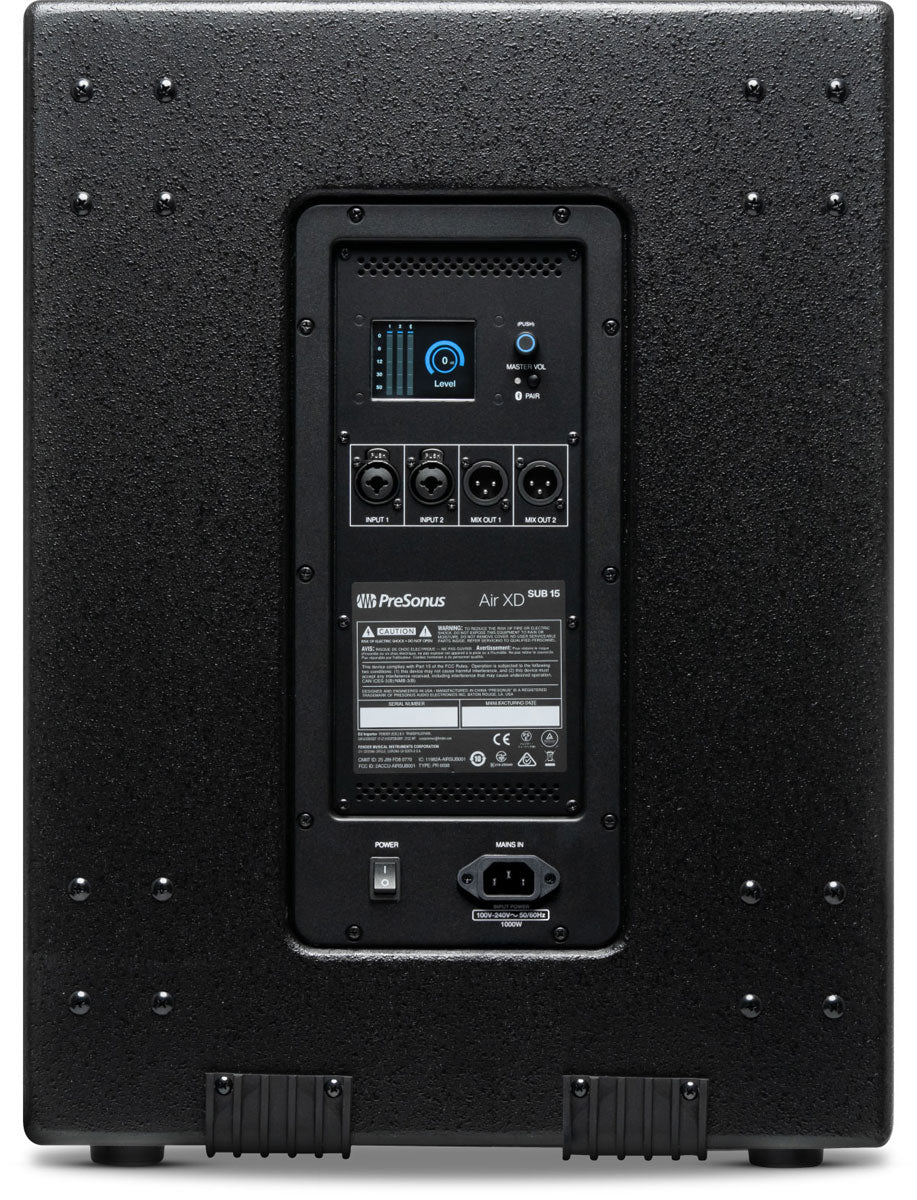

A 2.6-inch color LCD screen facilitates level monitoring and system control. Access to DSP presets, the equalizer, and sound profiles is designed to remain intuitive, an advantage when quick adjustments are needed between soundchecks or when multiple operators manage the system.

Bluetooth and Routing: Flexibility at FOH and Monitors

The built-in Bluetooth with TWS Bridge mode allows wireless stereo pairing with AIR XD full-range speakers, convenient for certain setups or simplified sound distribution needs. Flexible routing and direct outputs ease the integration of the subwoofer into a sound chain, whether working at front of house, monitors, or in an evolving mobile configuration.

Robust Design and Integrated Mobility

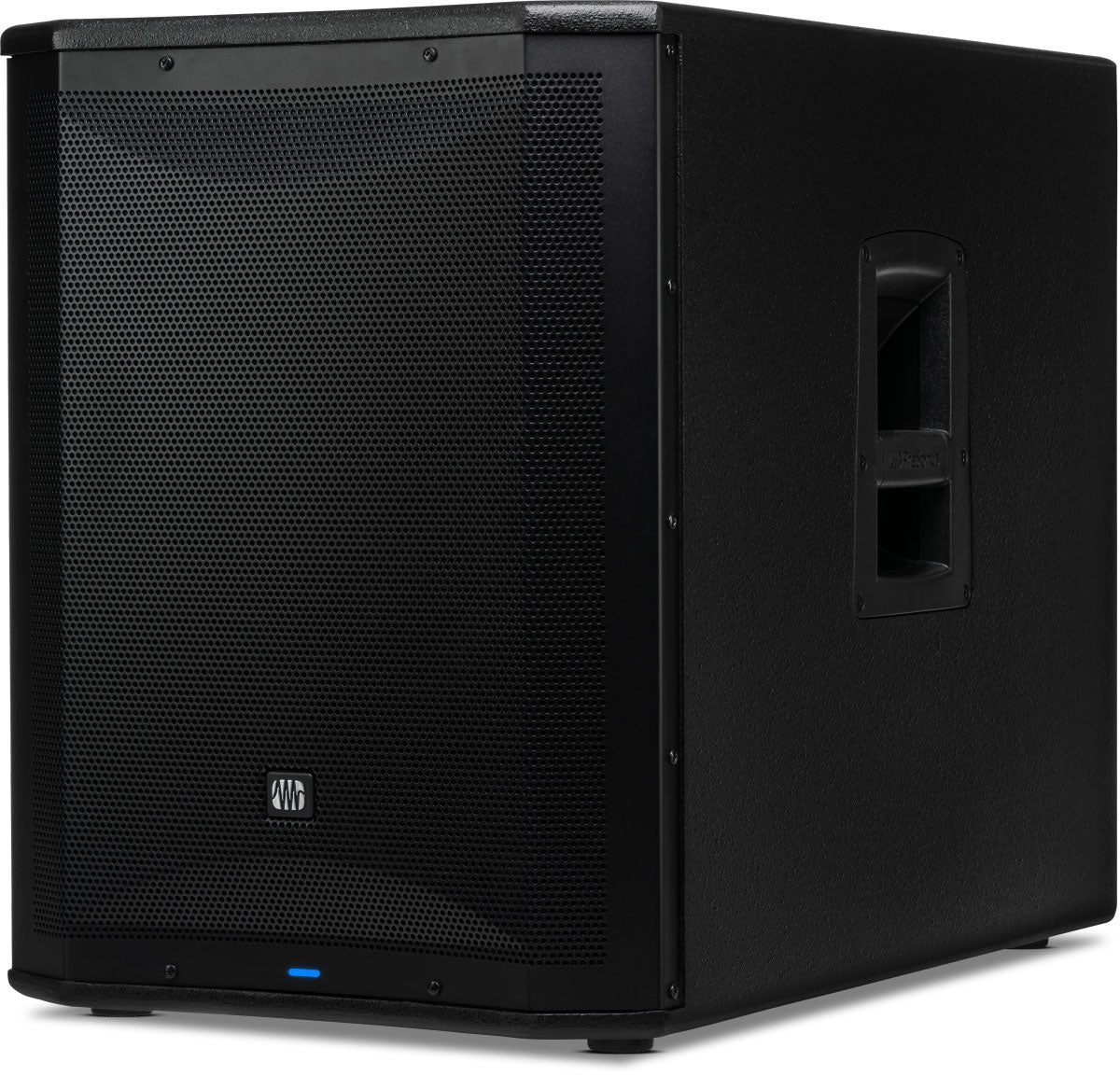

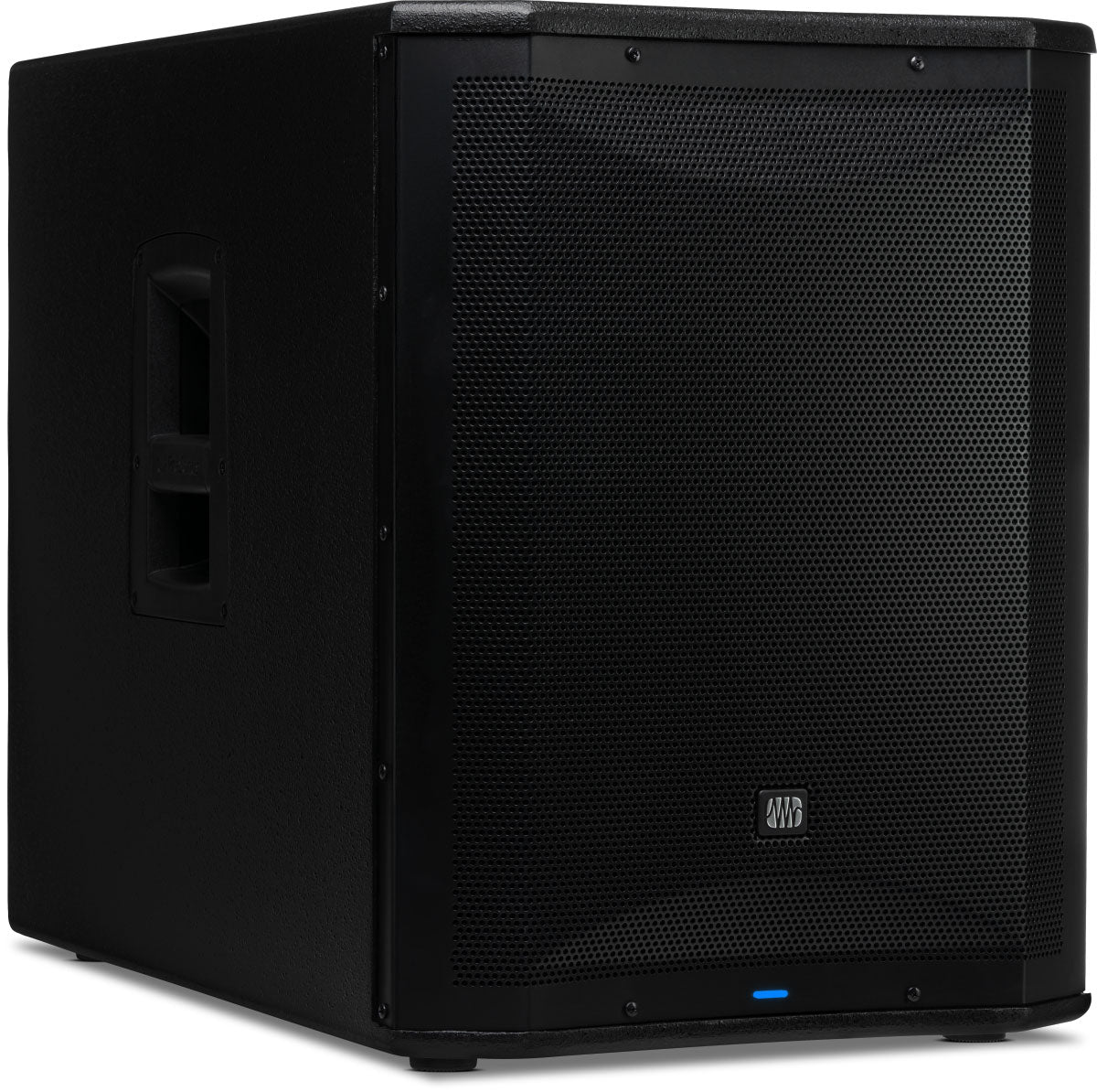

Built for the road and installation, the wooden enclosure emphasizes durability. Ergonomic handles, ground stacking features, and integrated wheels significantly improve handling. The AIR XD Sub 15 remains easy to deploy in stacks, suspension, or permanent installations while maintaining a solid sonic presence.

Technical specifications

Bluetooth

No

Usage	professional (live, installation, mobile)	Technology	Class D
Construction	wooden enclosure	Filtering	variable low-pass
Low-frequency driver	15 inches (38.1 cm), custom	Presets	cardioid and end-fire
Voice coil	3 inches	Access	DSP presets, equalizer, sound profiles
Amplifier power	2000 W	Screen	2.6-inch color LCD (6.6 cm)
