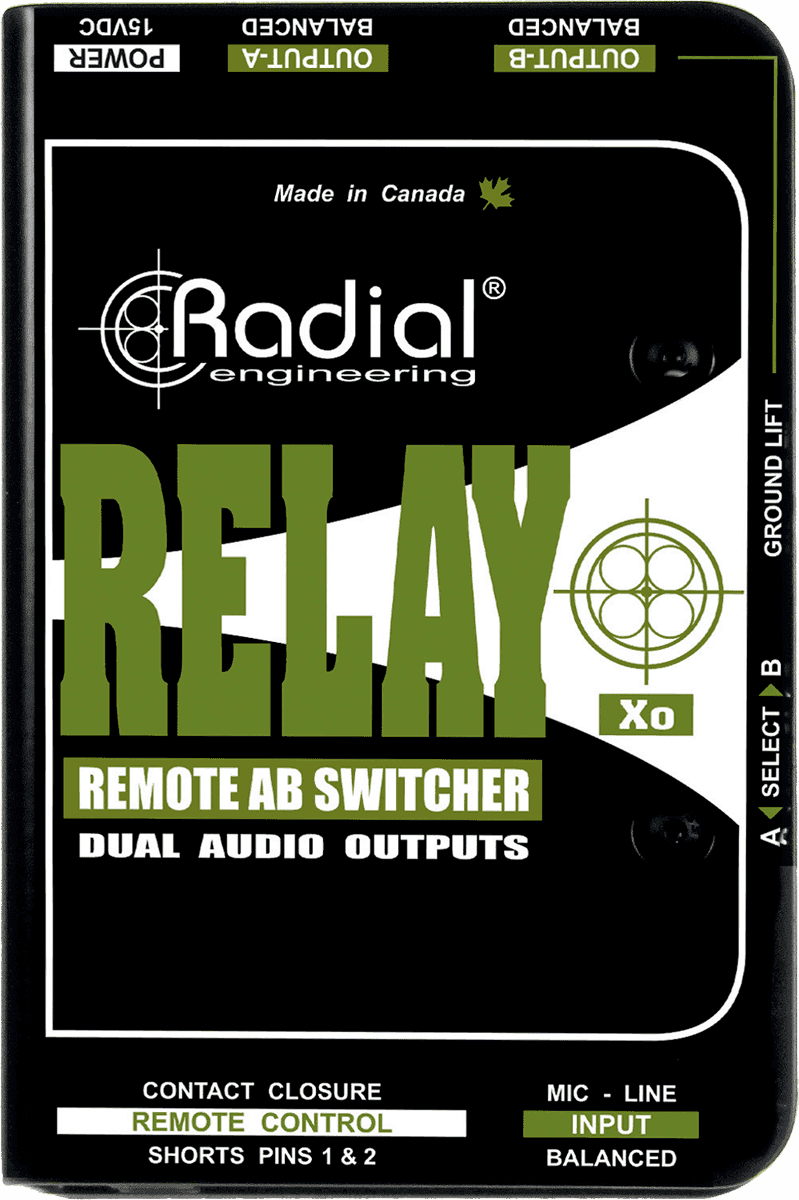

Essential Information About the Radial Relay Xo Audio Switcher
Essential Information About the Radial Relay Xo Audio Switcher
- 1 input / 2 balanced XLR outputs microphone routing to instantly switch the same microphone to two distinct destinations.
- Ideal for stage & in-ear monitors: switch from the front-of-house system to monitors (or a "talkback" channel) for discreet communication.
- Reliable relay switching (gold contacts) designed to preserve signal integrity, from microphone to line level.

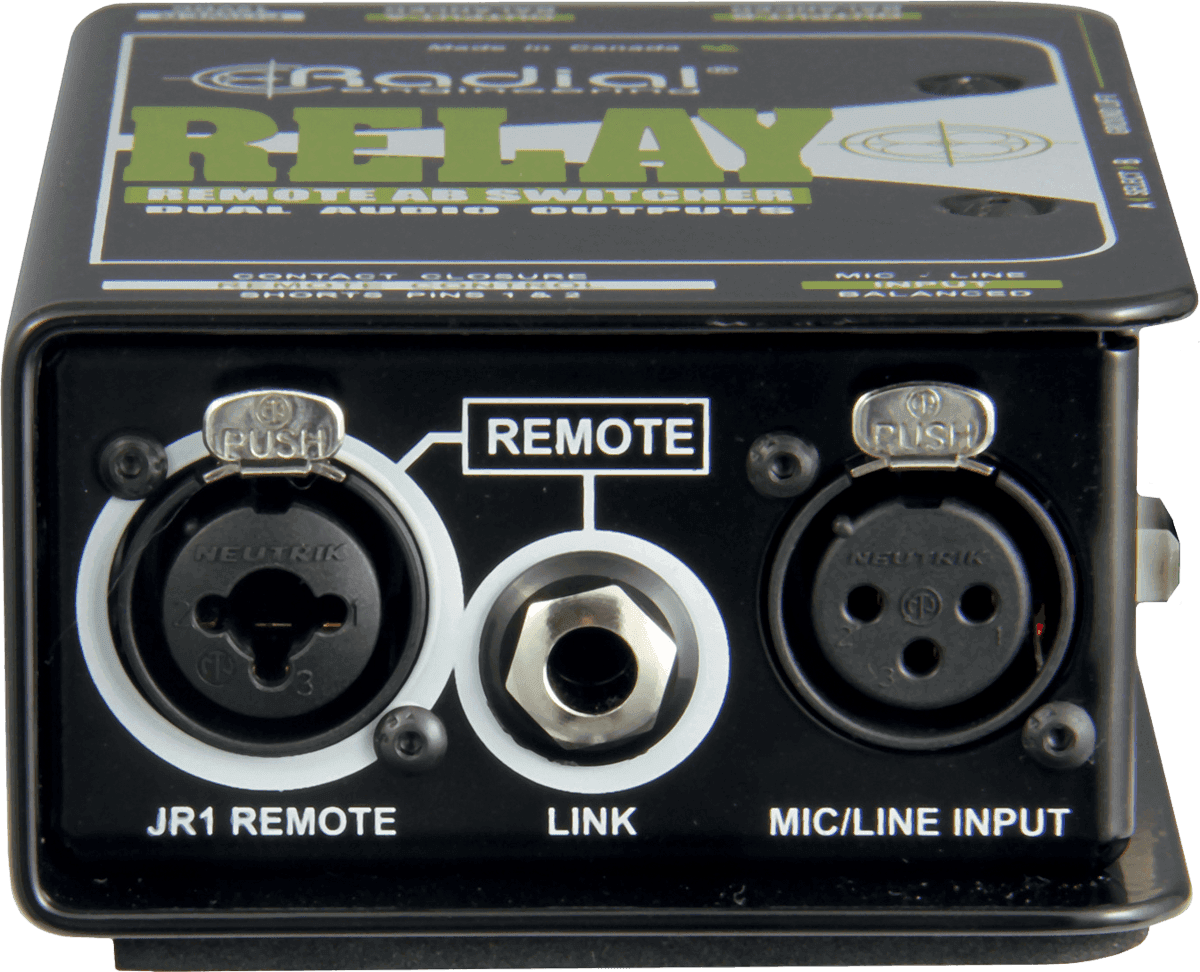

- Local or remote control via side switch and footswitch inputs (XLR combo and 6.35mm Jack), with a "link" function to synchronize multiple units.
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Radial Stage Tool Designed for Modern Microphone Routing
Designed for live environments where everything must remain simple, fast, and reliable, the Relay Xo fits Radial's "field" approach: rugged enclosures, professional connections, and ergonomics focused on the real needs of musicians and technicians. In a current concert setup (separate monitors, digital console, in-ear monitors, talkback), being able to redirect a microphone to two distinct inputs becomes a real comfort... and sometimes a safety asset.
Who Is It For and What Are Its Uses?

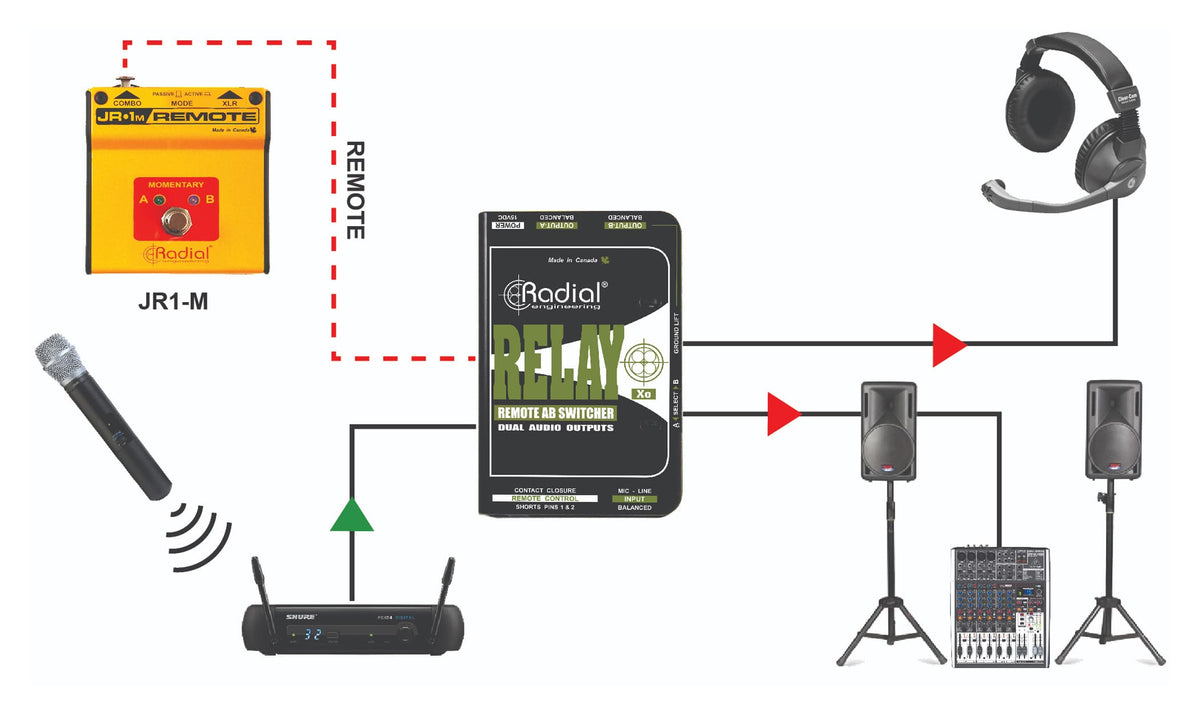

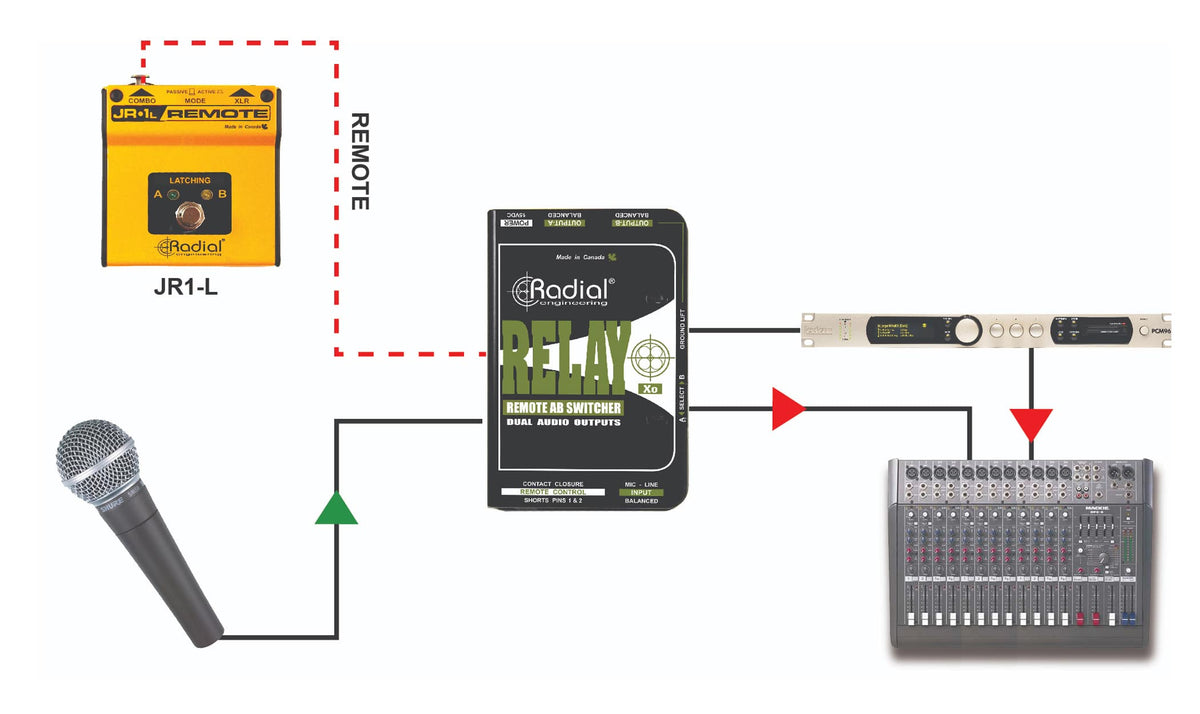

The Radial Relay Xo is primarily aimed at singers, MCs, musicians using ear monitors, and technical teams who want to maintain control over the microphone path. A typical example: sending the microphone either to the front of house or to the monitors to talk to the band or the stage manager without the audience hearing. Another common application: duplicating a microphone send to two console channels to have a "dry" channel and an "effects" channel (reverb/delay), giving the artist a simple way to change ambiance in real time.
Technical specifications
| Category | Direct box | Frequency response - end | 100 kHz |
| Number of channels | 2 | Inputs | XLR, footswitch |
| Digital conversion | No | Analog outputs | 2 x XLR |
| Max input level (dBu) | 26 | Power supply | DC 15 V |
| THD | 0,005% @ 1 kHz | Weight | 635 g |
| Frequency response - start | 10 Hz | Dimensions (mm) | 127 x 84,1 x 45.5 |
You will also like
Rupert Neve Designs
RNDI Active DI
Radial
J48 CLASS A ACTIVE DI BOX STEREO
Radial
Twin Iso Passive Stereo Converter
Radial
HOTSHOT-48V
Radial
JS2 Splitter 1 In / 2 Out
Palmer
PRMMS8 PRO - 8-CHANNEL MICROPHONE SEPARATOR
Radial
JDI STERO PASSIVE-DI
Montarbo
MDI-2M
Questions frequently asked
Can a microphone be routed separately to the front of house or monitors?
The 1-to-2 switching allows directing a balanced XLR input to one of two balanced XLR outputs. This configuration can be used to send a microphone to the front of house or a separate monitor feed.
Which footswitch pedal should be used with the Radial Relay Xo?
Remote control is designed for use with a Radial JR1-L latching pedal or JR1-M momentary pedal. Control connections accept an XLR combo format and a 6.35 mm jack.
Does the unit accept a line level signal?
The active electronics accept both microphone and line level signals, up to +26 dBu at the input.
How can multiple switching units be controlled with a single control?
The link function allows synchronizing multiple units to coordinate the switching of multiple lines. This feature is especially suitable for several microphones or sources needing to change destinations simultaneously. Gold contact relays ensure internal switching.
How robust is the Relay Xo for stage use?

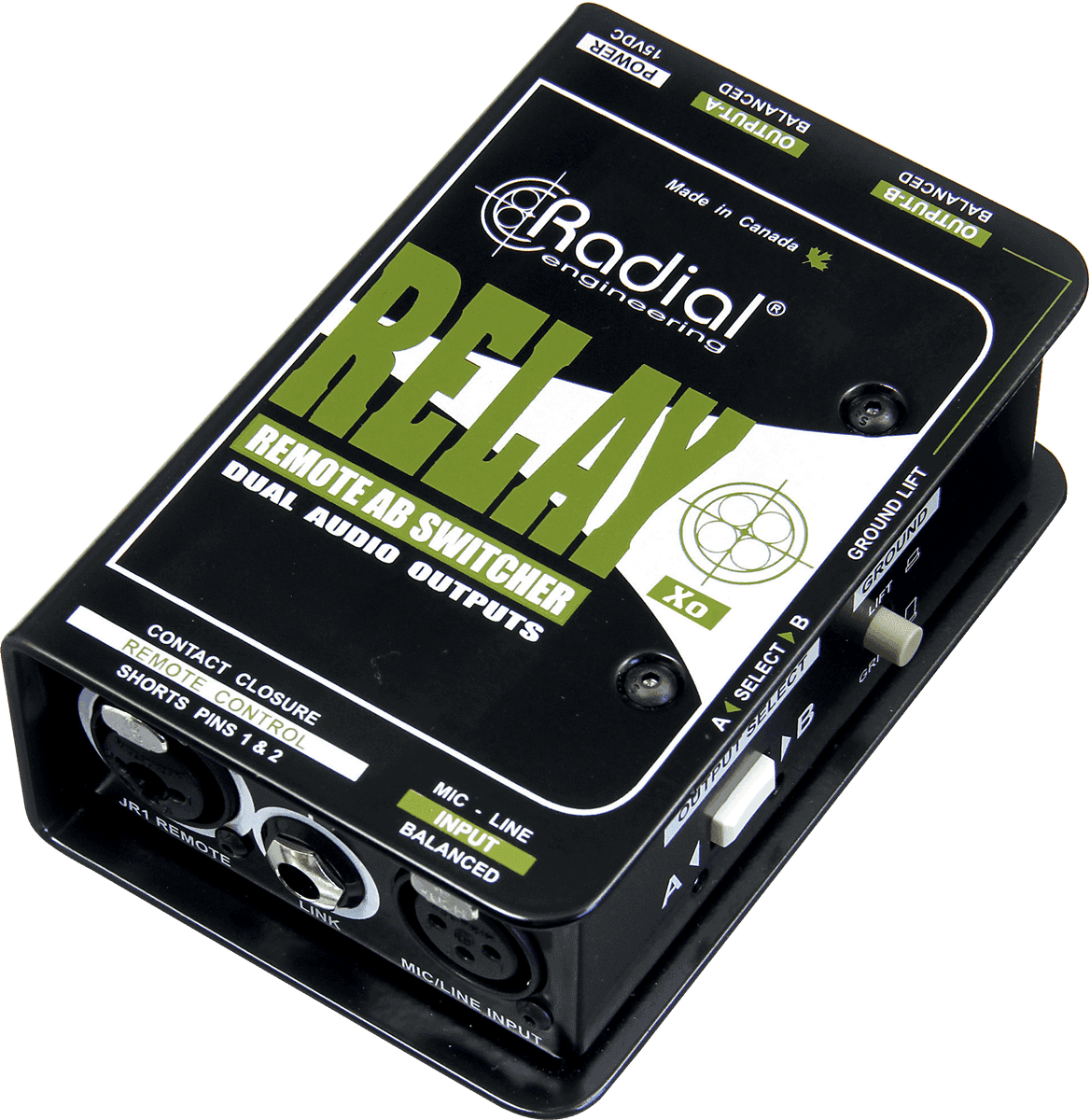

The chassis is made from 1.55 mm steel and the entire unit weighs 635 g. Military-grade relays and gold contacts are designed to withstand the demands of stage use.
