An Accessory Designed for the Radial Ecosystem in Standard Format
The J-Clamp fits into Radial's "installation" philosophy: a dedicated solution to permanently integrate a DI box into a workstation, control room, or stage. Unlike universal mounts, it is designed to perfectly fit the chassis of Radial standard-sized DI boxes to maintain a clean, stable, and easy-to-maintain setup.
Who and When to Use the J-Clamp?
This mount is intended for studios, venues, service providers, and fixed locations that want to prevent DI boxes from moving, falling, or disappearing. Ideal for guitar/bass stations, conference lecterns, stages, or permanent rack wiring, the J-Clamp improves daily reliability while keeping access to connections.
Quick Installation, Secure Hold
Installation Principle

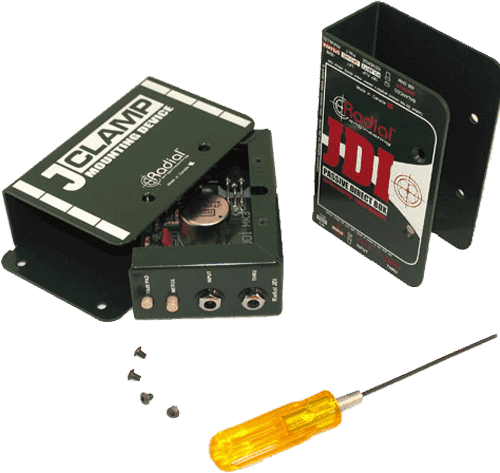

The installation is straightforward: remove the outer screws, take off the shell, then slide the internal frame of the box into the J-Clamp. Then reuse the same hex screws to close and lock the assembly. Brackets on each side allow bolting the mount for enhanced security.
Technical specifications
| Category | sound reinforcement accessory |
| Type | support |
| Quantity | 1 |
| Additional specs | fixed mounting adapter for Radial DI, small mount |
| Compatible notably with | JDI, J48, Twin-Iso |
Questions frequently asked
Is the Radial J-CLAMP compatible with a JDI or J48 DI?
The mount is specified as compatible particularly with Radial DI units such as the JDI, J48, and Twin-Iso. It is designed for standard-sized Radial enclosures.
How is a Radial DI attached using this mount?
Installation requires removing the outer screws and the enclosure shell. The inner frame then slides into the mount, and the same hex screws are used to secure it. Side clamps allow bolting the assembly.
Can this mount be installed on a fixed guitar station?
This fixed mounting solution is suitable for a guitar or bass station requiring a DI held securely in place. It can also be integrated into a lectern, a stage platform, or permanent rack wiring.
Does the mount preserve access to the DI connections?
The mounting is designed to hold the enclosure while maintaining access to the connections.
How many mounts are included?
The quantity provided is 1 fixed mounting bracket for a Radial DI.
