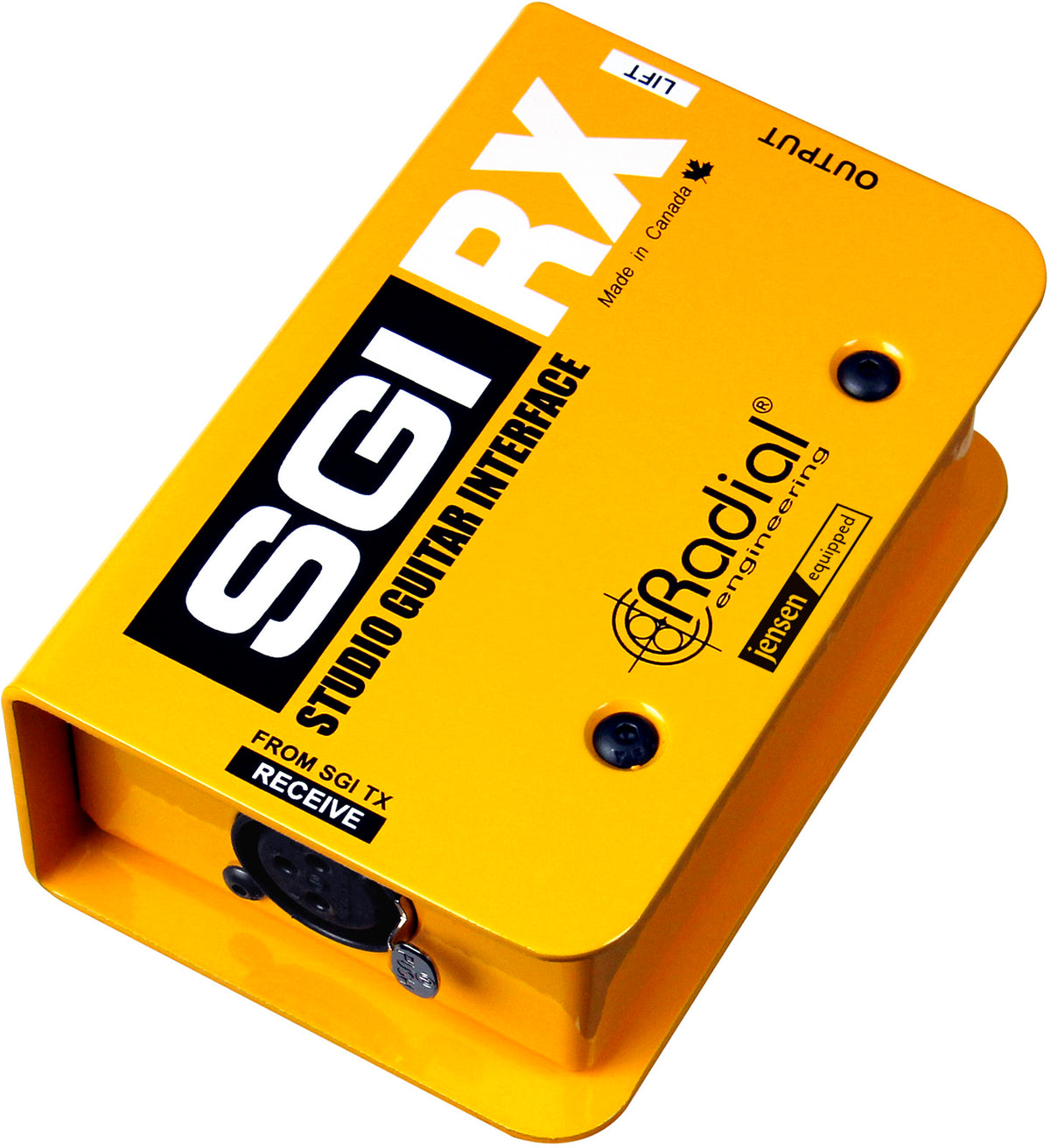

Radial SGI RX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
An SGI Mono Receiver Designed for Long Cable Runs Without Compromise
In live or studio setups, as the distance increases between the instrument (or pedalboard) and the amp, mixing desk, or rack, the signal can lose brightness and impact. This receiver for SGI Mono systems follows this logic: to ensure reliable signal reproduction at the output by relying on demanding electronics (discrete class A) and transformer isolation. It naturally integrates into an SGI Mono chain, where level consistency, silent operation, and stability are essential, night after night.
Who Is This Receiver Ideal For and What Are Its Uses?
This model is aimed at guitarists, bassists, stage technicians, and integrators who need a simple, effective, and robust mono signal extender. It is particularly relevant when you want to move the sound source (instrument, pedalboard, multi-effects) away from the sound reinforcement area: amp placed backstage, head in a rack, remote mixing desk, or a cluttered stage where reliable cabling is necessary.

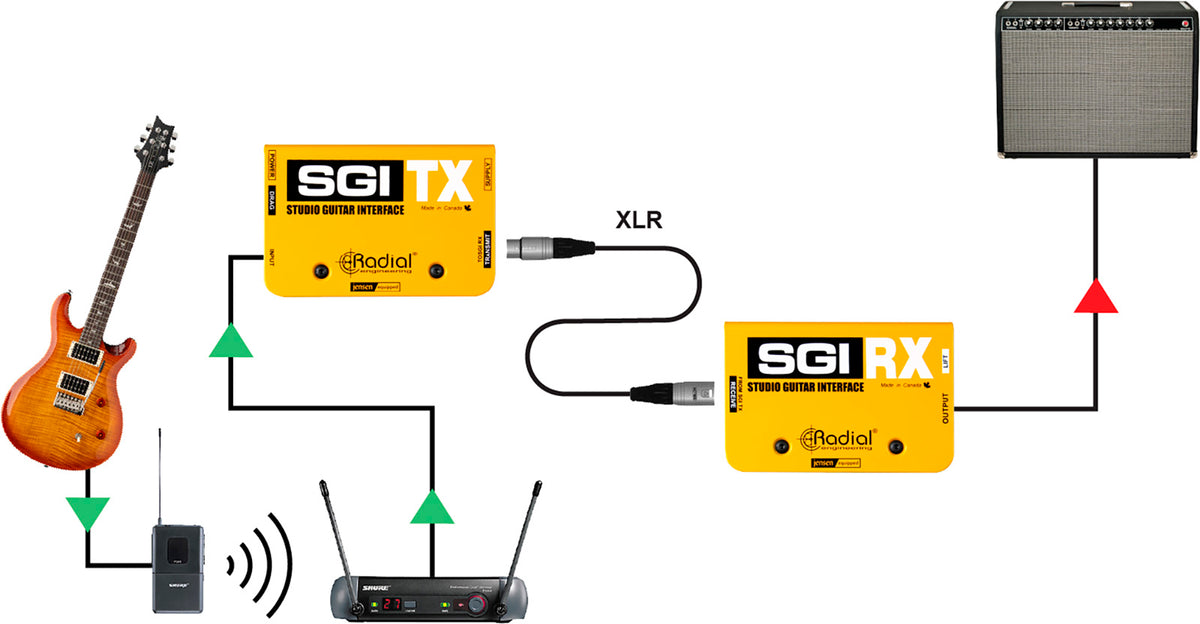

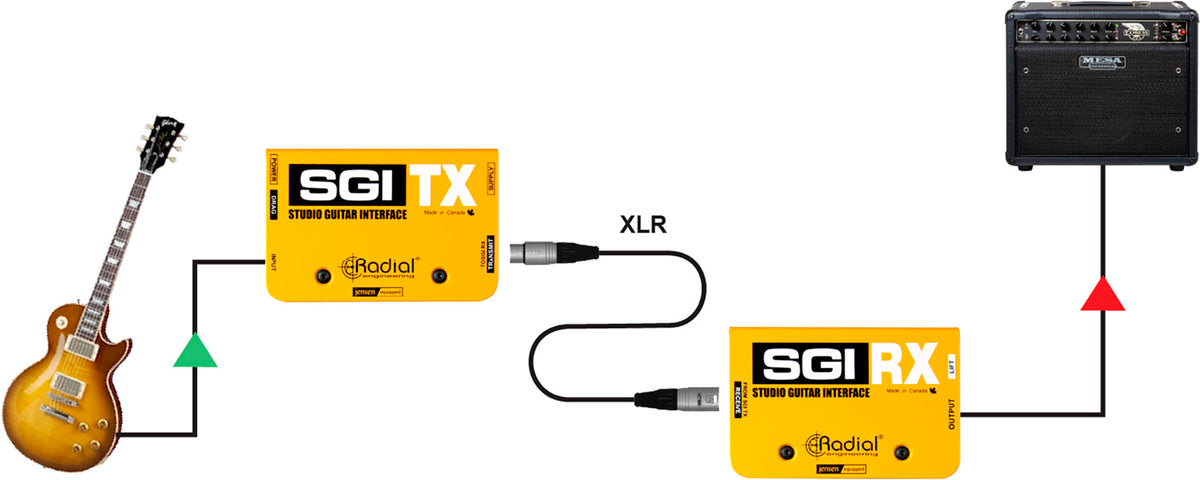

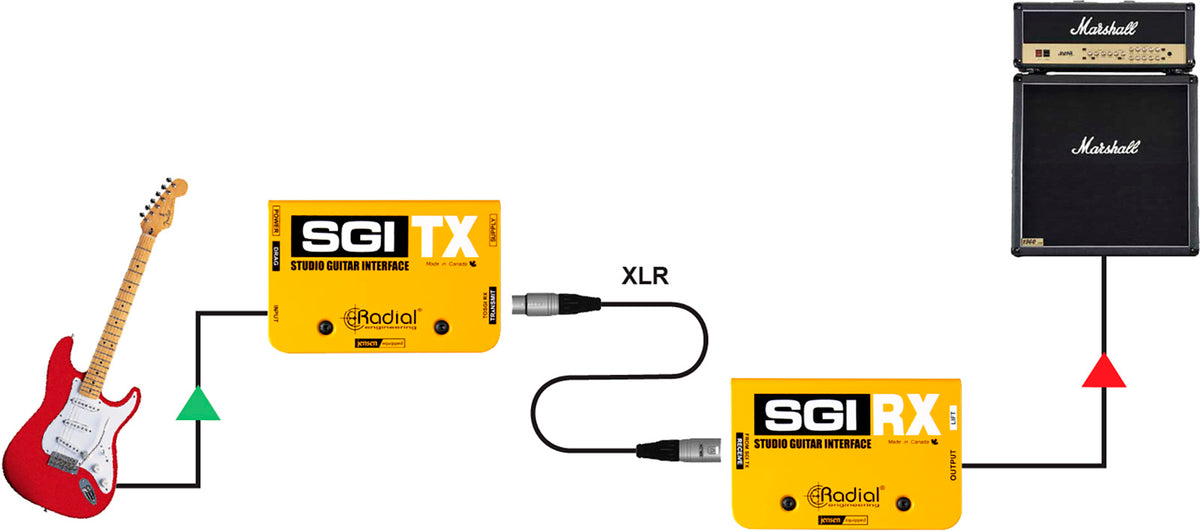

Its single channel simplifies setup: an XLR input connection, then a 6.35mm Jack output to return to the amp, end-of-chain pedalboard, or instrument input. The result is a clear, quick, and more confident installation in environments where interference and ground loops may occur.
Technical specifications
| Category | signal extender |
| Number of channels | 1 |
| Integrated preamp | Yes |
| Signal-to-noise ratio | 102 dB |
| Settings | ground lift |
| Frequency response | 20 Hz - 18 kHz |
| THD | 0,0005% @ 1 kHz |
| Inputs | XLR |
| Analog outputs | jack |
| Color | Yellow |
| Weight | 0.5 kg |
| Dimensions (mm) | 70 x 108 x 44 |
Questions frequently asked
Is the Radial SGI RX compatible with an SGI Mono system?
This receiver is designed for the SGI Mono system and operates on a single channel.
What type of connection does the receiver use to connect to a remote amplifier?

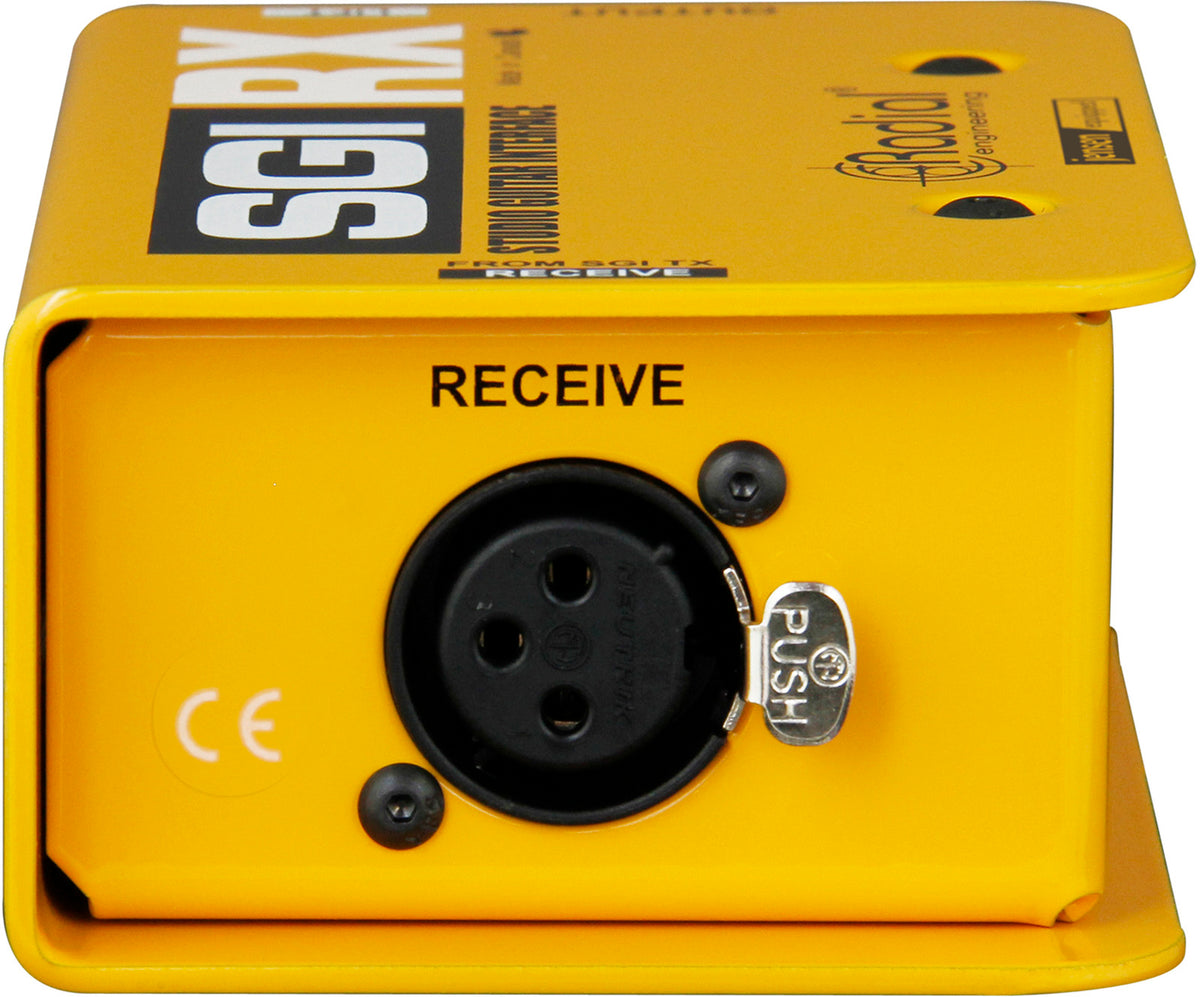

The input is via XLR from the SGI Mono link, while the output uses a 6.35 mm jack. This output can connect to an amplifier, a pedalboard in the effects chain, or an instrument input.

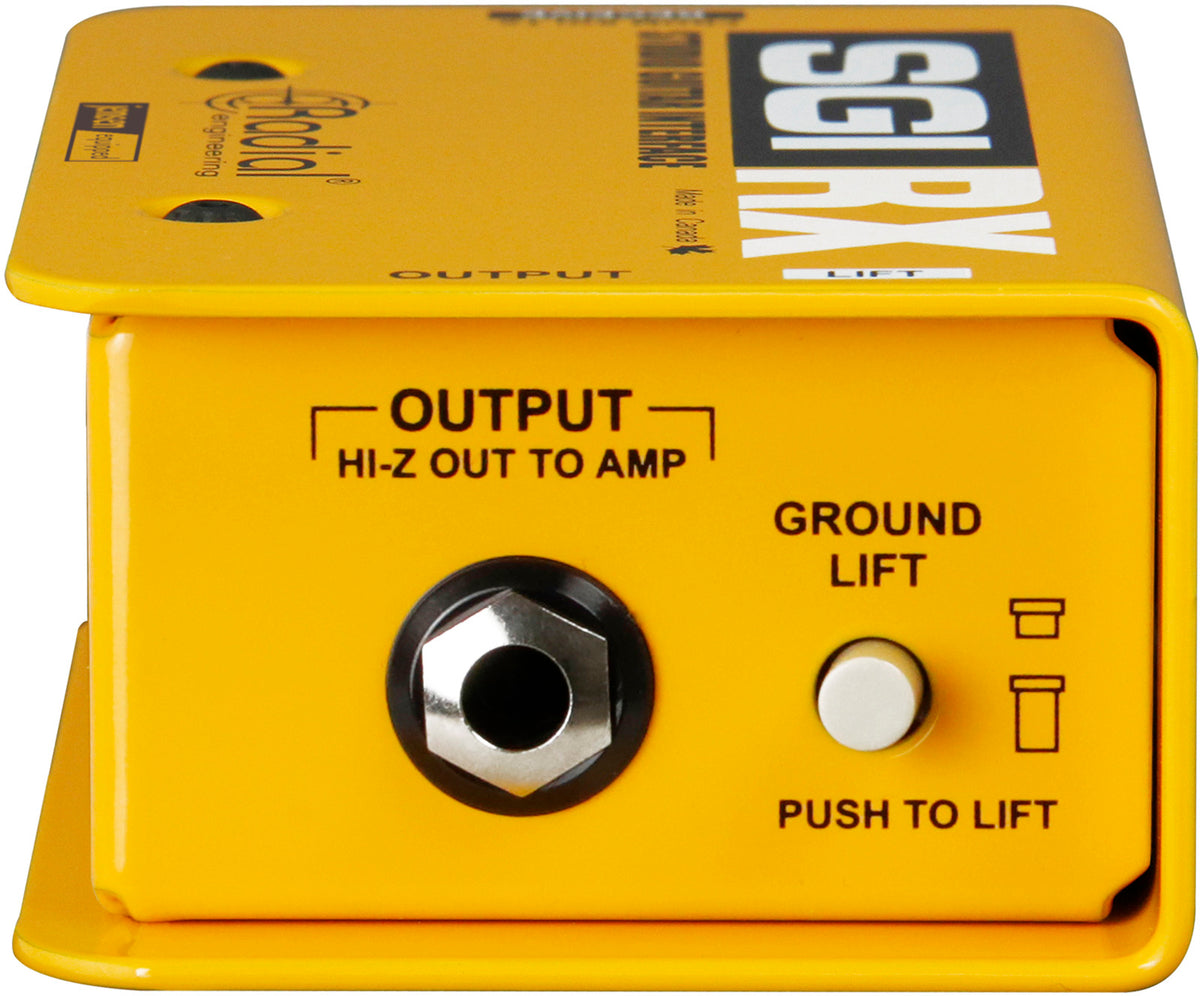

How can ground hum be eliminated with this receiver?
A ground lift adjustment is provided to address ground loop issues. Transformer isolation also helps manage ground problems. This setup aims to minimize noise in setups with multiple power supplies.
Is the impedance adjustable for guitar and bass?
The input impedance is variable from 10 kOhms to 1 MOhms to accommodate passive pickups, active electronics, buffers, or pedals.

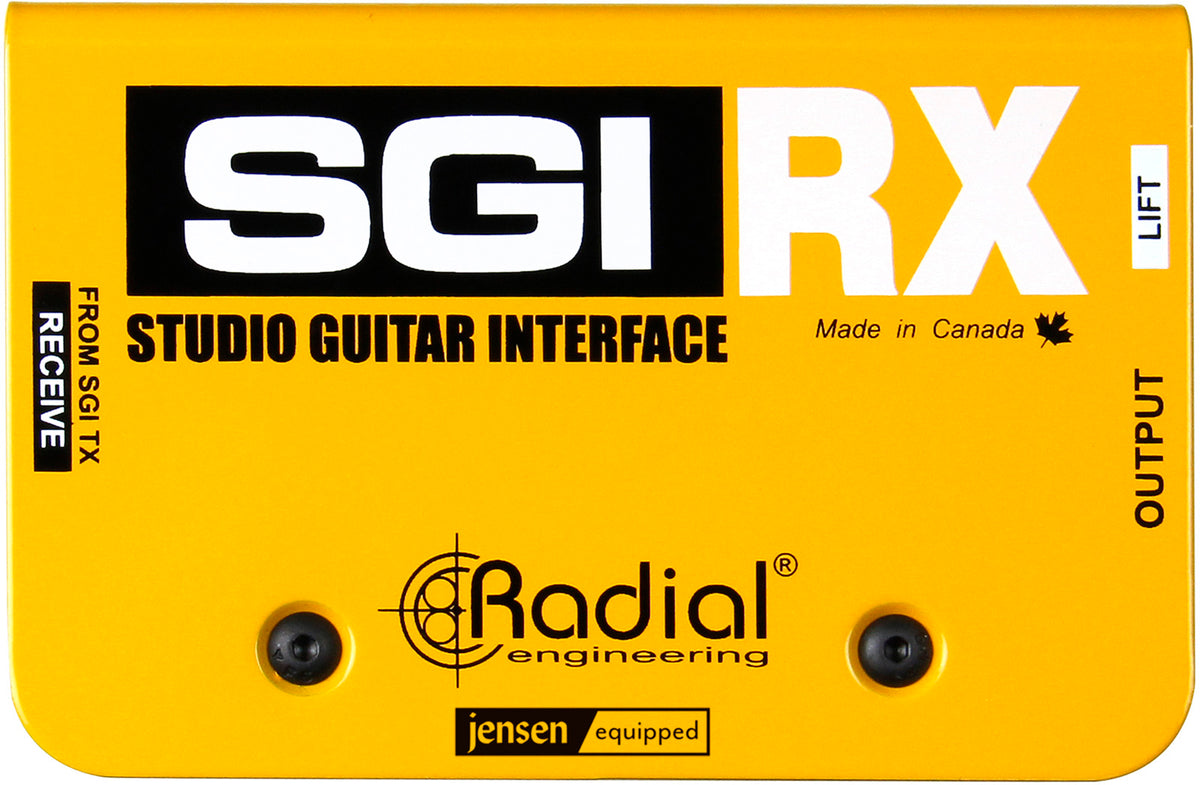

What are the dimensions and construction of the SGI RX?
The unit measures 70 x 108 x 44 mm and weighs 0.50 kg. Its chassis is made of 1.55 mm steel, and its yellow finish makes it easy to spot on a pedalboard.
