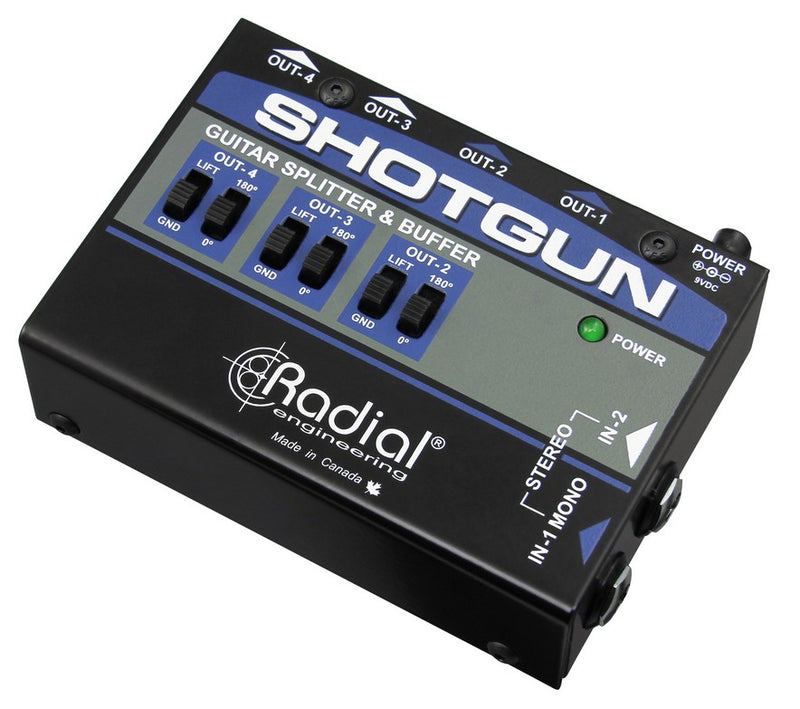

A Radial Splitter Designed for Multi-Amp Rigs
The Radial Engineering Shotgun continues the tradition of reliable, field-oriented routing tools: an analog pedal dedicated to guitar signal distribution, designed to simplify multi-amp setups without turning your pedalboard into a power station. Its approach is clear: to offer a robust signal splitter in a compact format, with essential functions to stay musical and quiet, whether you play through a backline of amps, a wet/dry rig, or a stereo setup.
Who and What Is It For?

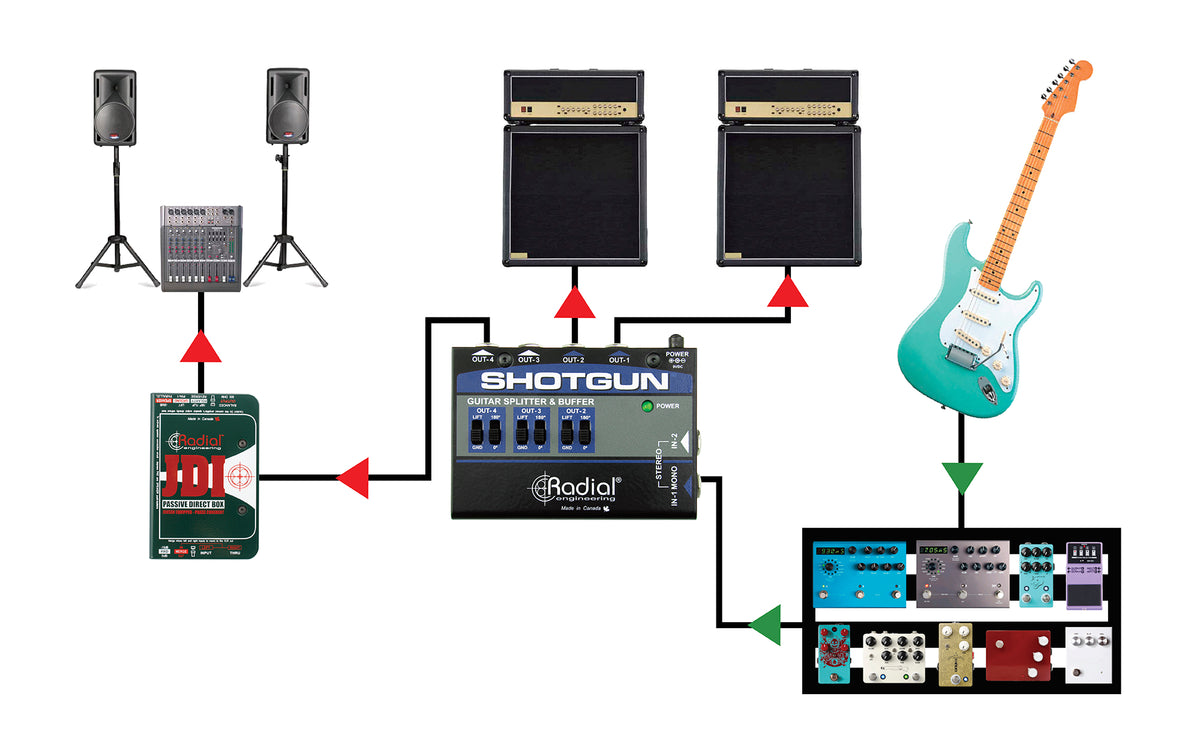

The Shotgun is made for guitarists and technicians who want to feed multiple amplifiers simultaneously while maintaining a clean and coherent signal. It suits both stage setups (chaining sounds through multiple amps, doubling clean and distorted tones, wet/dry, etc.) and studio environments to capture multiple amp colors from the same take. Thanks to its second input, it also becomes a practical solution if you use a stereo pedal (chorus, delay, reverb) and want to send stereo to multiple amps.
Technical specifications
| Effects | Signal Splitter | Number of tracks | 4 |
| Technology | Analog | Settings | ground lift switch, phase inverter |
| Format | Pedalboard | Type | sector |
| Inputs | 2 x jack | Color | Black |
| Outputs | 4 x jack | Power supply | DC 9 V |
| True bypass | Yes | Weight | 490 g |
| Display | Led | Dimensions (mm) | 115 x 92 x 35 |
Questions frequently asked
Can a guitar be sent to 4 amps with the Radial Shotgun?

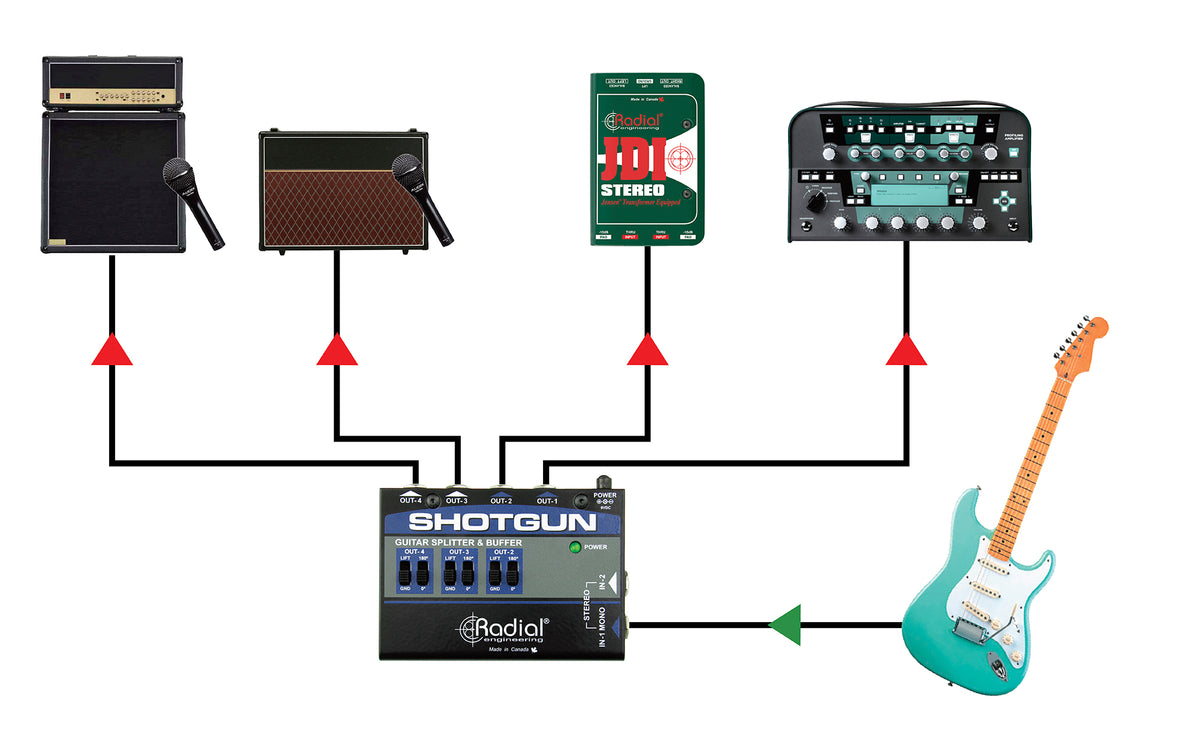

In mono 1 x 4 mode, a single 6.35 mm jack input feeds four 6.35 mm jack outputs. This configuration allows the same signal to be sent to four amplifiers.
Does the Shotgun preserve a stereo signal?

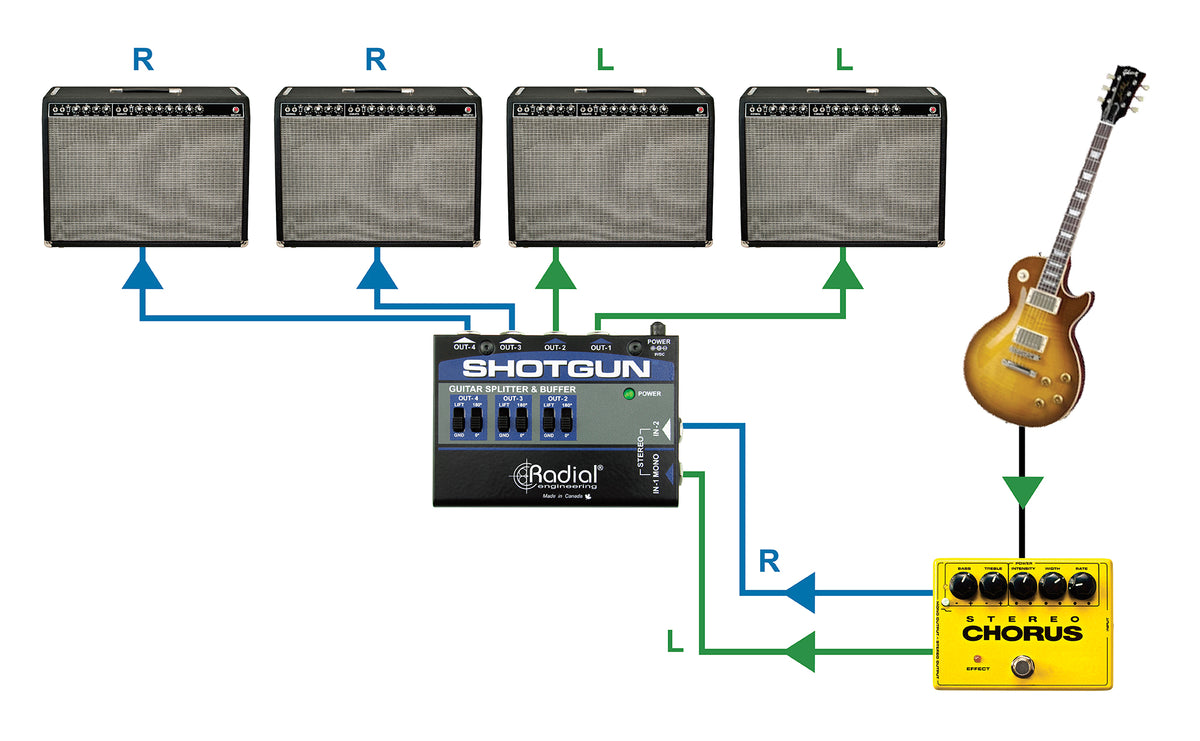

The second jack input activates the 2 x 2 mode, which distributes a stereo signal across the four outputs.
How to avoid hum and phase issues when using multiple amps?
The three isolated and buffered outputs limit interactions between amplifiers. A ground lift switch helps address ground loops. The phase inverter allows correction of phase opposition between two amps.
What power supply is required for this Radial pedal?
Using a 9 V DC power supply, the 115 x 92 x 35 mm size facilitates integration on a pedalboard. It weighs 490 g.
Does the splitter alter the signal when bypassed?
True bypass ensures the circuit is bypassed when deactivated, while an LED indicates its operating status.
