Studio Effects Chain at Your Feet

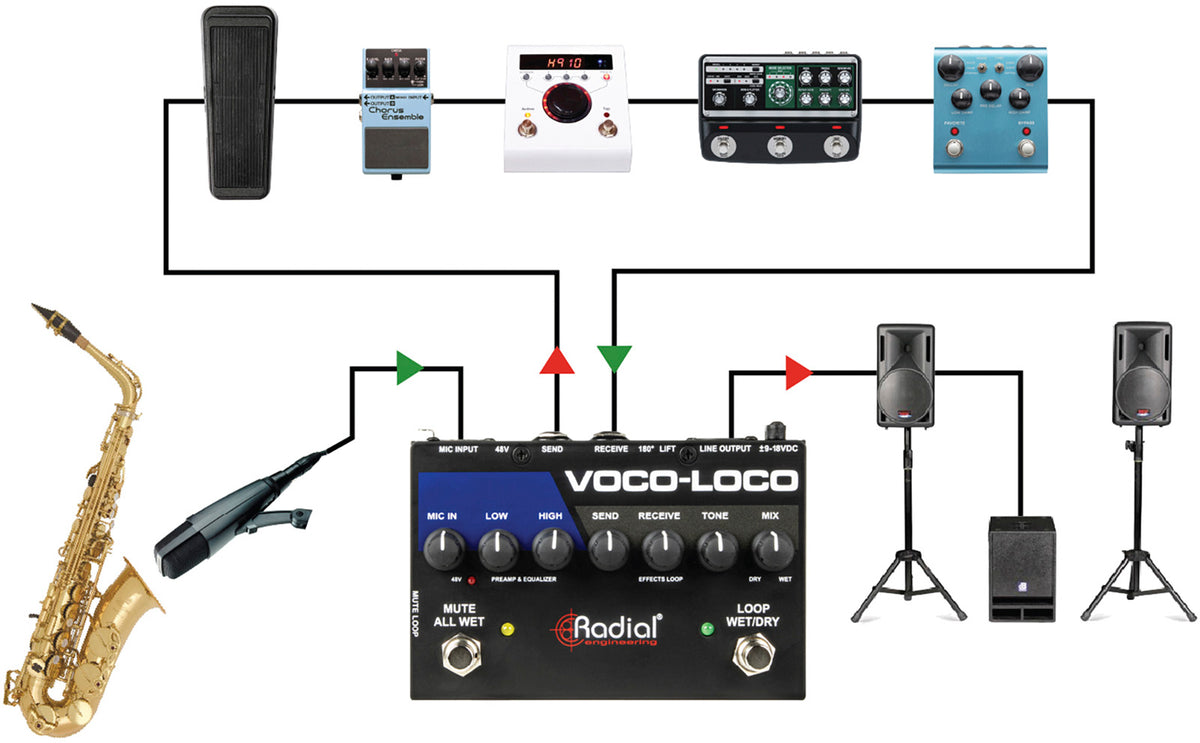

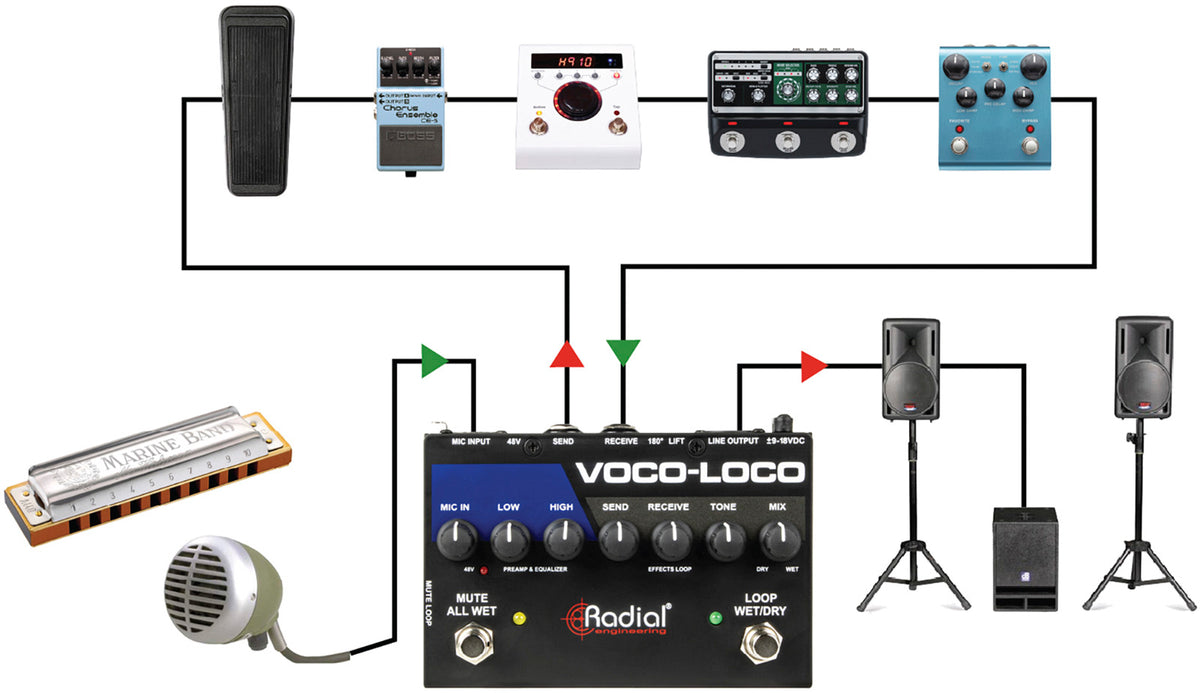

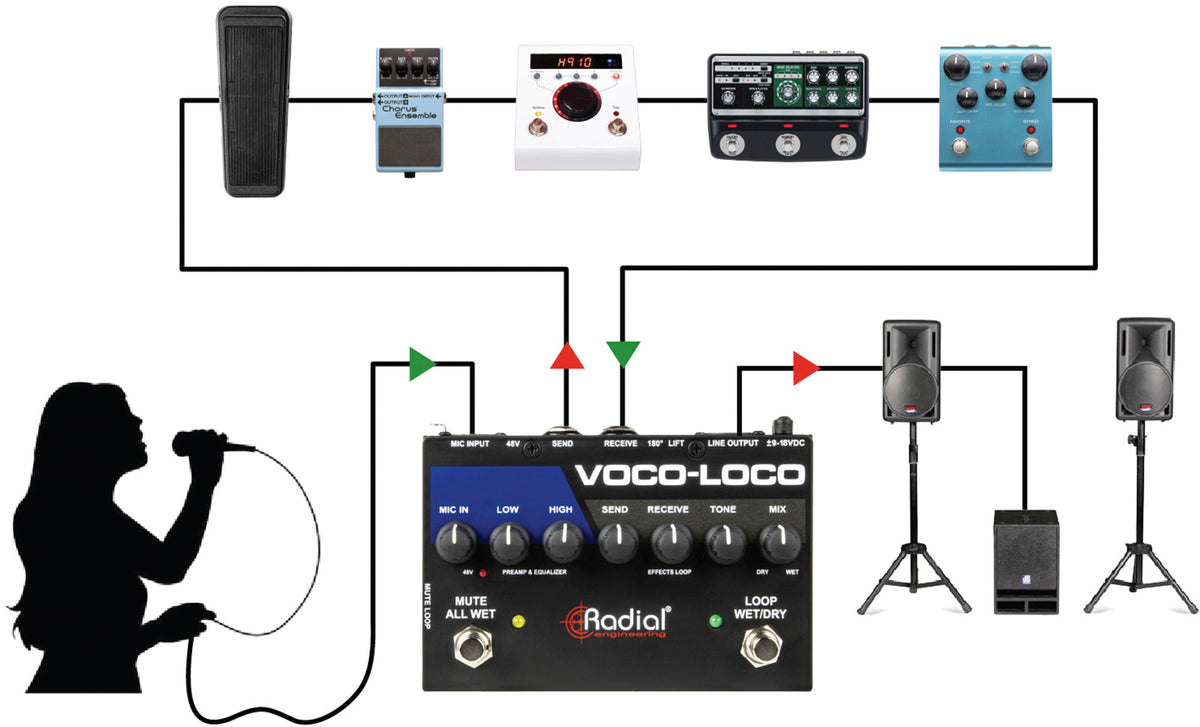

Designed for stage and studio, the Voco-Loco Mk2 brings the studio rack concept into a pedal format. It allows you to insert your guitar delays, reverbs, overdrives, or modulations into the chain of a dynamic or condenser microphone, while maintaining control and signal clarity. Ideal for modernizing a vocal set or adding a new dimension to harmonica, saxophone, or trumpet.Who Is It For and In What Contexts?
Singers, beatboxers, harmonica players, and brass instrumentalists will find an immediate creative tool here. From beginners to pros: the setup is intuitive and roadworthy. Live, you activate the loop, mute the source, or switch to 100% wet with a single gesture. In the studio, the blend control and pre-effects EQ facilitate a mix-ready sound without multiplying takes.Technical specifications
| Effects | Selector | Switch | Loop, Mute |
| Technology | Analog | EQ | 2 channels |
| Format | Pedal | Settings | tone, bass, high frequencies, effects mix, input level, send and receive |
| Inputs | Effect feedback, XLR | Color | Black |
| Outputs | XLR, Send effect | Power supply | 9 - 18V DC power |
| Display | Led | ||
Questions frequently asked
Does the Radial Voco-Loco Mk2 support a condenser microphone?
The switchable 48 V phantom power allows the use of a condenser microphone. The mic input is via XLR, and a -10 dB pad is provided to attenuate high-level sources.
How to connect guitar pedals to a vocal signal?
The effects loop uses a send and return on 6.35 mm jacks, with independent send and receive levels. Its high impedance and transformer isolation are designed to integrate delay, reverb, overdrive, or modulation pedals.
Is it possible to mute the microphone or hear only the effect from the footswitch?
Two footswitches control the Loop and Mute functions. The Mute also allows 100% wet operation.
Which control adjusts the amount of effect on the vocal signal?
The blend potentiometer adjusts the mix between dry and processed signals. A tone control acts on the effects return, notably to limit excessive highs caused by some pedals.
Does the Voco-Loco Mk2 require a specific power supply?
An external 9 to 18 V DC power supply is required. The current consumption in mA is not provided by the manufacturer. The preamp circuit is class A FET with an active buffer and covers a frequency response from 20 Hz to 20 kHz.
