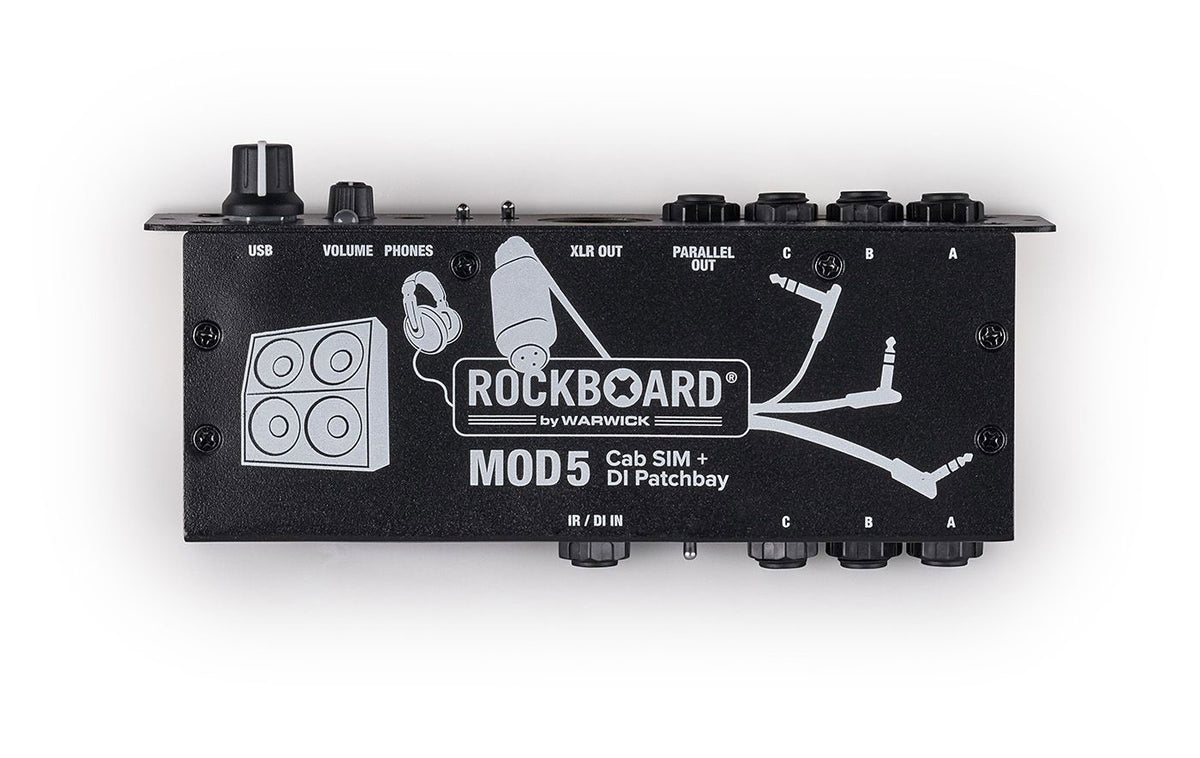

Rockboard Mod 5 Ir
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the RockBoard MOD Patchbay
Essential Information About the RockBoard MOD Patchbay
- Central access point for quickly connecting guitar, pedalboard, and amp, while keeping pedals permanently wired.
- Installation designed for RockBoard 2018 pedalboards (compatible with all RockBoard models except Duo 2.1 and Duo 2.0).
- Stage and studio-oriented connectivity : XLR outputs, unbalanced/balanced management, Ground Lift, headphone output with volume control.
- Clean and reliable solution to organize inputs/outputs and secure your effects chain, including with TRS, XLR, and USB equipment.
Manufacturer Information
Rockboard
https://www.warwick.de
info@warwick.de
------------------------
Safety manager:
HIGH TECH DISTRIBUTION
Email: pro@htd.fr
Address:
A RockBoard Module Designed to Simplify Modern Pedalboard Wiring

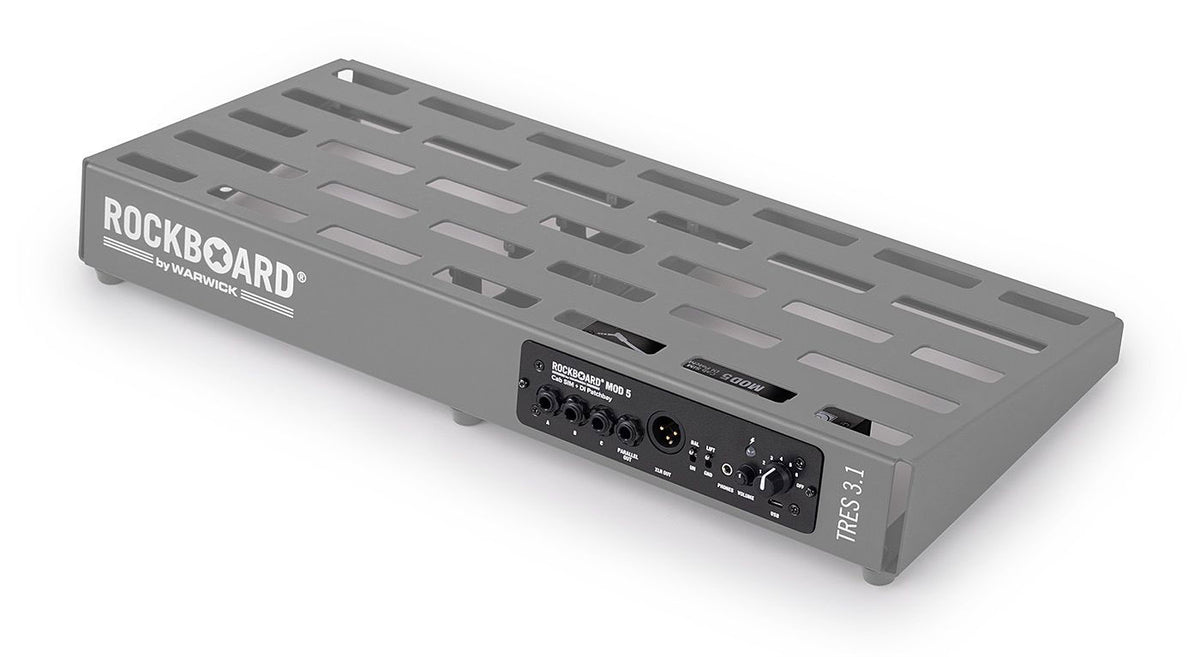

The RockBoard MOD Patchbays have been designed as all-in-one interfaces to be integrated directly onto RockBoard pedalboards. The idea is simple: move essential connections to a single, accessible front panel, and leave the effects chain wiring permanently under or on the pedalboard. The result: fewer manipulations, faster setup, and a cleaner installation, especially appreciated during rehearsals and on stage.
Who Is This Patchbay For and When to Use It?
This RockBoard patchbay is aimed at guitarists and bassists who want a pedalboard always ready without reconnecting every cable each session. It is ideal if you frequently transport your rig, switch between multiple amps, or play on gigs where quick setup is as important as reliability.
Practically, it serves as a "hub": you plug your instrument into a front input, the patchbay sends the signal to the first pedal via the rear, then retrieves the output from the last pedal to send it back to the amp from the front. You can also use it to organize an amp effects loop, centralize multiple connections, or interface more complex gear thanks to the TRS inputs, XLR output, and USB.
Technical specifications
| Cabinet Simulator | 6 | Use | pedalboard |
| Type | all-in-one patchbay for RockBoard pedalboards | USB input function | IR loading |
| Number of IRs | 6 | Stereo/Mono switch | yes |
| DI box | integrated | Number of TRS inputs | 3 |
| Headphone output | with volume control | Dimensions | 175 x 59 x 48 mm |
| Unbalanced/balanced switch | yes | Weight | 450 g |
| Lift/Ground switch | yes | Compatibility | all RockBoard pedalboards except Duo 2.1 and Duo 2.0 |
| XLR output | yes | ||
You will also like
Rockboard
QUAD 4.2 + BAG
Rockboard
QUAD 4.1 + BAG
Rockboard
TRES 3.1 + CASE
D'ADDARIO
XPND PEDALBOARD 02
Rockboard
QUAD 4.4 + BAG
Rockboard
TRES 3.2 + BAG
Pedaltrain
CLASSIC PRO PEDALBOARD WITH SOFT CASE
Nux
PEDALBOARD MEDIUM WITH CARRYING BAG
Questions frequently asked
How many speaker simulations are included?
The MOD 5 IR features 6 speaker simulations (IR), with a dedicated USB input for adding more IRs.
How to connect a guitar and an amp to the patchbay?
The instrument is plugged into a front input, then the signal is routed to the first pedal from the rear. The output of the last pedal is picked up by the module and sent back to the amplifier from the front.
Does the RockBoard MOD 5 IR have an XLR output?
An XLR output is available for setups requiring this connection type. An unbalanced/balanced switch adjusts the signal routing. The Lift/Ground switch helps manage ground loop noise caused by cabling.
Can a headset be used with this patchbay?
A headphone output with volume control is included, allowing signal monitoring or working depending on the configuration used.
How many TRS connections are available?
Three TRS inputs are provided for additional routings. A dedicated switch enables stereo or mono operation according to the pedalboard wiring.
