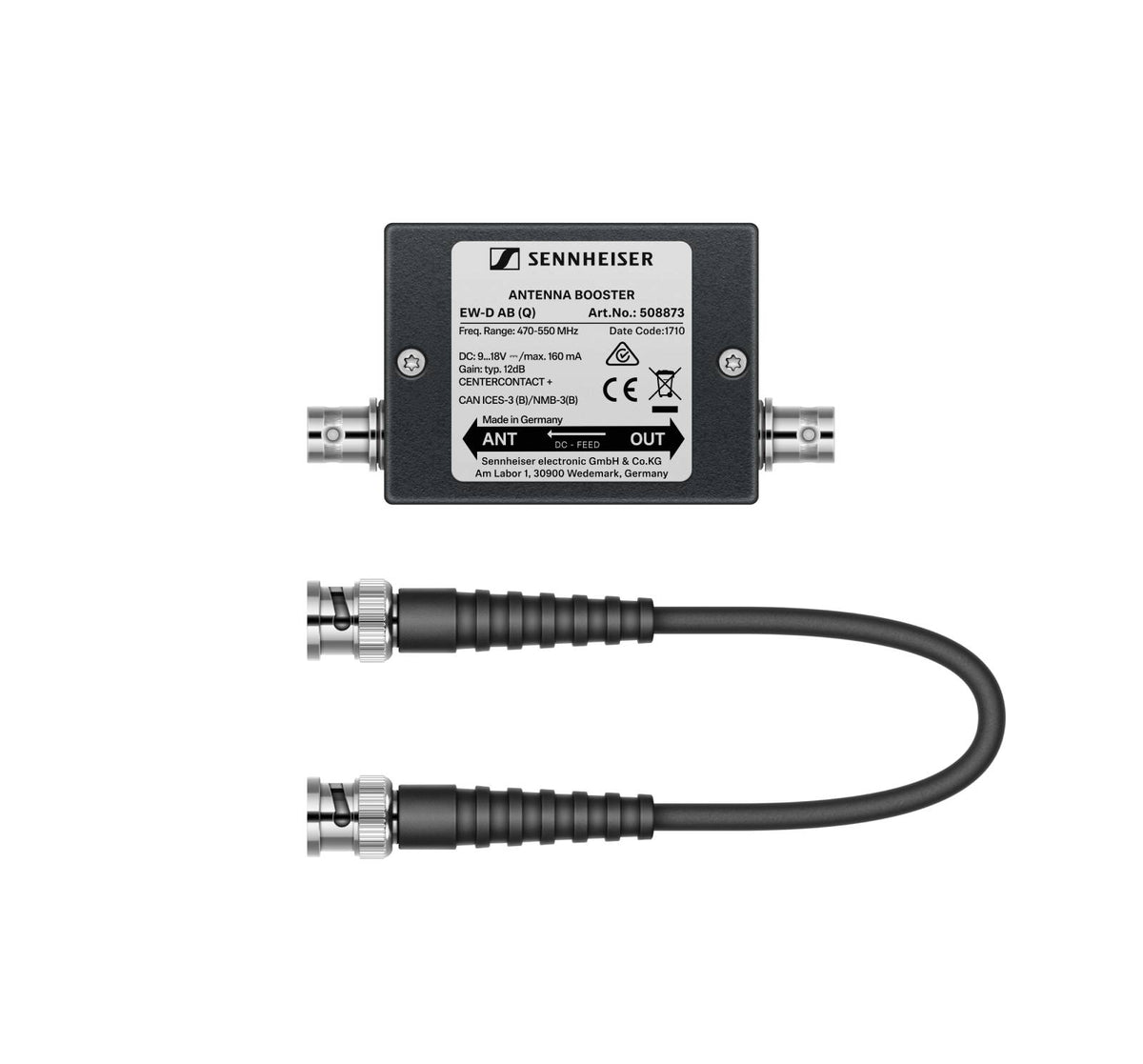

Sennheiser EW-d Ab (470-550 MHZ)
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sennheiser
https://www.sennheiser.com
contact@sennheiser.com
------------------------
Safety manager:
Sennheiser electronic SE & Co.
Email: contact@sennheiser.com
Address:
A Key Link in a UHF Band RF Chain
In an HF/UHF installation (wireless microphones, monitoring systems, remote reception), reception quality depends as much on the antenna as on the path traveled by the signal. This antenna booster acts as an element in the RF chain, positioned to help compensate for losses related to the installation (cable lengths, connection points), while remaining dedicated to the Q band covering 470 to 550 MHz.
Who Is It For and What Are Its Uses?
This booster is intended for sound technicians, stage managers, service providers, and musicians using UHF wireless systems who want to secure reception in real-world contexts: studios, stages, venues with remote antennas or rack installations. It is also suitable for fixed configurations where stabilizing the signal level at the receiver input is desired when the antenna line is constrained.
Gain, BNC Connectivity, and Q Band: The Essentials, Without Complication
Targeted Reinforcement with 10 dB Gain
With 10 dB gain, this booster is designed to provide clear reinforcement to the received signal, particularly useful when the infrastructure (cables and connectors) causes attenuation. The goal is to maintain more consistent reception and reduce the risk of RF level drops within the covered band limits.
BNC Connectors: Compatibility and Quick Installation
The BNC connectivity facilitates integration at the heart of common RF setups, whether in a rack, on an antenna distribution panel, or close to the reception point. It is a practical choice to maintain a coherent chain and limit unnecessary adaptations.
Technical specifications
| Type | UHF antenna booster | Frequency Range | Q (470-550 MHz) |
| Gain | 10 dB | Connectors | BNC |
Questions frequently asked
Does the Sennheiser EW-d Ab cover frequencies from 470 to 550 MHz?
The Q band of this booster precisely covers the UHF range from 470 to 550 MHz. Its use is thus intended for RF setups operating within this frequency band.
What gain does this UHF antenna booster provide?
A gain of 10 dB is specified. This boost is designed to compensate for attenuation caused by cable lengths and connection points along the antenna line.
What connectors are used on the Sennheiser booster?
The connectors are BNC type. They allow integration into an RF chain equipped with BNC connections.
Is it suitable for a remote antenna for wireless microphones?
Its placement in a UHF setup can help maintain signal level when the antenna is remote. The 10 dB gain specifically targets losses related to the antenna line.
Can it be installed in an RF receiver rack?
Integration is intended for rack configurations and fixed installations. The BNC connectors facilitate connection near an antenna distribution or at the receiver input. The covered range remains limited to the Q band, from 470 to 550 MHz.
