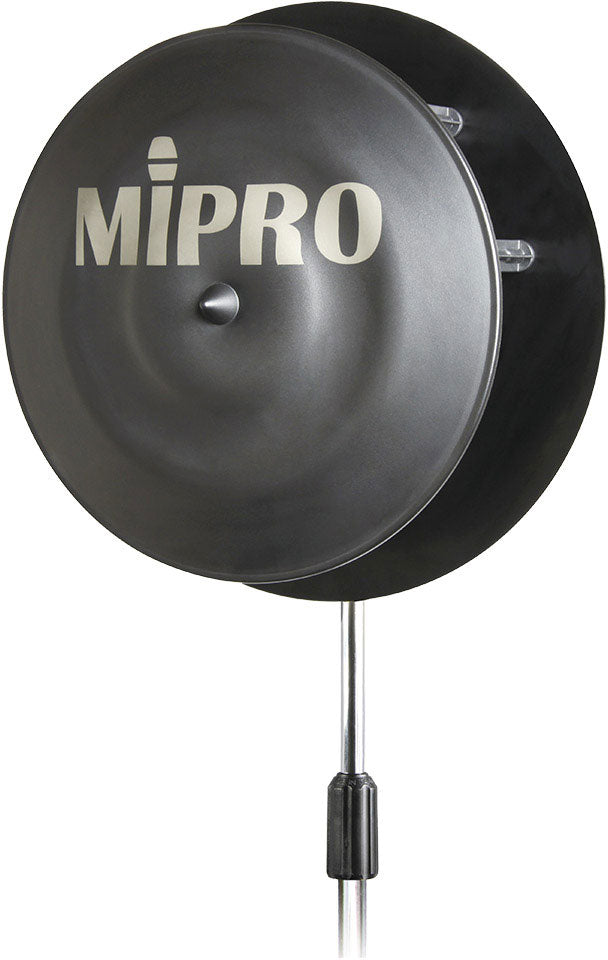

Mipro AT-100 Antenna
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Mipro AT-100 Antenna
Essential Information About the Mipro AT-100 Antenna
- Wide UHF Band : 470 to 1000 MHz, ideal for many RF configurations
- Directional Reception to help stabilize the signal and limit interference depending on the setup
- Integrated Controllable Booster : adjustable gain from 0 to 12 dB
- Simple Installation : TNC connectors (input + output) and power supplied via antenna cable (8 to 15 V DC)
Manufacturer Information
Mipro
https://www.mipro.com.tw
mipro@mipro.com.tw
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A Directional Antenna Designed to Optimize a UHF RF Link
The Mipro AT-100 is a wideband directional antenna designed to enhance reception quality in environments where UHF RF systems are heavily challenged: stages, studios, public venues, or fixed installations. Its directivity allows prioritizing a reception zone and better managing the antenna's orientation according to your setup.
Who Is It For and What Are Its Uses?
This antenna is intended for users of wireless microphones and UHF systems (service providers, venues, theaters, speakers, control rooms) who want to improve reception consistency. It is relevant whenever distance increases, the spectrum is crowded, or when better control of the coverage area is desired by finely adjusting the level thanks to the booster.
Key Features for More Reliable Reception
Integrated Booster and Adjustable Gain
The controllable booster (0 to 12 dB) allows adapting the level according to cable length, setup, and RF context to optimize the signal without unnecessary over-amplification.
Directivity and Reception Beam

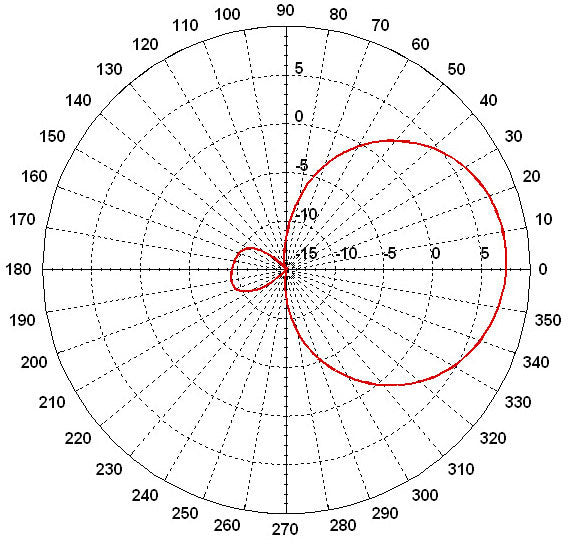

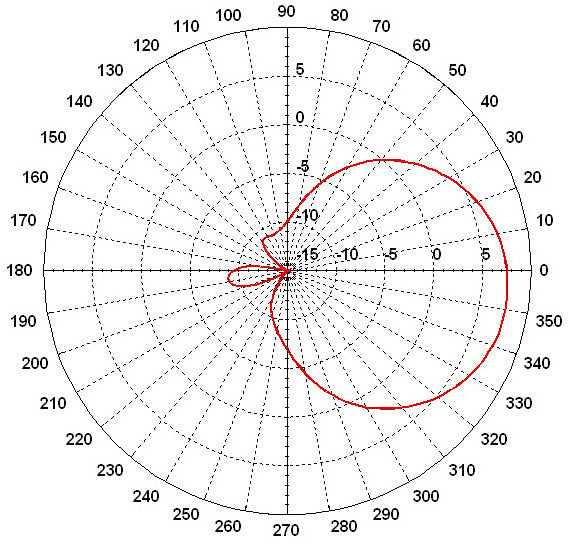

With a 3 dB beamwidth of 72 degrees and directivity specified as 75 degrees vertical x 130 degrees horizontal, the AT-100 facilitates more precise placement to target the useful area.
Technical specifications
| Directivity | unidirectional | ||
| Model | Mipro AT-100 | Connectivity | TNC (input + output) |
| Product type | antenna | Impedance | 50 ohms |
| UHF broadband | 470 - 1000 MHz | Power supply | via 8 to 15 V DC antenna cable |
| 3 dB beamwidth | 72 degrees | Dimensions | 350 x 350 x 225 mm |
| Gain | 6 to 8 dBi | Weight | 1.5 kg |
| Integrated controllable booster, gain | 0 to 12 dB | Mount | not included |
| VSWR | less than 2:1 | ||
You will also like
Shure
UA864-hi
Shure
UA864-lo
Mipro
AD 90S - Antenna splitter
Mipro
AD-708
Shure
UA844+SWB ANTENNA DISTRIBUTOR
Shure
PA805swb
Sennheiser
ADP UHF (470 - 1075 MHZ)
Shure
HA8089
Questions frequently asked
Mipro AT-100 compatible with which UHF frequencies?
The wideband UHF coverage ranges from 470 to 1000 MHz, for UHF RF systems operating within this range.
Is the antenna booster gain adjustable?
The built-in booster offers adjustable gain from 0 to 12 dB. The level can thus be adapted according to cable length and RF setup.
How is the AT-100 antenna powered?
Power is supplied through the antenna cable, with 8 to 15 V DC. No separate power supply unit is specified in the technical details. The TNC connector provides both signal input and output.
What is the directivity of this UHF antenna?
With unidirectional directivity and a 3 dB beamwidth of 72 degrees, reception can be aimed toward a specific area.
What are the dimensions and weight of the antenna?
This antenna measures 350 × 350 × 225 mm and weighs 1.5 kg.
