Sennheiser Ew-Dx 835-S Set (Q1-9 : 470,2 - 550 Mhz)

"Evolution Wireless Digital" DNA in the New EW-DX Generation

Derived from the "Evolution Wireless Digital" lineage, EW-DX ushers professional wireless systems into a new era. It combines robust digital UHF transmission with modern network tools for seamless integration into live stages, auditoriums, and fixed installations. Thanks to its hardware and software options, it supports the growth of your wireless fleet.

Who Is It For and What Are Its Uses?

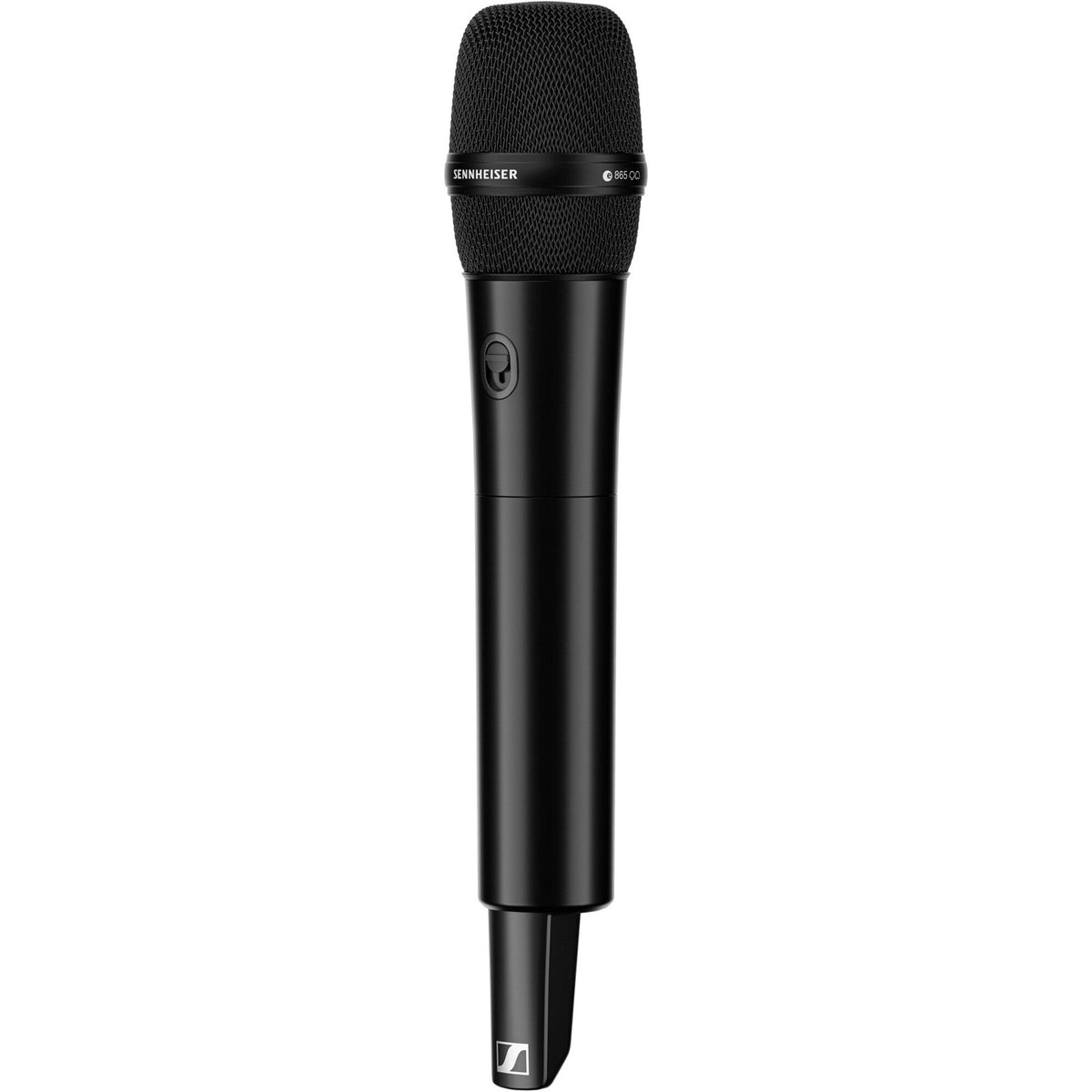

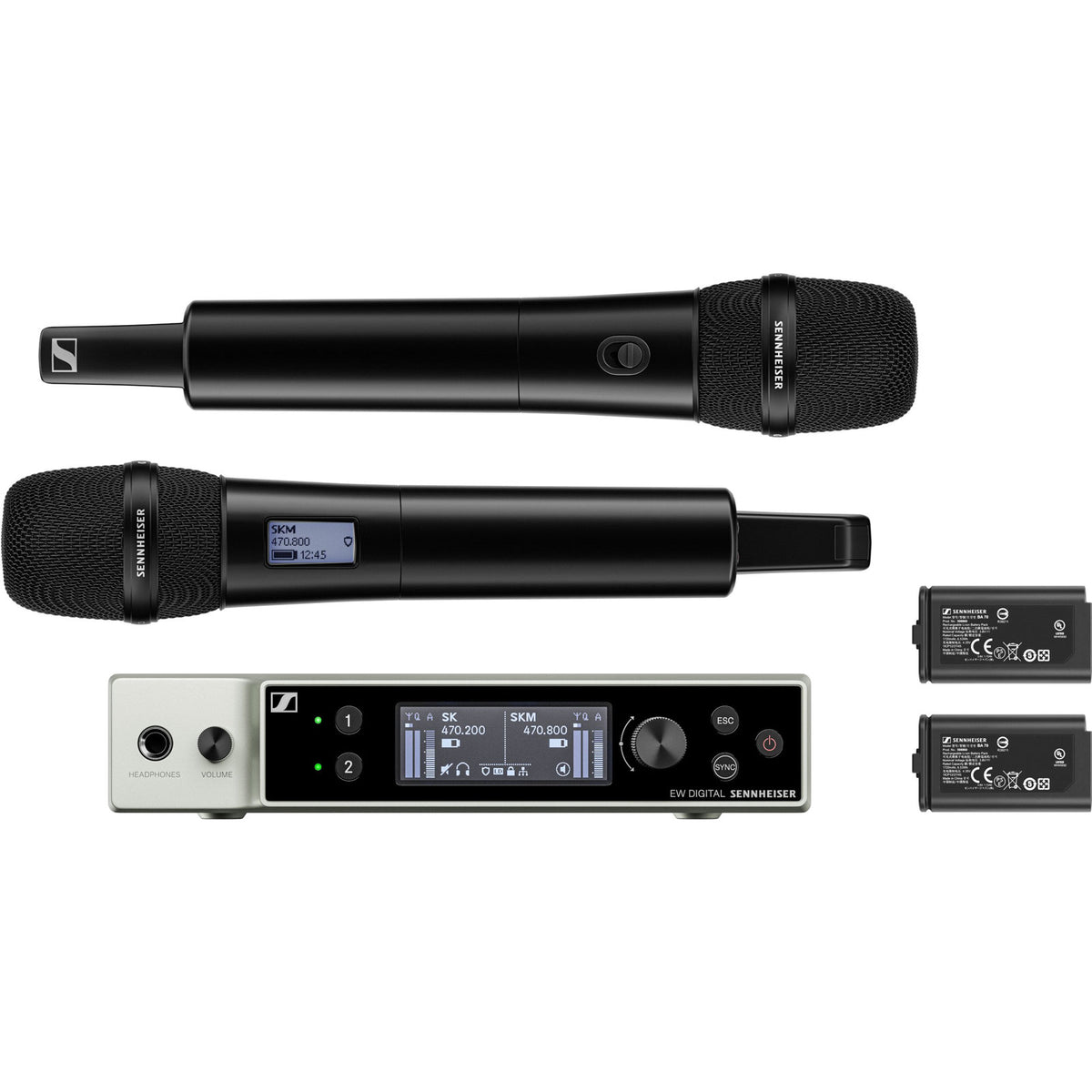

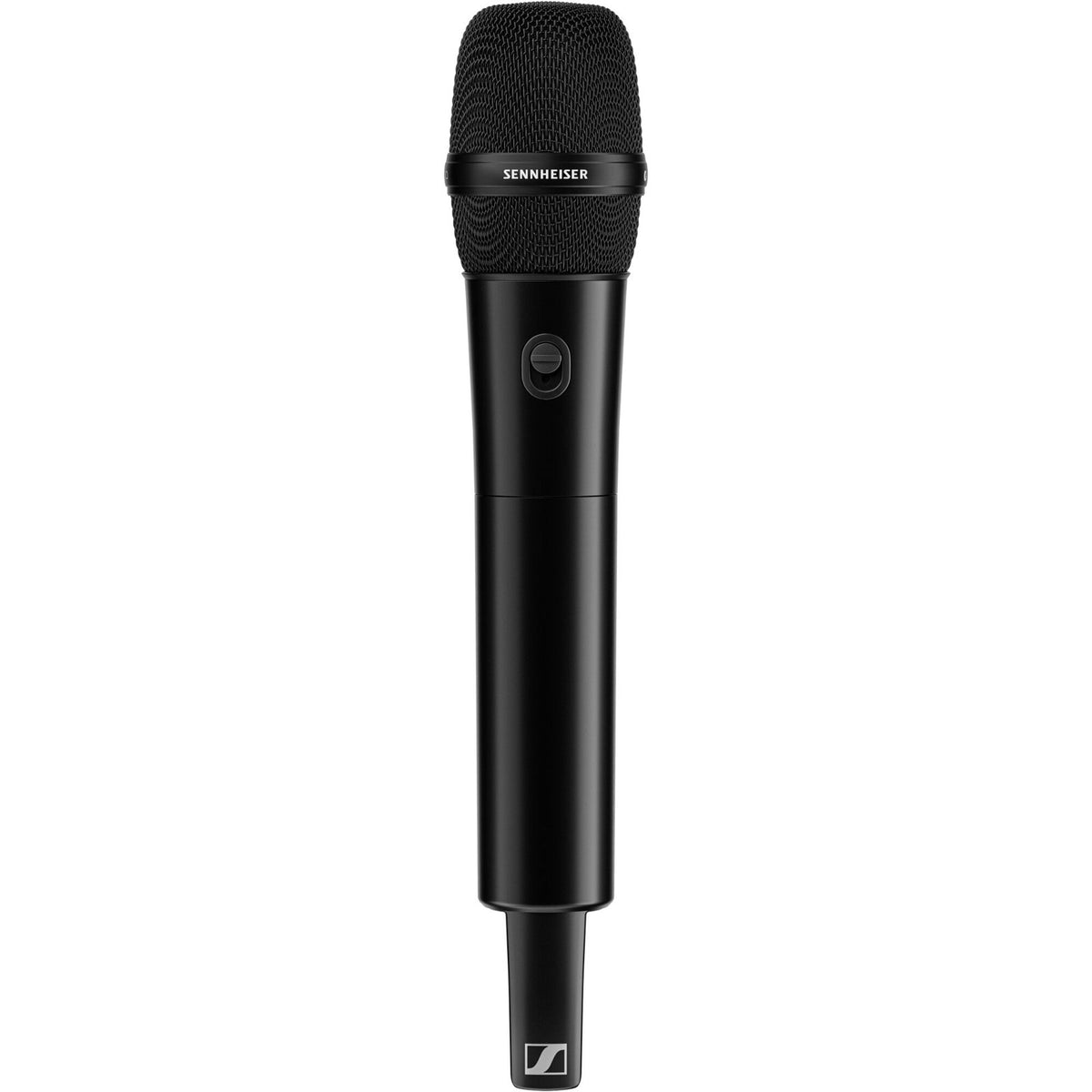

Designed for service providers, integrators, businesses, and trainers, this dual set covers speeches, presentations, worship, and live recordings. The dynamic cardioid handheld microphone MMD 835 handles sung or spoken voices with presence, while the omnidirectional lavalier MKE 2 ensures discreet and consistent sound capture for speakers and hosts.

Features That Make a Difference

Simplified RF Management

Automatic scanning analyzes the environment and allocates channels with equidistant spacing. The "Link Density" mode further increases the number of available frequencies in a confined space, ideal for RF-heavy environments.

Professional Audio, Low Latency

The Sennheiser SePAC codec and next-generation conversion deliver remarkable transparency from capsule to output. The "Intelligent Switching Diversity" smartly switches antennas for stable transmissions without artifacts.

Network, Security, and Control

Network-ready with Dante and Ethernet control ports, EW-DX is managed via Sennheiser Control Cockpit, Wireless Systems Manager, and Bluetooth Low Energy through the Smart Assist app. AES-256 encryption protects sensitive content.

Battery Life and Ergonomics

Up to 12 hours per transmitter with BA 70, charging via integrated contacts, and an E-Ink display readable even without batteries. Standard Sennheiser capsule interfaces offer broad compatibility with Sennheiser and Neumann capsules.

Technical specifications

Category	Complete system	Capsule	dynamic
Directivity	cardioid

Audio frequency response	20 Hz - 20 kHz (-3 dB) at 3 dBfs.	Input voltage	2.0 - 4.35 V; input current: up to 300 mA.
Total harmonic distortion (THD)	-60 dB at 1 kHz @ -3 dBfs input level.	Occupied bandwidth	200 kHz.
Dynamic range	134 dB.	Transmission power (radiated)	audio link 10 mW ERP; (Y1-3 range) 12 mW ERP; LD mode 10 mW ERP; BLE max. 10 mW EIRP.
System latency	1.9 ms.	Weight without batteries	approx. 304 g (with MMD 835); approx. 195 g (without module).
Switching bandwidth	up to 88 MHz.	MMD 835 capsule	dynamic transducer, cardioid pattern, sensitivity 2.1 mV/Pa, max sound pressure level 154 dB.
Channel spacing	standard 600 kHz (up to 146 channels); Link Density mode 300 kHz (up to 293 channels).	Transducer	pre-polarized condenser.
BLE	2,405 - 2,480 MHz; control via Smart Assist.	Pickup pattern	omnidirectional.
Operating temperature	-10 degC to +55 degC (14 degF to 131 degF).	Sensitivity (1 kHz)	5 mV/Pa +/- 3 dB.
Operating relative humidity	5 - 95% (non-condensing).	Max sound pressure level at 1 kHz	142 dB.
Power supply	11 - 13 V or PoE IEEE 802.3af class 0.	Frequency response	20 - 20,000 Hz.
Input current	up to 1 A.	Equivalent noise level A-weighted	26 dB.
Audio output power	18 dBu max.	Connector	3.5 mm jack.

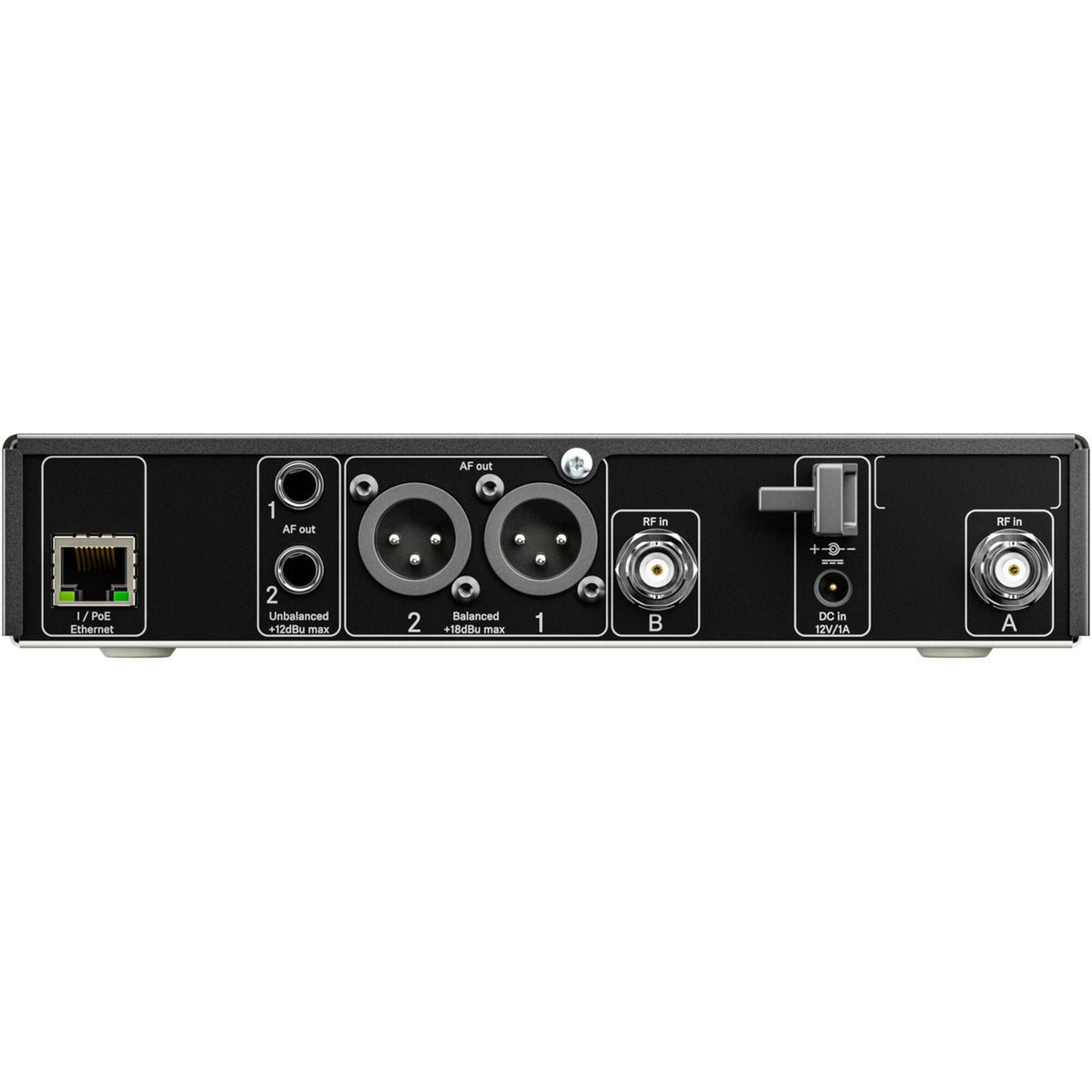

Ethernet	RJ-45, IEEE802.3 100Base-TX / 10Base-T (half and full duplex, CAT5e or higher cable).	Cable length	approx. 1.60 m.
Dimensions	212 x 44 x 189 mm.	Charging options	CHG 70N, L 70 USB, LM 6070 module for L 6000 rack charger.
Weight	approx. 1,000 g (excluding antennas and power supply).
