EW-DX: The Professional Continuity of the Evolution Wireless Digital Range
With EW-DX, Sennheiser transfers its historic wireless stage expertise to a digital UHF platform designed for modern productions: scalable, network-ready, and easy to deploy. The range is designed to adapt to various needs (from corporate sets to live performances), with hardware options focused on expansion, while maintaining an ecosystem logic thanks to interchangeable Evolution Wireless Digital components.
The workflow is enhanced by remote supervision and configuration tools, and by automatic scanning capable of quickly assessing the RF environment to facilitate frequency deployment. In denser installations, Link Density mode helps optimize spectral occupancy while staying within the feature restrictions specific to each series.

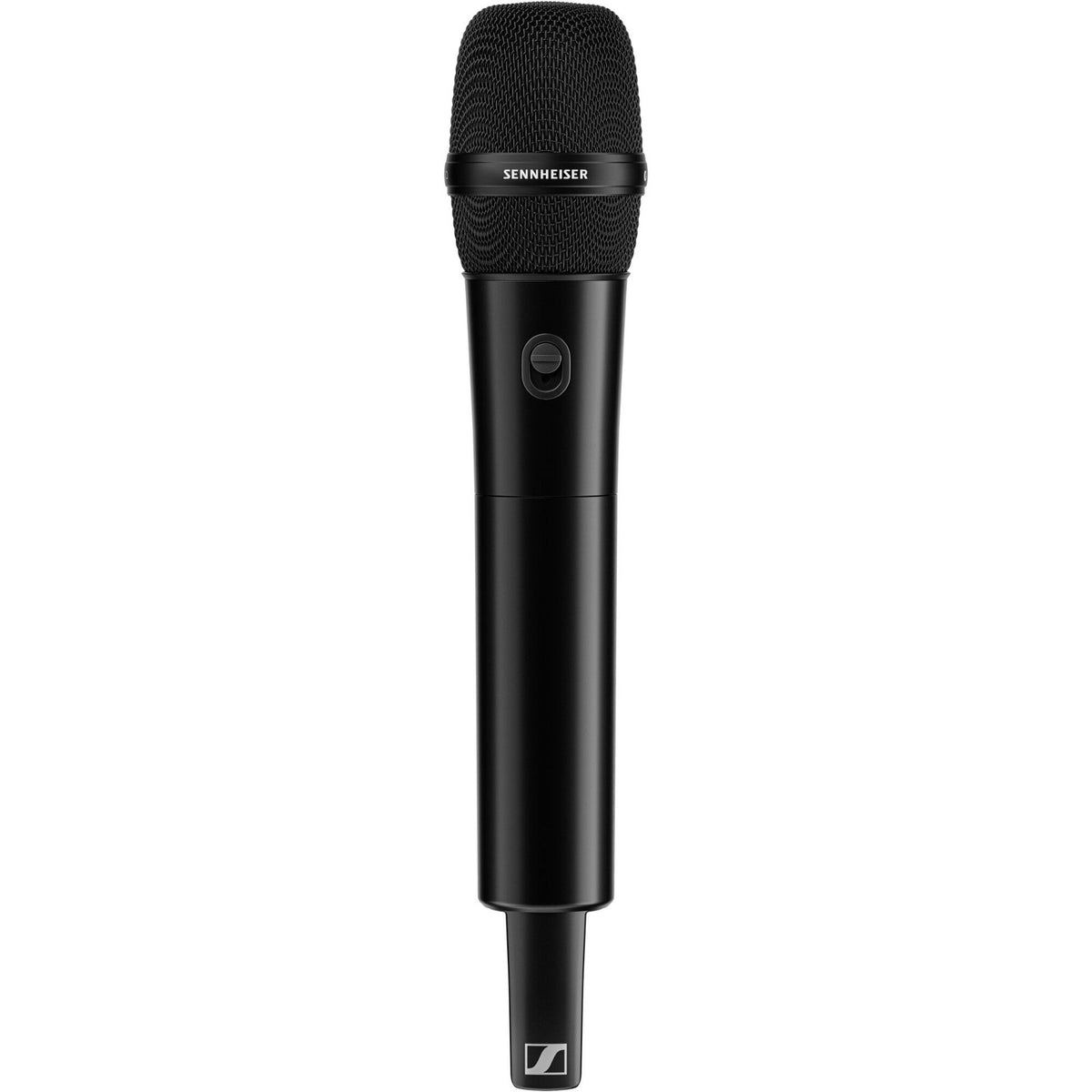

A Handheld Transmitter Designed for Stage, Events, and Performances
The EW-DX SKM-S is aimed at sound engineers, service providers, RF technicians, and production teams who want a robust handheld transmitter, quick to operate, and consistent in a multi-channel setup. Its metal housing and standard Sennheiser capsule interface make it a reliable base for building a handheld microphone suited for spoken voice, singing, or contexts where multiple speakers follow each other with timing constraints.
Thanks to its switch and programmable mute options, it naturally integrates into "stage" uses (speeches, conferences, worship, recording) as well as live shows requiring precise microphone state management. The persistent E-Ink display improves readability of useful information, even when batteries are removed, which is particularly practical for equipment rotation.
Technical specifications
| Category | transmitter | Frequency band | Region C – 520 à 694 MHz |
Questions frequently asked
What frequency range does the R1-9 handheld transmitter use?
The audio link operates from 520 to 607.8 MHz within the R1-9 range. The occupied bandwidth is 200 kHz.
Which capsules are compatible with the Sennheiser EW-DX SKM-S?
The standard Sennheiser capsule interface accepts Sennheiser and Neumann microphone modules. Capsules are sold separately.
How to power and recharge the EW-DX SKM-S transmitter?
Power comes from two 1.5 V AA batteries or a rechargeable BA 70 battery. Charging contacts are integrated into the housing. In-device charging requires the CHG 70N charger, sold separately.
What is the audio latency of the transmitter?
The specified system latency is 1.9 ms, with an input dynamic range of 134 dB.
Does the wireless microphone feature a low-cut filter and a mute function?
A switchable low-cut filter at multiple frequencies helps reduce unwanted bass and handling noise. The switch and mute options are programmable.
