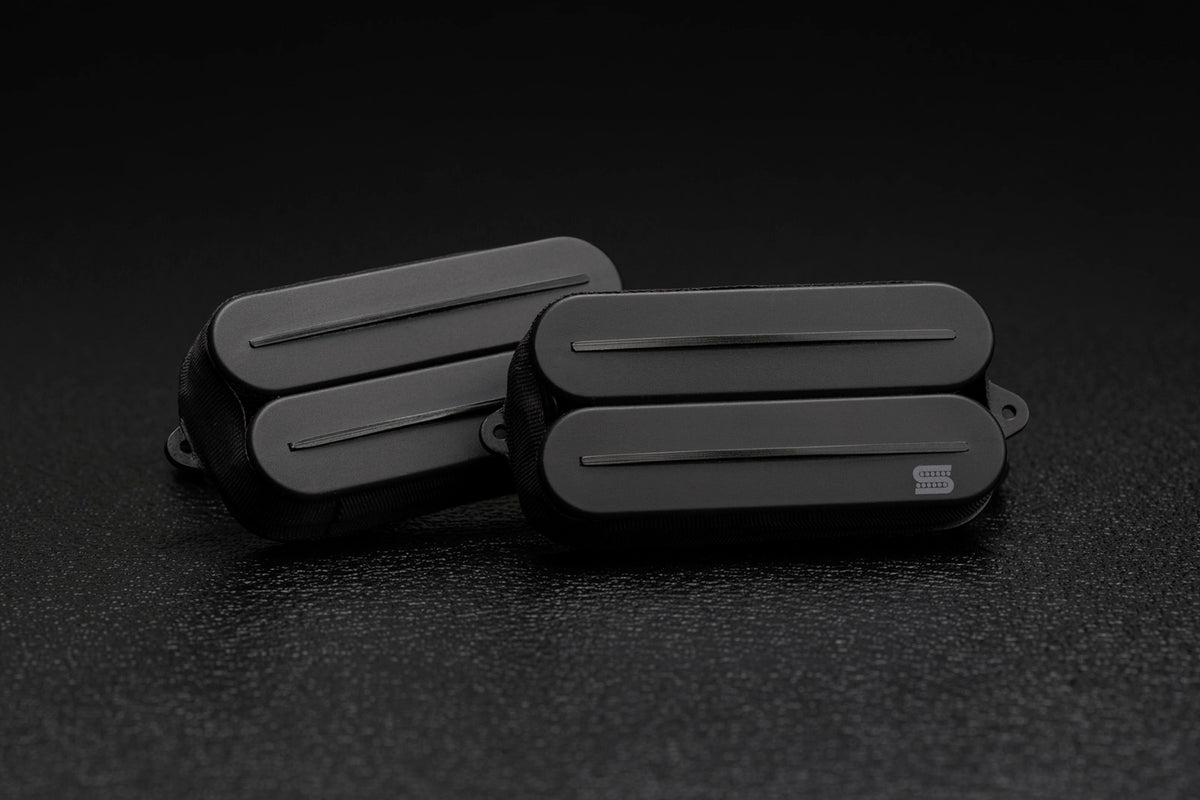

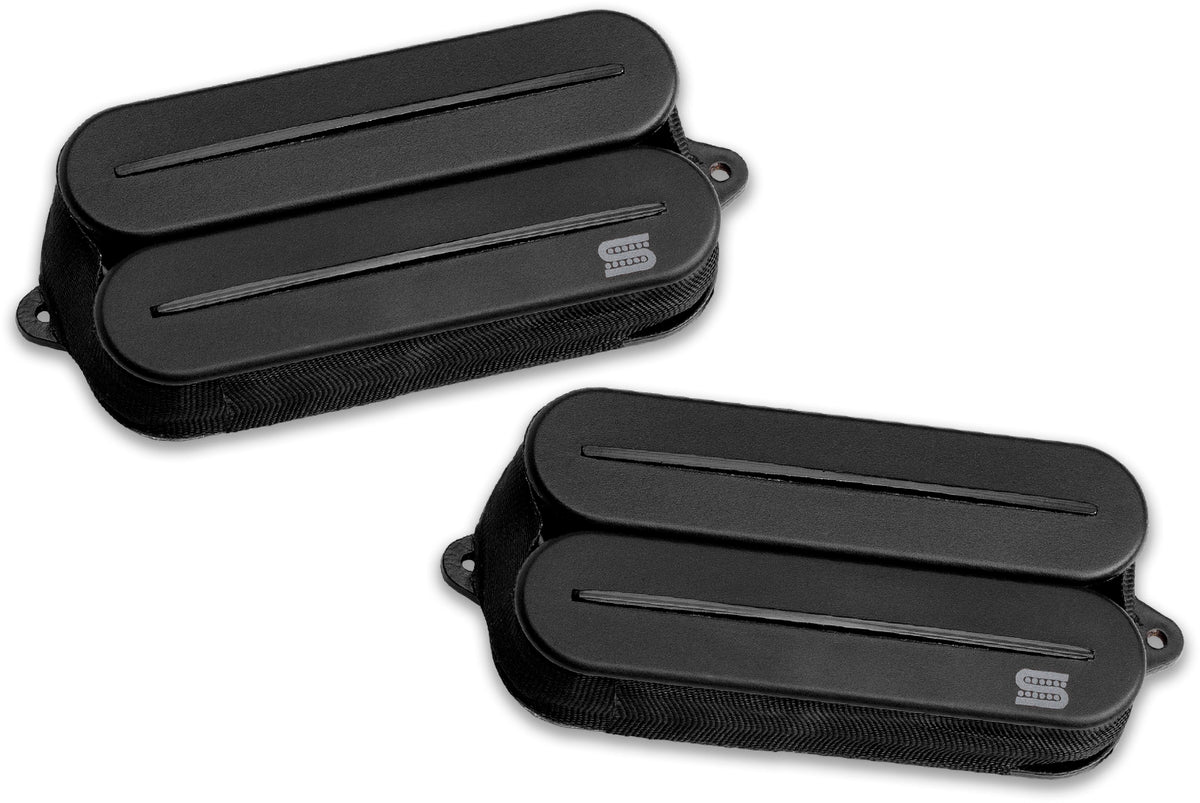

Seymour Duncan Humbucker Black Jupiter Rails, Wes Hauch Signature, Set, Black
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Seymour Duncan
https://www.seymourduncan.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Collaboration Tailored for Modern Metal
Considered a benchmark in the current metal scene, Wes Hauch has established a sound that is both fierce and remarkably clean. To capture this aggressive and articulated tone, the Jupiter Rails was developed in close collaboration with him, with a clear demand: maximum punch without sacrificing definition. The result: a humbucker that remains clear even when gain is high and the mix becomes dense.
For Which Guitarists and Styles?
This kit is aimed at 6-string guitarists who want a bridge pickup that can deliver powerful output without muddiness, and a neck pickup suitable for precise, singing leads. Perfect for metal (djent, death, prog, metalcore), but also for any context where sharp attacks, easily emerging harmonies, and metronomic rhythms are desired. If you enjoy complex chords under saturation, you will appreciate the note separation and balance between strings.
Rails, Ceramic, and High Output Winding: The Winning Trio
The Jupiter relies on two stainless steel rails for consistent string coverage across the entire string width, useful for lower tunings or very dynamic playing. The ceramic magnet provides the tension, speed, and impact necessary for modern styles, while the specific winding targets a high output level with prominent mids and pronounced attack. At the bridge, the higher resistance enhances bite and density; at the neck, a more moderate resistance preserves clarity for readable solos. All finished in black, with black rails over black coils, for a sleek and aggressive look.
Technical specifications
| Electronics | Passive | Magnet | Ceramic |
| Category | electric microphone | Winding | double |
| Instrument | guitar | Number of conductors | 4 |
| Applications | metal | Colours | Black |
| Type | rail humbuckers, Wes Hauch signature | Finish / color | Black |
| Configuration | kit (neck + bridge) | Neck resistance | 8.02k |
| Position | neck and bridge | Bridge resistance | 14.27k |
| Rails | 2 stainless steel rails (black rails on black coils version) | Manufacturing | handmade at Seymour Duncan workshop, Santa Barbara, California |
Questions frequently asked
Is the Jupiter Rails Wes Hauch suitable for modern metal?
Designed for metal, this passive humbucker combines a ceramic magnet with two stainless steel rails. Its high output level aims for an aggressive tone with precise mids. The balance across the strings is emphasized for technical and articulate playing.
What is the resistance of the Jupiter bridge pickup?
The bridge version for 6-string guitar has a resistance of 14.27 kΩ.
Does the Seymour Duncan Jupiter Rails have 4 conductors?
Its 4-conductor wiring is specified in the technical details. It is a dual-coil humbucker with passive electronics.
What materials are used in the black Jupiter Rails pickup?
Two stainless steel rails make up the pole piece system, paired with a ceramic magnet. A specific winding is used to achieve the stated output level.
Does the Jupiter Wes Hauch kit include both neck and bridge pickups?
This reference is presented as a two-pickup kit. The Jupiter range is offered in neck version, bridge version, or set, with a black finish.
