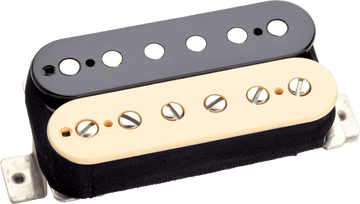

Seymour Duncan SH-1B-Z4C - 59 MODEL TRESTLE ZEBRA
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Seymour Duncan
https://www.seymourduncan.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
The "59 Model" Reference: Vintage Spirit, No Compromise
The SH-1B "59 Model" is designed to recapture the dynamics and openness of vintage humbuckers, with a natural response that respects your playing. In a Zebra finish, it also adds a classic aesthetic touch, perfect on guitars with a retro look as well as on more modern instruments.
Who Is This Bridge Pickup For?
Designed for the bridge position, this pickup is aimed at guitarists seeking an articulate and singing tone, capable of covering a wide range of styles: Country, Jazz, Blues, Funk, Classic Rock, and Heavy Rock. It excels when you want clear chords, expressive bends, and good definition under saturation without unnecessary harshness.
Alnico V, 4 Conductors, and Split Coil: An Extended Sonic Palette
Its Alnico V magnet delivers punch and a firm low-end response while maintaining precise highs. The 4-conductor wiring facilitates advanced setups (split coil, series/parallel depending on your electronics): convenient for switching from a full humbucker sound to thinner, snappier textures in split mode. With a resonance around 6 kHz, it retains presence and brightness to stand out well in the mix, whether clean or overdriven.
Technical specifications
| Electronics | Passive |
| Category | electric microphone |
| Instrument | guitar |
| Magnet | alnico V |
| Winding | double |
| Number of conductors | 4 |
| Position | bridge |
| Resistance | 8.2 KILOHM |
| Color | Black |
| Model | Seymour Duncan SH-1B-Z4C "59 Model" |
| Type | electric guitar humbucker pickup |
| Applications | Country, Jazz, Blues, Funk, Classic Rock, Heavy Rock |
| Split coil | yes |
| Active | no |
| Peak frequency | 6 kHz |
| Finish | Zebra |
| Other | interference reduction |
Questions frequently asked
Can the Seymour Duncan SH-1B-Z4C 59 Model be installed in the bridge position?
This model is designed for the bridge position and has an impedance of 8.2 kΩ. Its dual coil aims to deliver an articulate sound under saturation.
Is the SH-1B 59 Model splittable?
The 4-conductor wiring allows for coil splitting. It is therefore possible to switch from a humbucker configuration to thinner, snappier tones.
What magnet does this Seymour Duncan pickup use?
The Alnico V magnet provides a strong response in the low end and precise highs. The resonance peak at 6 kHz helps maintain signal presence.
What music styles is the 59 Model bridge pickup suited for?
This model is recommended for country, jazz, blues, funk, classic rock, and heavy rock. The 8.2 kΩ resistance and bridge position favor clear chords and singing bends.
What is the finish of the 59 Model bridge pickup?

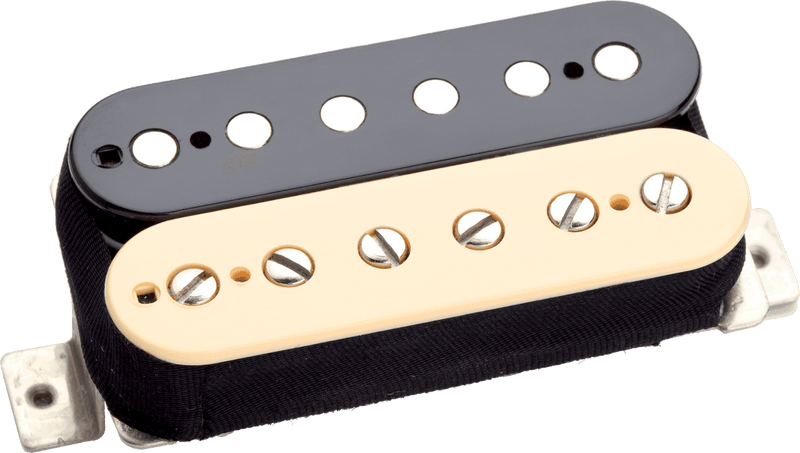

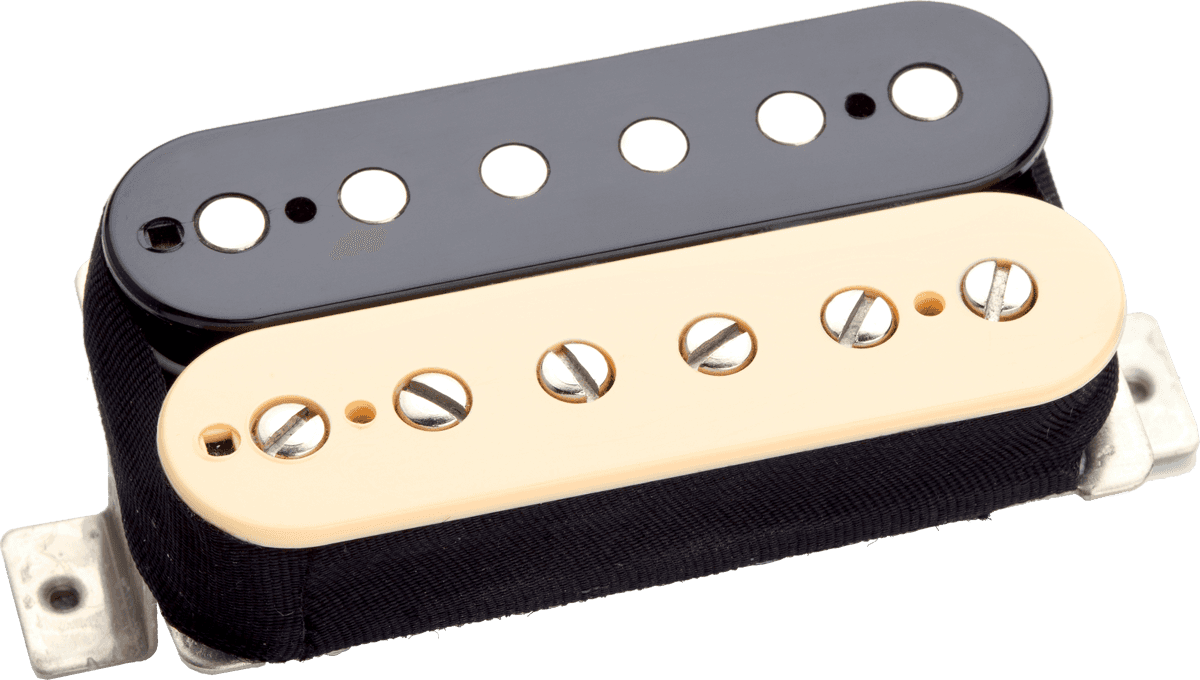

The Zebra finish combines black and cream coils for a classic electric guitar look.
