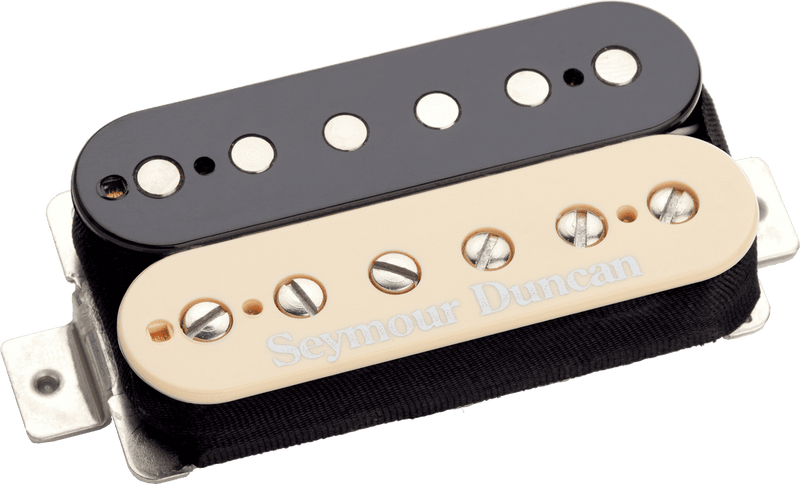

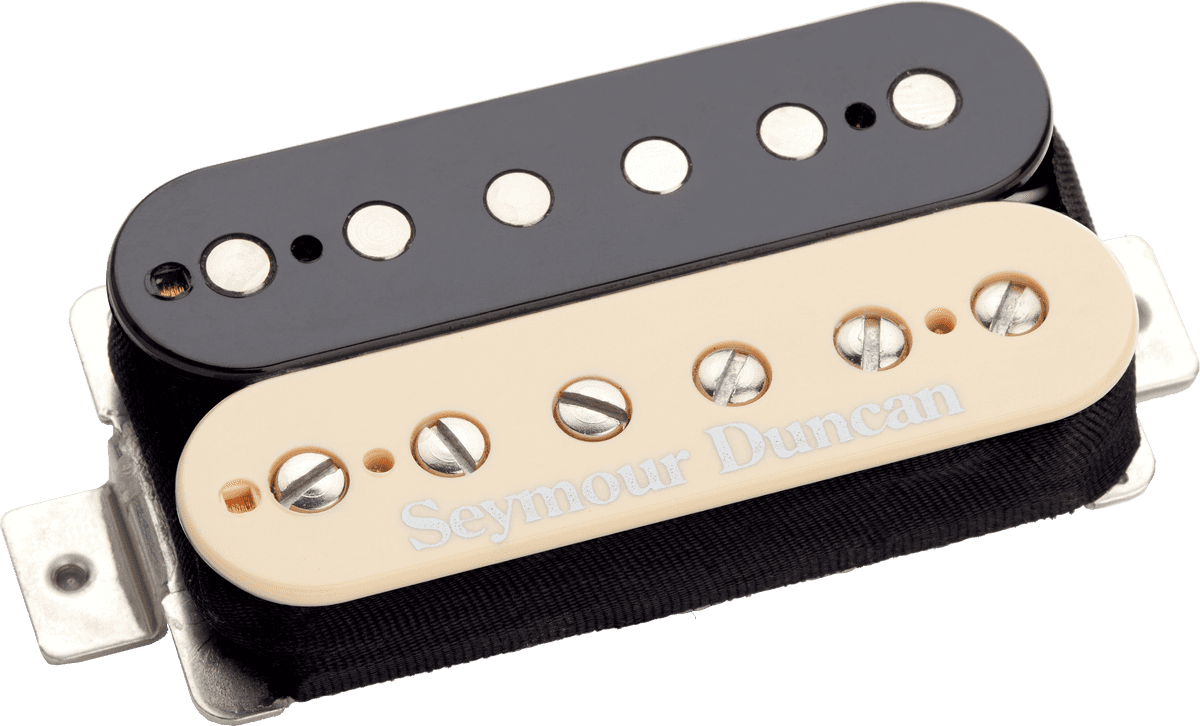

Seymour Duncan SH-2B-Z - JAZZ MODEL TRESTLE ZEBRA

Name: SH-2B-Z - JAZZ MODEL TRESTLE ZEBRA
Brand: Seymour Duncan
SKU: 211122
Price: 132.00 EUR
Availability: InStock

132,00 €VAT incl.

0,14 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 211122

EAN : 0800315001002

This item is covered for 3 years

Information

Essential Information About the Seymour Duncan SH-2B-Z "Jazz Model" Zebra Bridge Pickup
• Passive humbucker with Alnico V magnet : precise attack, defined lows, and clear highs.
• Bridge position : ideal for articulate riffs, clear chords, and leads that maintain definition.
• 4-conductor wiring + split : access to humbucker tones and single-coil-like textures via coil split.
• Zebra finish and interference-resistant design: vintage look and cleaner signal on stage and in the studio.

SH-2B-Z - JAZZ MODEL TRESTLE ZEBRA

132,00 €VAT incl.

0,14 € Ecotax included

Reference price

A "Jazz Model" Humbucker Designed for Musicality and Clarity

The SH-2B-Z Jazz Model in bridge version is aimed at guitarists seeking an expressive and very clear pickup, even with complex chords or amp settings rich in harmonics. Its voicing favors balance and precision to preserve right-hand dynamics and subtle nuances.

For Which Styles and Guitars?

With its intended applications in Jazz, Blues, Funk, Classic Rock, and Heavy Rock, this pickup excels whenever a quick response and a "breathing" sound are desired. In the bridge position, it provides presence without becoming aggressive and is particularly suitable for humbucker-body guitars (such as double cut, single cut, semi-hollow) when seeking greater definition in the mix.

Split, 4-Conductor Wiring, and Sound Behavior

Thanks to the 4-conductor wiring, the SH-2B-Z allows multiple wiring schemes (including split ) to expand tonal options: full humbucker for a dense, noise-free sound, or split for snappier attacks, useful in funk, arpeggios, and percussive rhythms. Its 7 kHz peak enhances brightness and articulation, while its 7.9 K resistance stays in a range that favors transparency and dynamics rather than excessive compression.

Technical specifications

Electronics	Passive
Category	electric microphone
Instrument	guitar
Applications	rock
Magnet	alnico V
Winding	double

Peak	7 kHz
Number of conductors	4
Position	bridge
Resistance	7.9 KILOHM
Color	Black

Model	Seymour Duncan SH-2B-Z
Series	Jazz Model
Type	humbucker pickup
Split	yes
Active	no
Finish	Zebra
Other	interference-resistant

Questions frequently asked

Is the Seymour Duncan SH-2B-Z suitable for the bridge position?

Designed for the bridge, this 7.9 kΩ humbucker delivers presence while preserving the clarity of complex chords.

Can the Jazz Model Zebra bridge pickup be split?

The 4-conductor wiring allows for configurations including coil splitting. The humbucker mode maintains noise-free operation, while the split mode provides a sharper attack ideal for funk arpeggios and rhythm playing.

What kind of sound does the SH-2B-Z produce?

Its resonance peak at 7 kHz supports brightness and articulation. The Alnico V magnet and 7.9 kΩ resistance favor a dynamic response over heavy compression. This preserves the subtlety of playing nuances even with amp settings rich in harmonics.
