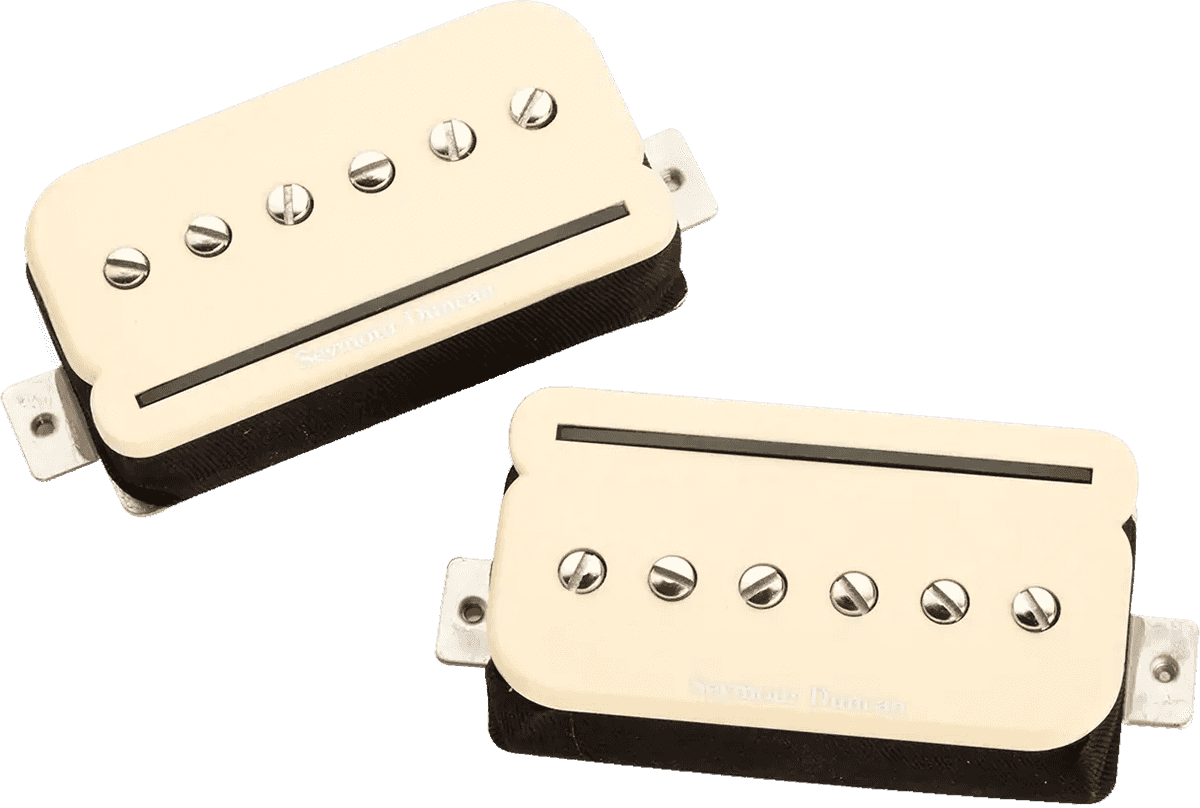

Essential Information About the Seymour Duncan SHPR-1S-C "P-Rails" Pickup (Cream Kit)
• Maximum sonic versatility : a single set to achieve humbucker, P-90, and "Rail" single-coil tones.
• Standard humbucker format : installs as a direct replacement in humbucker cavities (neck and bridge positions).
• Advanced splitting thanks to 4-conductor wiring: ideal with push-pull pots, mini-switches, or custom routing.
• Cream finish : vintage and elegant look, perfect on many guitars (LP-type, semi-hollow, etc.).

SHPR-1S-C - P-RAILS - KIT CREAM

269,00 €VAT incl.

0,14 € Ecotax included

Reference price

A modern Seymour Duncan classic, designed for guitarists who love to explore everything

The Seymour Duncan P-Rails SHPR-1S-C set has established itself as an essential solution for musicians who want to switch between different tonal ranges without changing guitars. Its hybrid concept combines two complementary "personalities" in each pickup: a full and gritty voice inspired by the P-90, and a more precise and biting "rail" coil. Together, they form a true humbucker with a strong character.

For which guitars and styles?

This kit (neck + bridge) is aimed at guitarists who play multiple styles and want a coherent palette on stage and in the studio: blues, classic rock, pop, surf, jazz, up to heavier genres. In humbucker mode, you gain thickness and output level. In P-90 mode, enjoy a broad grain rich in midrange. And in Rail (single-coil) mode, you get a sharper attack and dynamic clean tones, perfect for rhythm playing.

Three voices in each pickup: humbucker, P-90, or Rail single-coil

Each pickup in the set offers three distinct modes via splitting (depending on your wiring scheme): humbucker (both coils together), P-90 (P-90 coil alone), or Rail (rail coil alone). This is based on Alnico V magnets (two bars) and a 4-conductor cable that facilitates advanced setups. The result: a guitar capable of covering a wide sonic spectrum while maintaining a strong and usable identity.

Technical specifications

Electronics	Passive
Category	electric microphone
Instrument	guitar
Magnet	alnico V
Winding	double

Number of conductors	4
Position	handle, bridge, set
Resistance	18.9 KILOHM
Color	Beige
Colours	Crème

Brand	Seymour Duncan
Model	SHPR-1S-C
Series	P-Rails
Type	electric guitar pickup set (neck + bridge)
Format	humbucker
Modes	humbucker, P-90, Rail single-coil (split)
Pickups included	SHPR-1N (neck) and SHPR-1B (bridge)
Configuration	dual coil
Active pickup	no
Output	medium to high output
Magnets	two Alnico V bars
Cable	4-conductor (shielded cable)
Finish / color	cream
Neck DC resistance (humbucker mode)	12.87 kOhms
Neck resonance peak (humbucker mode)	4.6 kHz
Neck DC resistance (P-90 mode)	7.25 kOhms
Neck resonance peak (P-90 mode)	3.6 kHz
Neck DC resistance (Rail single-coil mode)	5.60 kOhms
Neck resonance peak (Rail single-coil mode)	7.0 kHz
Bridge DC resistance (humbucker mode)	18.80 kOhms
Bridge resonance peak (humbucker mode)	3.0 kHz
Bridge DC resistance (P-90 mode)	10.20 kOhms
Bridge resonance peak (P-90 mode)	3.1 kHz
Bridge DC resistance (Rail single-coil mode)	8.56 kOhms
Bridge resonance peak (Rail single-coil mode)	6.0 kHz

Questions frequently asked

Do the P-Rails pickups allow switching between humbucker, P-90, and single coil modes?

Both pickups offer three modes: humbucker, P-90 coil only, or Rail coil only. Selection is done by splitting according to the chosen wiring scheme. In humbucker mode, both coils are combined.

What sound does the bridge pickup produce in humbucker mode?

In the bridge position, the DC resistance reaches 18.80 kOhms in humbucker mode, with a resonance peak at 3.0 kHz. This configuration delivers a medium to high output and increased thickness.

What wiring is needed to utilize the three modes?

The 4-conductor shielded cable facilitates advanced wiring setups and access to split modes according to the wiring diagram. Each pickup is equipped with two coils and Alnico V magnets.
