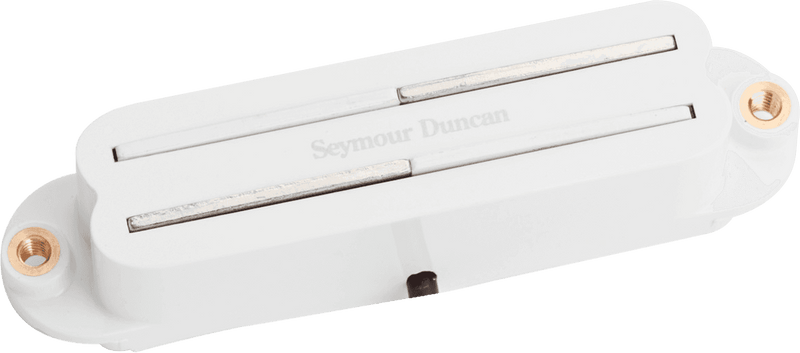

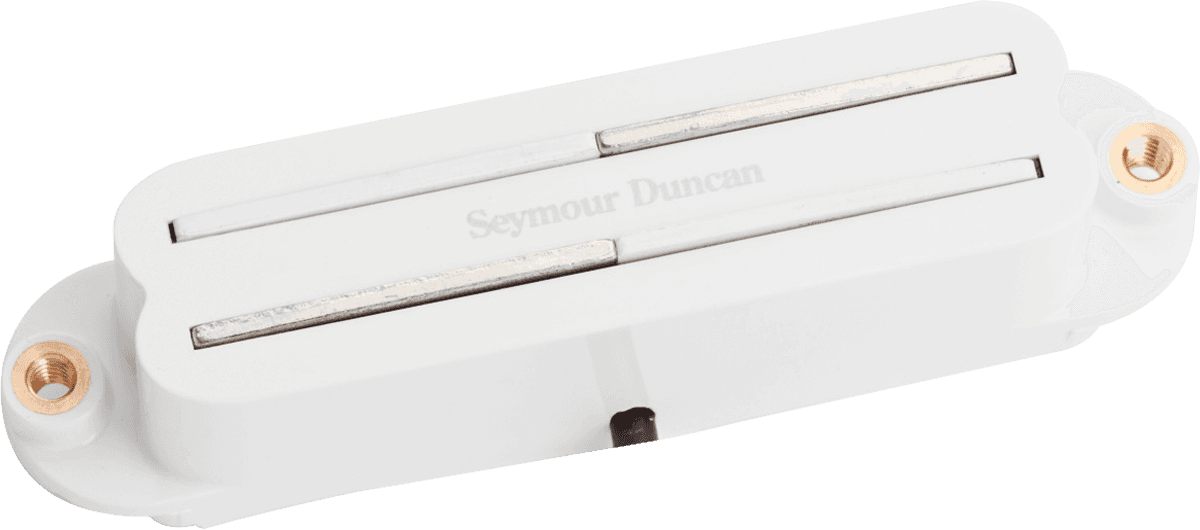

Seymour Duncan SVR-1B-W - VINTAGE RAILS STRAT TRESTLE WHITE
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Seymour Duncan
https://www.seymourduncan.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Vintage Rails: The Strat Spirit, Without the Noise
The Seymour Duncan Vintage Rails SVR-1B-W is designed for guitarists who want to keep the identity of a Strat bridge pickup while gaining playing comfort on stage and in the studio. Its rail design in a single-coil format provides a consistent string-to-string response with a clean and controlled sound, especially appreciated when pushing the volume or using effects.
For Which Styles and Guitarists?
Intended for Country, Pop, Surf, Rockabilly, Blues, Ska, and Classic Rock genres, this pickup shines on sharp clean tones, punchy crunch, and singing leads. In the bridge position, it delivers bite and strong presence while remaining suitable for precise rhythm parts, double-stops, and open chords that maintain clarity.
Split, 4 Conductors, and Rails: Versatility and Precision
Thanks to its 4 conductors, the SVR-1B-W offers numerous wiring options: split for refining the tone, or alternative configurations to adjust output level and tonal balance to your guitar. The ceramic magnet contributes to a sharp attack and well-controlled low-end response, while the high peak frequency favors clarity and articulation. The result: a single-coil format pickup rich in possibilities, with excellent sonic stability, including during bends and pick attack variations.
Technical specifications
| Electronics | Passive |
| Category | electric microphone |
| Instrument | Strat, guitar |
| Magnet | Ceramic |
| Winding | simple |
| Number of conductors | 4 |
| Position | bridge |
| Resistance | 2.9 KILOHM |
| Color | White |
| Model | Seymour Duncan SVR-1B-W |
| Series | Vintage Rails Strat |
| Type | hum-cancelling dual-rail single-coil pickup |
| Applications | Country, Pop, Surf, Rockabilly, Blues, Ska, Classic Rock |
| Split | yes |
| Active | no |
| Peak frequency | 7.8 kHz |
| Finish / color | white (Vintage White) |
| Other | dual rail single-coil format, noise-cancelling |
Questions frequently asked
Is the Seymour Duncan SVR-1B-W compatible with a Stratocaster in the bridge position?
This model is designed for a Strat-style guitar and fits in the bridge position. Its single-coil size facilitates installation in this configuration.
Does the Vintage Rails Strat bridge pickup eliminate noise?
The rail design is claimed to provide a clean and controlled output, useful when the volume or effects are turned up. It also ensures even response from string to string.
Can the Seymour Duncan Vintage Rails SVR-1B-W be coil split?
The 4-conductor wiring allows for coil splitting as well as other configurations. This feature enables adjustment of tone and output level depending on the wiring chosen. The pickup is passive and does not require active power.
What sound can be expected from this rail bridge pickup?
The ceramic magnet promotes a sharp attack and strong lows. With a resonance peak at 7.8 kHz, the response aims for clarity and articulation suitable for clean tones, crunch, and leads.
For which styles is the white SVR-1B-W recommended?
This white model is intended for country, pop, surf, rockabilly, blues, ska, and classic rock genres.
