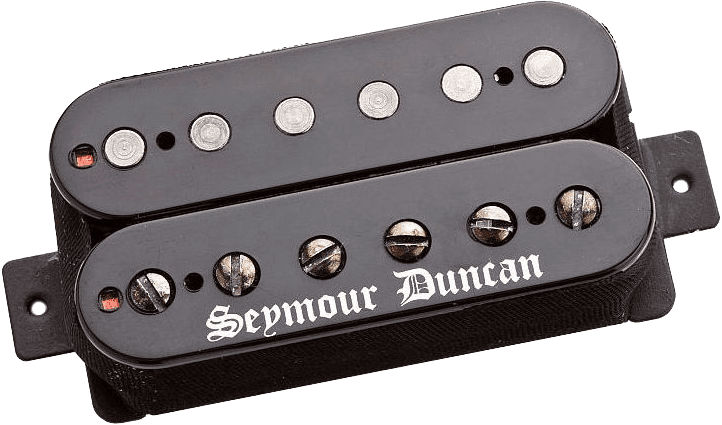

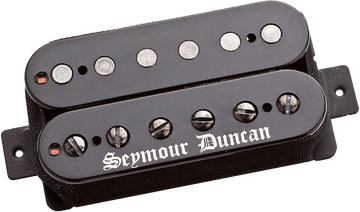

Seymour Duncan TB-BW-B - BLACK WINTER TB EASEL BLACK
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Seymour Duncan
https://www.seymourduncan.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Black Winter: A Seymour Duncan Voice Born for the Extreme
Developed to meet the demands of extreme metal guitarists, the Black Winter range is designed to maintain definition where many pickups falter: high gain, fast rhythms, dropped tunings, and walls of distortion. In the bridge position, the Black Winter aims for an aggressive and articulate sound, allowing you to switch from a "saw" riff to a cutting lead without losing string-to-string separation.
For Which Guitars and Styles?
The TB-BW-B is the Trembucker version of the Black Winter bridge pickup: its pole piece spacing is optimized to align properly under the strings of guitars equipped with a vibrato (or wide bridge). It is intended for guitarists playing in high-gain styles (black metal, death metal, thrash, modern metal, etc.) who want a tight low end, biting mids, and highs that cut through the mix without becoming muddy.
Trembucker, Ceramic Magnets, and 4 Conductors: The Combo to Shape Your Gain
With its humbucker design and ceramic magnets, this pickup delivers a fast response, solid sustain, and a clear attack, particularly effective on alternate picking riffs and fast palm mutes. Its 4-conductor wiring gives you the freedom to explore multiple wiring options (split, parallel, etc.) to expand your tonal palette, from sharper "single-coil" sounds to tighter, more modern textures, all while retaining the radical identity of the Black Winter in the bridge position.
Technical specifications
| Electronics | Passive | Winding | double |
| Category | electric microphone | Number of conductors | 4 |
| Instrument | guitar | Position | bridge |
| Applications | metal | Color | Black |
| Magnet | Ceramic | ||
| Brand | Seymour Duncan | Output | high output |
| Model | Black Winter TB-BW-B | DC resistance | 17.4 kOhm |
| Type | humbucker pickup (dual coil) | Cable | 4 conductors + shielding |
| Design | passive | Connection | soldering |
| Number of strings | 6 | Appearance | uncovered (no cover) |
| Format | Trembucker (F-spaced) | Mounting tabs | short |
| Spacing | 53 mm | Includes | wiring diagram, mounting screws |
| Magnet configuration | 3 ceramic magnets | ||
Questions frequently asked
Is the Seymour Duncan TB-BW-B compatible with a Floyd Rose?
With its Trembucker (F-spaced) format and 53 mm spacing, this pickup is designed for guitars with a vibrato or wide bridge. Its pole piece alignment is suited for the strings in this type of setup.
What sound does the Black Winter offer in the bridge position?
The ceramic magnet and high output deliver a sharp attack under high gain. The tone targets tight lows, biting mids, and good string separation for fast rhythms.
Can the Black Winter TB-BW-B be coil-split?
Thanks to the 4-conductor shielded cable, split or parallel wiring is possible. The wiring diagram is included. Connections require soldering.
What is the resistance of the Seymour Duncan Black Winter Trembucker bridge pickup?
The stated DC resistance is 17.4 kOhm. This model is a passive high-output humbucker intended for the bridge position.
Is the pickup shipped with mounting accessories?
The uncovered black format is mounted on short mounting ears. Mounting screws and the wiring diagram are provided.
