Showtec Phantom 3R Beam

Name: Phantom 3R Beam
Brand: Showtec
SKU: 256614
Price: 805.00 EUR
Availability: InStock

805,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 256614

EAN : 8717748420183

This item is covered for 3 years

Information

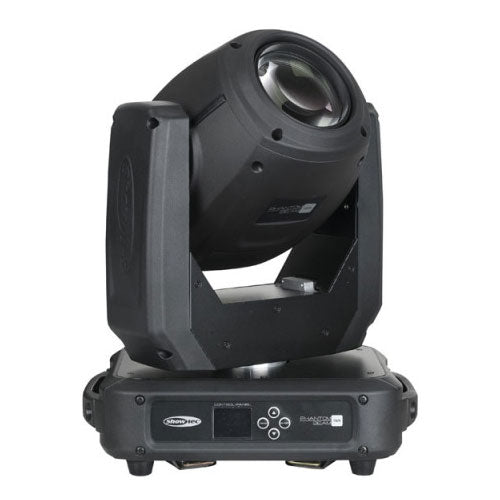

Essential Information About the Showtec Phantom 3R Beam Moving Head
• Ultra-narrow 3.5deg beam for sharp, impactful light columns visible from a long distance.
• 3R 150W YODN discharge lamp (8600K) delivering powerful projection and striking rendering both in clubs and on stage.
• Complete creative palette with over 14 colors + white, half colors, rainbow effects, fixed gobos, rotating prism, and motorized focus.
• Flexible control via DMX512 (8 or 13 channels), Auto, Sound, Manual, and Master-Slave modes, with integrated color LCD screen for quick navigation.

Phantom 3R Beam

805,00 €VAT incl.

0,00 € Ecotax included

Reference price

Designed for Stage, Club, and Event Use

Compact and dynamic, the Showtec Phantom 3R Beam excels wherever visual "punch" is needed: concert stages, electro clubs, DJ booths, TV studios, weddings, and corporate events. Its 3.5deg angle cuts through smoke and structures space with clean beams, while its frost filter instantly transforms the beam into wash lighting for fills or atmospheres.

The Ideal Moving Head for DJs, Lighting Technicians, and Installers

Mobile DJs, lighting technicians, entertainment companies, bar and venue operators will appreciate its power, reliability, and versatility. Fixed installers will find an efficient and easy-to-control solution thanks to the 8/13 channel DMX and standalone modes. Its metal and fire-retardant plastic construction provides reassurance on tour as well as in permanent installations.

Technical specifications

Spotlight type

Beam

Color

Black

Questions frequently asked

Is the Showtec Phantom 3R Beam suitable for visible beams in clubs?

Its 3.5° beam angle is designed to produce tight beams that shape the space in smoke. The YODN 3R 150 W lamp delivers a color temperature of 8600 K.

Which DMX modes are available?

Two DMX512 configurations are offered: 8 channels in Standard mode and 13 channels in Advanced mode. DMX connection is via 3-pin XLR.

Can it operate without a lighting console?

Auto, Sound, Manual, and Master-Slave modes allow use without external DMX control. The integrated color LCD screen is used for settings.

What lighting effects are built into this beam moving head?

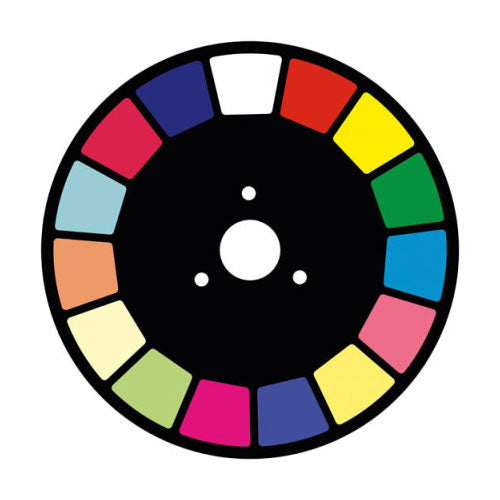

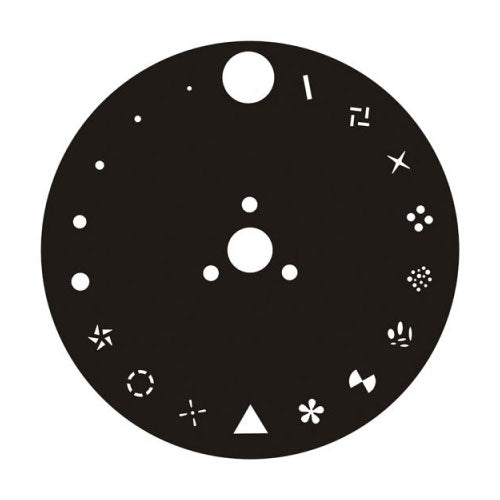

The color wheel includes over 14 colors plus white, with half colors and rainbow effect. A wheel with over 17 fixed and open gobos, a rotating prism, and a frost filter expand visual possibilities. The frost filter widens the beam for a wash effect.

What is the pan and tilt movement range?

Pan reaches 540° and tilt 260°, with 16-bit resolution. Pan ranges of 540°, 360°, or 180° can be selected, with axis inversion and dead zones for movements.
