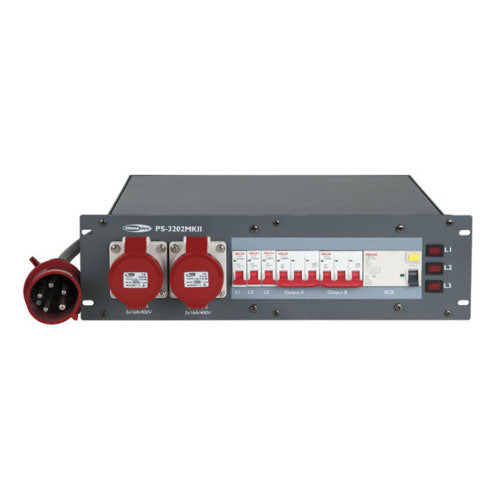

Showtec PS-3202

Designed for Stage, Events, and Fixed Installations

The Showtec PS-3202 is designed for concert stages, clubs, theaters, DJ performances, weddings, and corporate events. In fixed installations (bars, multipurpose rooms, studios, restaurants), it provides clean and organized distribution with rational front/rear wiring and a 19-inch rack mount that simplifies transport, setup, and maintenance.

Who Is This Power Distribution Unit For?

Ideal for lighting/sound managers, stage technicians, mobile DJs, event providers, and venue operators. Those seeking a reliable, quick-to-deploy, and easy-to-control distribution solution will appreciate its versatile connectivity, integrated protections, and "tour-ready" construction for intensive touring and rental use.

Technical specifications

IP rating	IP-20	Power cable	H07RN-F 5 x 4 mm2
Cooling	Convection	Power cable length	1 m
Use	indoors, by qualified personnel	Housing and components	rugged
Power supply	230 V / 50 Hz	Housing material	steel
Max. input power	32 A / phase	Color	Grey
Fuse	1 x 63 A 0.03 A RCCB	Line indication	3 red lights
Circuit breaker	2 x 3-pole 16 A, type C	Minimum distance from flammable surfaces	0.5 m
Max. ambient temperature ta	40degC	Minimum distance from the illuminated object	1 m
Max. housing temperature tB	80degC	Rack format	19 in x 3U (W x H)
Input	1 CEE 32 A connector (rear panel)	Dimensions	482 x 300 x 133 mm (W x L x H)
Outputs	2 CEE 16 A sockets (front panel)	Weight	10.2 kg

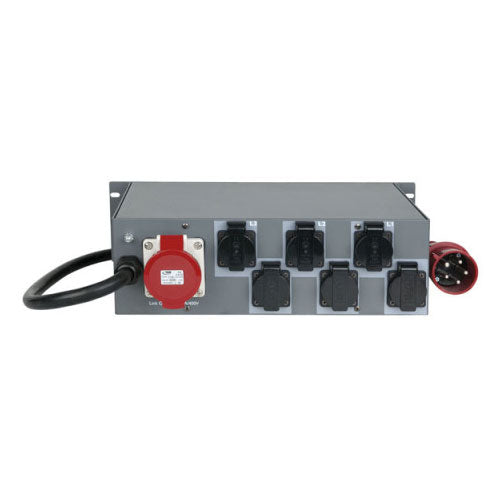

Output	1 CEE 32 A socket (rear panel)
