The "Beta" Tone Serving a BLX System Designed for the Field

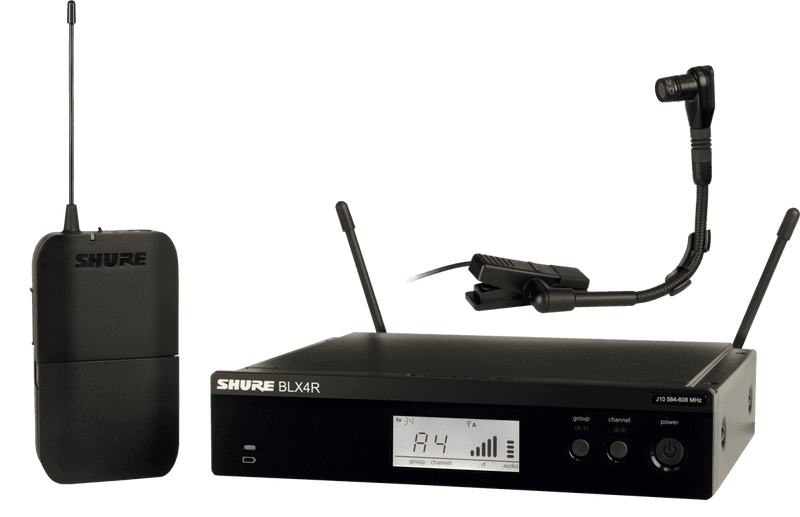

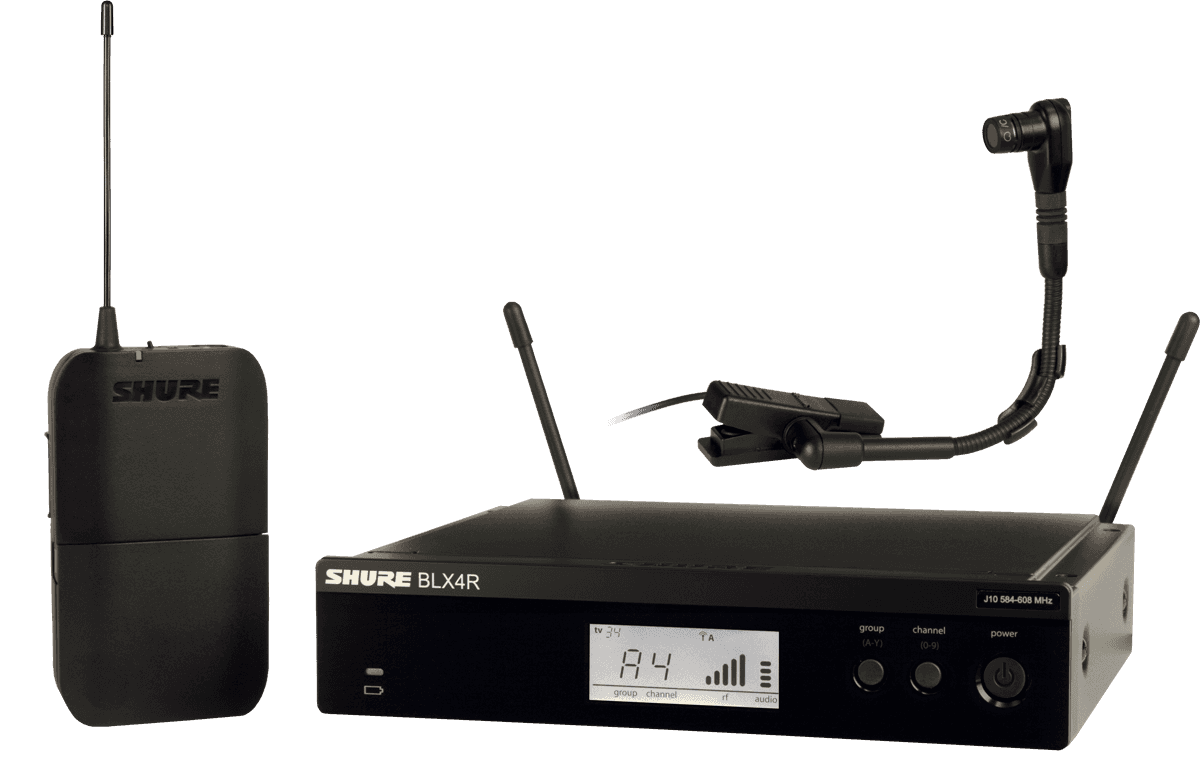

In the world of sound reinforcement, the "Beta" designation is associated with precision and presence, especially appreciated when you want to retain the attack and character of an instrument without making it harsh. The Beta WB98H/C (BLX4E + BLX1) follows this logic by combining a dedicated instrument microphone and an analog BLX wireless system focused on ease of use.
This approach makes it a coherent solution for setups requiring quick and repeatable deployment: the microphone's signature is preserved close to the source, while benefiting from a system designed for easy setup and storage. The range offers several complete kits and receiver options (single, dual, or rack-mountable) to adapt the configuration to the size of the setup and the number of musicians.
Freedom of Movement for Brass, Woodwinds, Accordions, and Percussion
This system is designed for musicians who move, pivot, walk among a section, or alternate between playing positions. On stage or in rehearsal, wireless provides real freedom: fewer cable constraints, less risk of snagging, and a more natural presence in front of the audience.

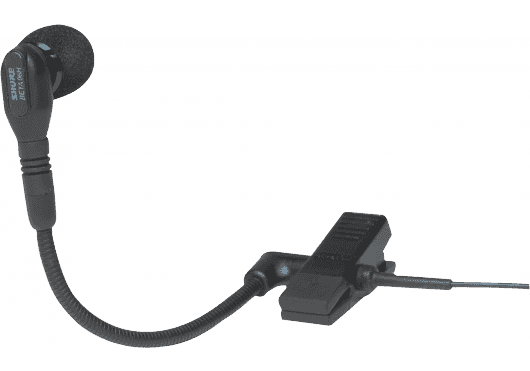

The WB98H/C microphone, with its integrated clip, aims for quick and secure attachment to the instrument. This close miking allows for a high useful level and a more consistent signal, helping maintain definition even in noisy environments. Whether in live studio recording, concert capture, or amplified stage settings, the goal remains the same: preserve the timbre while ensuring clear playback in the mix.
Technical specifications
| Category | Complete system | Interchangeable capsule | No |
| Number of channels | 12 | Transmission | Analog |
| Frequency response | 20 Hz - 20 kHz | Category | complete instrument system |
| Transmitter sync | QuickScan | Transmit encryption | No |
| Directivity | cardioid | Transmitter screen display | No |
| Capsule | static | Frequency band | M17 - 662 to 686 MHz |
| Max. number of simultaneous systems | 12 | Autonomy | 14h max |
| Removable antenna | Yes | Color | Black |
| Transmit power | 10 MILLIWATT | Power supply | Transmitter : 2x AA batteries, Receiver : sector |
| Frequency scanner | Yes | Accessories included | Windscreen |
| Indicative range | 100 m | ||
Questions frequently asked
Is the Shure BLX14RE-B98-M17 suitable for brass and woodwind instruments?
The WB98H/C cardioid condenser microphone is designed for capturing instruments such as brass, woodwinds, accordions, and percussion. Its integrated clip allows direct attachment to the instrument, with an audio response from 50 Hz to 15 kHz.
What is the battery life of the BLX1 transmitter?
The BLX1 beltpack transmitter operates up to 14 hours using two AA alkaline batteries.
How many BLX wireless systems can operate simultaneously?
Up to 12 systems can be used simultaneously within this frequency band. The receiver’s QuickScan function facilitates selecting an available frequency. The M17 band covers 662 to 686 MHz.

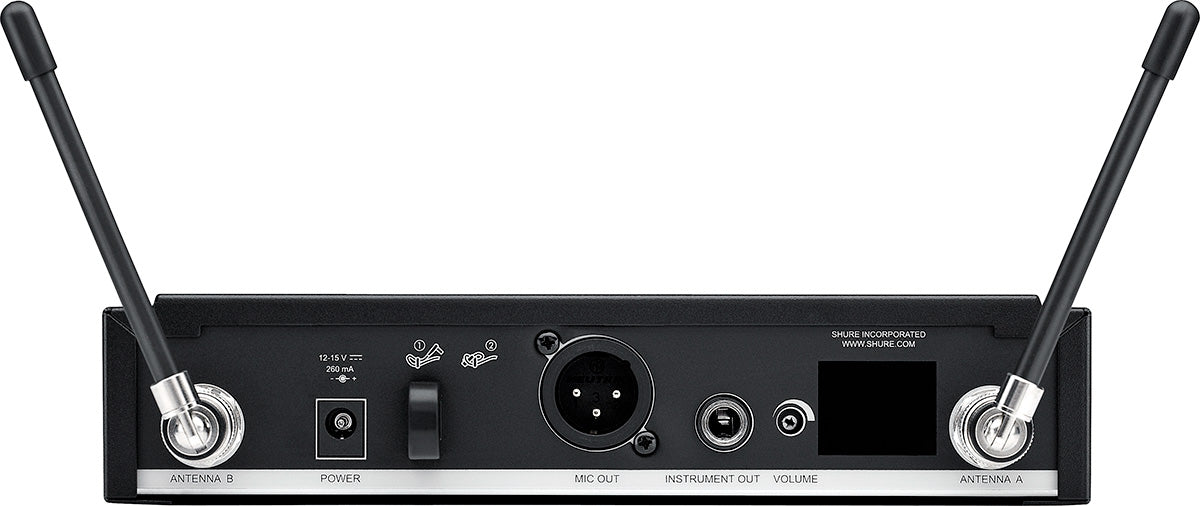

What outputs are available on the BLX4E receiver?
The BLX4E receiver provides both XLR and 1/4" (6.35 mm) jack outputs. This connectivity allows connection to a mixer, preamp, or sound reinforcement system.
What range does this wireless instrument system offer?
The typical range reached is up to 100 m, with a transmission power of 10 mW. The transmitter sends an analog signal and the receiver is mains powered.
