XVive U7 Saxophone And Trumpet Wireless System

From Static Microphone to Wireless Clip-On: An Evolution Designed for Brass Instruments

On stage, brass instruments have long been amplified with static microphones, which are effective but demanding: precise placement, risk of bleed, bulkiness, and limited freedom of movement. The "clip-on" format changed the game by bringing the capsule closer to the bell, and wireless technology has definitively freed playing by eliminating cable constraints. This system follows this modern logic: quick setup, consistent sound capture from one concert to another, and a compact solution that follows the musician rather than the other way around.

For Which Musicians and Playing Situations?

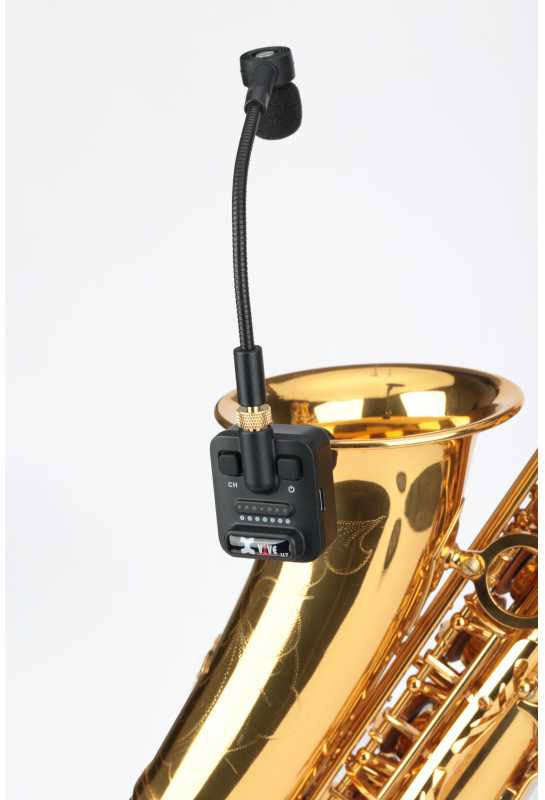

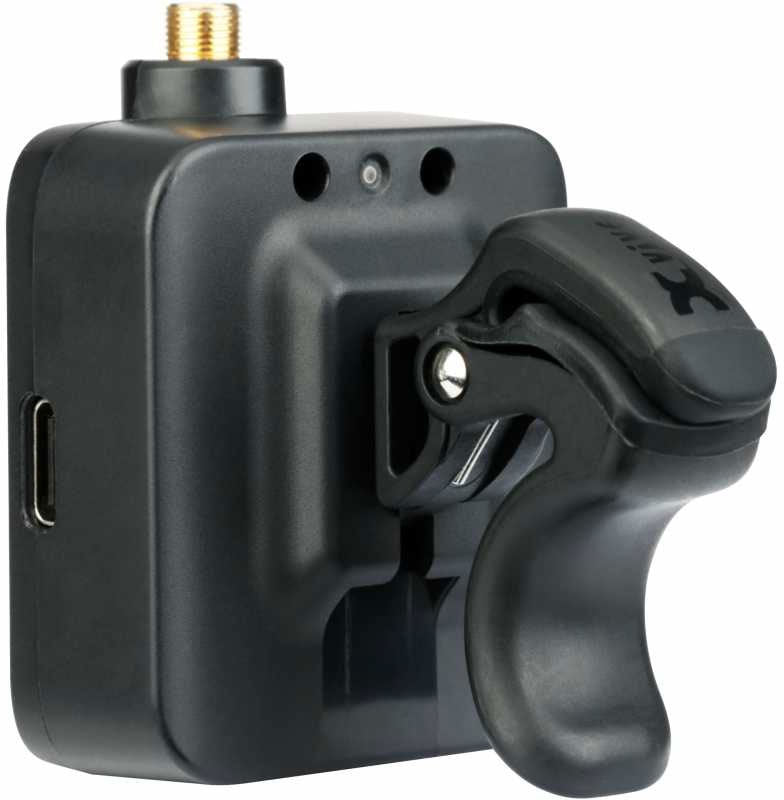

Designed for saxophonists, trumpeters, trombonists, and tubists, this wireless microphone system is ideal for orchestras, brass bands, jazz bands, funk, or any ensemble where mobility and mix clarity matter. It is also well suited for teachers and traveling ensembles thanks to its quick setup, as well as content creators seeking stable sound during rehearsals or outdoor performances. The clip dedicated to the bell secures the installation, while the gooseneck allows precise positioning even when the instrument moves.

Detailed Sound, Reliable Grip, a More Relaxed Stage

Supercardioid Directivity: More Focus, Less Leakage

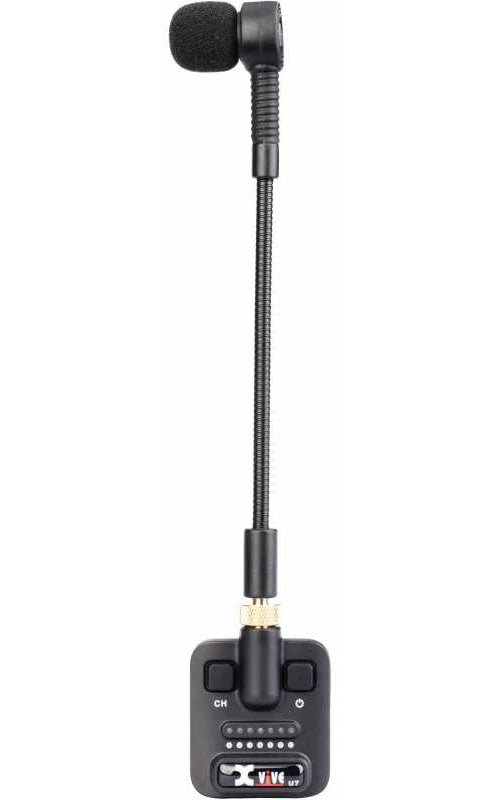

The supercardioid capsule is a real asset for brass instruments: it favors the targeted source and helps reduce leakage from other instruments, a key point on crowded stages or noisy environments. The result: a more usable sound both front-of-house and in monitors, and better feedback control. The gooseneck allows adjusting the distance and angle of the sound capture as close as possible to the bell to recover attacks, brilliance, and the timbre's personality.

2.4 GHz Digital Transmission: Playing Comfort and Clarity

The 2.4 GHz digital link delivers a clean signal, with 24-bit/48 kHz processing to preserve dynamics and nuances, from pianissimos to the most pronounced accents. With latency under 5 ms, the feel remains natural both under the fingers and to the ear, even on fast passages or very marked articulations. The 6 channels facilitate the use of multiple systems simultaneously within the same ensemble.

Tailored for Brass: High Acoustic Pressure and Useful Accessories

Brass instruments can generate high levels at the bell: this system handles up to 142 dB SPL, which helps maintain a clear sound during powerful passages. Outdoors, the two windshields (foam and furry) secure the sound capture against gusts and movement. Finally, the advertised battery life of up to 5 hours and practical range up to 27 m offer true freedom for mobile performances, parades, or large stages, while keeping a simple configuration: transmitter, receiver, microphone, and you play.

Technical specifications

Category	Complete system	Capsule	static
Number of channels	6	Category	wireless microphone system
Directivity	supercardioid	Frequency band	2,4 GHz

Wireless range	up to 27 m	Signal-to-noise ratio	108 dB
Frequency response	20 Hz - 20 kHz	Maximum level	142 dB SPL
Dynamic range	108 dB	Battery life	up to 5 hours
