Shure BLX4E-M17
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the SM Wireless BLX4RE Receiver
Essential Information About the SM Wireless BLX4RE Receiver
- Up to 12 systems usable per band with the "Quick Scan" function to find the best frequency in seconds.
- Frequency response 50 Hz to 15 kHz and 10 mW transmission for clear and natural sound reproduction.

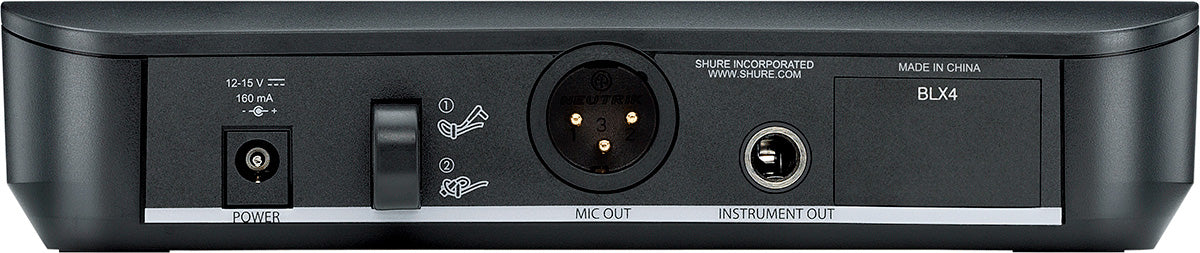

- XLR and 6.35mm Jack outputs, adjustable output level, and easy integration into sound systems.
- Single or dual rack mounting included, ideal for tours and fixed installations.
Manufacturer Information
Shure
https://www.shure.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Pro Standard from the SM Series
The SM Wireless analog wireless systems combine a very linear frequency response with proven reliability, inherited from the SM series microphones, a reference in the professional field. Offered as complete sets with single, dual, or rack-mountable receivers, they meet the needs of stages, studios, and multipurpose rooms, with up to 12 compatible frequencies per band and quick startup thanks to "Quick Scan".
Intended Uses and Audience
Whether you are a singer, guitarist, drummer, host, DJ, or speaker, the thirteen single, dual, or mixed packs in the range offer a ready-to-use solution. The BLX4RE fits equally well into a touring rack or a fixed installation, providing reliable performance for concerts, events, or conferences.
Technical specifications
| Category | receiver | Outputs | XLR, jack |
| Directional antenna | No | Color | Black |
| Indicative range | 80 m | Display screen | No |
| Transmission | Analog | Weight | 241 g |
| Frequency band | M17 - 662 to 686 MHz | Dimensions (mm) | 40 x 188 x 103 |
| Systems usable simultaneously per band | 12 | Compatibility | TNT |
| Number of complete systems | 13 | Audio output level | adjustable |
| Quick Scan function | selection of the best frequency | Antennas | detachable quarter-wave |
| Transmission power | 10 mW | LCD screen | backlit with detailed display of RF and audio levels |
| Audio frequency response | 50 Hz to 15 kHz | Rack-mount kit | single and dual included |
| Battery life | 14 hours with 2 AA alkaline batteries | Diversity | predictive with integrated antennas |
| Audio output | XLR and 6.35 mm jack | External power supply | included |
| Carrying case | included, except for rack-mountable versions | Weight (kg) | 0.24 |
You will also like
Shure
BLX1-M17
Shure
BLX2-SM58-M17
Sennheiser
SKM XSW-825-B (B : 614?638 MHZ)
Shure
MX153T-o-tqg
Shure
RPW118
LD Systems
Mei 1000 G2 BPR
Shure
RPW112
LD Systems
Mei 1000 G2 BPR - (584 - 607 MHZ)
Questions frequently asked
What is the frequency range of the Shure BLX4E-M17?
The receiver operates in the M17 band, from 662 to 686 MHz.
What range can this wireless receiver achieve?
The indicative range announced is 80 m. This value depends on usage conditions and the radio environment.
What audio outputs are available on the BLX4E-M17?
Two outputs are provided: an XLR and a 6.35 mm jack. These connections allow linking to a mixer or a sound system. The receiver measures 40 x 188 x 103 mm and weighs 241 g.
Does the Quick Scan facilitate frequency adjustment?
The Quick Scan function automatically selects a clear channel. The systems in the range can manage up to 12 compatible frequencies per band.
What audio frequency response is specified?
The analog transmission covers an audio response from 50 Hz to 15 kHz.
