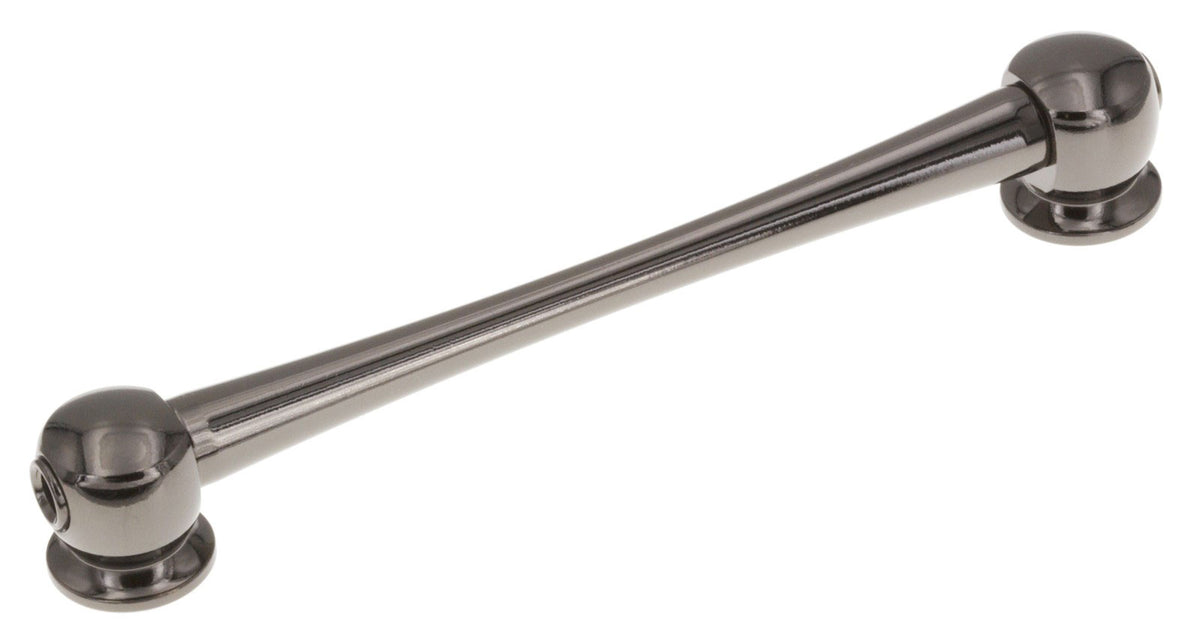

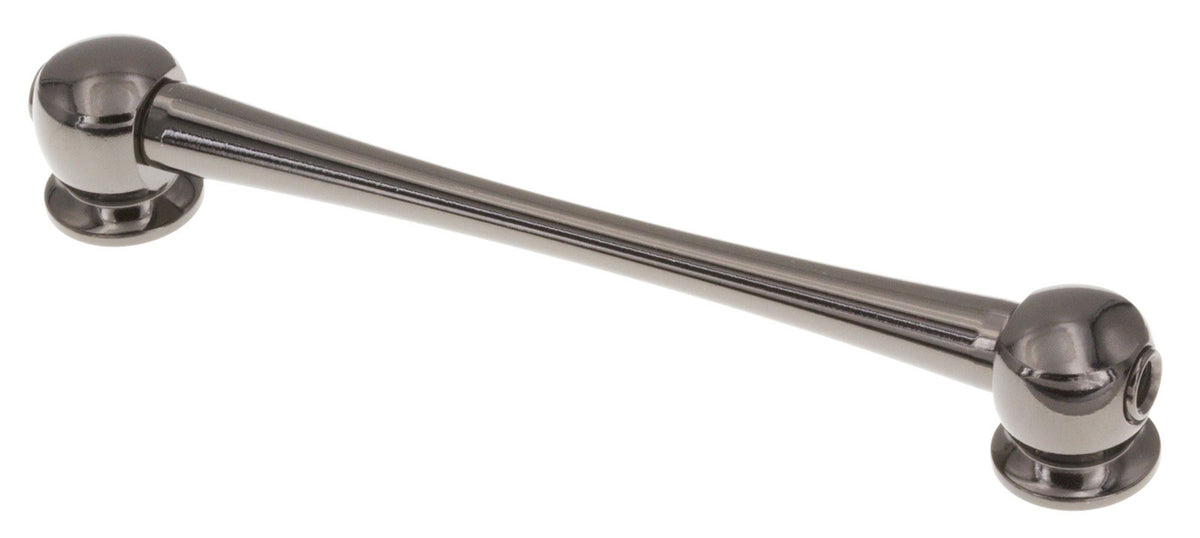

Sparedrum TL11D116-BK TUBE LUG BLACK 116MM DOUBLE ENDED X1

Historical Context and Positioning in the Range

The two-point tube lug is a standard in drum hardware, appreciated for its simplicity, compactness, and tuning stability. This type of part is commonly chosen as a replacement during restoration, repair, or aesthetic harmonization of a shell.

Who This Drum/Instrument Is For

This lug is intended for all drummers, from beginners to advanced players, as well as drum technicians and drum workshops. It is particularly suitable for rock, pop, funk, metal, or studio setups, wherever reliable hardware is needed to maintain stable tuning and consistent head tension.

Features and New Developments

With its #12-24 threading, this tube lug aims for broad compatibility with standard tension rods. Installation is done using M4 screws and a 6 mm drilling. Note: the isolating rubber and mounting screws are not included, allowing you to reuse your existing parts or select components suited to your shell.

Sound Characteristics

On an acoustic drum kit, the lug mainly influences tuning stability and the mechanical behavior of the shell. A rigid and well-fitted lug promotes even tension across the tension rods, which helps achieve a cleaner attack, more controlled sustain, and longer-lasting tuning, especially on snare drums and toms subjected to strong dynamic variations.

Technical specifications

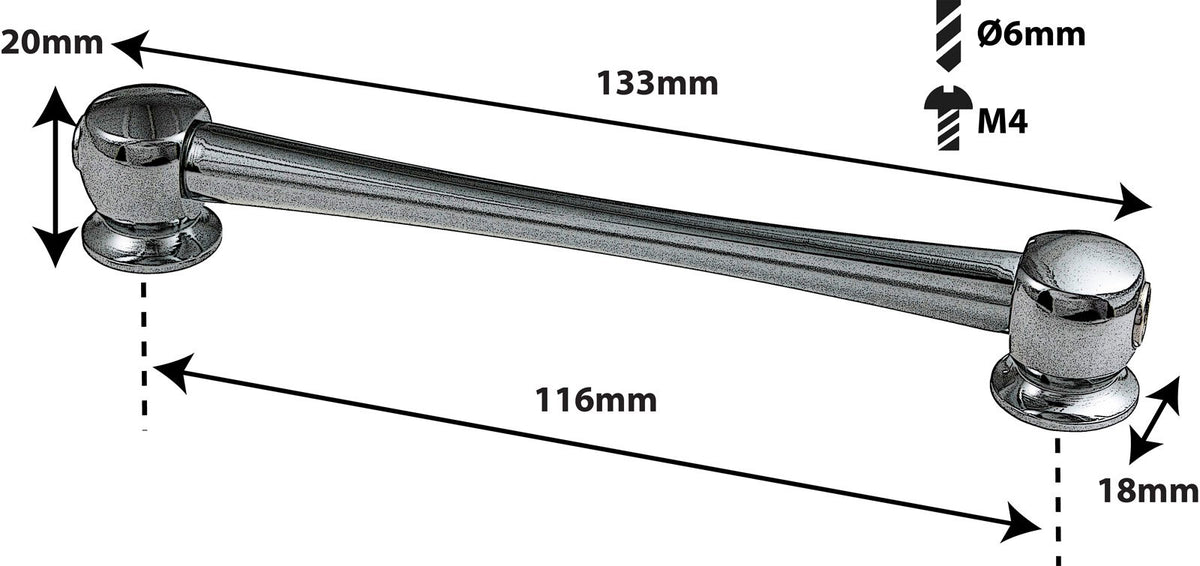

Type	tube lug for snare drum and tom	Tension rod threading	standard #12-24 (7/32 inch diameter)
Number of attachment points	2	Material	brass
Center-to-center spacing	116 mm	Finish	black (Black Nickel Plating)
Drill hole diameter	6 mm	Isolating rubber	not included
Mounting screw type	M4	Mounting screws	not included
