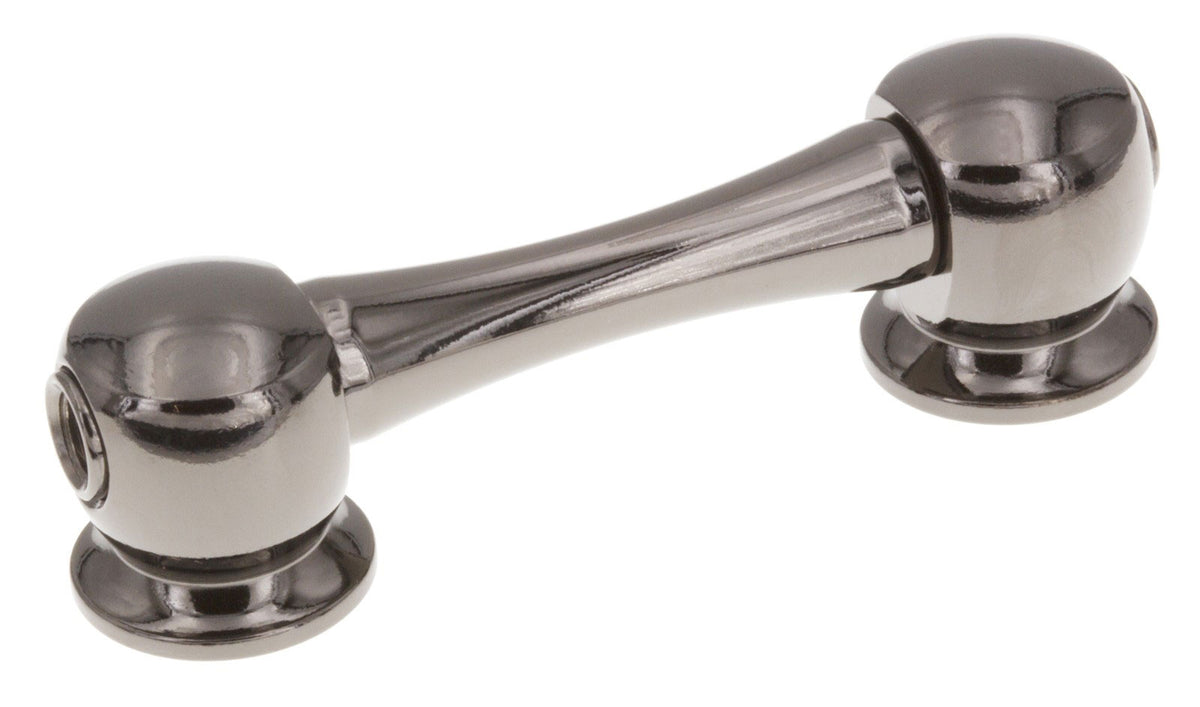

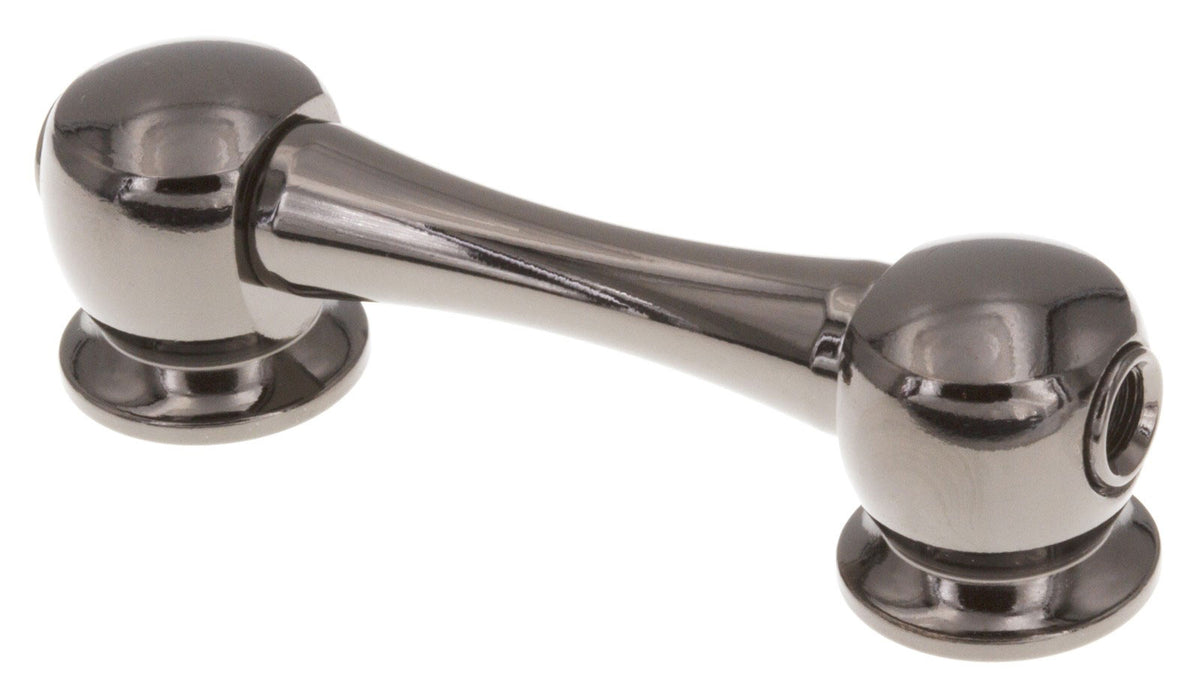

Sparedrum TL11D51-BK TUBE LUG BLACK 51MM DOUBLE ENDED X1
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning Within the Range
Manufacturer information not provided. This lug belongs to the category of hardware parts intended for repair, restoration, or customization of an acoustic drum set, featuring a "tube" format appreciated for its discreetness and visual integration.
Intended Users of This Drum/Instrument
This lug is aimed at drummers, technicians, and DIY enthusiasts, from careful beginners to advanced users, who wish to replace a damaged lug or harmonize the hardware on a tom or snare drum. Suitable for all styles, it primarily addresses the need for mechanical reliability and assembly coherence.
Features and Innovations
The two-point attachment format ensures stable tension rod retention and even tension distribution. The drilling dimensions and spacing allow quick compatibility checks with the shell before installation, while the standard threading on the tension rod side simplifies the choice of replacement rods.
Sound Characteristics
A lug does not influence the timbre like wood or drumheads, but it can affect the resonance through the rigidity of the assembly and contact with the shell. Adding an isolator (not included) can help limit unwanted vibrations and preserve sustain openness, depending on the mounting and shell thickness.
Technical specifications
| Center-to-center spacing | 51 mm |
| Drill hole diameter | 6 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard 12-24 (7/32 inch diameter) |
| Black finish | Black Nickel Plating |
| Isolating rubber | not included |
| Mounting screws | not included |
Questions frequently asked
What is the compatibility of this shell with drum tension rods?
The threading for the tension rods is standard 12-24, with a diameter of 7/32 inch.
Shell lug center distance 51 mm: what holes are required on the drum shell?
The center-to-center distance for the mounting points is 51 mm. The required holes drilled in the shell should be 6 mm in diameter. The mounting is done with M4 screws, which are not included.
Are screws and isolating pads provided with the Sparedrum TL11D51-Bk?
M4 mounting screws are not included. The rubber isolating pads are also not supplied.
What is the finish of the black tube shell?
The black finish is a Black Nickel Plating.
Does a two-point lug improve the hold of the tension rods?
The two-point lug design ensures stable tension rod hold and even tension distribution. Adding an isolating pad, not included, can reduce certain unwanted vibrations depending on the mounting and shell thickness.
