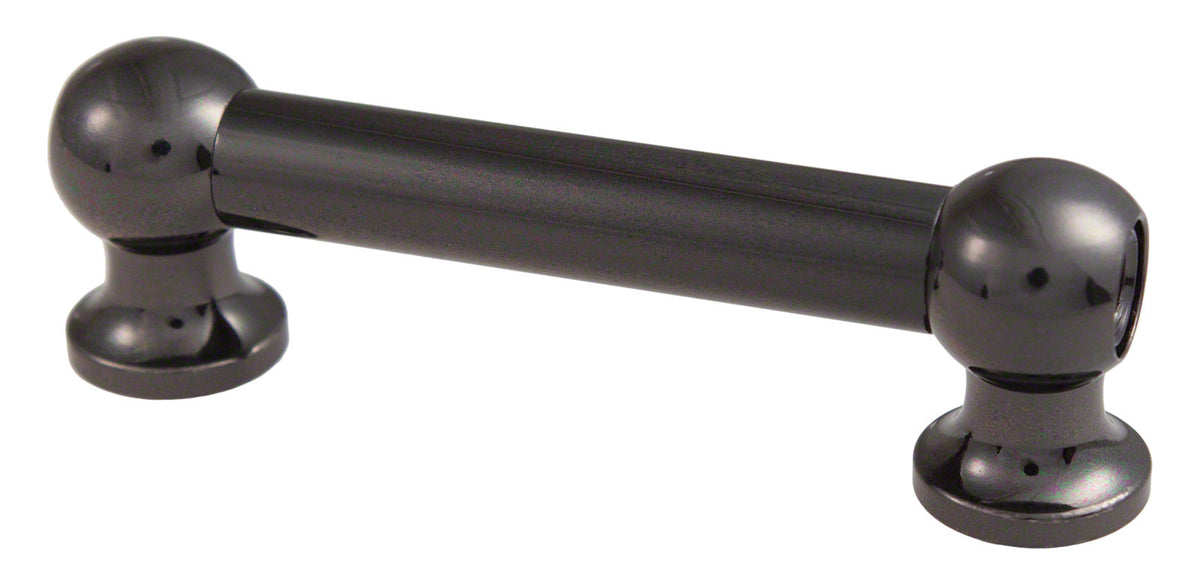

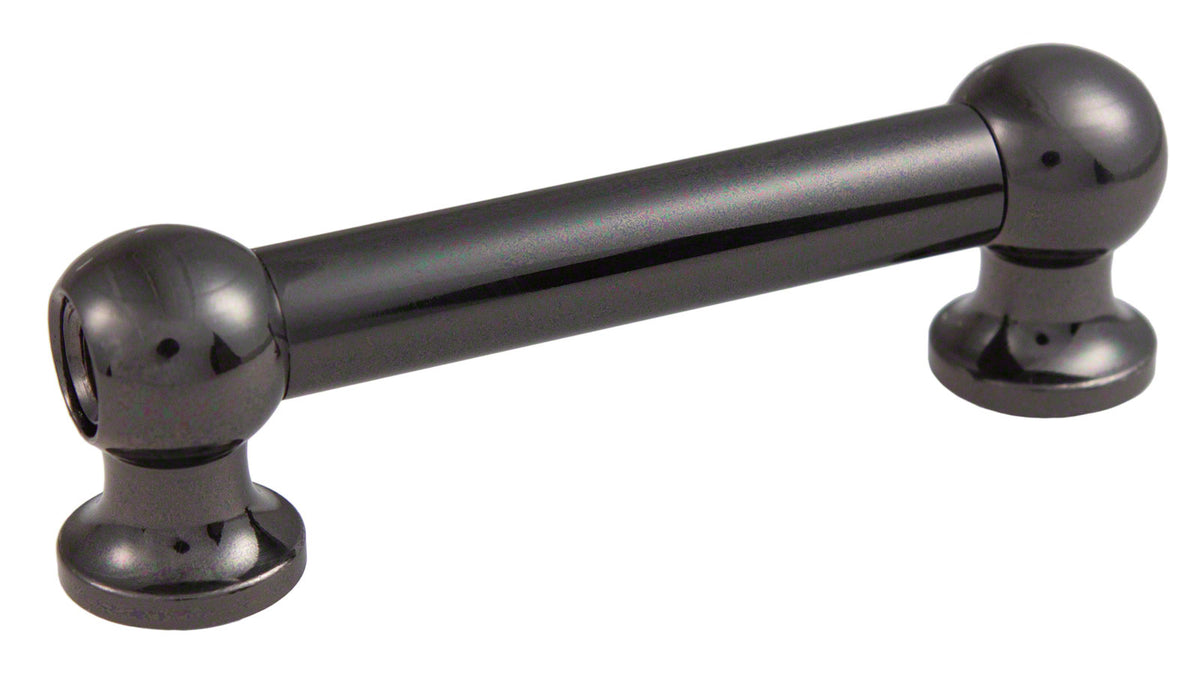

Sparedrum TL12D51-BK - TUBE LUG BLACK - 51MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is one of the classic standards in drum hardware: a simple, proven design widely used on many snares and toms. Its "tube" format is appreciated for its discreetness on the shell, timeless aesthetics, and maintenance efficiency, making it an excellent choice for replacement or custom projects.
Target Audience for This Drum/Instrument
This lug is intended for drummers from beginners to experts, but especially for those who maintain, restore, or customize their kit: replacing a damaged lug, aesthetically harmonizing a shell, or mounting a new shell. It suits most styles (rock, pop, funk, metal, jazz) as it does not impose a specific tonal color but guarantees reliable tension and stable tuning when properly installed.
Technical specifications
| Number of holes | 2 |
| Use | Tom - Snaredrum |
| Material | brass |
| Color | Black |
| Finishing | Nickel-plated |
Questions frequently asked
What is the compatibility of this tube lug with drum tension rods?
The internal threading is standard #12-24, designed for 7/32 diameter tension rods. The two attachment points guide the rods when tensioning the drumheads.

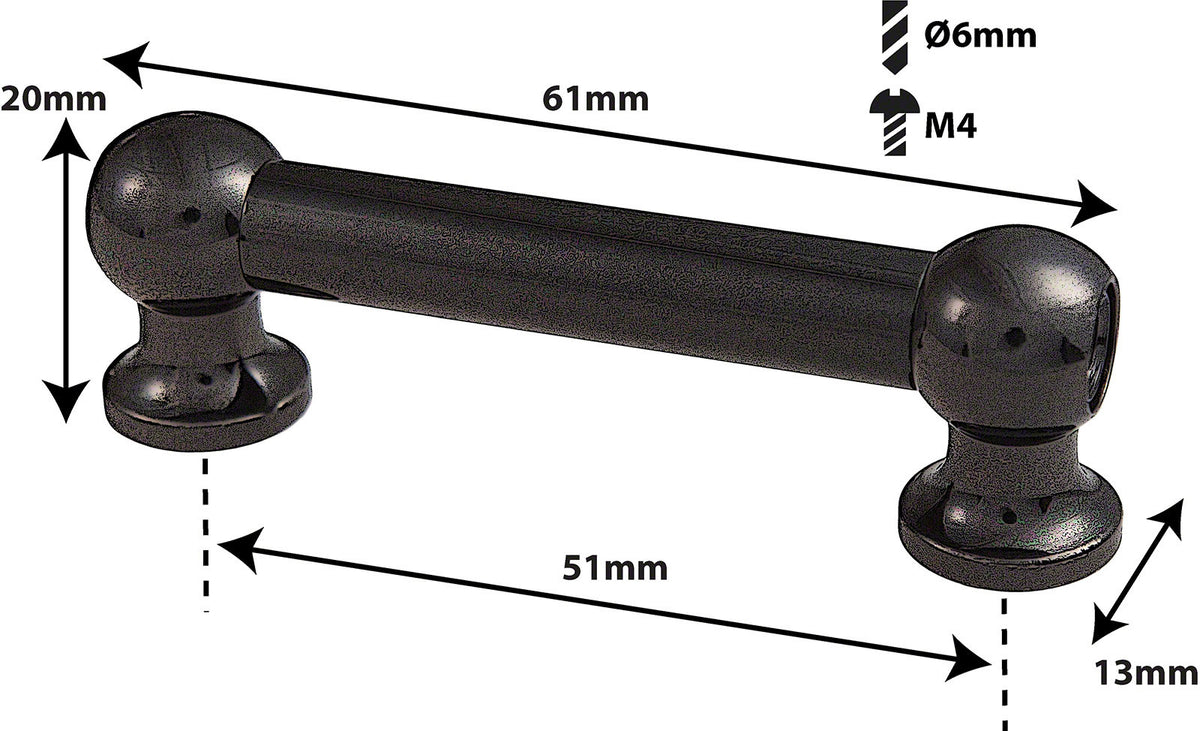

51 mm center-to-center spacing: can this lug replace an existing part?
The center-to-center spacing is 51 mm, allowing replacement on a shell with the same drilling spacing. The mounting holes must have a diameter of 6 mm.
What screws are needed to mount the Sparedrum TL12D51-Bk?
Mounting requires M4 screws, which are not included with the lug.
Is this lug suitable for a snare drum and a tom?
This part is designed for a snare drum or a tom. Its brass construction with a black nickel finish provides an aesthetic suited to darker hardware.
Is the isolating rubber supplied with the lug?
An isolating rubber is included to ensure seating between the lug and the shell. It limits direct contact with the shell. Mounting screws must be provided separately.
