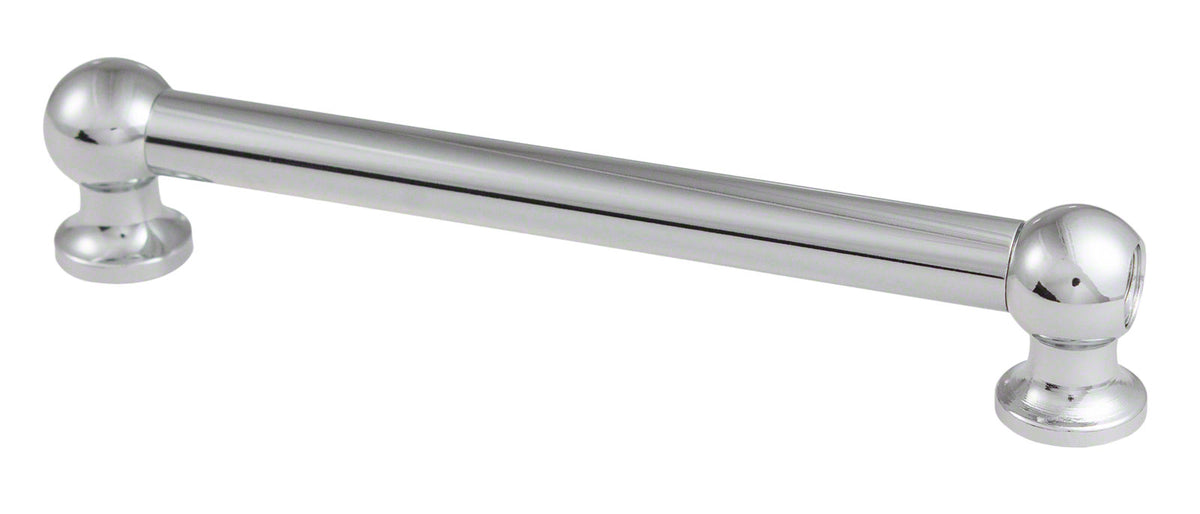

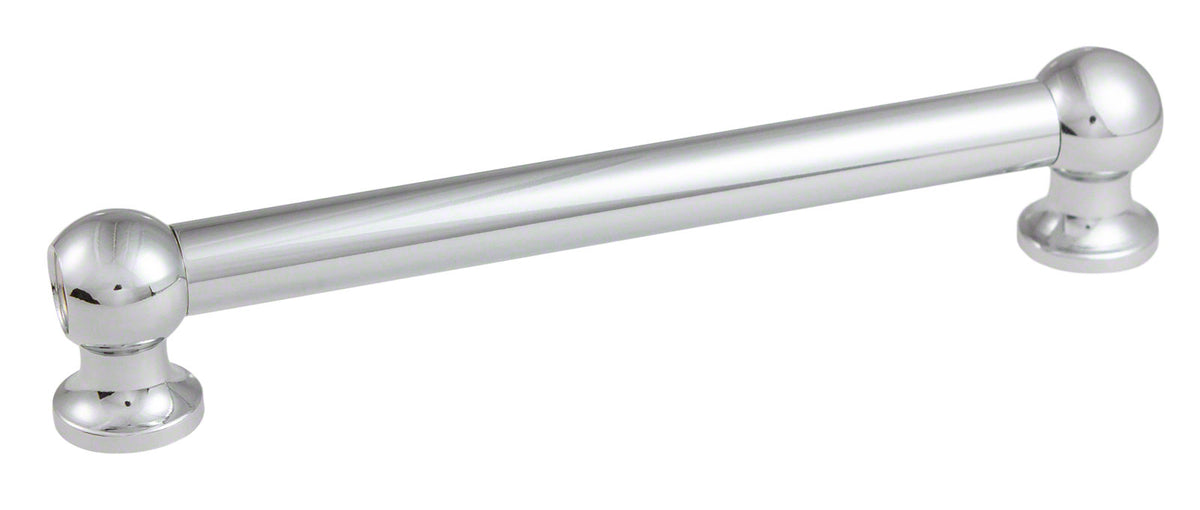

Sparedrum TL12D89 - TUBE LUG - 89MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is one of the classic staples of drum hardware: a simple, proven design appreciated for its reliability and ease of integration on many kits. This version with two lug attachment points fits into a "replacement part" or "functional upgrade" logic, designed to restore a snare drum or tom, or to harmonize the aesthetics of a set of shells with a timeless chrome finish.
Intended Users
This lug is suitable for drummers and technicians of all levels, from beginners restoring their first kit to experts maintaining an instrument fleet. It is perfectly suited for rehearsal, studio, and stage contexts, especially for music styles where tuning stability and hardware reliability are essential: rock, pop, funk, metal, modern jazz. It is also a relevant choice for workshops, drum luthiers, and custom projects, provided the drilling dimensions match the shell.
Technical specifications
| Number of holes | 2 |
| Use | Tom - Snaredrum |
| Material | brass |
| Color | Grey |
| Finishing | Chrome |
Questions frequently asked

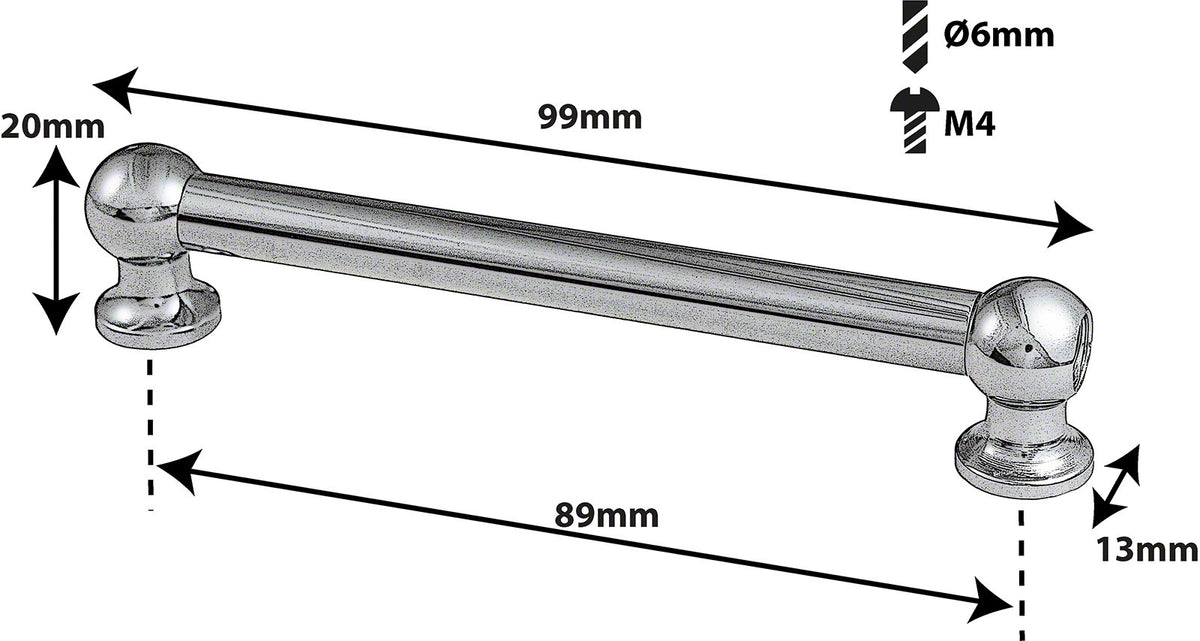

What is the mounting center distance of this tube lug?
The center distance between the two mounting holes is 89 mm, measured from center to center. The shell's holes should have a diameter of 6 mm.
Is this lug compatible with standard snare drum tension rods?
The thread provided is the standard #12-24, with a diameter of 7/32 inch. This reference is designed for snares and toms using this tension rod size.
Which screws are needed to mount the Sparedrum TL12D89?
Mounting requires M4 screws, which are not supplied with the lug. Suitable screws matching the shell and its 6 mm holes must be provided.
Is the isolating rubber included?
An isolating rubber is supplied to be placed between the chrome-plated brass lug and the shell. It helps limit clamp marks and some direct metal-to-metal contact.
Does this lug have two points for tension rods?
The design features two tension rod attachment points and two mounting holes. This configuration helps maintain even tension during tuning. The finish is chrome, with a grey color indicated.
