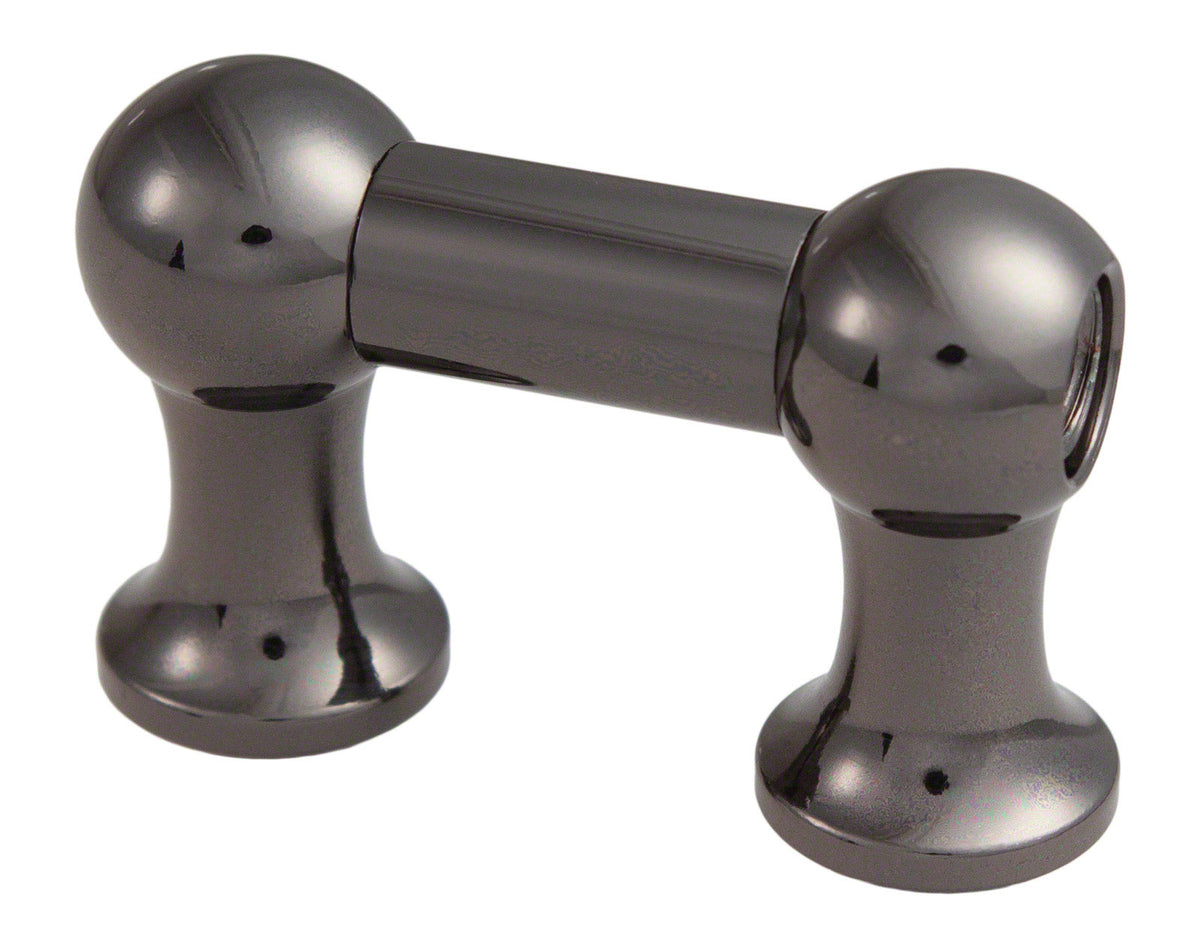

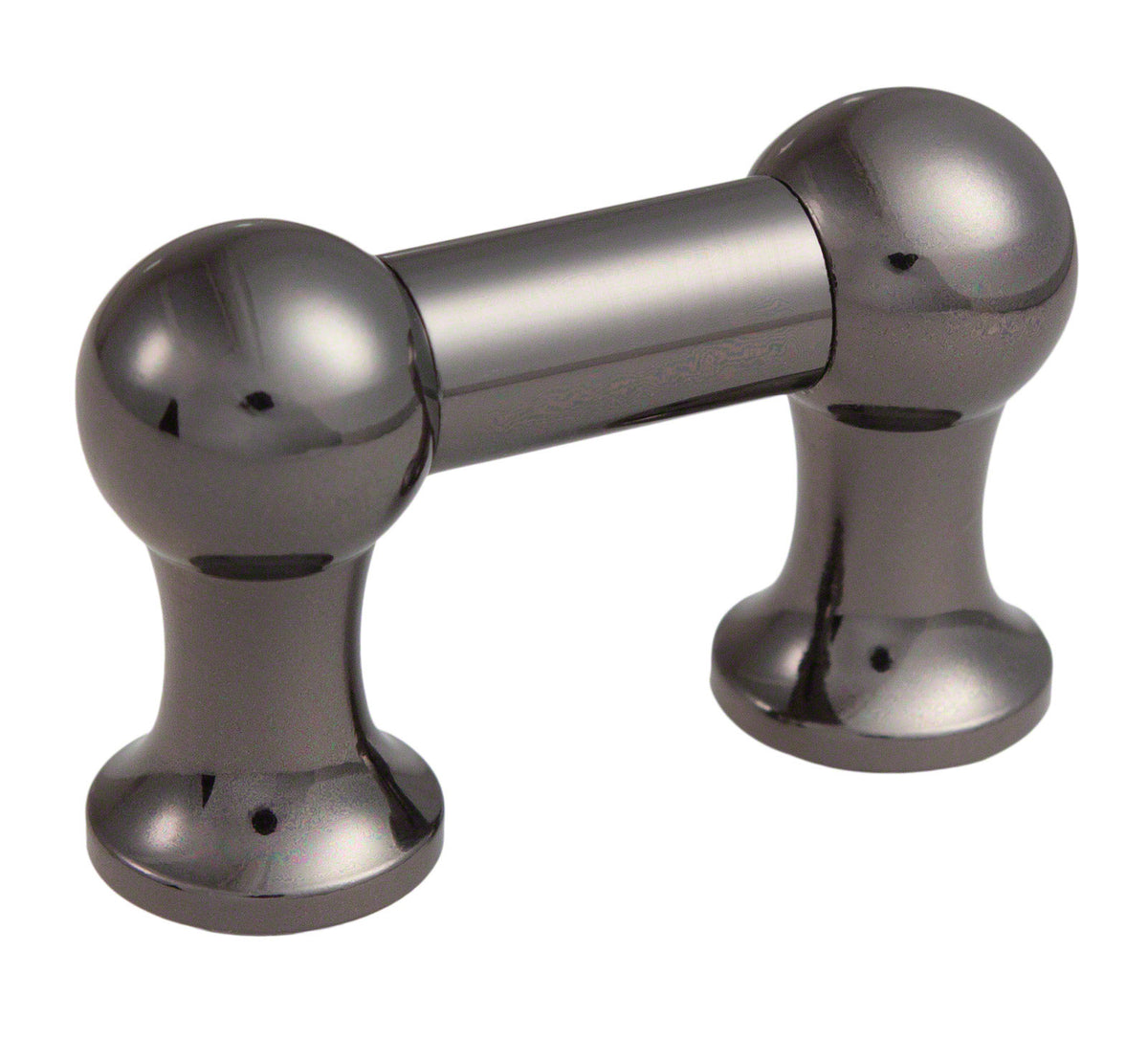

Sparedrum TL12S25B-BK - BASS DRUM TUBE LUG BLACK - 25MM - SINGLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
This tube lug is a hardware component designed for the maintenance and restoration of a bass drum: replacing a damaged lug, adapting a shell, or custom projects. Its compact size and standard dimensions facilitate integration into many setups.
Target Audience for This Drum/Instrument
Ideal for drummers, technicians, and DIY enthusiasts of all levels who want to ensure reliable tuning and mechanics of their bass drum. Recommended for both studio and stage use whenever stable, discreet, and durable hardware is sought.
Features and Innovations

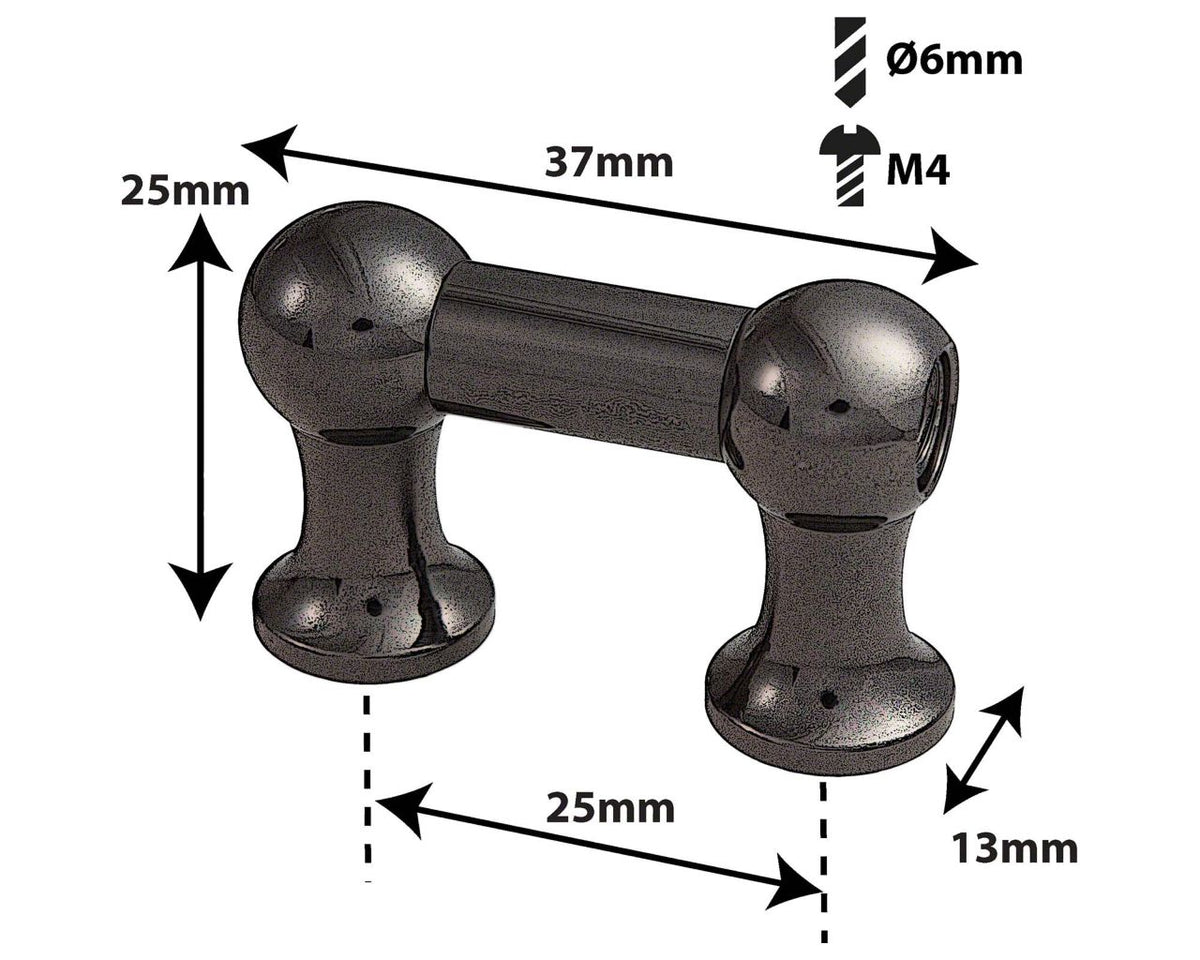

The lug accepts a tension rod with standard #12-24 threading and is mounted using M4 screws (not included). The 25 mm center-to-center spacing and 6 mm drilling allow for a clean replacement, provided the shell dimensions are verified before installation.
Sound Characteristics
A well-fitted lug contributes to more even drumhead tension and better tuning stability. The insulating rubber helps reduce mechanical noise and micro-vibrations, resulting in cleaner low end and better-controlled sustain.
Technical specifications
| Center-to-center spacing | 25 mm |
| Drill hole diameter | 6 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard #12-24 (7/32 inch diameter) |
| Mounting screws | not included |
| Lug | brass |
| Finish | black (Black Nickel Plating) |
| Insulating rubber | included |
Questions frequently asked
What drilling compatibility is required for a bass drum shell hoop?
The mounting center distance is 25 mm, measured center to center, with drilling holes of 6 mm. These dimensions must match those of the shell before assembly.
Which tension rod should be used with this Sparedrum 25 mm hoop?
The tension rod fitting conforms to the #12-24 standard, with a specified diameter of 7/32 inch.
Are mounting screws provided?
The mounting requires M4 screws, but these screws are not included. Appropriate screws matching the shell thickness must be sourced separately.
Is the hoop isolated from the shell?
An insulating rubber is included. It helps reduce mechanical noises and micro-vibrations at the mounting points.
What material and finish does this black hoop have?
The hoop is made of brass and features a Black Nickel Plating finish. This configuration is designed for single-tension rod mounting.
