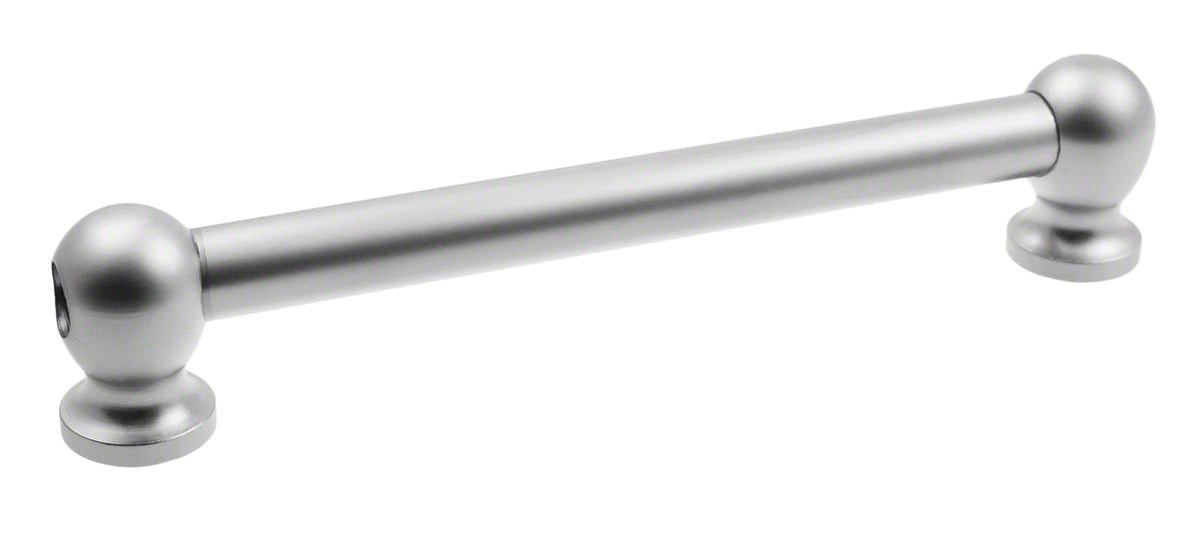

Sparedrum TL1D89-ST - TUBE LUG SATIN - 89MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Essential Information About the Tube Lug for Snare Drum and Tom
Essential Information About the Tube Lug for Snare Drum and Tom
- Double attachment point for tension rods: reliable hold, ideal for replacement or upgrade.
- Brass lug with satin finish : sturdy, durable, and understated look.
- Integrated isolation thanks to the included rubber: limits unwanted vibrations and protects the shell.
- Standard compatibility with #12-24 threaded tension rods.
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is a classic in drum hardware: a compact format, appreciated for its solidity and ease of mounting on both snare drums and toms, especially for like-for-like replacements.
Who This Drum/Instrument Is For
This component is intended for drummers of all levels, technicians, and workshops looking to refurbish a shell, standardize a setup, or secure a configuration for rehearsal, studio, or touring.
Features and New Developments
Designed with two attachment points for tension rods, this lug ensures stable alignment. The included insulating rubber improves contact with the shell and contributes to a clean installation. Mounting screws are not included.
Sound Characteristics
A well-isolated and properly fixed lug helps preserve the shell's natural resonance by reducing mechanical noise. On a snare drum, this promotes a crisper response; on a tom, more even vibration and better-controlled sustain.
Technical specifications

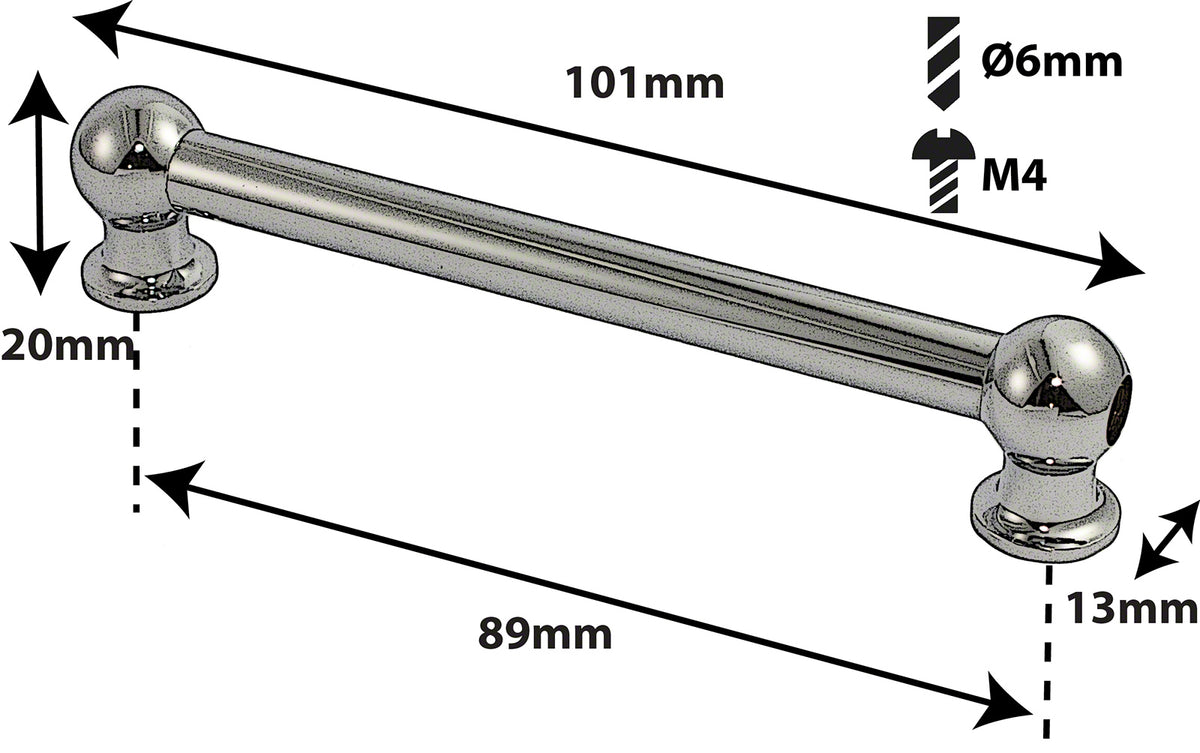

| Center-to-center spacing | 89 mm | Mounting screw type | M4 |
| Drill hole diameter | 6 mm | Tension rod threading | standard #12-24 (7/32 inch diameter) |
You will also like
Stagg
TOM LUGS - 1C-TT-HP
Sparedrum
L24SD-BR - Snare Drum Lug - Single-Point Gold (x1)
Sparedrum
L24SD-BK - Snare Drum Lug - Single Drilling Point Black (x1)
Sparedrum
L5SDTT - SNARE DRUM / TOM LUG - SINGLE DRILLING POINT (X1)
Sparedrum
DC27 HNF45 DRUM CLAW HOOK X2
Tama
TTL10 TENSION LOCK TENSION LOCK (10PCS/SET)
Ahead
AWFJB PACK CYMBAL BLACK FELTS X10
Sparedrum
SN-SQ-15S - Chimney 15mm Square Head - Steel (X10)
Questions frequently asked
What is the center-to-center spacing of this Sparedrum tube lug?
The center-to-center spacing is 89 mm, allowing verification of compatibility with existing shell drilling.
What drill hole diameter is required to mount this lug?
The required drill holes have a diameter of 6 mm. Mounting uses M4 screws, which are not included.
Does this lug accept standard drum tension rods?
The threading is standard #12-24, with a diameter of 7/32 inch. Two attachment points allow installation of tension rods on the same lug.
Are screws and insulation included?
An insulating rubber is included for contact with the shell. M4 mounting screws must be provided separately.
What effect does the insulating rubber have on the shell?
The rubber insulation improves contact between the lug and the shell. Proper mounting helps reduce mechanical noise. The natural resonance of the shell can thus be better preserved.
