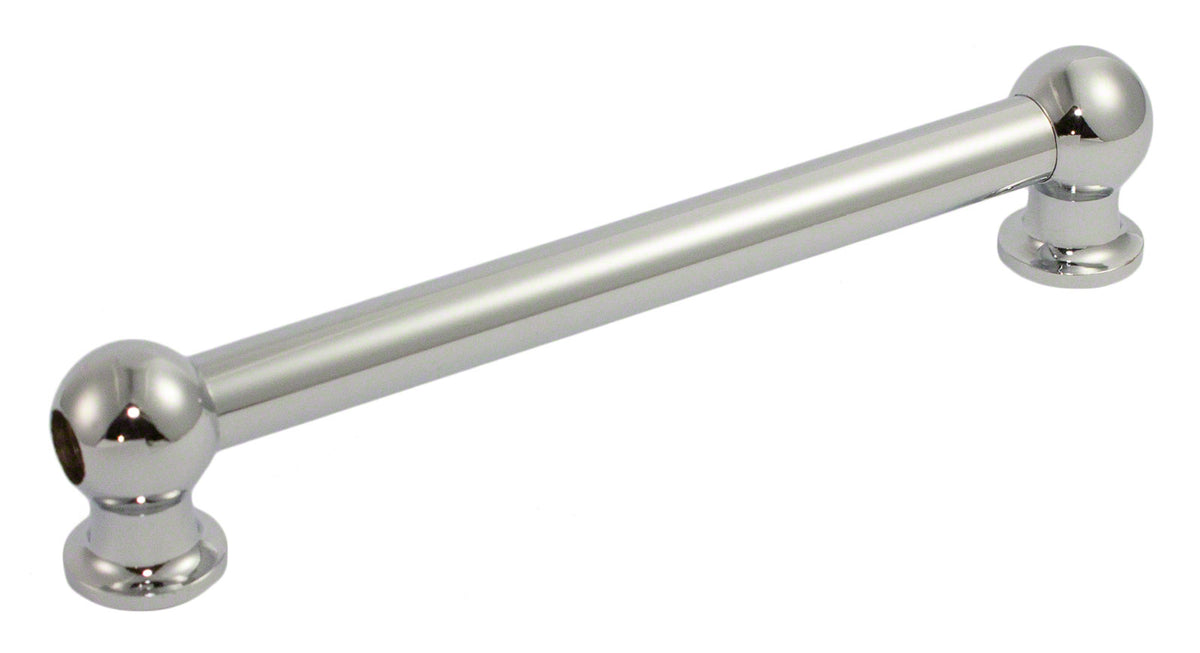

Sparedrum TL1D89 - TUBE LUG - 89MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is a classic piece of drum hardware: its compact size and two-point mounting make it a popular solution for replacement, restoration, or mounting on a shell for a clean look and effective mechanics.
Who Is This Drum/Instrument For?
This lug is intended for drummers, technicians, and DIY enthusiasts, from beginner to expert level, who want to replace a damaged lug or customize a snare drum or tom. It suits all styles (rock, pop, jazz, metal) as long as you are looking for a reliable part with a common standard.
Features and New Developments
Designed to accommodate two tension rods, it uses a standard #12-24 threading and mounts with M4 hardware. The included isolating rubber helps limit mechanical noise and protects the shell when tightened. Mounting screws are not included to allow you to choose the appropriate length for your shell thickness.
Sound Characteristics
On a snare drum or tom shell, the lug and its isolation mainly influence cleanliness and tuning stability. The rubber isolator helps reduce unwanted vibrations and the risk of shell marking, resulting in a cleaner shell response regardless of the wood species.
Technical specifications

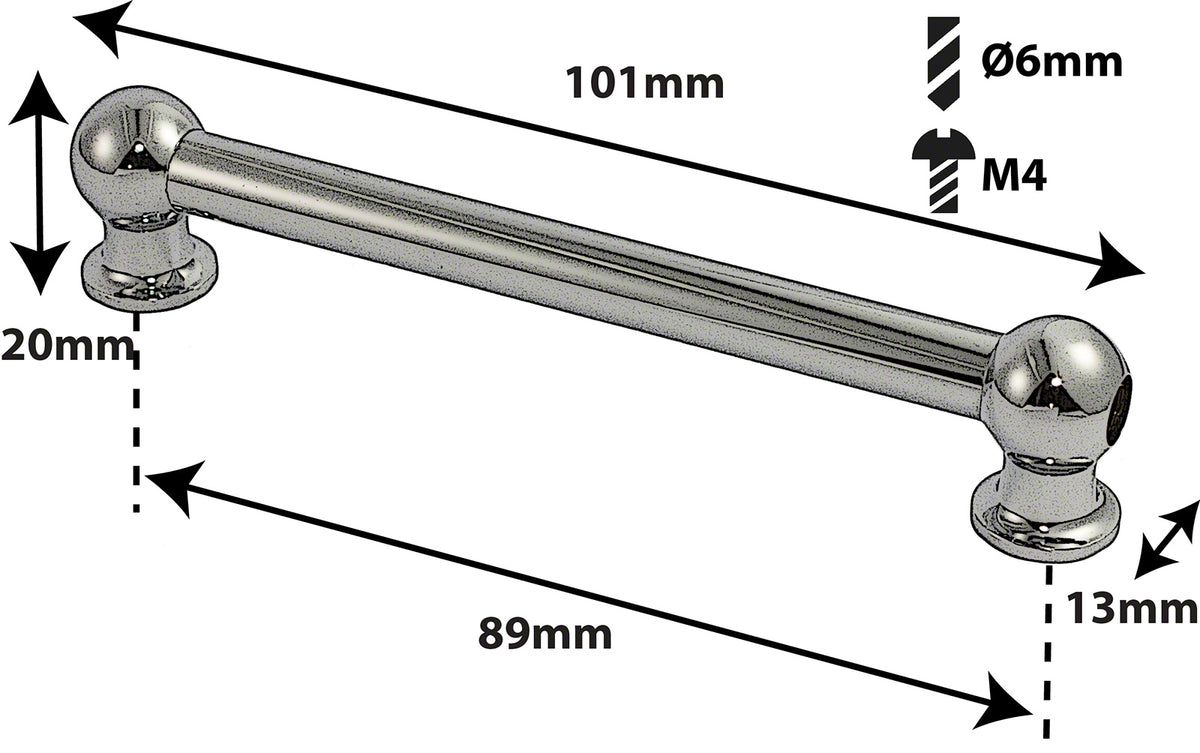

| Center-to-center spacing | 89 mm |
| Drill hole diameter | 6 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard #12-24 (7/32 inch diameter) |
| Configuration | 2-point tension rod lug |
Questions frequently asked
What center-to-center distance is required to install this tube lug?
The fixing center-to-center distance measures 89 mm. The two required drill holes have a diameter of 6 mm.
Which tension rods are compatible with the Sparedrum TL1D89?
The lug accepts two tension rods with a standard #12-24 thread and a specified diameter of 7/32 inch.
Are the mounting screws included?
M4 mounting screws are not included. This allows selecting the length based on the shell thickness. Mounting requires fixing at two points spaced 89 mm apart.
Can this lug replace a snare drum or tom lug?
This model is suitable for replacing or mounting on a snare drum or tom shell, provided the 89 mm center-to-center distance and 6 mm drill holes are respected.
Is the isolation rubber included with the lug?
A rubber isolator is included. It helps protect the shell when tightened and reduces unwanted mechanical vibrations.
