Sparedrum TL1S25-BR - TUBE LUG BRASS - 25MM - SINGLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is one of the most common hardware parts on snare drums and toms, appreciated for its simplicity, compactness, and ease of replacement. This model, with a golden finish, fits within a "standard" compatibility logic for many configurations, whether for maintenance, customization, or restoration of a kit.
Who This Drum/Instrument Is For
This lug is aimed at drummers and technicians, from careful beginners to experienced musicians, who want to replace a worn part, harmonize the shell's aesthetics, or secure a reliable mounting. It suits most styles because it does not impose a specific tonal color but contributes to a stable setup and consistent head tension, essential both in the studio and on stage.
Features and Innovations
Designed to accommodate a standard threaded tension rod, this tube lug offers a single attachment point and simple installation. The supplied insulating rubber helps reduce direct contact between the lug and the shell, which can limit mechanical noise and preserve the wood finish. Note: mounting screws are not included, allowing you to choose the length and type of screws according to the shell thickness and your setup.
Sound Characteristics
On a snare drum or tom, hardware mainly influences tuning stability and the vibrational behavior of the shell. Thanks to the included insulating rubber, this lug can contribute to a cleaner setup by limiting certain unwanted vibrations and promoting more consistent resonance. The result will mainly depend on the shell wood, drumheads, and tuning, but a well-fitted lug remains a key point for reliable tuning retention.

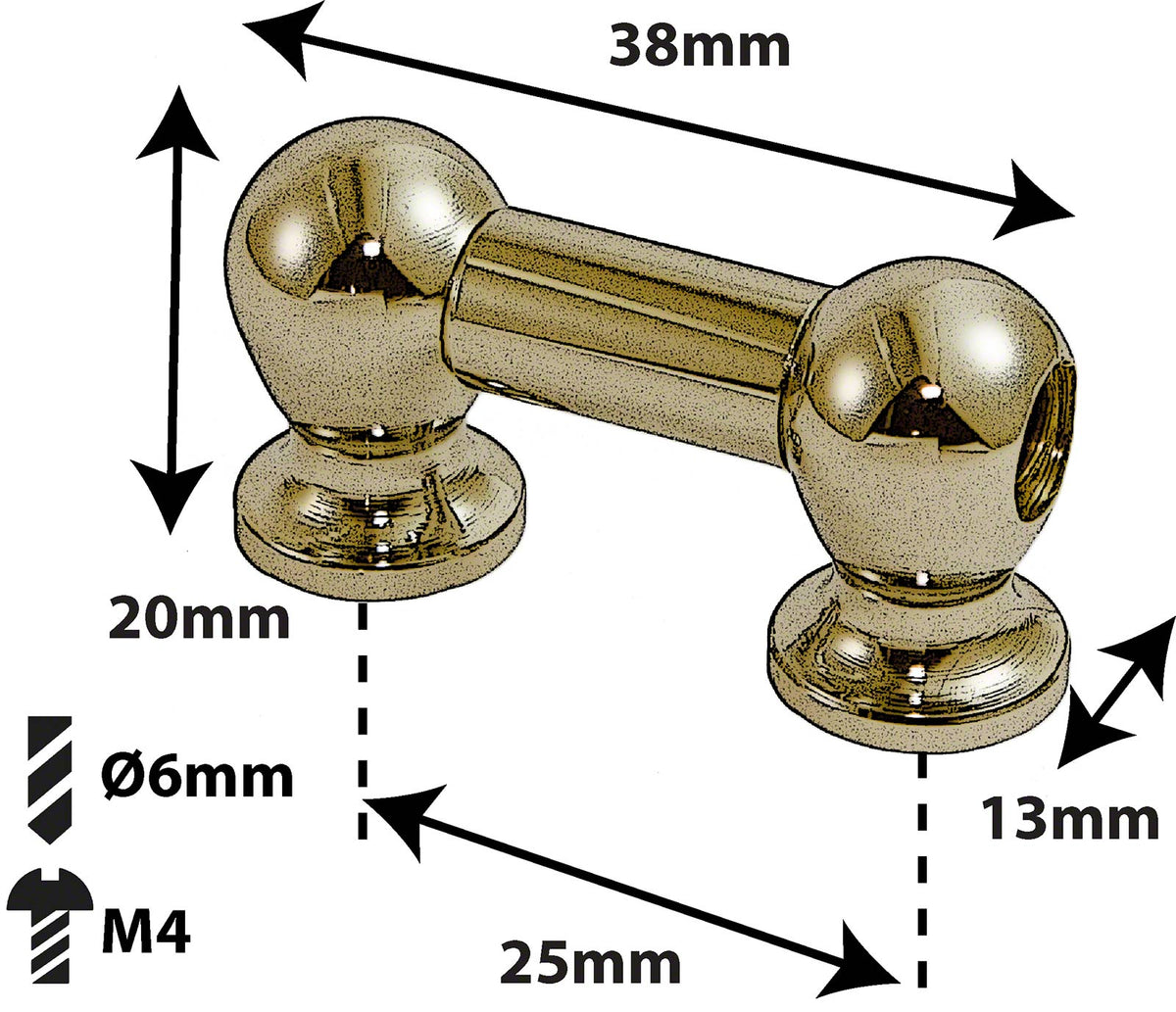

Technical specifications
| Application | snare drum and tom | Tension rod threading | standard #12-24 |
| Type | tube lug, single tension rod attachment point | Approximate diameter | about 7/32 inch |
| Center-to-center spacing | 25 mm | Material | brass |
| Drilling diameter | 6 mm | Finish | golden, "brass plating" type |
| Mounting screw type | M4 | Insulating rubber | included |
| Mounting screws | not included | ||
Questions frequently asked
Is this shell compatible with standard snare drum tension rods?
The internal threading is standard #12-24, with an approximate diameter of 7/32. This setup is designed to accommodate a single tension rod on a snare drum or tom.
What is the spacing required to mount this tube shell?
The center-to-center spacing between the two mounting holes is 25 mm. The required drilling in the shell is 6 mm in diameter. Mounting uses M4 screws.
Are the mounting screws included with the Sparedrum TL1S25-BR?
The M4 mounting screws are not included. It is therefore necessary to select their length according to the shell thickness and existing mounting.
Is the gold shell isolated from the drum shell?
An insulating rubber is provided with the shell. It limits direct contact with the shell and can reduce certain mechanical noises.
What material is this gold tube shell made of?
The construction is brass with a "brass plating" gold finish. This finish helps to harmonize the hardware of a drum in the context of restoration or customization.
