Historical Context and Positioning in the Range
The tube lug is one of the classic staples of drum hardware: a proven design appreciated for its simplicity, robustness, and timeless aesthetics. It is a reliable choice for refurbishing a shell, harmonizing a set, or replacing a damaged lug without altering the instrument's character.
Who This Drum/Instrument Is For
This lug is suitable for drummers from beginners to advanced players, technicians, and custom enthusiasts. It fits all styles, from rock to jazz, as long as your shell matches the specified spacing and standard tension rod threading.
Features and Innovations
Designed to accommodate standard-pitch tension rods, this lug offers two attachment points and mounting via M4 screws. The 4 mm drilling ensures a clean installation, while the insulating rubber improves the seating on the shell.
Sound Characteristics
The chrome-plated brass provides a solid feel and excellent tuning stability. The rubber isolator helps preserve the shell's natural resonance by limiting direct contact and unwanted vibrations, especially useful on sensitive toms.
Technical specifications

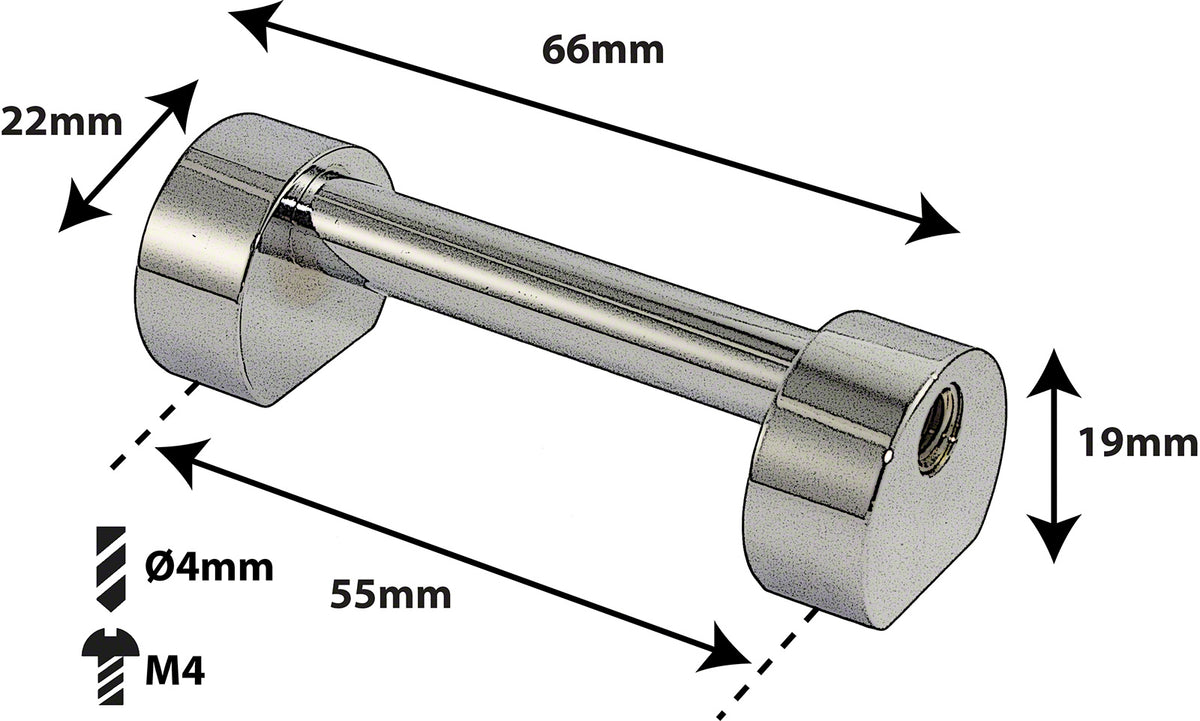

| Center-to-center spacing | 55 mm |
| Drill hole diameter | 4 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard #12-24 (7/32 inch diameter) |
Questions frequently asked
What center-to-center distance is required to mount this tube lug?
The center-to-center distance between the two mounting points is 55 mm. The drum shell must have the same spacing for proper installation.
Does this lug accept standard drum tension rods?
The threading is the standard #12-24, designed for tension rods with a diameter of 7/32 inch.
What drilling diameter is needed to install a Sparedrum TL3D55 lug?
The required mounting holes are 4 mm in diameter. Installation is done with M4 screws.
Does the rubber isolator affect the resonance of the drum shell?
The isolator limits direct contact between the chrome-plated brass lug and the shell, helping to reduce unwanted vibrations. This configuration preserves the natural resonance, especially on sensitive toms.
Is this a double-tension rod lug?
This version has two attachment points for tension rods, in accordance with its double-tension rod design.
