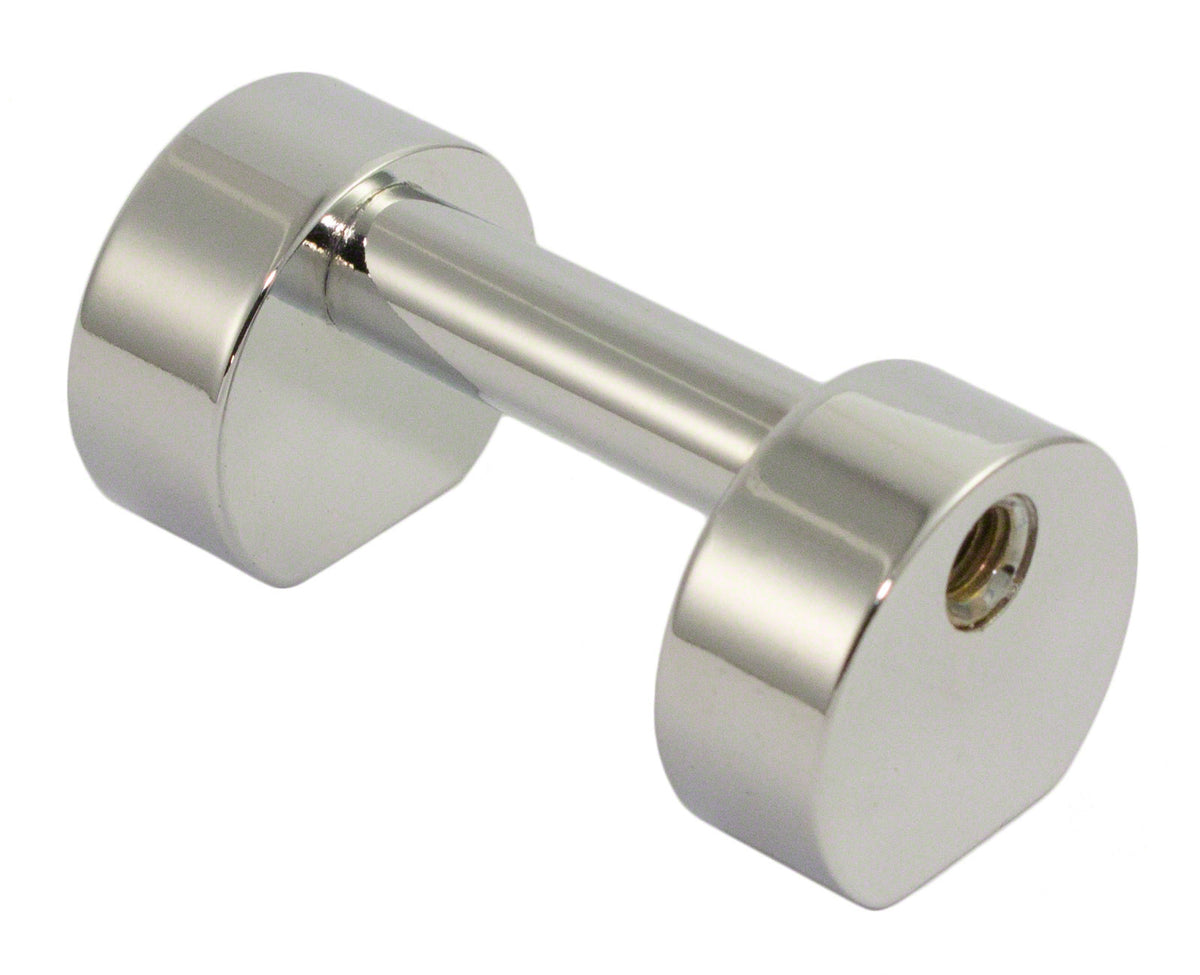

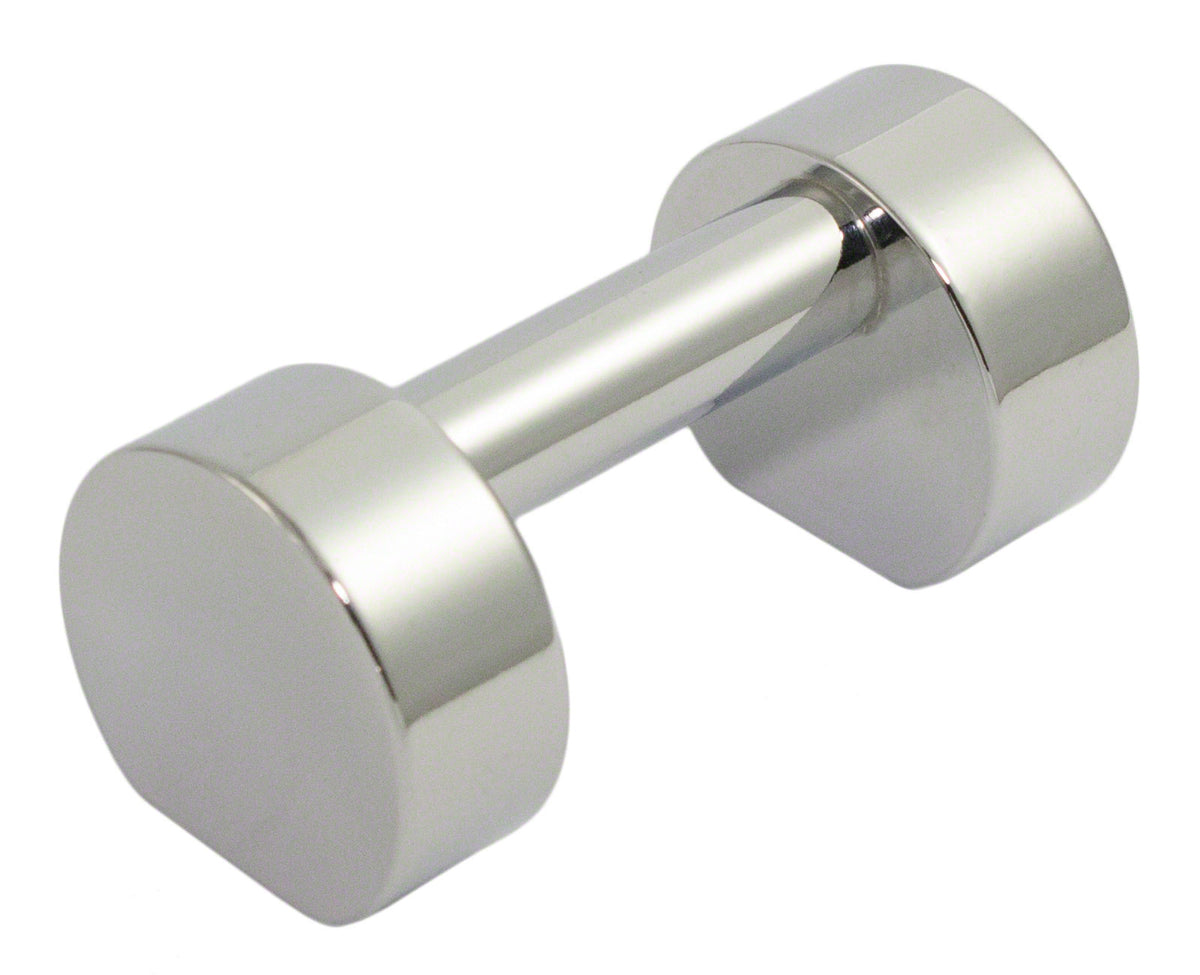

Sparedrum TL3S38B - BASS DRUM TUBE LUG - 38MM - SINGLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Product Positioning
This tube lug is a "standard" replacement part designed for maintenance, restoration, or customization of an acoustic drum kit. Its size and common threading make it easy to integrate into many kits, especially on bass drums.
Target Audience for This Drum/Instrument
It is intended for drummers and technicians, from careful beginners to experienced musicians, who want to ensure reliable tuning of the bass drum or refurbish a shell. Suitable for all styles, from rock to jazz, whenever simple and robust hardware is desired.
Features and Updates
Designed for a clean and stable mounting, it accepts M4 mounting screws and is installed via a 4 mm drilling. The 38 mm center-to-center spacing facilitates direct replacement. Mounting screws are not included.
Sound Characteristics
As a hardware component, this lug does not directly alter the tone but contributes to consistent drumhead tension. The isolating rubber can help reduce certain mechanical resonances and protect the shell during tightening.
Technical specifications
| Type | tube lug for bass drum (tension rod anchor point) |
| Center-to-center spacing | 38 mm |
| Drill hole diameter | 4 mm |
| Mounting screw type | M4 |
| Tension rod threading | standard #12-24 (7/32" diameter) |
| Lug | brass |
| Finish | chrome-plated |
| Isolating rubber | included |
| Mounting screws | not included |
Questions frequently asked
What is the center-to-center distance of this bass drum tube lug?
The center-to-center distance between the two mounting points is 38 mm. This measurement allows verification of compatibility with existing shell drilling.
Is this lug compatible with standard #12-24 tension rods?
The threading for tension rods follows the #12-24 standard, with a specified diameter of 7/32. Therefore, compatibility applies to tension rods using this thread specification.
What size drilling is required to mount a Sparedrum 38 mm lug?
A 4 mm drilling is required for mounting. The mounting screws must be M4 size and are not included.
Are mounting screws included?
M4 mounting screws are not included with the lug.
What material and finish does this bass drum lug have?
The lug is made of brass with a chrome finish. An insulating rubber is included between the lug and the shell to reduce mechanical vibrations and help protect the shell when tightened.
