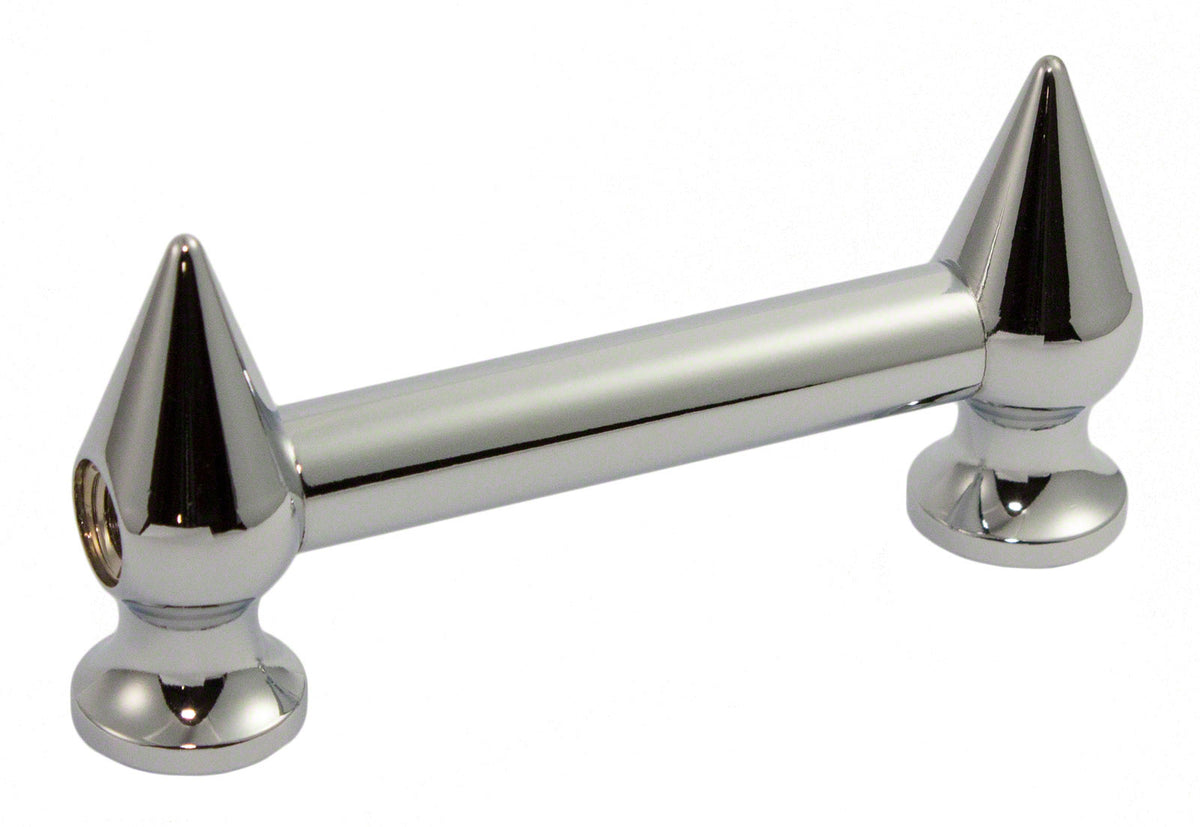

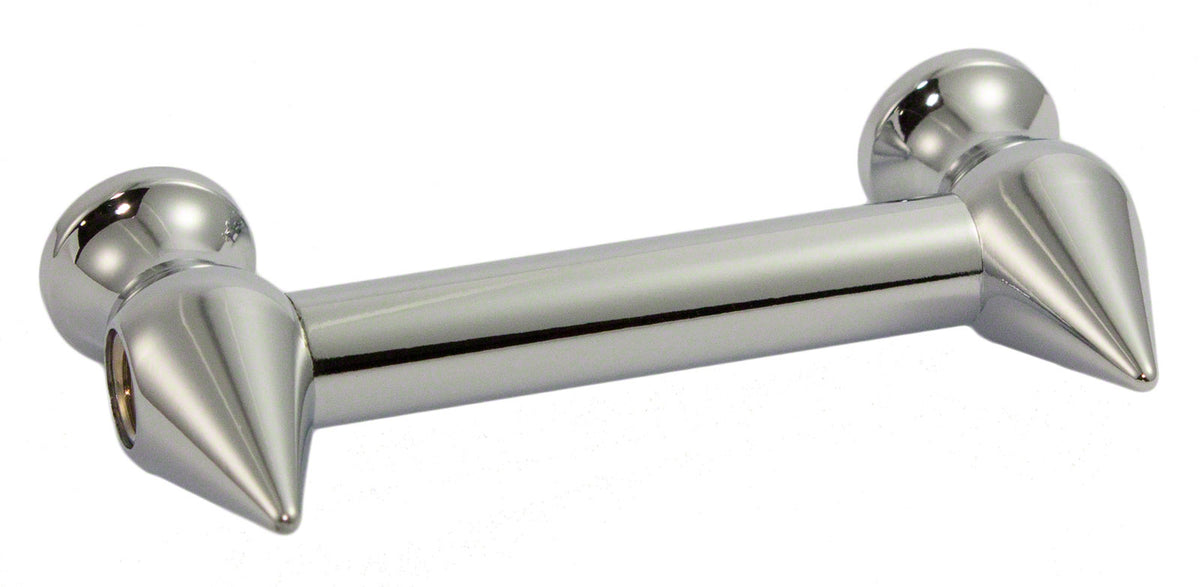

Sparedrum TL4D51 - TUBE LUG - 51MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
This tube lug is a hardware component designed for maintenance and optimization of a snare drum or tom, maintaining a common drilling format and a simple aesthetic.
Who This Drum/Instrument Is For
It is suitable for beginner to advanced drummers as well as technicians seeking a reliable part for repair, restoration, or custom projects. Adapted to all styles, it ensures tuning stability when the instrument is under stress (rehearsals, live, studio).
Features and Innovations
The mounting is designed for a clean installation thanks to precise center-to-center spacing and standard drilling. The 12-24 tension rod threading facilitates replacement without changing the entire hardware set, while the rubber insulator helps preserve the shell and stabilize mechanical contact.
Sound Quality
A well-fitted lug contributes to more consistent tuning and better longevity. The included insulator can also help reduce unwanted mechanical noise and certain parasitic vibrations, resulting in a cleaner sound, especially on the snare drum.

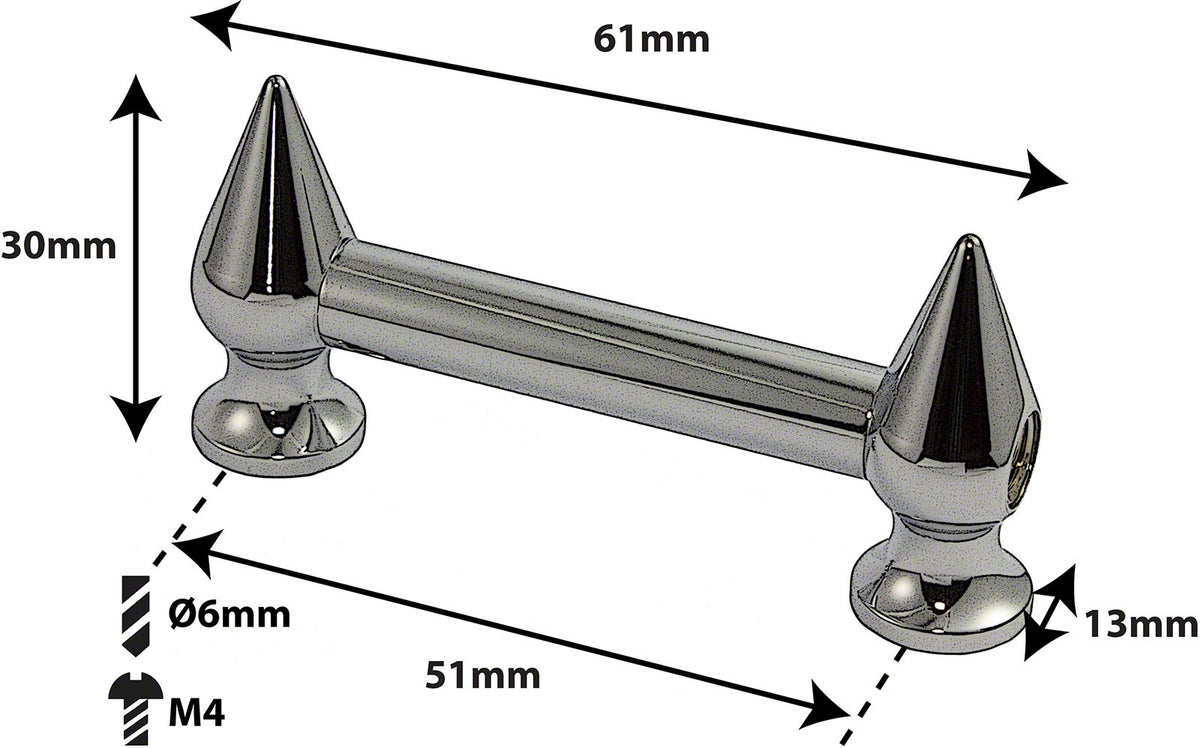

Technical specifications
| Application | snare drum and tom |
| Attachment points | 2 (for tension rod) |
| Center-to-center spacing | 51 mm |
| Drilling hole diameter | 6 mm |
| Mounting screw type | M4 |
| Mounting screws | not included |
| Tension rod threading | standard 12-24 |
| Tension rod diameter | 7/32 inch |
| Material | brass |
| Finish | chrome |
| Rubber insulator | included |
Questions frequently asked
What is the center-to-center distance for this tube lug?
The center-to-center spacing is 51 mm. The required drilling holes have a diameter of 6 mm, and the mounting uses M4 screws, which are not included.
Is the Sparedrum TL4D51 compatible with standard tension rods?
The internal threading is 12-24 standard, designed for 7/32 inch tension rods.
Is this lug suitable for a snare drum?
This part is intended for a snare drum or a tom, featuring two attachment points for tension rods. Proper adjustment helps maintain consistent tuning. The included rubber isolator helps reduce mechanical contact with the shell.
Are the mounting screws provided?
M4 mounting screws are not included. Therefore, suitable screws for 6 mm holes must be provided separately.
What material and finish does this tom lug have?
The construction is brass with a chrome finish. A rubber isolator is provided for mounting on the shell.
