Sparedrum TL6D70 - TUBE LUG - 25MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
What you need to know
What you need to know

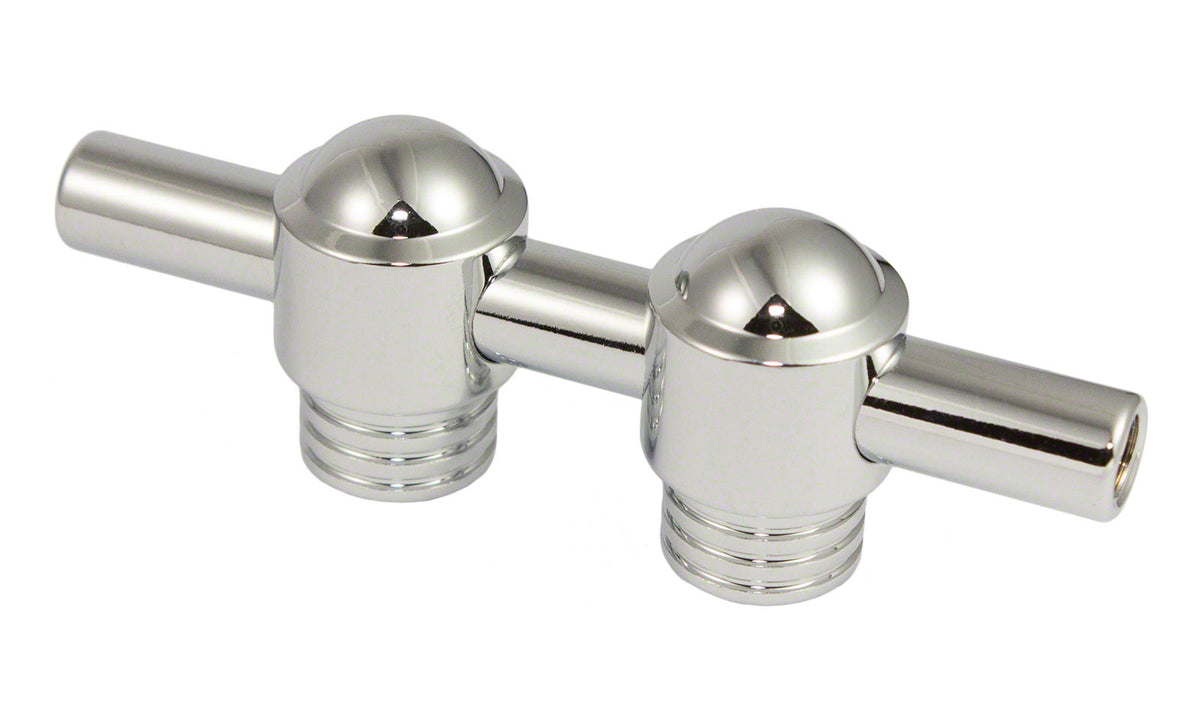

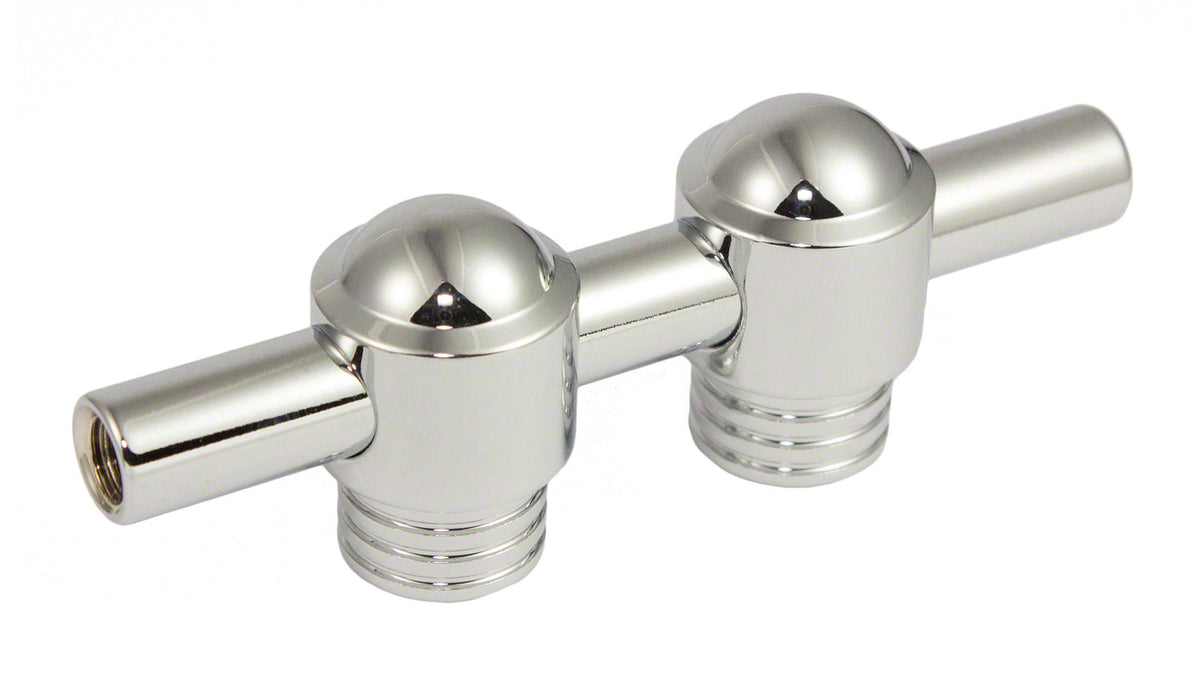

- Tube lug in a compact format, ideal for snare drums and toms.
- Two mounting points for tension rods: reliable tuning stability and clean alignment.
- Aluminum with chrome finish: classic look and good durability in use.
- Included insulating rubber to reduce unwanted vibrations and protect the shell.
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is a major standard in drum hardware: a proven design, appreciated for its simplicity and ease of integration on many shells. This model focuses on the essentials, with a simple and efficient design for maintenance and replacement.
Who This Drum/Instrument Is For
This lug is intended for drummers and technicians, from beginners to advanced, who want to replace a damaged lug, restore a shell, or undertake a custom project. Suitable for all styles, as long as stable tension and clean mounting are desired.
Features and Innovations
The standard drilling and spacing facilitate retrofit. The insulating rubber helps avoid mechanical noise and improves tuning comfort. Mounting screws are not included, allowing selection of the appropriate length for the shell thickness.
Sound Characteristics
A lug does not alter the timbre like wood does, but it influences tuning stability and the cleanliness of resonances. The insulator limits direct contact with the shell, which can reduce unwanted vibrations and promote a clearer response.

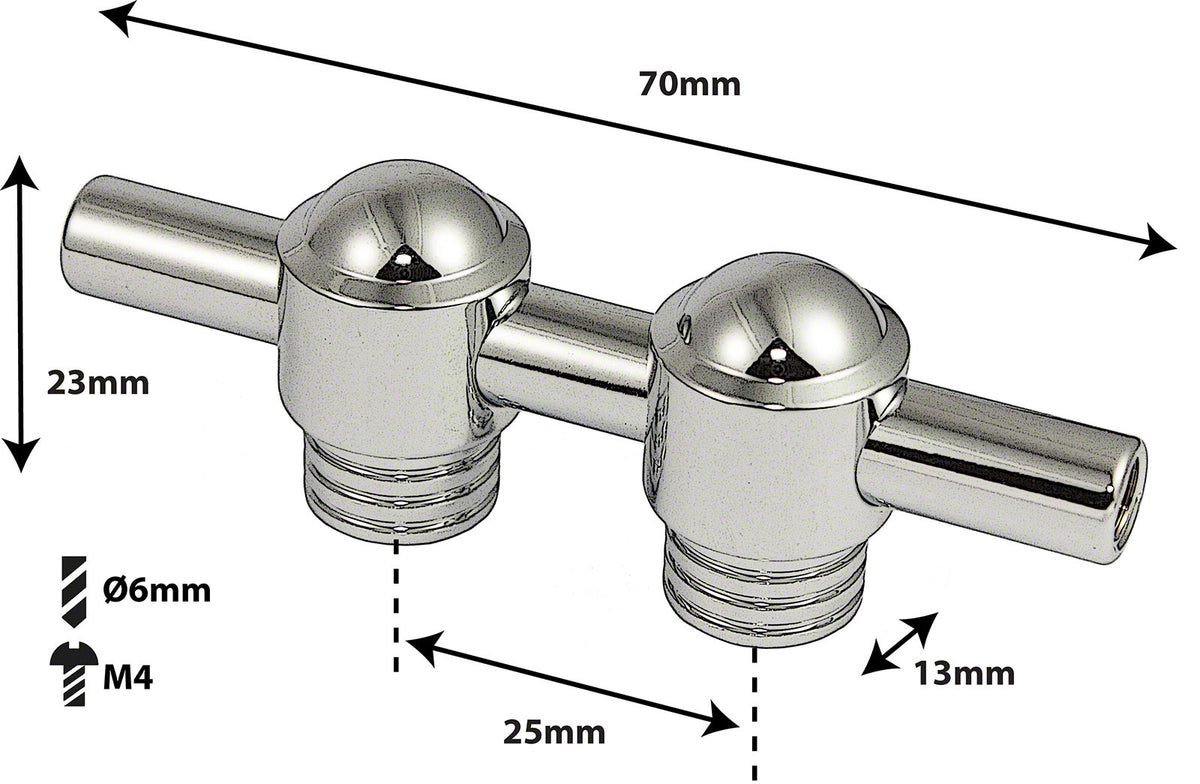

Technical specifications
| Center-to-center spacing | 25 mm | Tension rod threading | standard #12-24 (approximately 7/32 inch diameter) |
| Drill hole diameter | 6 mm | Mounting screws | not included |
| Mounting screw type | M4 | Insulating rubber | included |
You will also like
Sparedrum
FLT-C1 - CYMBAL FELT WASHER 35X15MM (X4)
Stagg
TOM LUGS - 1C-TT-HP
Drum N Base
HP180 - BASS DRUM HOOP PROTECTION - RUBBER
Sparedrum
CB-B - NYLON WASHER FOR TENSION RODS - BLACK (X20)
Sparedrum
WSC4-14 - M4 14MM - MOUNTING SCREW FOR WOODEN SHELL (X10)
Ahead
AWFJB PACK CYMBAL BLACK FELTS X10
Sparedrum
SW - STEEL WASHER FOR TENSION RODS (X20)
Sparedrum
M4 11mm - Inner Screw For Wooden Shell (X10)
Questions frequently asked
What is the drilling center distance of this tube lug?
The center-to-center distance is 25 mm, with drilling holes of 6 mm diameter.
What tension rod threading is compatible with the Sparedrum TL6D70?
The lug accepts tension rods with standard #12-24 threading, corresponding to a diameter of about 7/32 inch. This model is designed for a double tension rod setup.
Are the screws required for mounting included?
Mounting screws are not included. Assembly requires M4 screws, with length selectable according to the shell thickness.
Does this lug include a rubber isolator?
A rubber isolator is included. This element limits direct contact with the shell and can reduce mechanical noises.
Does a 25 mm tube lug help stabilize a shell's tuning?
The double tension rod design contributes to stable head tension. The included isolator helps limit unwanted vibrations caused by contact with the shell. The lug does not directly affect the wood's tone.
