Sparedrum TL8D38 - TUBE LUG - 38MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical context and positioning in the range
The tube shell is a classic piece of drum hardware: a format appreciated for its simplicity, solidity, and "vintage/industrial" look. It provides a reliable solution to replace an original shell or to mount a custom shell while maintaining a widely used tension rod standard.
Who this drum/instrument is for
This shell is aimed at drummers and technicians of all levels, from beginners repairing their kit to experts customizing or restoring shells. It suits most uses in rock, pop, funk, metal, or jazz, wherever a durable and easy-to-maintain part is needed.
Features and new elements
The #12-24 standard tension rod threading facilitates compatibility with many rods on the market. The 38 mm center-to-center spacing and 8 mm drilling allow precise mounting, while the rubber insulator helps reduce mechanical noise. Mounting screws are not included, giving you the choice of length depending on the shell thickness.
Sound characteristics
On a snare drum or tom, a well-insulated and properly tightened shell contributes to more stable tuning and can limit unwanted metallic vibrations. The insulating rubber helps preserve the natural sustain of the shell by reducing direct metal-to-wood contact, resulting in a cleaner and better-defined sound.

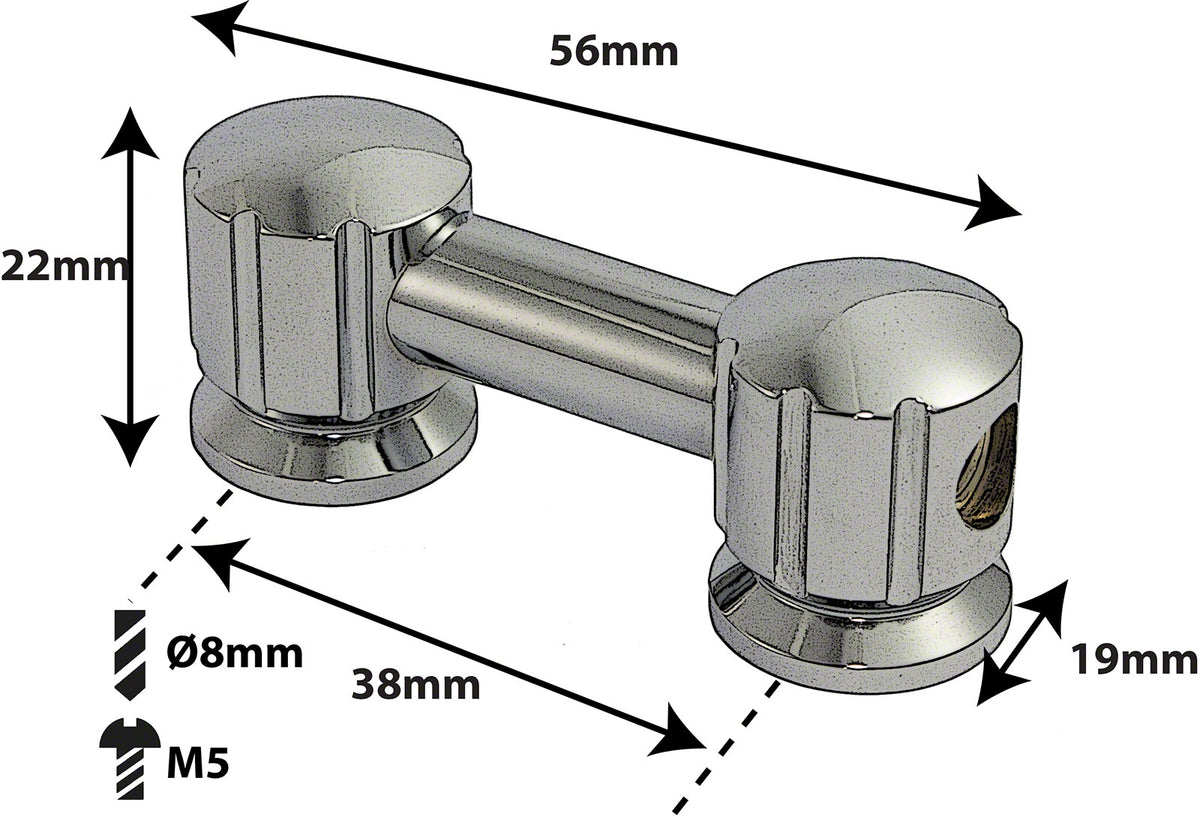

Technical specifications
| Usage | snare drum and tom (installation on bass drum possible with TLMG shell riser) |
| Center-to-center spacing | 38 mm |
| Drill hole diameter | 8 mm |
| Mounting screw type | M5 |
| Mounting screws | not included |
| Tension rod threading | standard #12-24 (7/32" diameter) |
| Material | brass |
| Finish | chrome |
| Included accessory | insulating rubber |
Questions frequently asked
What drilling center-to-center distance is required for this tube lug?
The required center-to-center distance is 38 mm, with drilling holes of 8 mm diameter.
Is this lug compatible with standard #12-24 tension rods?
The threading is standard #12-24, with a diameter of 7/32. This configuration allows the use of many tension rods conforming to this standard.
Can the Sparedrum TL8D38 be mounted on a bass drum?
The mounting is intended for snare drum and toms. Installation on a bass drum is still possible by adding the TLMG lug riser.
Are M5 mounting screws included?
M5 mounting screws are not included. Their length can thus be chosen according to the shell thickness. An insulating rubber is provided to limit direct contact between metal and wood.
What material and finish does this double-tension lug have?
The lug is made of brass and has a chrome finish.
